Product Overview
Description
Tiantai 10hl draft beer making machine brewery cost
Product Description
Welcome to checked "Tiantai 10hl draft beer making machine brewery" in detail. So, are you interested in stainless steel 10hl draft beer making machine? Hope you will find expected information here. If not, please kindly leave message or email me direct to share expected configuration information of beer making machine. I will reply you within 12 hours.10hl beer making machine
Output/Brew | 10HL | 15HL | 20HL | 25HL | 30HL | 50HL | ||
Brews/Week | 6~12 | 6~12 | 6~12 | 6~12 | 6~18 | 6~24 | ||
Output/Week | 60~ 120HL | 90~ 180HL | 120~ 240HL | 150~ 300HL | 180~ 540HL | 300~ 1200HL | ||
Electric Supply | 3phase/380(220,415,440)v/50(60)Hz (3phase electricity is necessary) Customize the equipment based on your local industrial voltage is available | |||||||
Heating Source | Steam/Directly Fired beer making machine | |||||||
Area Request | >70M2 | >100M2 | >150M2 | >200M2 | >200M2 | >300M2 | ||
Brewmaster | 1-2 | 1-2 | 2-3 | 2-3 | 2-3 | 3-4 | ||
Specification
Main configuration included in 10hl beer making machine
Kegging line: Kegs, Keg filler, Keg rinser
Bottling line: bottle filler and capper
Water treatment micro brewing equipment
Filteration unit
Specification
| Part 1: Grain Miller | |
Capacity | 300-500kg/hr |
| Function | Curshing malt for mashing |
| Material | Carbon steel or stainless steel |
Crushing Particle Size | Adjustable |
Wheels | Optional beer making machine |
Part 2: 2 vessel brewhouse | |
Capacity | 1000L brewhouse tanks and 2000L hot liquor tank |
Brewhouse structure | Mash/lauter tun+kettle/whirlpool tun+hot water tun |
Heating method | Steam heating( Boiler/ steam generator is necessary) |
Direct fire heating and Electric heating are optional | |
Pump | 1 set wort pump+1 set hot water pump |
Platform | Included |
| Heat exchanger | Double stage brand |
Customization | Customize tank structure, pipe flowing, installation and others |

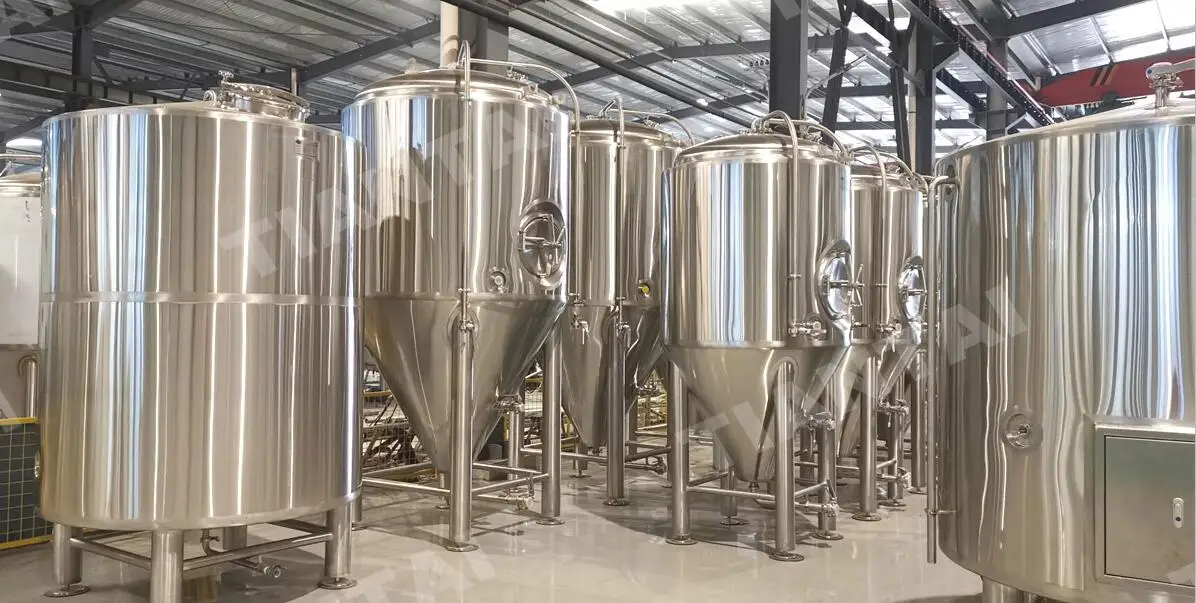

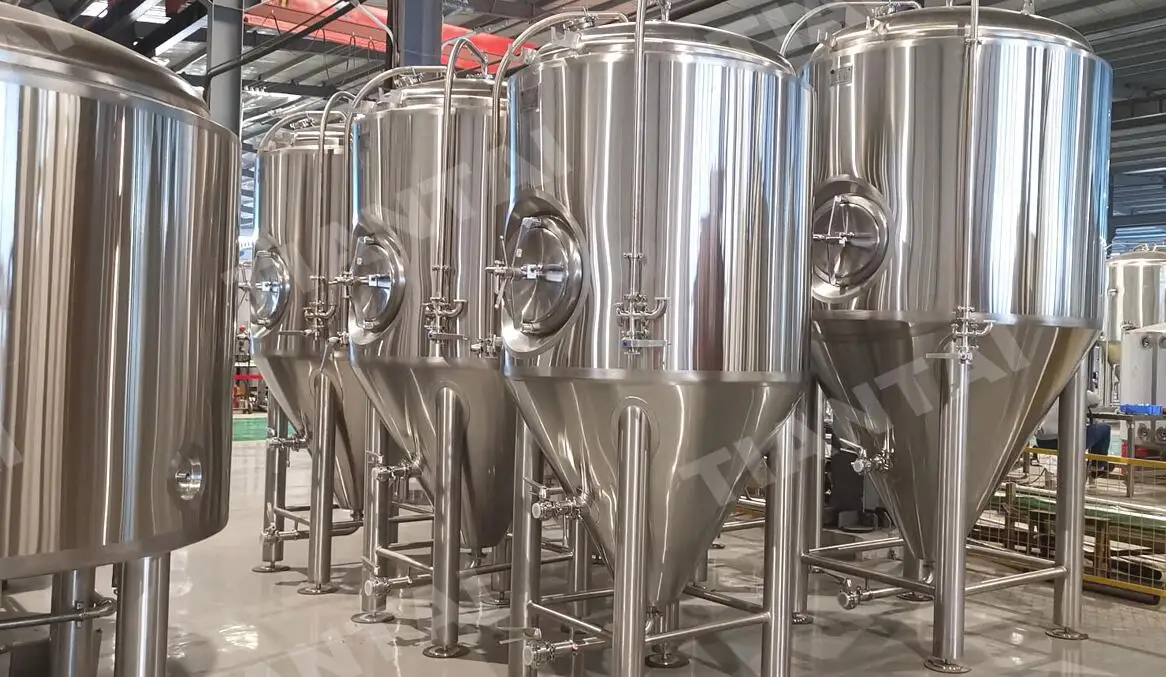

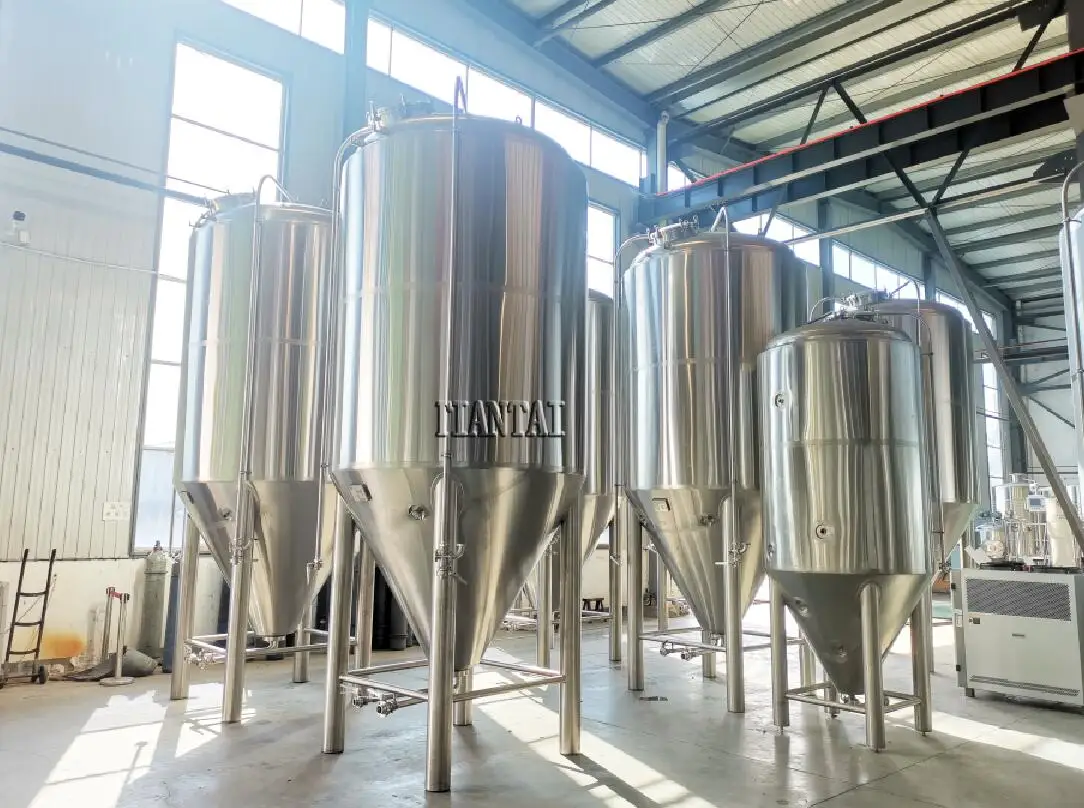

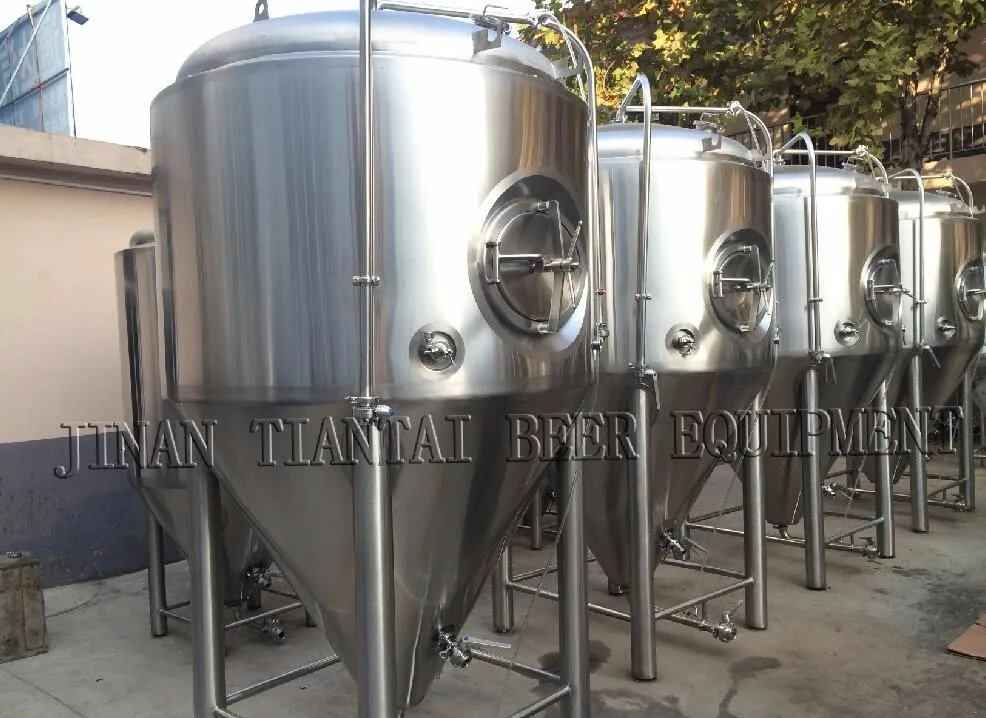

| Part 3: Fermentation Tank | |
| Capacity | 1000L fermenter or 2000L fermenter |
| Size | Φ1210mmx2710mm or Φ1560mmx3130mm(Customized ) |
| Function | Beer Fermenting/first fermentation |
| Structure | Double wall with jacket and insulation |
Manway Site | Top or Side, optional |
Cooling medium | Glycol water |
Fermenting pressure | 2bar or 3bar |
Spunding valve | Available for adjusting fermenting pressure inside tank |
| Part 4: Bright Beer Tank | |
| Capacity | 1000L Bright beer tank or 2000L bright beer tank |
| Size | Customized |
Function | Beer maturing/Secondary fermentation |
Fermenting Pressure | 2bar or 3bar |
Part 5: Glycol Chilling System | |
| Configuration | Matched glycol water tank+ chiller+pipeline |
Control type | Automatic control |
| Installation site | Outdoor |
Pipeline | PPR; PEX or Stainless Steel |
Part 6: Controlling System | |
| Cabinet Material | Anti-power Plastic painting or Stainless Steel cover |
| Assembling Style | Floor/Wall hanging |
Certificate | CE certificated |
| Control Type | Manual control; PLC automated control is optional |
Part 7: CIP Cleaning System | |
Capacity | 100L |
Structure | Two tanks with cart and wheels |
VFD | Yes |
Independent Controller | Yes |

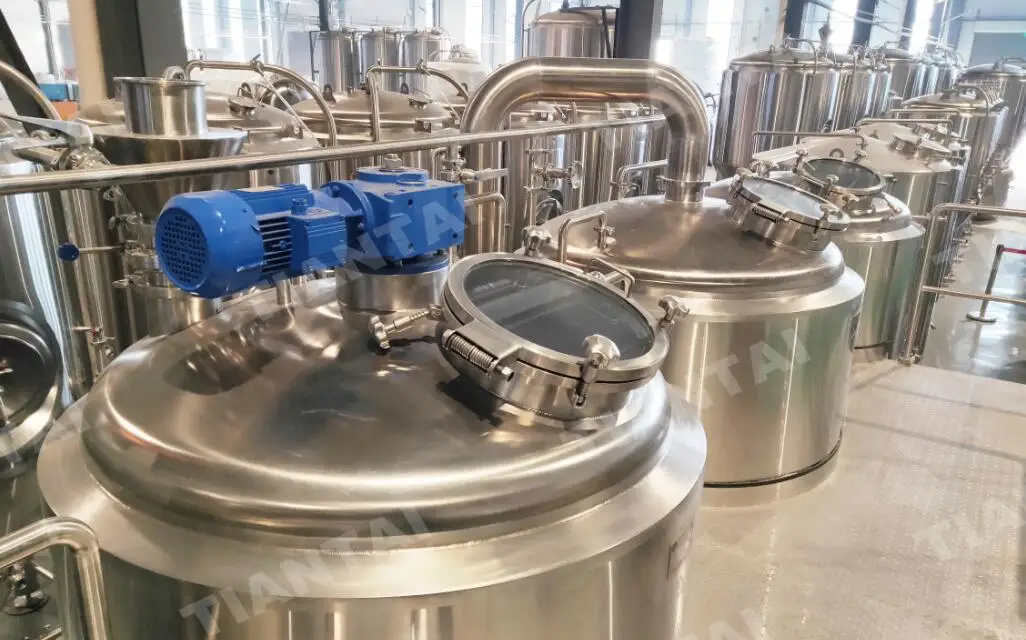

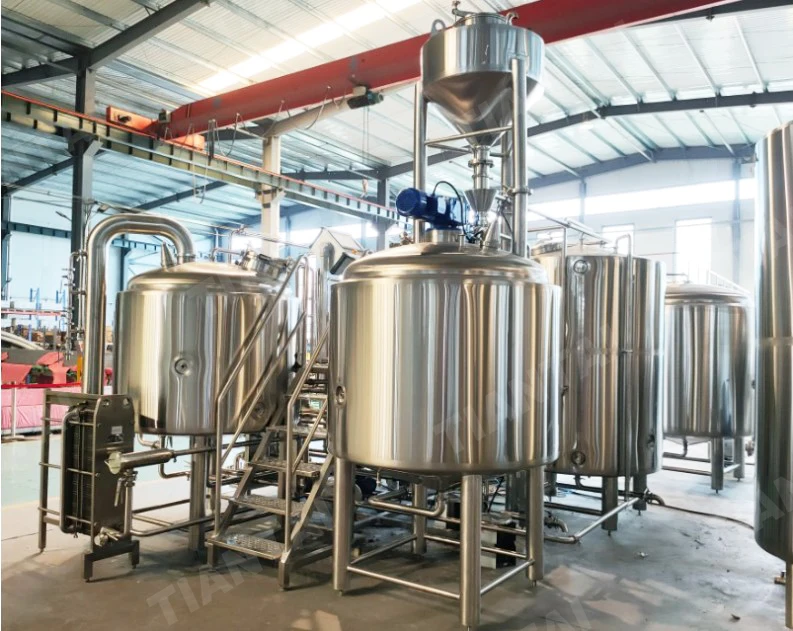

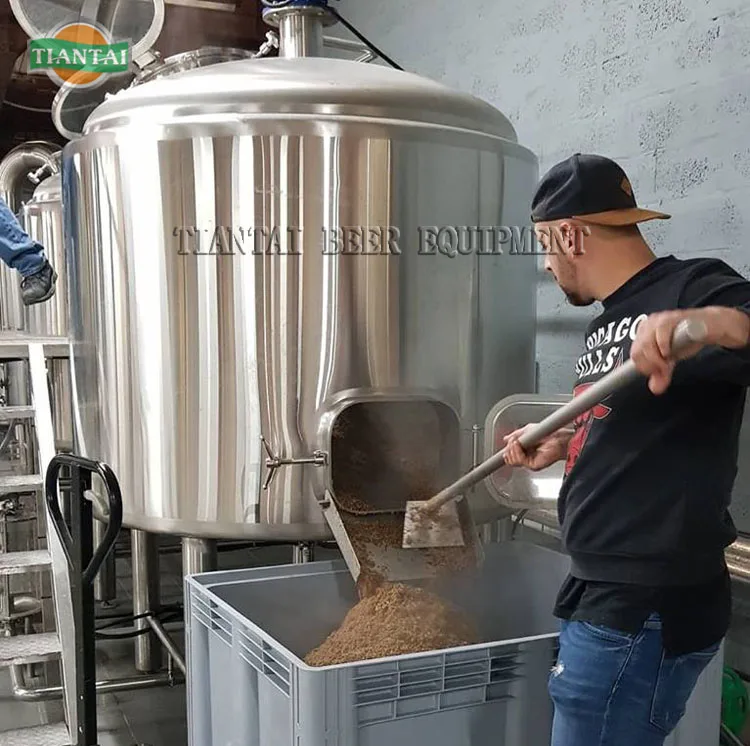

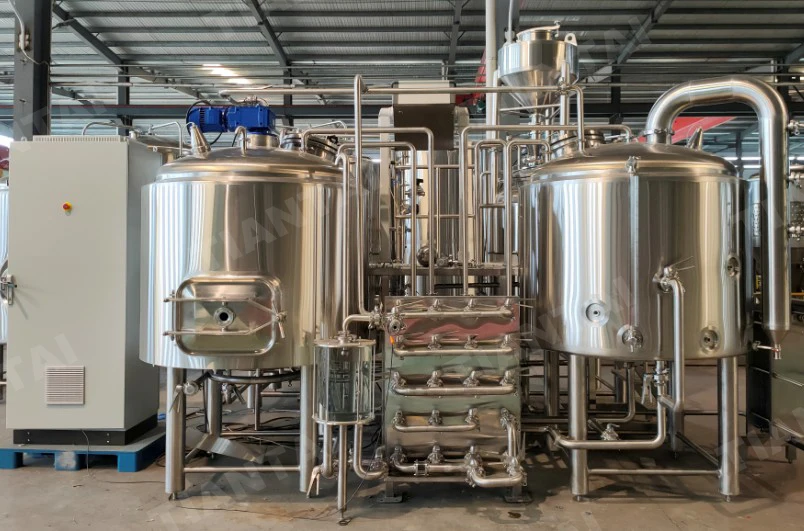

Brewhouse System 10hl beermaking machine

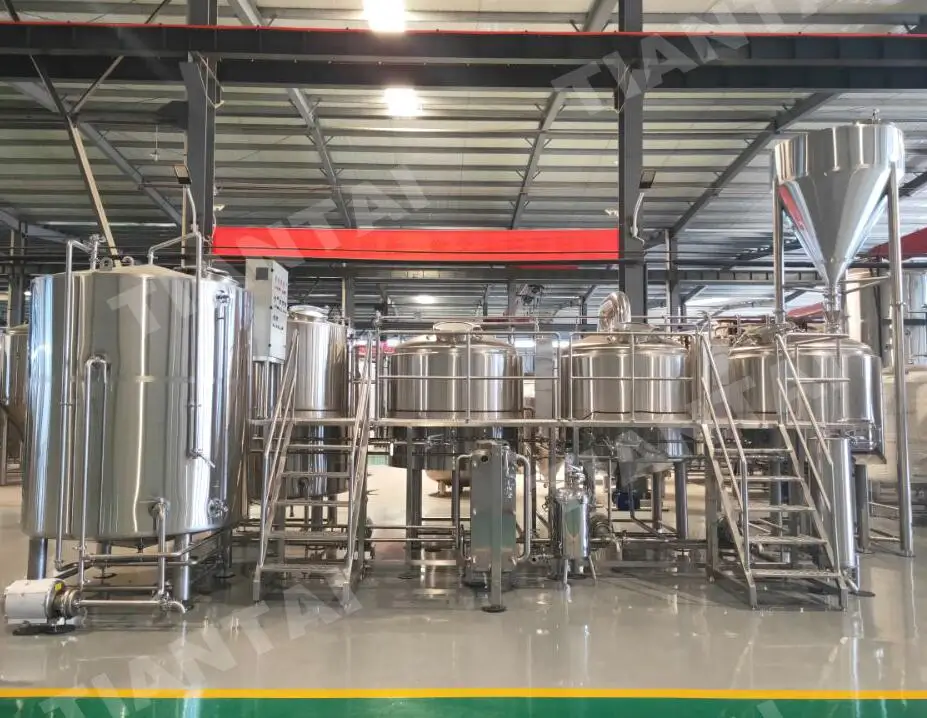

3 Vessel 10hl beer making machine
Mash tun+Lauter Tun+Kettle/Whirlpool+Hot Liquor Tank
brewery equipment
Similar product:
A. 2 vessel brewery equipment: Mash/lauter tun+Kettle/whirlpool tun+Hot liquor tank
B: Four vessel brewery equipment:
Mash tun+Lauter tun+Kettle tun+Whirlpool tun+Hot liquor tank

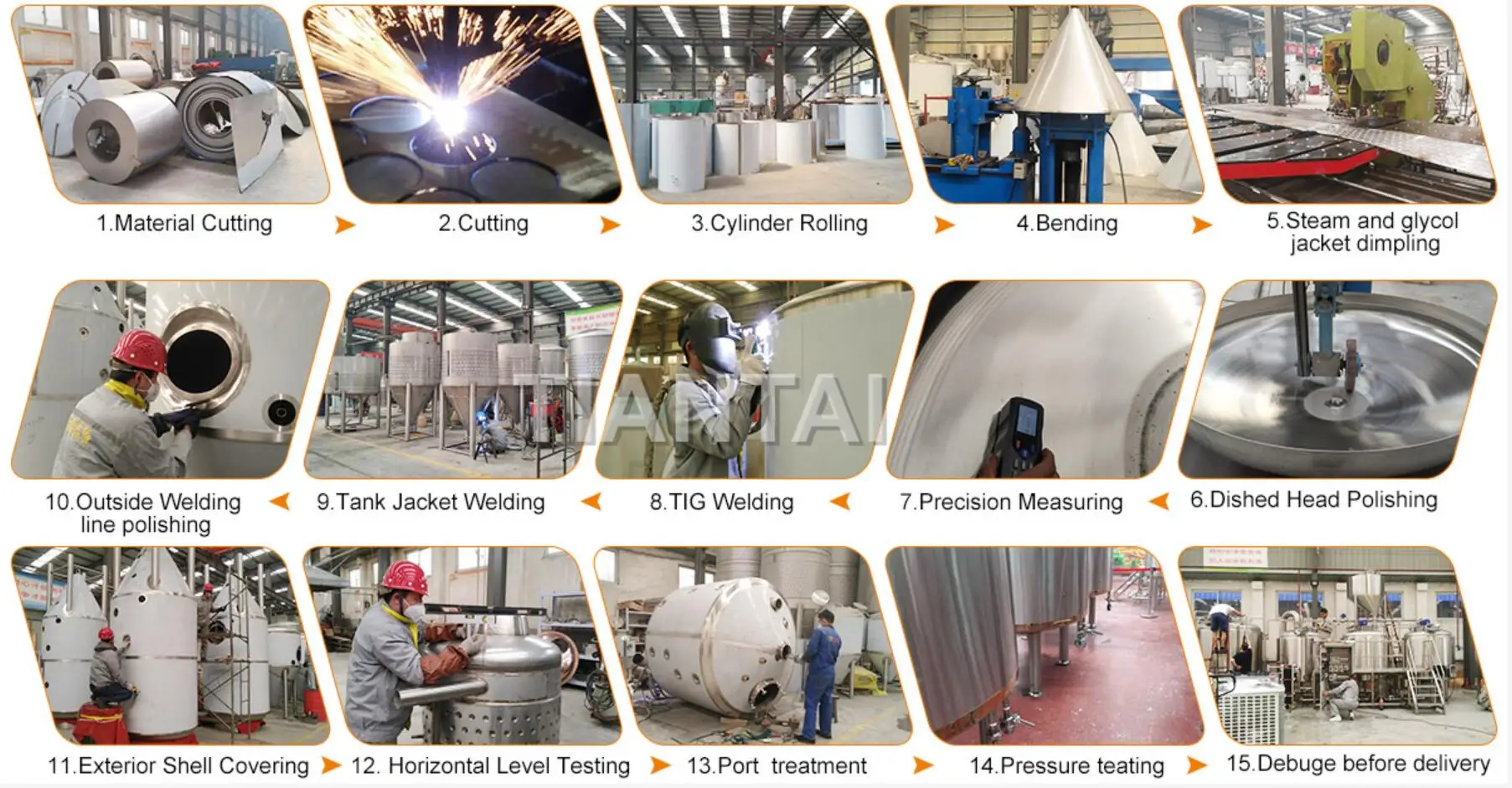

Manufacture Details
1. Welding: We abandoned the argon gas cylinder but adopt The Central System of Argon to make sure the TIG welding with pure argon gas shield. We also increase the using amount of gas when welding, so the quality of the welding line is more higher.
10hl beer making machine
2.Dimpling: We adopt dimple plate rather than belt for glycol jacket, since it can increase the cooling area and improve the speed of cooling. The most important thing in brewing process is to avoid contaminating, that is to say the most important thing in producing beer equipment is to polish the inside tanks to 0.4~0.6 μm without dead corner.
10hl beer making machine
3.Polishing: We use large-scale polishing equipment to polish the inside of the tanks -- all over the wall to make sure there is no dead corner. You need not worry about there will be some bacterias remained after cleaning.Some other manufacturers may not pay enough attention to the polishing, even some have no polishing machine.
10hl beer making machine

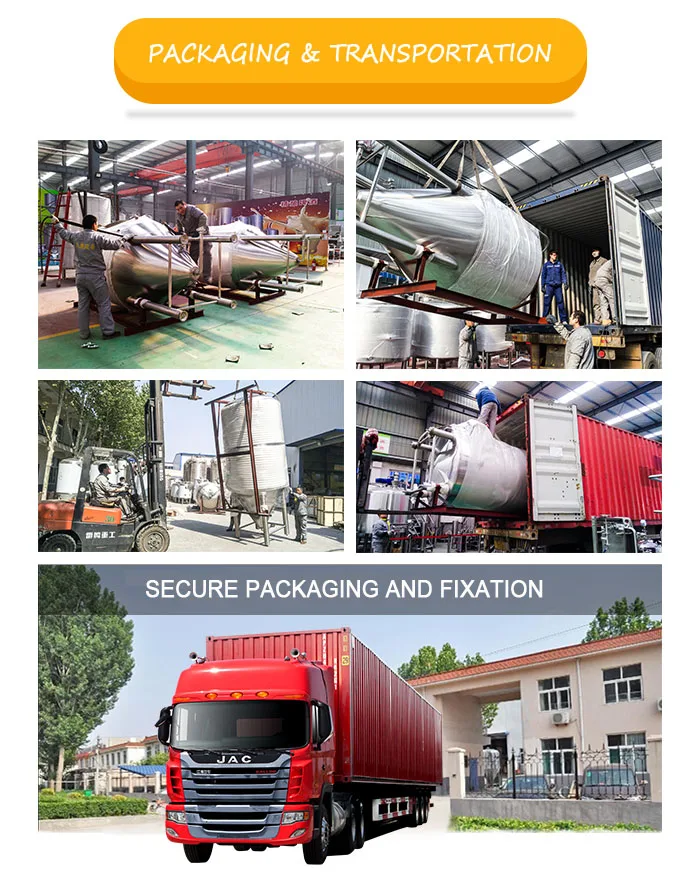

Packaging & Shipping
Before delivery, all of tanks and accessories included in beer brewery equipment will be packed with PE films and frame. 10hl beer making machine
During loading, tanks will be wired with iron wire and bolt to fix them inside container. After delivery, loading drawing will be provided to customer for learning loading layout.
This was delivering 2000L beer making machine to Canada.
Company Information
Established in 2012, we have been 6 years in this beer business. Based on honest business principle and reliable quality, we have been top 2 supplier in Jinan city. 1000L brewery equipment
And we also have We had build lot of breweries in US, Canada, European and Australia, New Zealand and south American countries... 10hl beer making machine
We sincerely hope to discuss further with you and design a nice brewery together. b
Established in 2012, Tiantai has been in this beer business for 6 years.
And we have already set up many projects abroad. For example:
Australia, America, Argentina, Canada, Chile, France, Holland, Korea, New Zealand, United Kingdom, Serbia and so on.r
