TKG UA845 UA874 5 Five Way uhf wireless microphone mic Active Antenna Combiner antenna distributor antenna distribution system
- Category: >>>
- Supplier: Guangzhou Bochuang Audio Equipment Co. Ltd.
Share on (62037067419):
Product Overview
Description

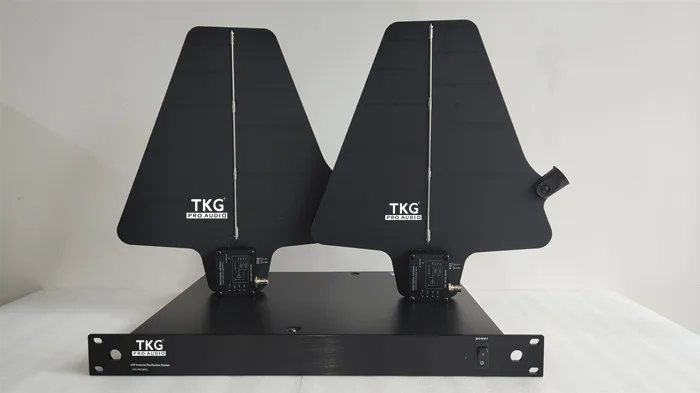

TKG UA845 UA874 5 Five-Way uhf wireless microphone mic Active Antenna Splitter antenna distributor antenna distribution system
| Model number: | UA845 UA874 |
| channels: | 5 |
| Type: | Antenna Distributor for wireless microphone. |
Features :
UA845 is a UHF active wireless pointing antenna with a dual-polarized log-periodic array. In contrast to the 1/2 wavelength omnidirectional antenna, UA845's heart-shaped pickup mode can more effectively receive signals in a predetermined coverage area and more effectively resist radio frequency signals outside the coverage area.

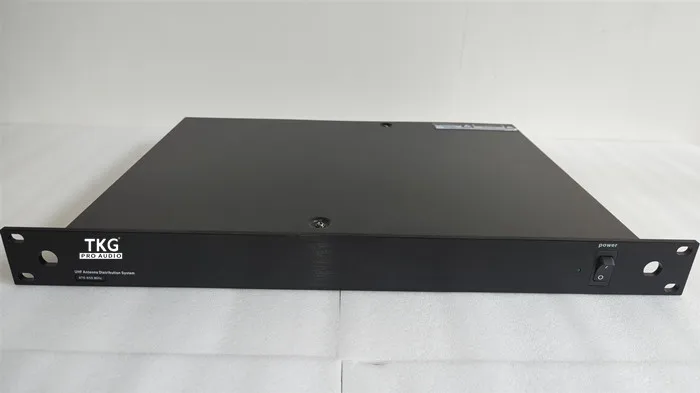

To compensate for coaxial cable signal loss, UA845's on-board amplifier provides a user-selectable 3 or 10dB gain. The gain setting is indicated by two LEDs. The antenna amplifier is powered by a remote 12V DC power supply and is supplied by the UA845 antenna distribution system via a coaxial cable. The UA845 can be mounted on a microphone stand, suspended from the ceiling, and mounted on a wall using a rotary adapter bracket. UA845 can withstand the adverse weather, suitable for outdoor use. Two UA845 antennas are used for optimum diversity performance. UA845 signal distribution system, 5 Road, broadband UHF (470-960MHz), external 4 groups of 12V / 1A Dc current (DC power supply).
To compensate for coaxial cable signal loss, UA845's on-board amplifier provides a user-selectable 3 or 10dB gain. The gain setting is indicated by two LEDs. The antenna amplifier is powered by a remote 12V DC power supply and is supplied by the UA845 antenna distribution system via a coaxial cable. The UA845 can be mounted on a microphone stand, suspended from the ceiling, and mounted on a wall using a rotary adapter bracket. UA845 can withstand the adverse weather, suitable for outdoor use. Two UA845 antennas are used for optimum diversity performance. UA845 signal distribution system, 5 Road, broadband UHF (470-960MHz), external 4 groups of 12V / 1A Dc current (DC power supply).
With progressive imported test instrument, professional technology research and development team, provide OEM & ODM project to all the clients from all over the world based on the management principle " Quality & Service & Innovation".
Packaging details:
1. First layer packaging: Produce own package box.(different designs have different packaging)
2. Second layer packaging: a outer kraft box.
