YONGLI CE Debarker/Log Debarker/Wood peeler of high quality
- Category: >>>
- Supplier: Jiangsu Yongli Machinery Co. Ltd.
Share on (62037096333):
Product Overview
Description
YONGLI CE Debarker/Log Debarker/Wood peeler of high quality
Description
1. Wood Debarking Machine, also called log debarker, wood debarker or wood peeling machine.
2. With double roller wood peeling machine roller shaft peeling, simple and strong structure, strong rigidity,low failure rate, long service life.
3. Different wood species, peeling effect can be adjusted, the wood of varying lengths, can be curved spiral wet and dry peeling machine. One machine can peel 70-100 tons of logs per day, significant savings in manpower.
4. For new cutting softwood and some hardwood peeling treatment can also be completed part of the frozen material, the processing of dry wood stripping. The double roller wood peeling machine is widely used in MDF mill, paper mills, veneer plants, wood chip plants, pulp plants, wood storage plant, forest .etc.
Basic Features for YONGLI CE Debarker/Log Debarker/Wood debarker
1. Available raw materials: mainly used for wood logs with barks.
2. Famous brand tooth surface, with high driving efficiency and long service time.
3. Debarker roller is directly connected with reducer, with stable operation and easy maintenance.
4. Debarking knives are arranged in screw type, with high debarking efficiency.
5. Equipped with belt conveyor at the bottom of wood debarker, it is set to collect
and convey barks.
6. Separated type side board, which makes maintenance more convenience.
7. Can be customized according to raw material diameter and length.
8. Continuously operation allowed.
9. Hydraulic opening gates allowed according to technological process.
10. NSK/SKF bearing.
11. With double roller wood peeling machine roller shaft peeling, simple and strong
structure,strong rigidity, low failure rate, long service life.
12. It will be different according to different raw materials, moisture content and size.
The whole process is highly automatically controlled.
13. Ambient temperature control,temperature range: -20 ° C - + 50 ° C.
YONGLI Single Roller Wood Debarker Technical Parameters
Model |
Capacity (T/H) |
Number of Blade Roll(pc) |
Diameter Range(mm) |
Maximum Timber Length (mm) |
Power of Motor (kw) |
Peeled Rate |
Timber Loss |
Dimension (mm) |
Weight (T) |
YLMB-Z600I | 3-6 | 1 | 20-500 | 5000 | 11+1.5 | >95% | <2% | 7500*1330*1930 | 4.3 |
YLMB-Z900I | 6-10 | 1 | 20-500 | 7000 | 15+3 | >95% | <2% | 10500*1330*1930 | 5.5 |
YLMB-Z1200I | 10-15 | 1 | 20-500 | 9000 | 22+3 | >95% | <2% | 13500*1330*1930 | 7.2 |

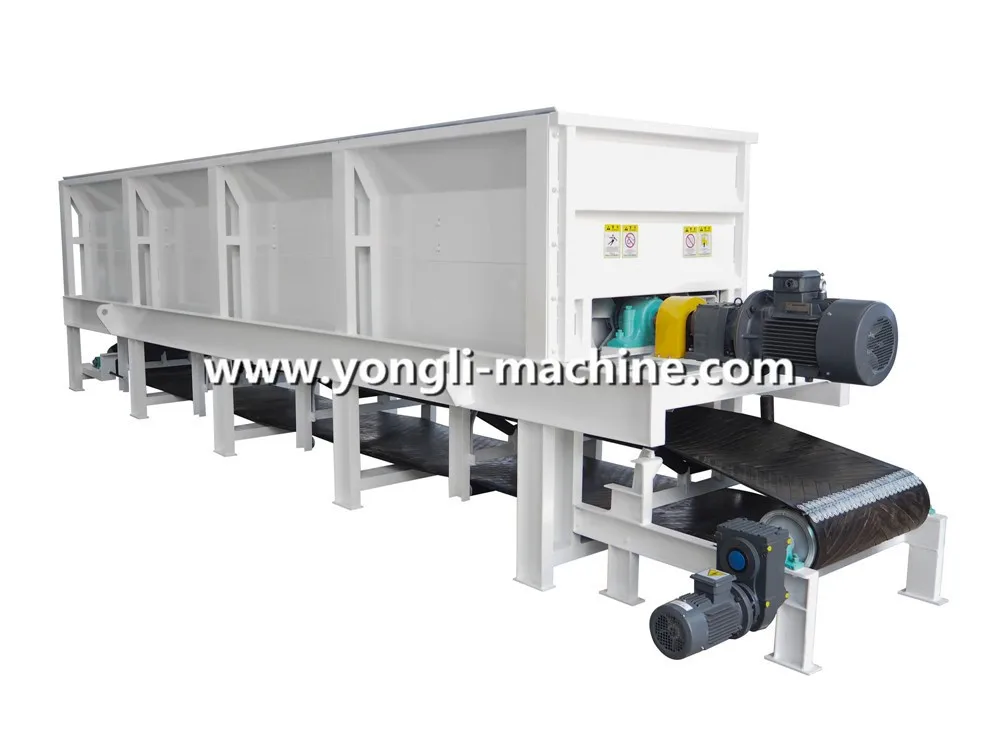

Single Roller Wood Debarker

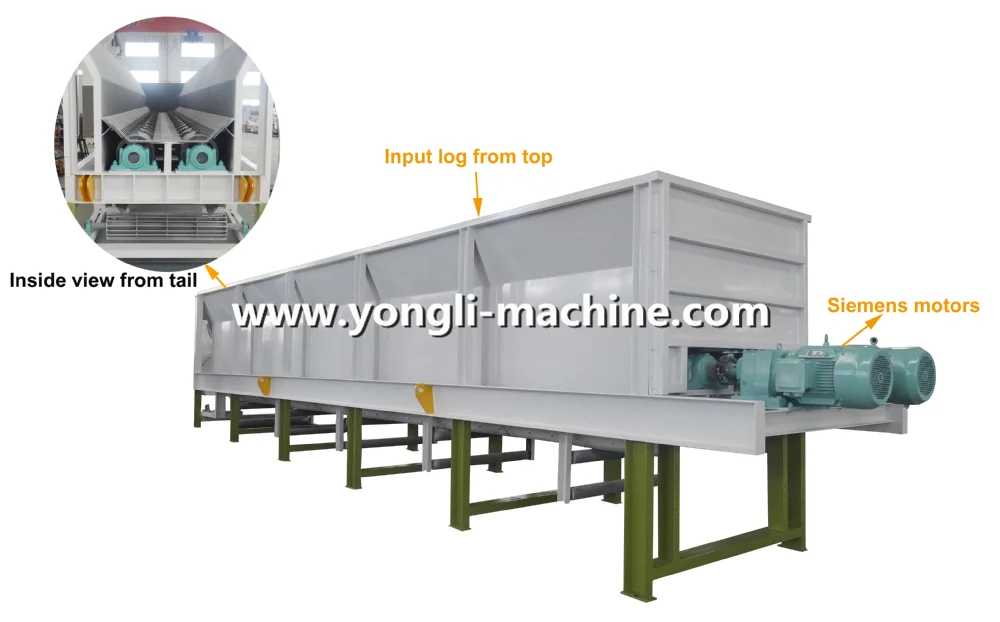

YONGLI Double Rollers Wood Peeling Machine Technical Parameters
Model |
Capacity (T/H) |
Number of Blade Roll(pc) |
Diameter Range(mm) |
Maximum Timber Length(mm) |
Power of Motor(kw) |
Peeled Rate |
Timber Loss |
Dimension(mm) |
Weight (T) |
YLMB-Z600II | 7-12 | 2 | 20-500 | 5000 | 11*2+1.5 | >95% | <2% | 7500*1660*2160 | 6.5 |
YLMB-Z900II | 15-25 | 2 | 20-500 | 7000 | 15*2+3 | >95% | <2% | 10500*1660*2160 | 8.1 |
YLMB-Z1200II | 25-30 | 2 | 20-500 | 9000 | 22+3 | >95% | <2% | 13500*1660*2560 | 10.2 |

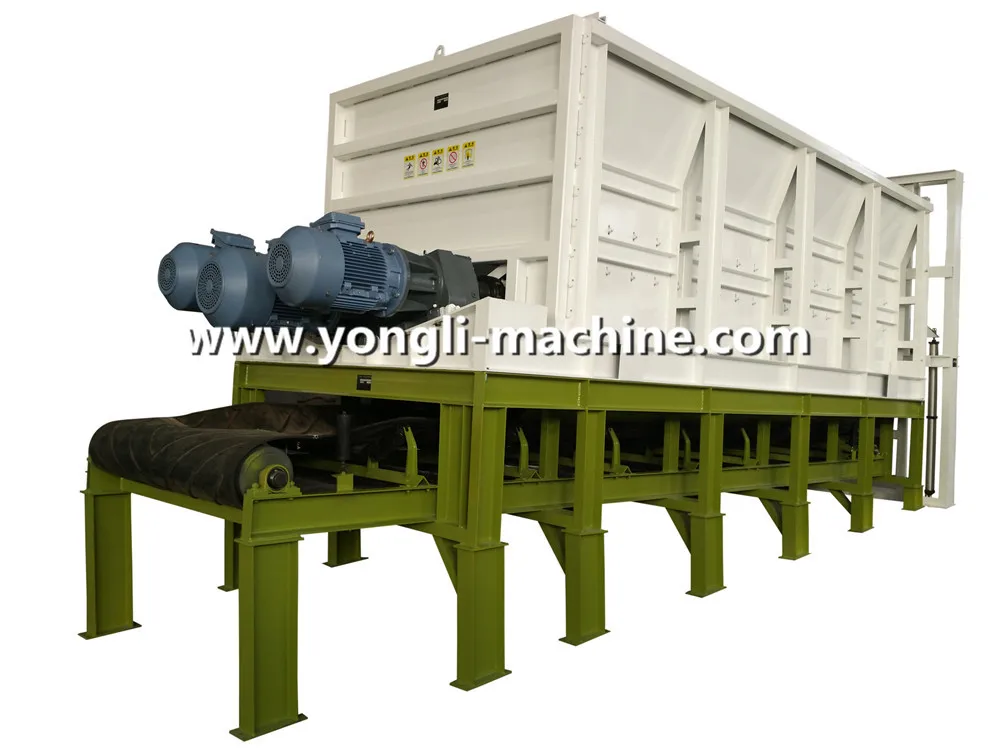

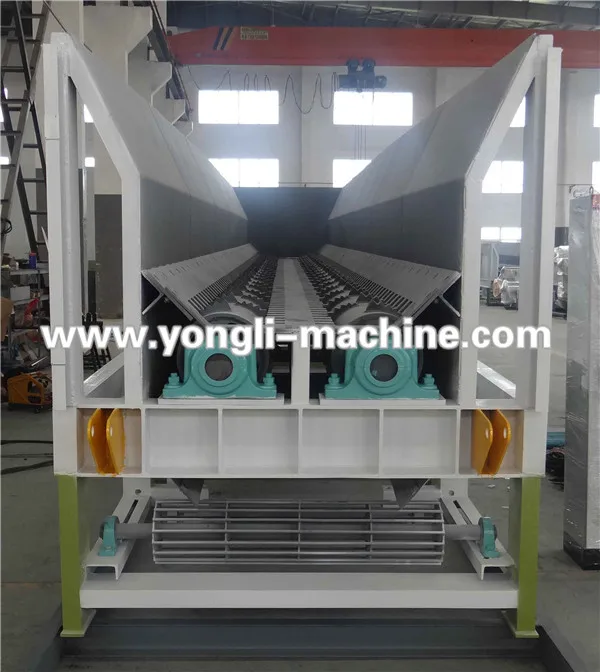

Double Rollers Wood Peeling Machine
YONGLI Three Rollers Wood Debarker
Features
1. Adaptable for wood, and it is available for different tree species, diameter, length and shape of the short-cut wood.
2. Simple structure, strong rigidity, low failure rate, long service life.
3. Open-type silos, can feed from one end, discharge from the other end, overcome the existing drum-type debarker power outage, the expected shortcomings of the work of sub-type, high efficiency.
4. As the impact of the teeth on the short-cut wood, not only make short-cut wood do circular motion within the cabinet, and around their own rotation, so the peeling efficiency is high. Eucalyptus, poplar and other hard-skinned species have better skinning effect, clarity of 95% or more.
5. Low energy consumption, low failure rate, small maintenance workload, low vibration and noise.
Technical parameter
Model | YMBT450 |
Capacity(t/h) | 25-30 |
Number of Blade Roll(pc) | 3 |
Diameter Range(mm) | 20-1000 |
Maximum Timber Length(mm) | 1500 |
Power of Motor(kw) | 15*2+18.5+3 |
Peeled Rate | >95% |
Timber Loss | <2% |
Dimension(mm) | 6964*2500*3030 |
Weight(T) | 13.57 |

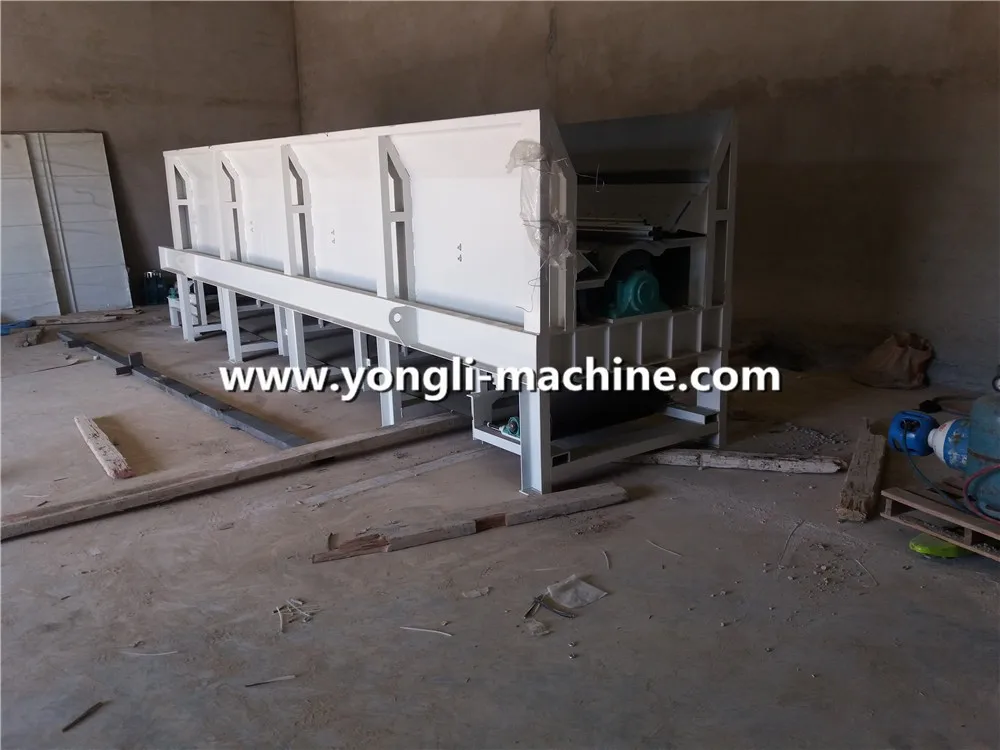

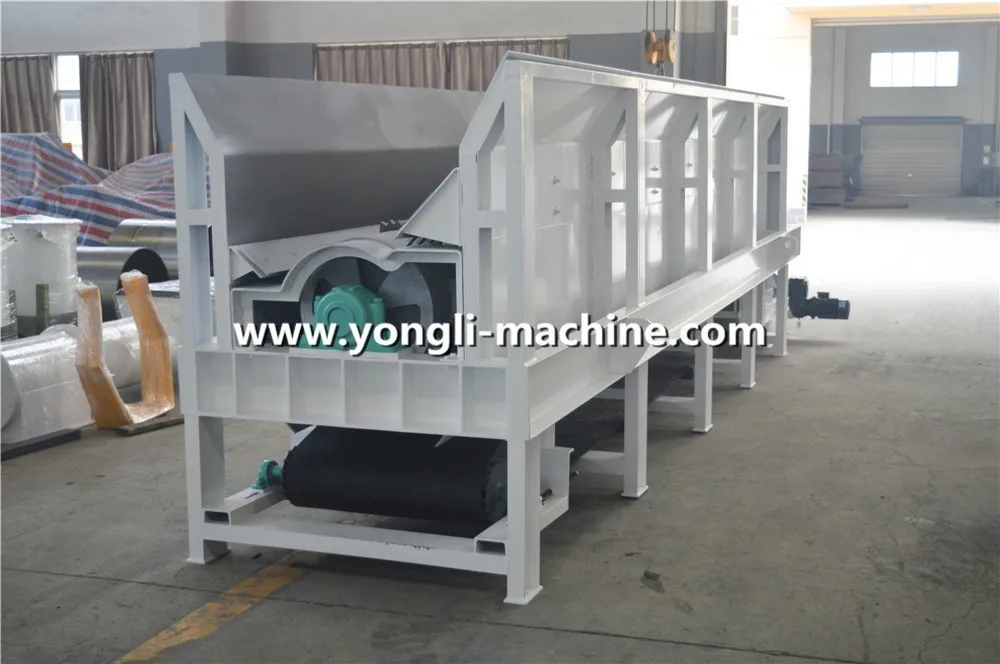

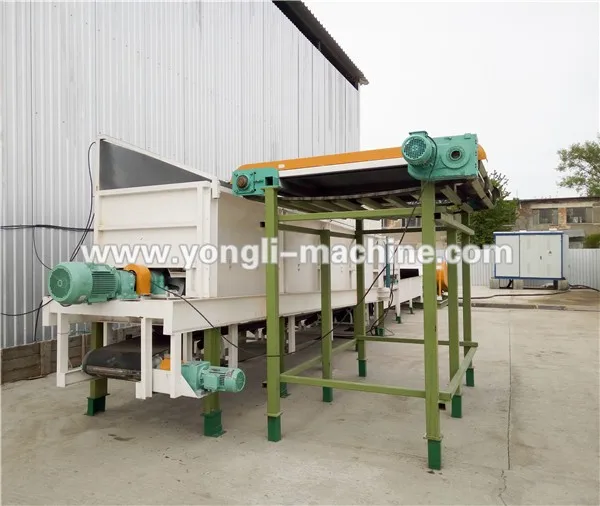

Wood Debarking Machine Details
Related Products

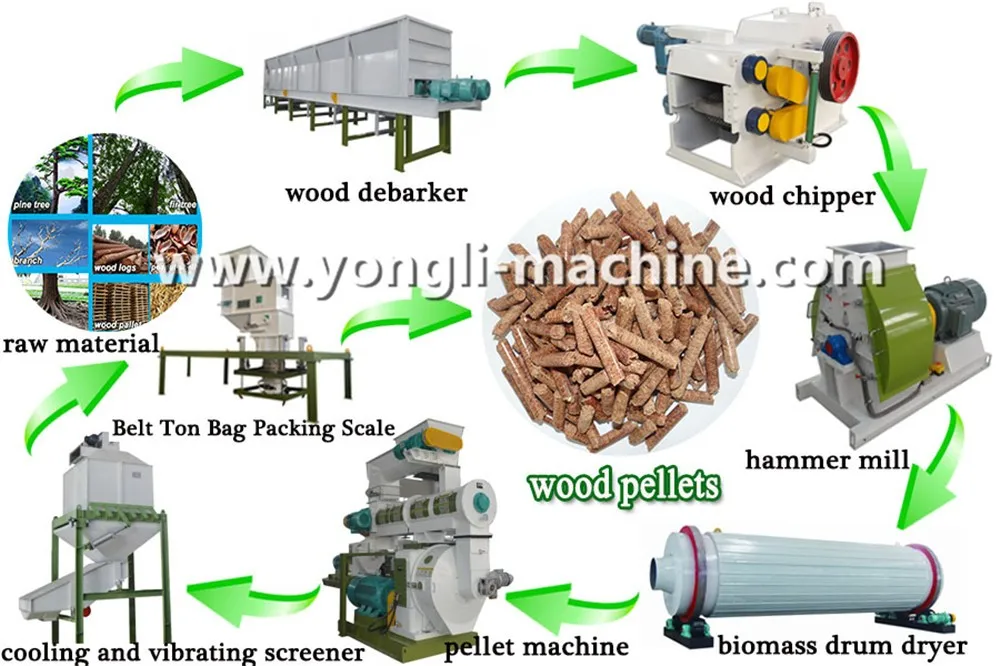

YONGLI can provide complete wood pellet production line.
Certifications
About YONGLI
Jiangsu YONGLI Machinery Co.,Ltd. was established in year 2003 with an occupation of 22,000 s.m, located in Jiangsu, China. YONGLI is an excellent provider and operator for feed and biomass equipment. YONGLI is specialized in the design, fabrication and installation of High-end Feed mill projects and wood biomass pellet projects which closely connected with the pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, feed mill, fish feed extruder, cooler, conveyors, bucket elevator etc. YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard.
Under the principle of “High Quality, Competitive Price, Technical Innovation, Excellent Service”, YONGLI has been in a leading position in the market, and it has won high reputation by global clients. Up till now, YONGLI has already exported machine to more than fifty countries, such as: Canada, USA, Portugal, Greece, Russia, Latvia, France, Lithuania, Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand, Indonesia, Sri Lanka, Dubai, Australia, New Zealand and so on. YONGLI promise that clients can get optimum benefit at minimum investment.
Our Services
YONGLI Service
1. Make optimal design and layout according to clients raw material and capacity request.
2. Make booking for shipment from YONGLI factory to clients factory.
3. Provide installation and debugging for clients.
4. Provide free training on-site for clients.
5. Provide English manual for whole line machines to clients.
6. Quarterly return visit to clients.
Advantages
YONGLI Advantages
1. Inquiry could be replied within 2 hours.
2. Warranty period for max. five years.
3. Customized design based on clients request.
4. Independent R&D team and strict & scientific management system.

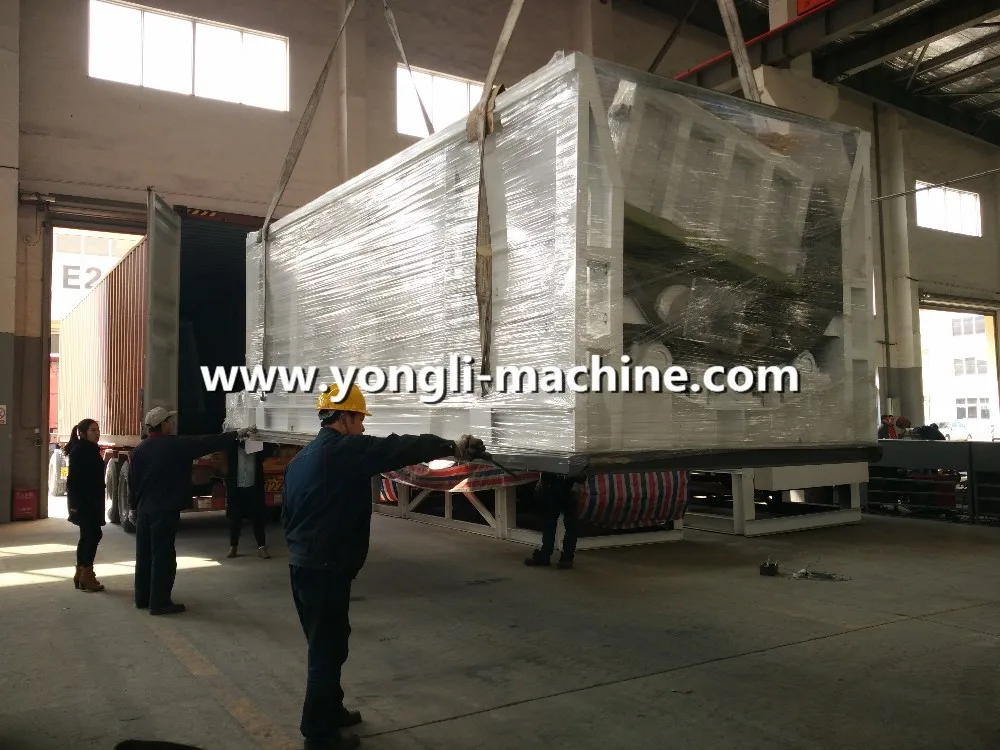

Packaging & Shipping
Delivery Management
When the container arrived our factory, our shipping operator and delivering equipment will be ready on time to ensure goods shipped based on Sales Order requirement.
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). The working lifespan of Yongli machines is at least 20 working years.
3). Yongli wins 21 national patents for machines by our senior R&D engineers.
2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has overseas service center in USA, Germany, Italy, Malaysia, Tunisa etc, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
3. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
4. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
5. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.
6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.
7. Where is your factory located? How can I visit there?
Answer: Our factory is located in Li yang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
