China custom made electronic led tv pcb board led pcbledpcb pcb board
- Category: Multilayer PCB >>>
- Supplier: Shenzhen Tianweisheng Electronic Co. Ltd.
Share on (62037141944):
Product Overview
Description
Product Description

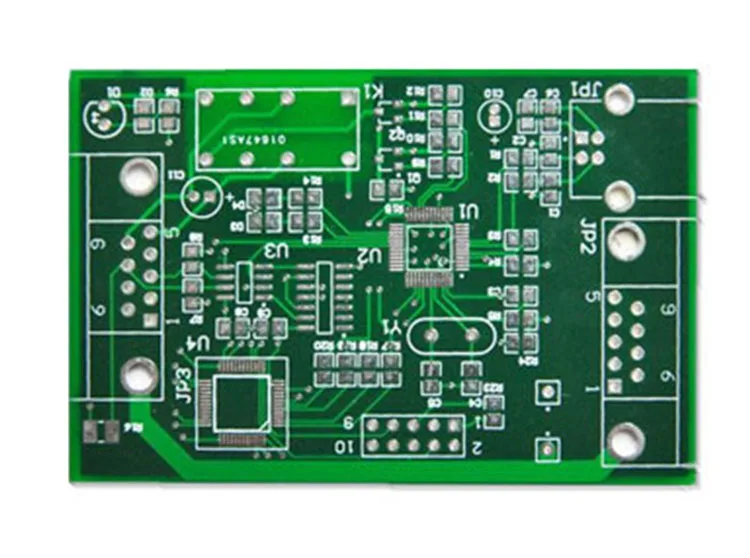

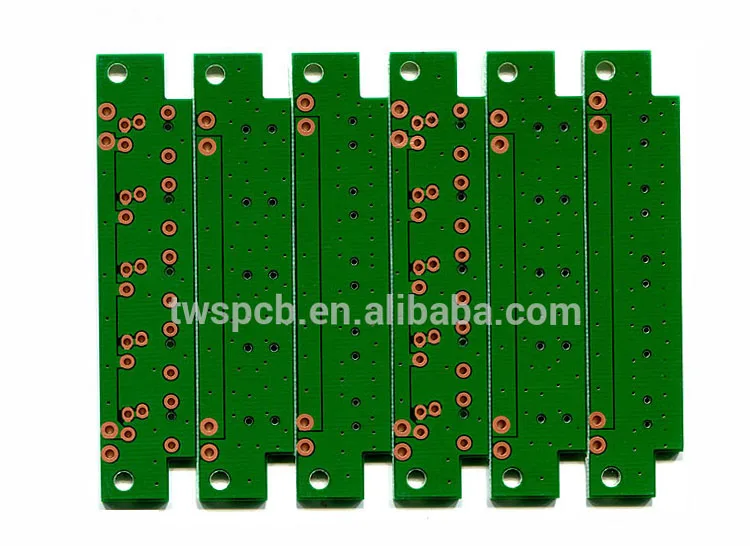

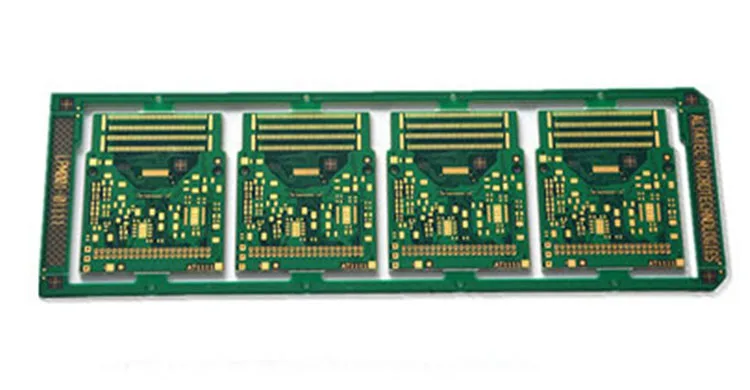

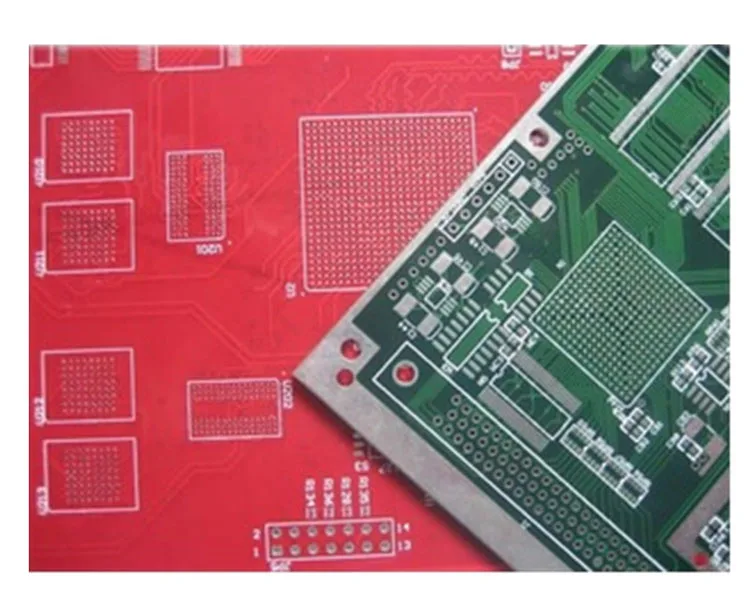

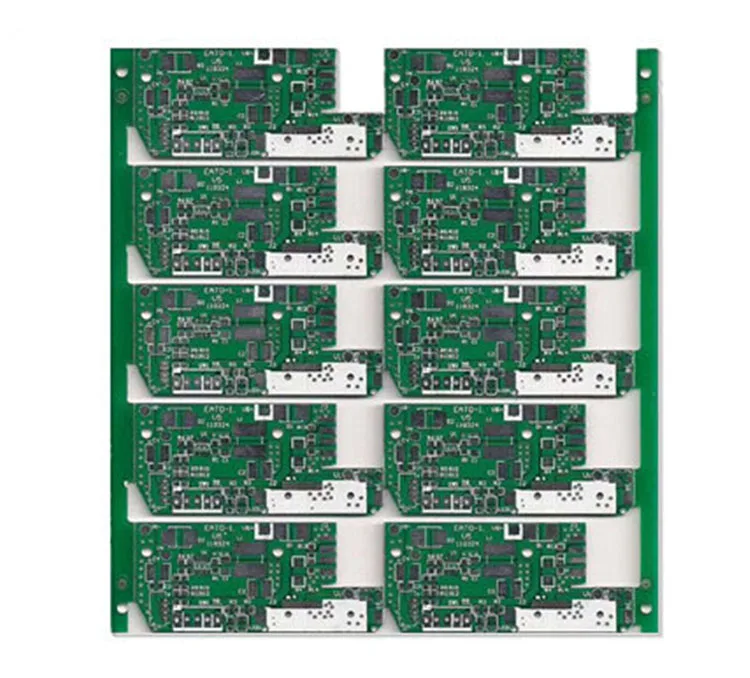

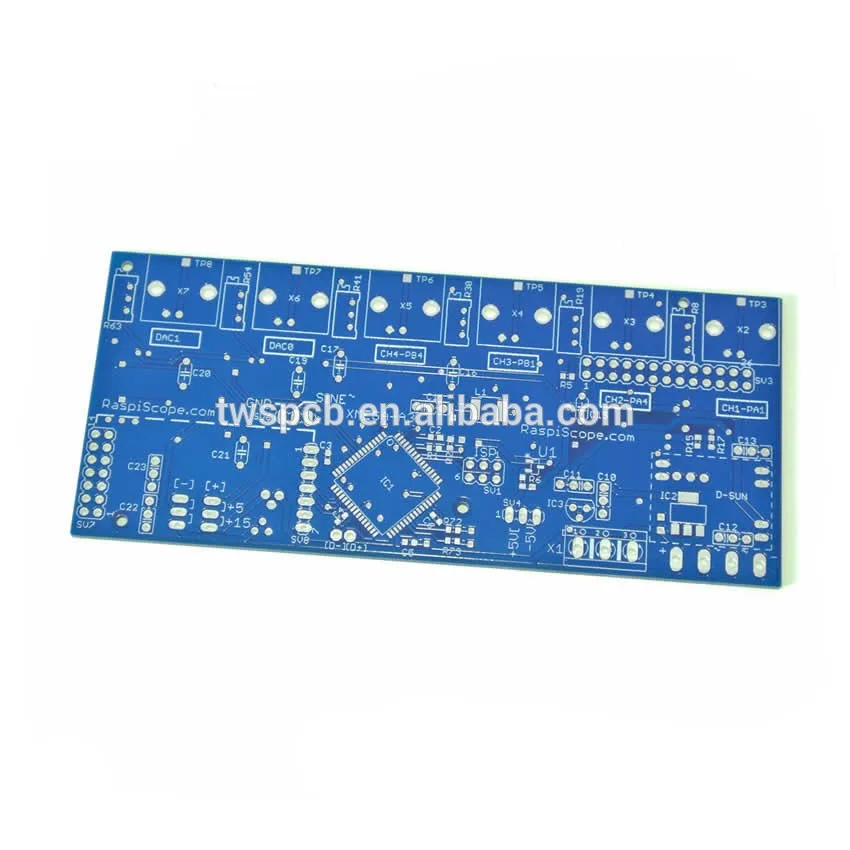

China custom made electronic led tv pcb board led pcbledpcb pcb board
| Images | |
| Min Trace Width (a) | 0.075mm (3mil) |
| Min Space Width (b) | 0.1mm (4 mil) |
| Min Annular Ring | 0.1mm (4 mil) |
| SMD Pitch (a) | 0.2 mm(8 mil) |
| BGA Pitch (b) | 0.2 mm (8 mil) |
| Solder Mask | |
| Min Solder Mask Dam (a) | 0.0635 mm (2.5mil) |
| Solder mask Clearance (b) | 0.1mm (4 mil) |
| Min SMT Pad spacing (c) | 0.1mm (4 mil) |
| Solder Mask Thickness | 0.0007"(0.018mm) |
| Holes | |
| Min Hole size (CNC) | 0.2 mm (8 mil) |
| Min Punch Hole Size | 0.9 mm (35 mil) |
| Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
| Hole Position Tol | ±0.075mm |
| Plating | |
| HASL | 2.5um |
| Lead free HASL | 2.5um |
| Immersion Gold | Nickel 3-7um Au:1-5u'' |
| OSP | 0.2-0.5um |
| Outline | |
| Panel Outline Tol (+/-) | CNC: ±0.125mm, Punching: ±0.15mm |
| Beveling | 30°45° |
| Gold Finger angle | 15° 30° 45° 60° |
| Certificate | ROHS, ISO9001:2008, SGS, UL certificate |
