P105 Double Joint HB pin type Steering Universal Joints Unsplined gimbal coupling

HB Double Type Universal Joint(HB-D Type)  Gimbal Coupling

• HB type with max. speed is 2000RPM and NB type with max. speed is 3000RPM
• HB type with max. articulation angle 35°
• NB and HB type are with the same design concept and the main difference is NB use need bearing, HB is without needle bearing sleeve
• NB  is applied to more higher speed transmission
• Please select the model according to the working condition and the theoretical value of folloiwng table
• Application:Sweeping machine, snow sweeper, automatic bicycle, packaging equipment, conveyor belt, food machinery,etc.

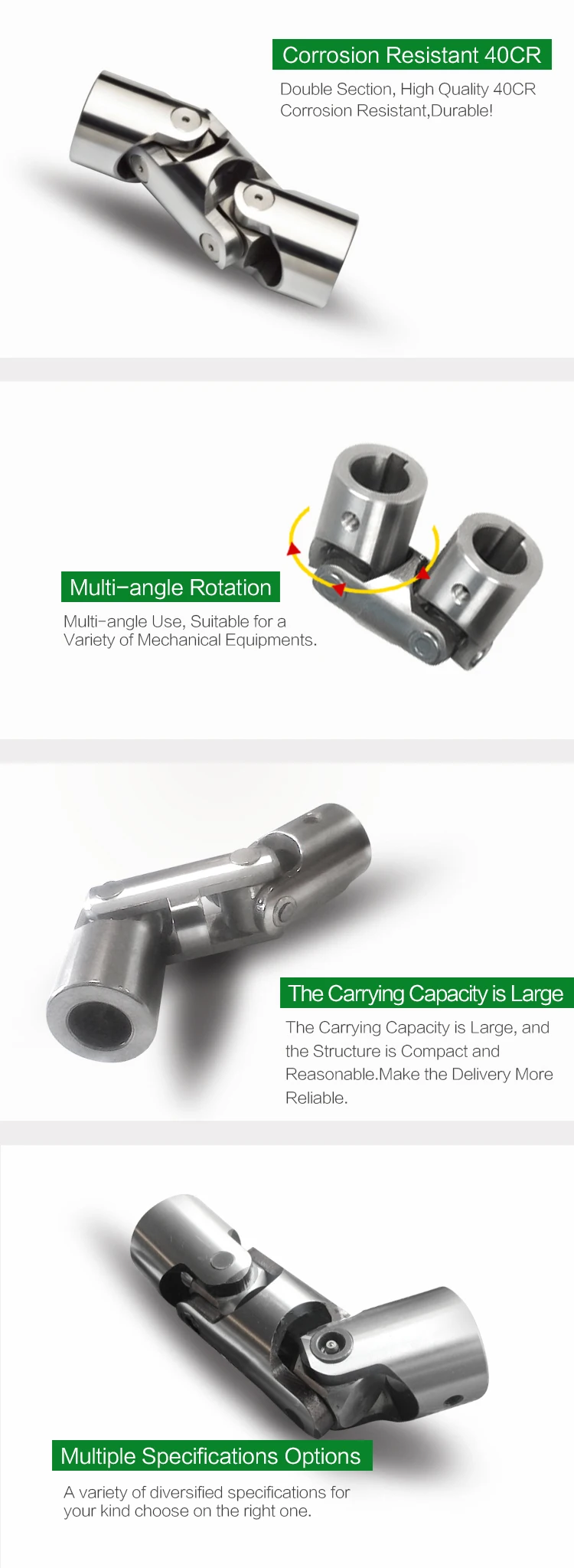

• Here list photo of Double Joint of HB-D Type Universal Joint

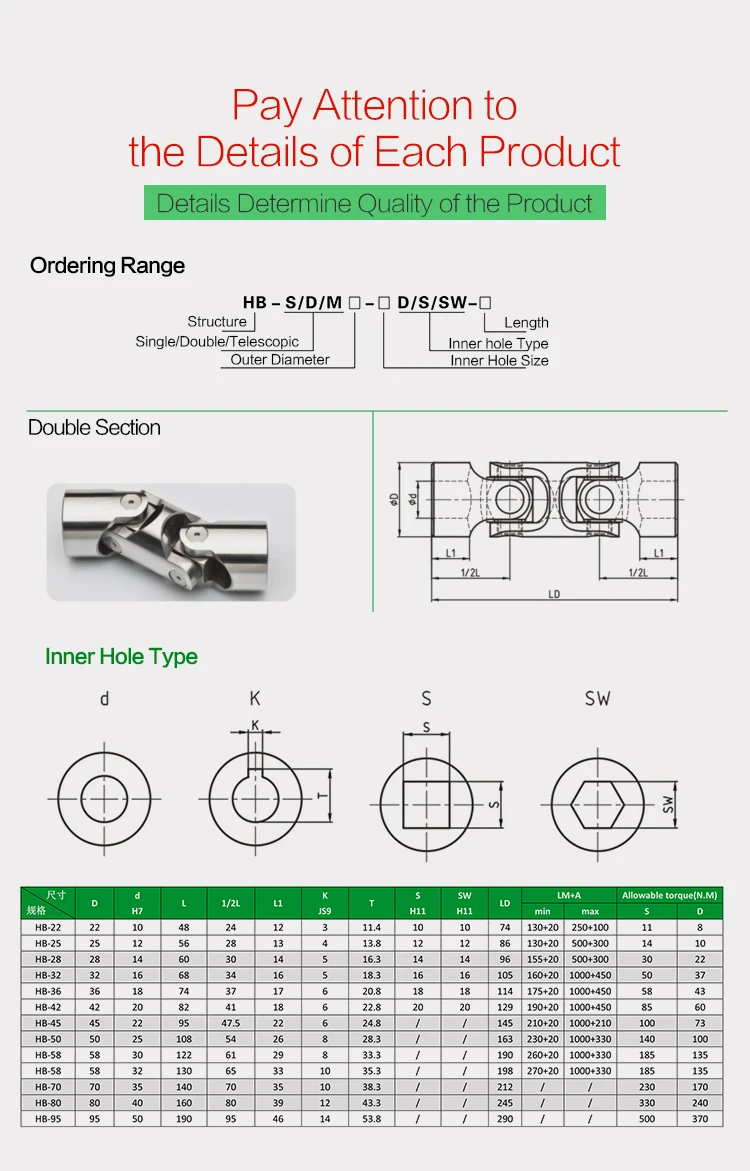

 Main dimensions for your kind choice or customized base on your drawing.
