Product Overview

Description

Product Description

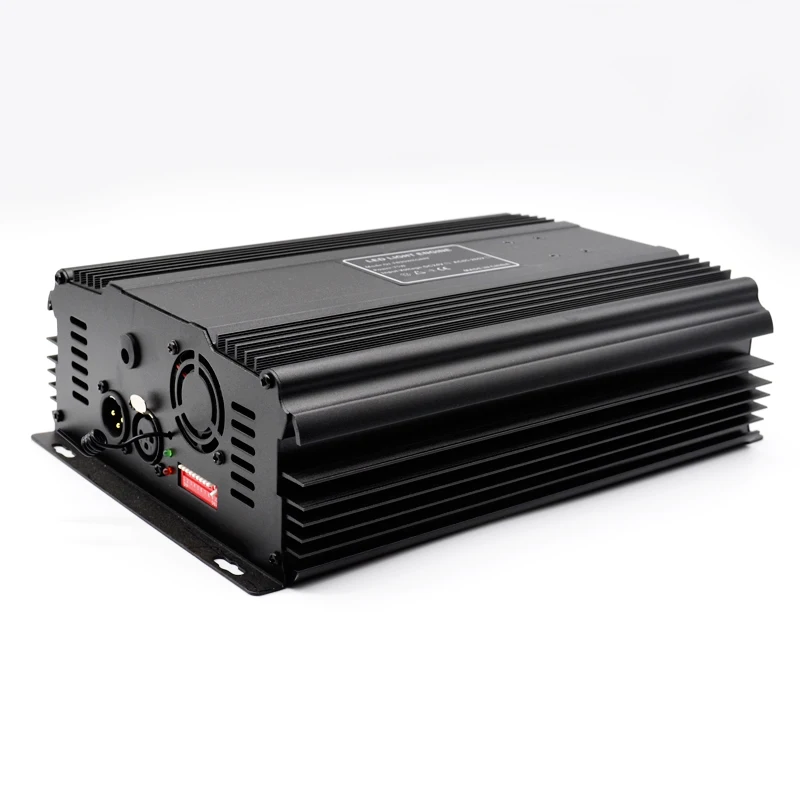

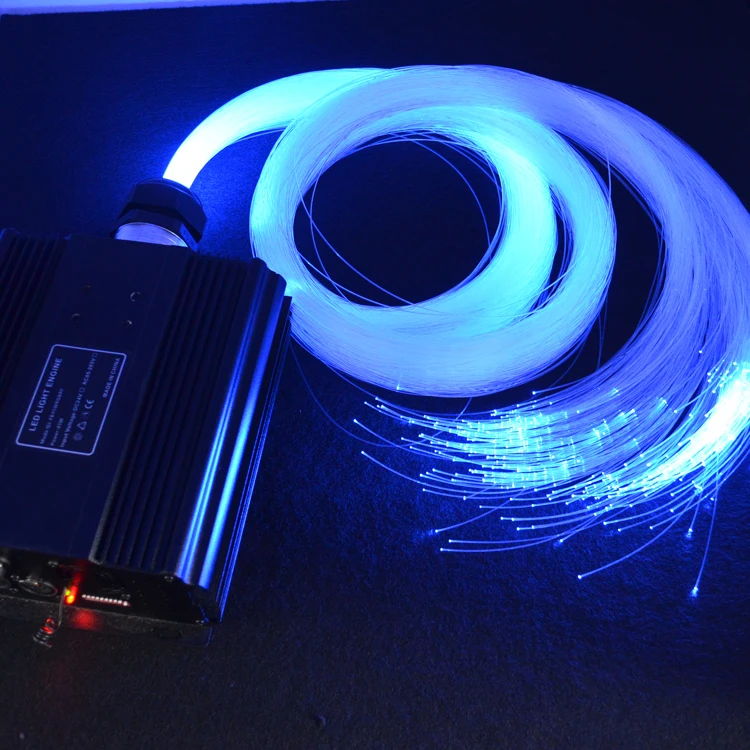

90W RGB LED DMX Fiber Optic Light Engine
Input Voltage
24V DC
Power
90W
Power Source
LED RGB
Fiber Connector Diameter
30mm, can hold up to 1250pcs 0.75mm fiber optic.
Size of Engine
L280*W200*H80mm
Key Features
DMX512 socket standard XLR
Input Signal
DMX512/1990
Output DMX
3 channels (RGB)
Output Gray Level
256
Lifetime
50000 Hours
Warranty
2 years


Main Features:

*** 90W high power super bright LED light engine.

*** Speed and brightness adjustable.

*** Multiple effect modes. Includes static color modes and dynamic modes (jump color mode and fade color mode).
*** DMX512 function, can be used online.
*** Three control mode. There are DMX MODE, RF REMOTE MODE and AUTOMATIC MODE.
*** Aluminum shell for better protection.

Welcom OEM,ODM,OBM .

DMX512 Function

The item have DMX512 function, can be used in serval online.

There are DMX mode, RF mode and Automatic mode.

1. DMX MODE
In this mode, you can control the fiber optic light engine with DMX512 console or PC DMX512 console.



Note: FUN=OFF (the tenth code switch up) means to accept DMX512 signal mode.

The first DMX address setting:

The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DMX512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.

Example1:

As the following Schematic 1, DMX512 start address is set to 38, encoding the No. 6,3,2 position on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32 + 4 + 2, that is the DMX512 start address 38.

Example 2:

As the schematic 2, DMX512 start address is set to 388,
encoding the no. 2,3,6,8 switch dial to "1", others set to "0", then the sum of the switch 1-8 code value is 4 + 128 + 256 = 388, that is the DMX512 start address 388.

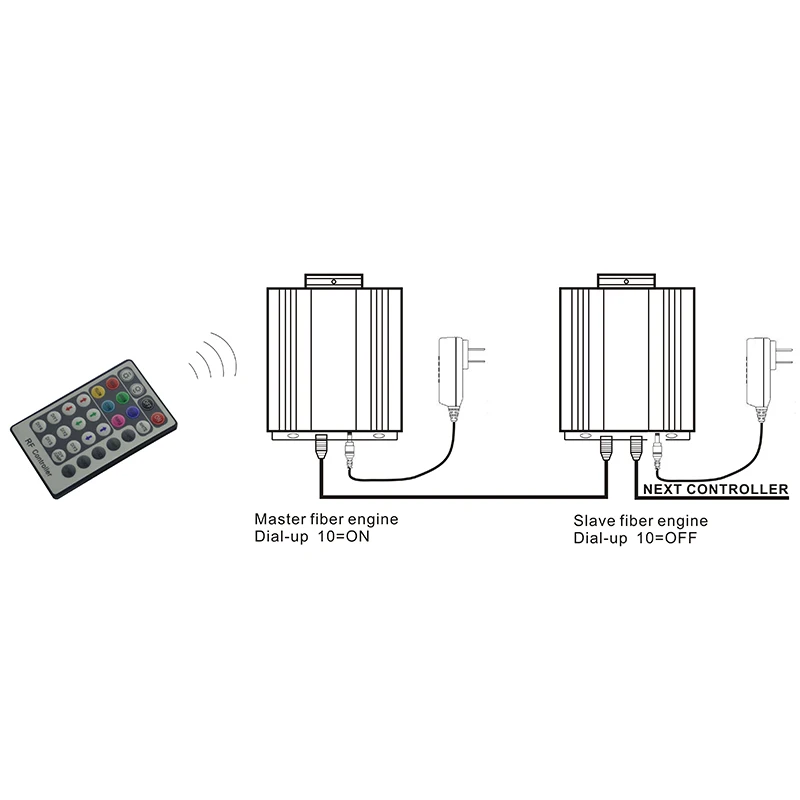

2. RF MODE

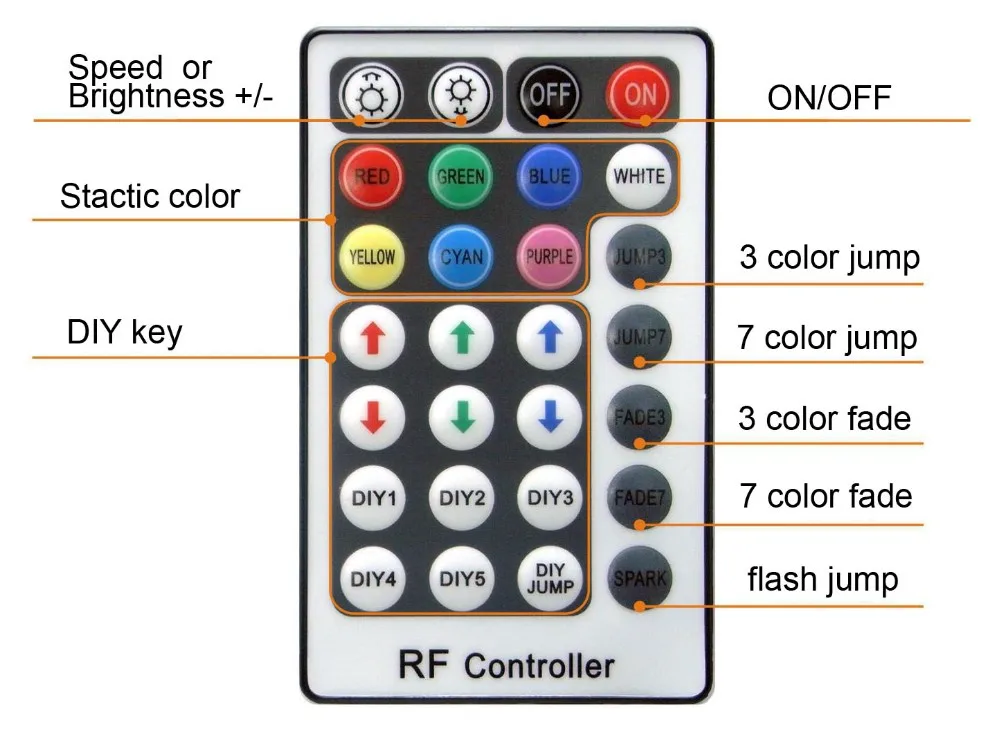

In this mode, you can control the fiber optic light engines with RF remote controller.


Note: It will be RF mode when the No.10 switch is turned down.




3. AUTOMATIC MODE

In this mode, the fiber optic light engine will run automatically.


Note: It will be automatic mode when the No.9 and No.10 switch is turned down.


Effect choice (DIP switch No.1 to No.4):

No.
Dial code
Effect
No.
Dial code
Effect
1
No.1
Seven-color cycle gradient
2
No.2
Seven-color cycle jump
3
No.3
Six-color cycle jump
4
No.4
Static Yellow
5
No.1&3
Static Red
6
No.1&4
Static Purple
7
No.2&3
Static Green
8
No.2&4
Static Cyan
9
No.3&4
Six-color cycle gradient
10
No.1&2&3
Static Blue
11
No.2&3&4
Static Green
12
No.1&2&3&4
Seven-color cycle gradient


Speed Choices (DIP switch No.5 to No. 7): 8 kinds

No.
Dial code
Effect

No.
Dial code
Effect
1
No.5
0.5 second
2
No.6
1 second
3
No.7
2 second
4
No.5&6
1.5 second
5
No.5&7
1.5 second
6
No.6&7
2 second
7
No.5&6&7
2 second

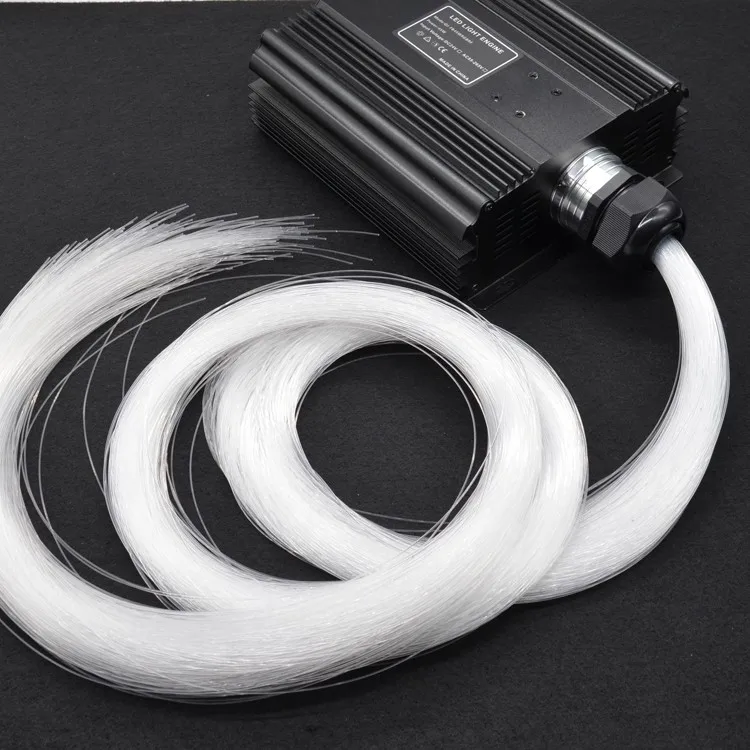

Fiber connector inner diameter: 30mm

Can be hold up to 1250 strands of 0.75mm fiber optic.


Maximum fiber connector formula:

Fiber connector inner diameter: R

Fiber diameter: D1, D2, D3...

Fiber quantity: N1, N2, N3...

Result: Π x R/2 xR/2 > N1xD1+N2xD2+N3xD3...

For example:

Fiber connector inner diameter is 20mm,

Fiber diameter: 0.75mm, 1.0mm, 1.5mm

Fiber quantity: 150pcs, 50pcs, 10pcs

Result: 3.14x10x10>150x0.75x0.75+50x1x1+10x1.5x1.5


Welcome to customized your fiber optic bundle.
1.The end glow fiber used in the starry sky ceiling has a diameter of 0.75mm, 1.0mm and 1.5 mm.
2. The length of the fiber can be customized.

For example:

Bundle 1 (300 light spots)
Bundle 2 (410 light spots)
Bundle 3 (900 light spots)
270pcs*0.75mm*3m
350pcs*0.75mm*3m
800pcs*0.75mm*3m
20pcs*1.0mm*3m
40pcs*1.0mm*3m
60pcs*1.0mm*3m
10pcs*1.5mm*3m
20pcs*1.5mm*3m
40pcs*1.5mm*3m
Applications

Can be used for:

1. Fiber optic chandelier.

2. Fiber optic curtain light.

3. Fiber optic star ceiling.


Applications: living room, bedroom, balcony, children's room, private film and television, hotal , KTV, bar, etc.

Packing & Delivery

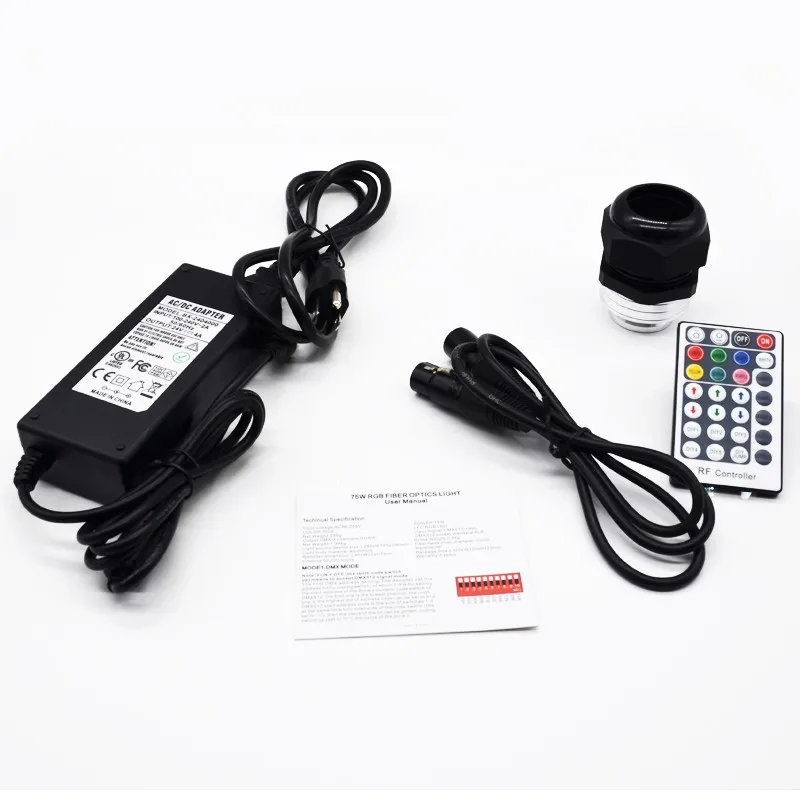

What is in the box?

1. 90W RGB DMX512 fiber 0ptic light engine.

2. Fiber opitc connector.

3. AC/DC power adapter.

4. RF Remote controller.

5. 450 / 900 strands 0.75mm 2m fiber optic.

6. Instruction manual.

Related Products

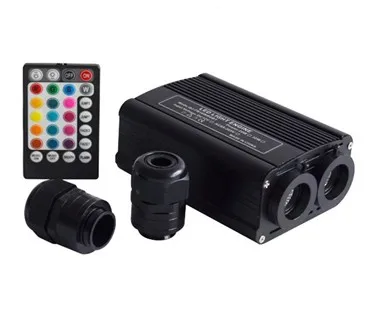

32W Music Control Fiber Optic Light Engine with dual Heads
