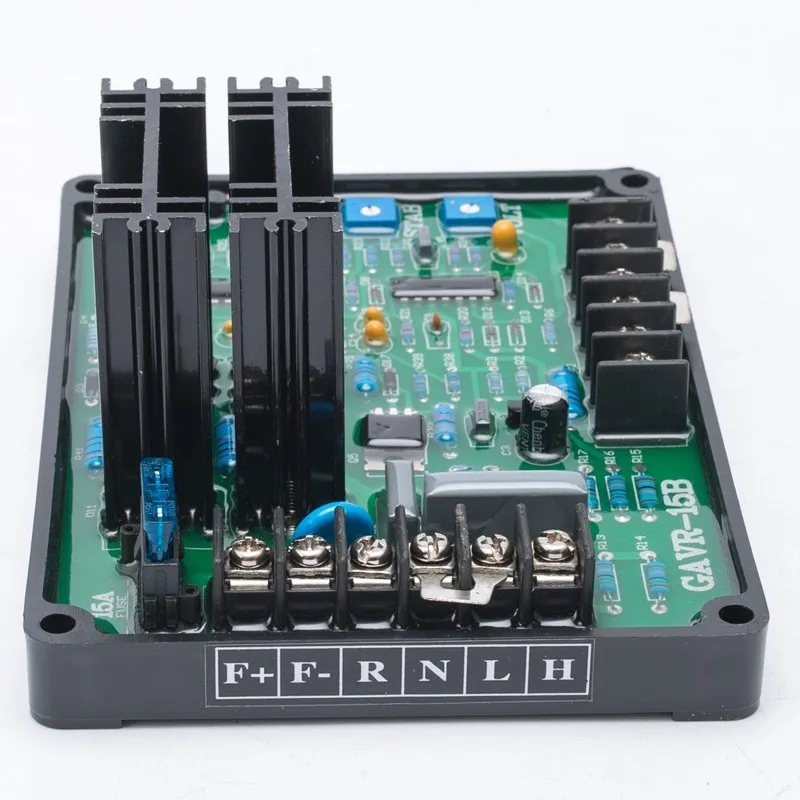

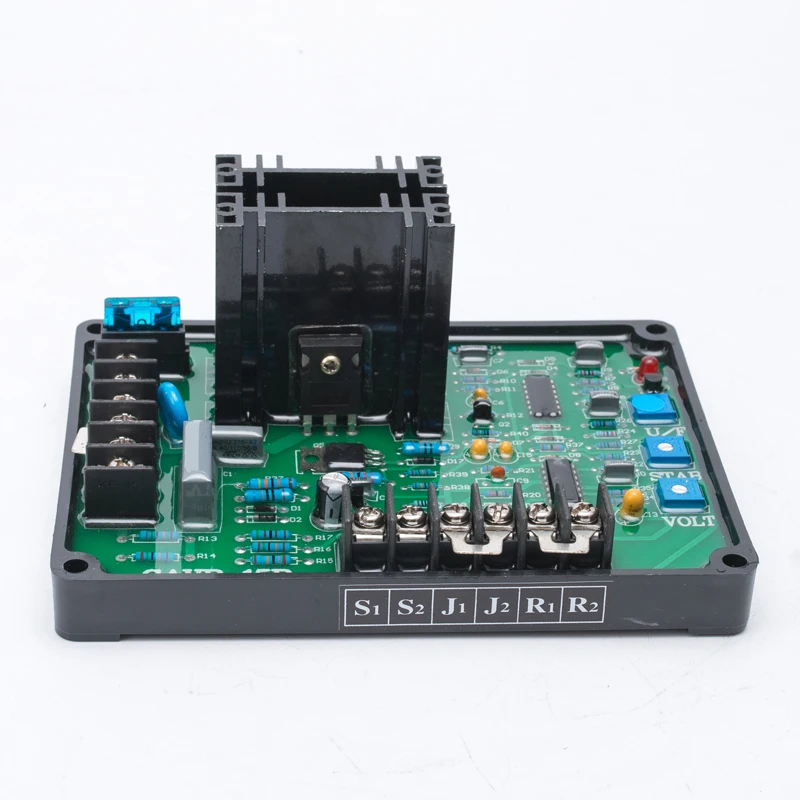

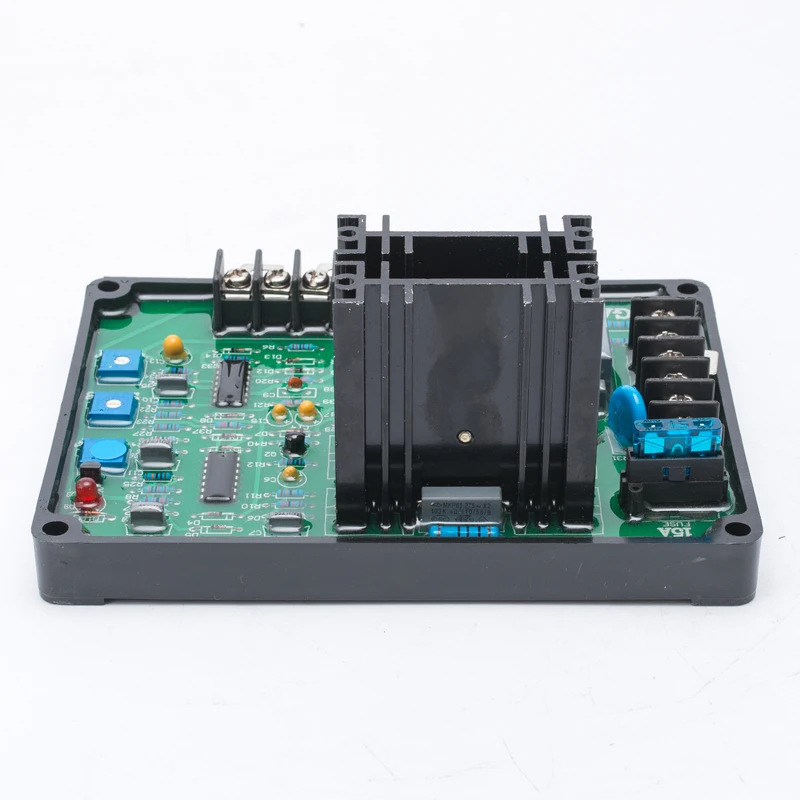

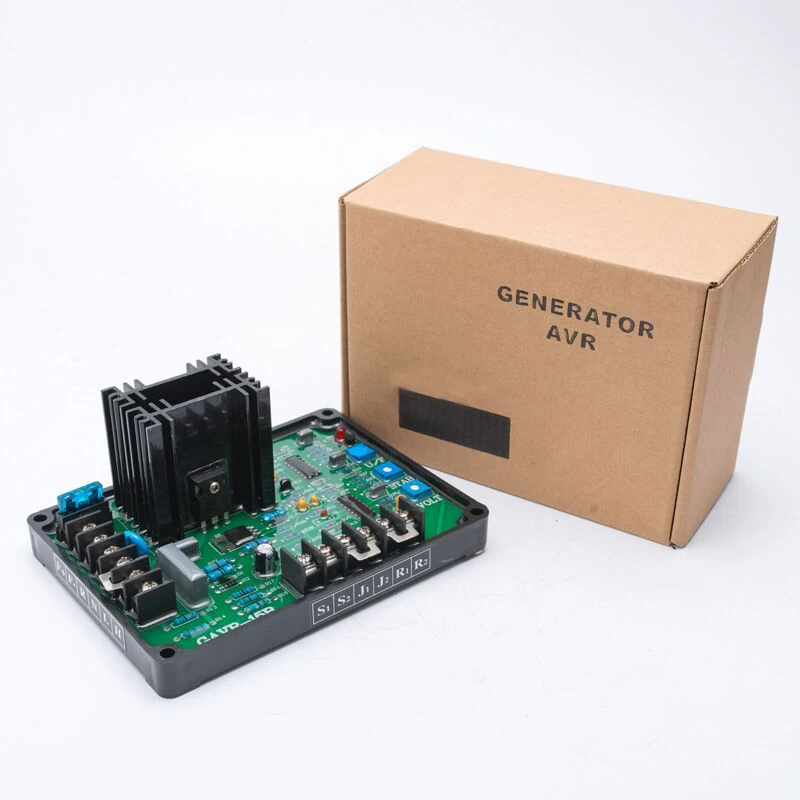

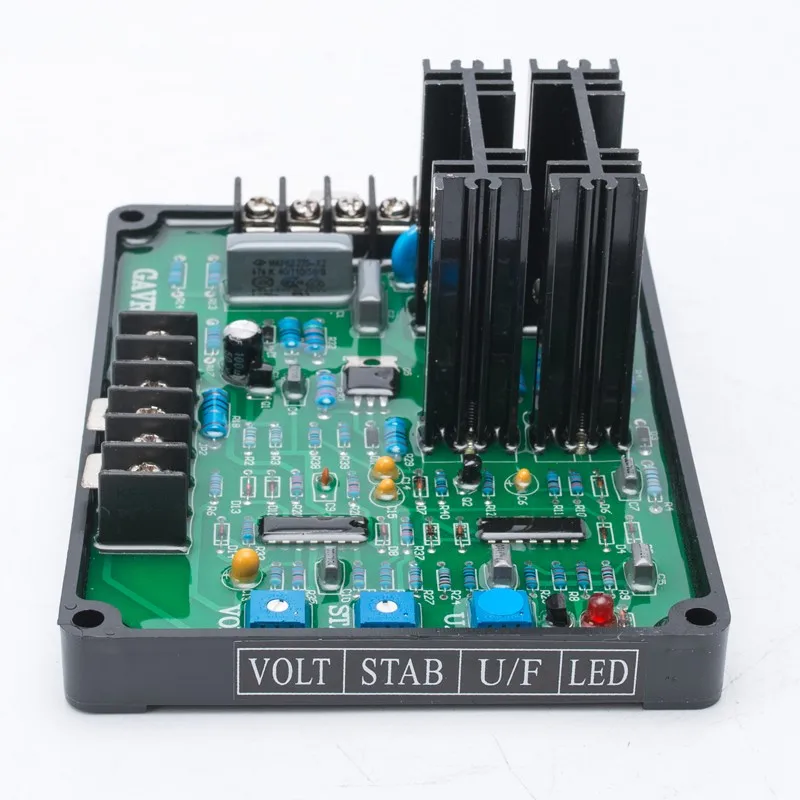

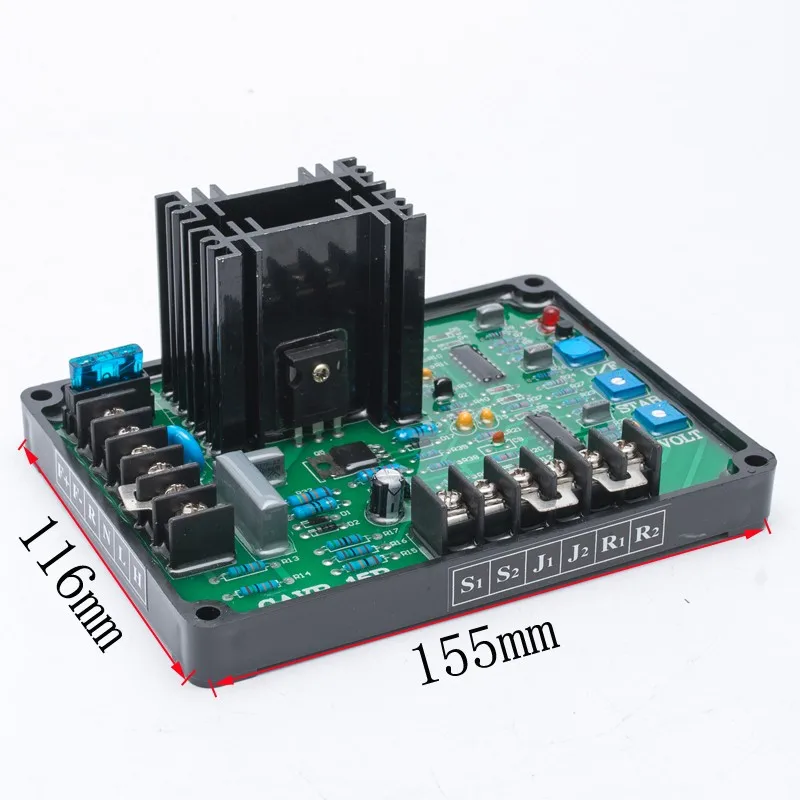

Genset Automatic Voltage Regulator GAVR 15A

Generator Universal AVR GAVR 15A 3 Phase Automatic Voltage Regulator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Factory inspection

The professional person responsible for the quality of supervision and control in the entire process.

Element testing

In order to get the superior quality we only use selected good element.

Assembles products

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
