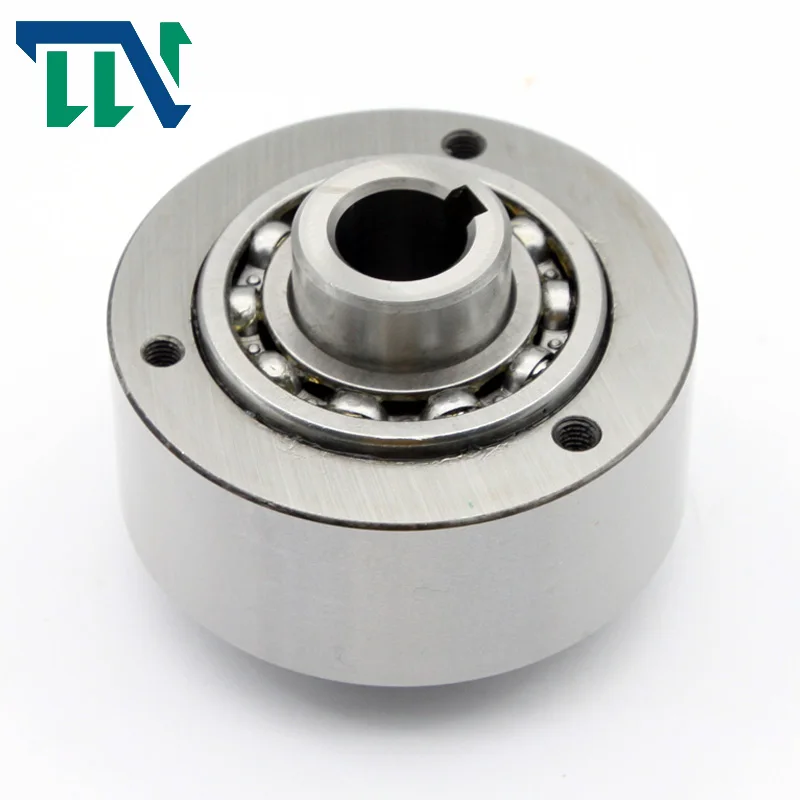

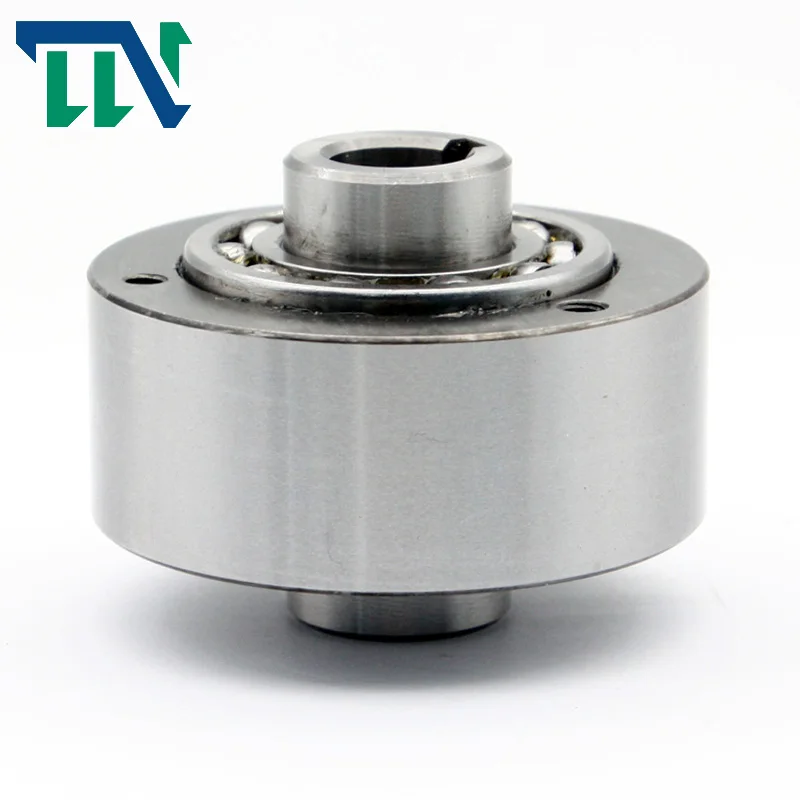

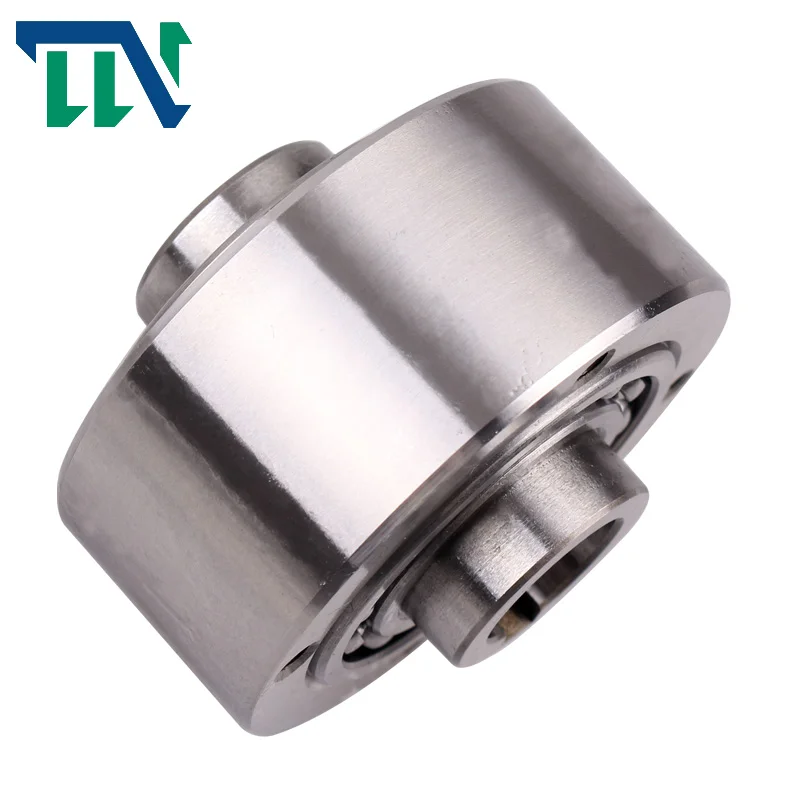

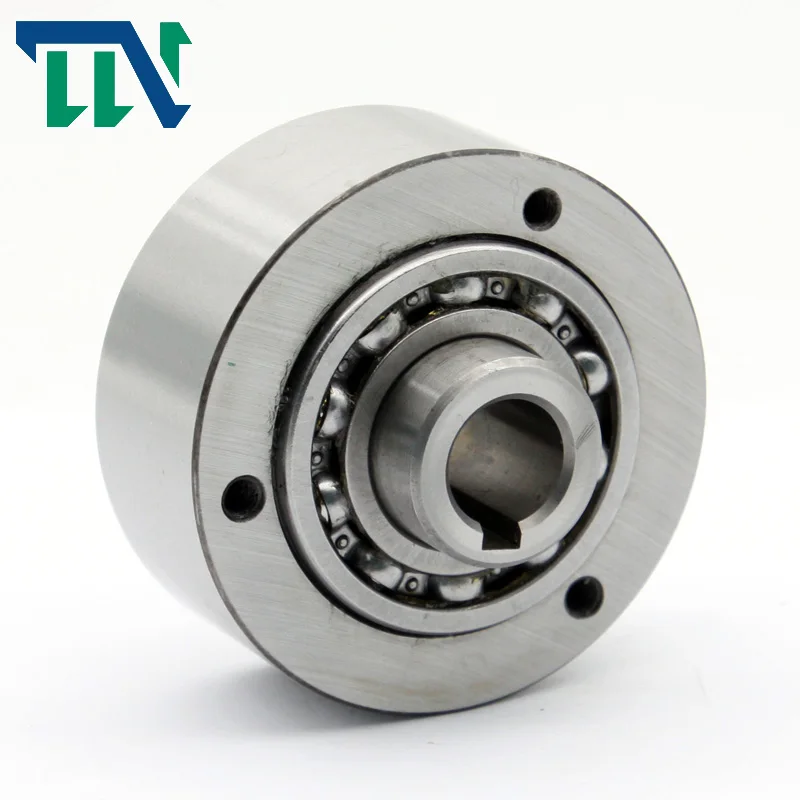

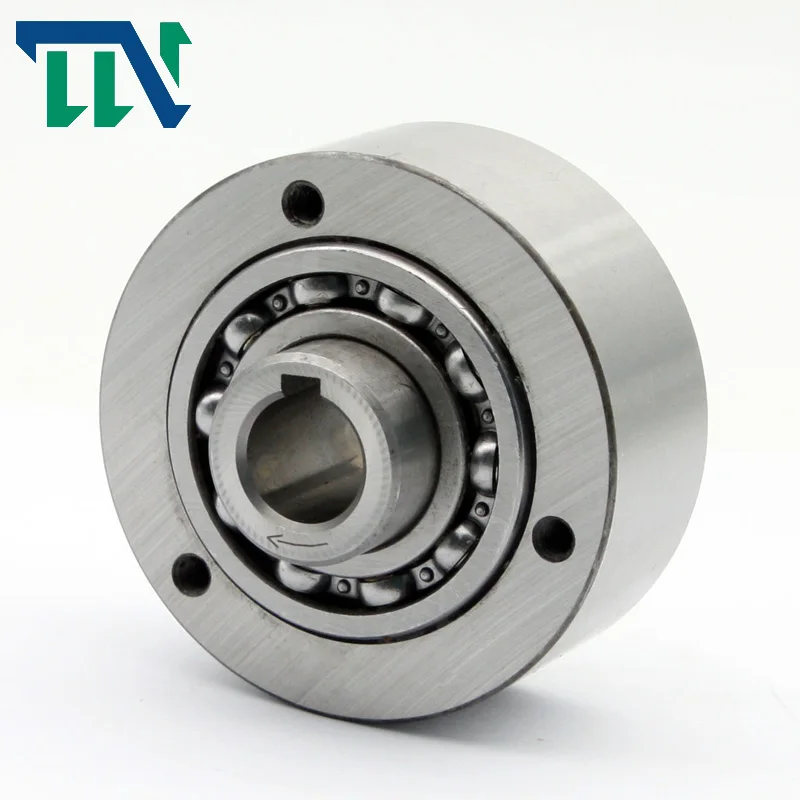

Clutch GFR40 One Way Backstop Bearing Roller Freewheel Bearing (62037324216)

Share on:


Price:RUB 11,149.07
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

1our products.jpgDescription of GFR40 Backstop Clutch

Typically, types GFR,GFRN are used with the F series covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the following pages.

Torque is transmitted by bolts through the cover plate in this case. Types GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit the torque.



Data sheet of GFR40 Backstop Clutch

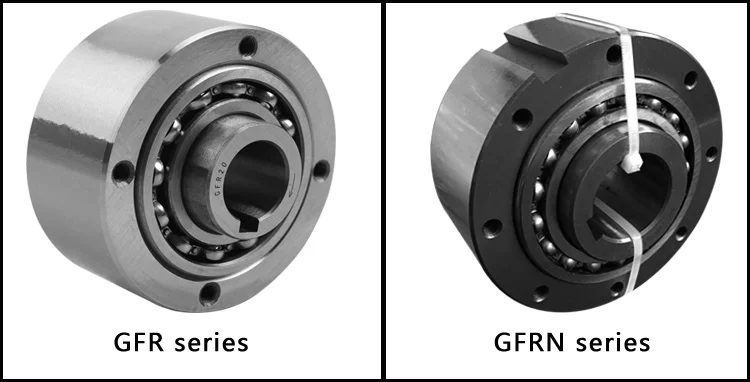

GFR GFRN tu.jpg



Model GFR40
Torque (Nm) 1025
Overrunning Speed (rpm) Inner Race 3400
Outer Race 1150
Inner Race Size (mm) 40
Outer Race Size (mm) 125
Thickness (mm) 86
Weight (Kg)

4.6



Catalogue of GFR40 GFRN40 Backstop ClutchGFR GFRN

Type Size

Overrunning

speeds



Num

ber



Wei

ght

GFR
GFRN
dH7 TKN1) nimax2) namax3) Dh7 D2 D4 D3 G t z L1 L B t1 bP10 f
[mm] [Nm] [min-1] [min-1]

[m

m]

[m

m]

[m

m]

[m

m]



[m

m]



[m

m]

[m

m]

[m

m]

[m

m]

[m

m]

[m

m]

[kg]
12* 55 4000 7200 62 20 42 51 ø5.5 3 42 20 27 2.5 4 0.5 0.5
15 125 3600 6500 68 25 47 56 M5 8 3 52 28 32 3 5 0.8 0.8
20 181 2700 5600 75 30 55 64 M5 8 4 57 34 39 3.5 6 0.8 1
25 288 2100 4500 90 40 68 78 M6 10 4 60 35 40 4 8 1 1.5
30 500 1700 4100 100 45 75 87 M6 10 6 68 43 48 4 8 1 2.2
35 725 1550 3800 110 50 80 96 M6 12 6 74 45 51 5 10 1 3
40 1025 1150 3400 125 55 90 108 M8 14 6 86 53 59 5 12 1.5 4.6
45 1125 1000 3200 130 60 95 112 M8 14 8 86 53 59 5.5 14 1.5 4.7
50 2125 800 2800 150 70 110 132 M8 14 8 94 64 72 5.5 14 1.5 7.2
55 2625 750 2650 160 75 115 138 M10 16 8 104 66 72 6 16 2 8.6
60 3500 650 2450 170 80 125 150 M10 16 10 114 78 89 7 18 2 10.5
70 5750 550 2150 190 90 140 165 M10 16 10 134 95 108 7.5 20 2.5 13.5
80 8500 500 1900 210 105 160 185 M10 16 10 144 100 108 9 22 2.5 18.2
90 14500 450 1700 230 120 180 206 M12 20 10 158 115 125 9 25 3 28.5
100 20000 350 1450 270 140 210 240 M16 24 10 182 120 131 10 28 3 42.5
130 31250 250 1250 310 160 240 278 M16 24 12 212 152 168 11 32 3 65
150 70000 200 980 400 200 310 360 M20 32 12 246 180 194 12 36 4 138



Mounting Example

GFR GFRN .jpg

Product Display

GFR20

Packaging & Shipping




BZ

Company Information


production process


FAQ

FAQ

Q: Why do we choose your company?

A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.

Q: What is the delivery time?

A: For small quality or samll size of clutches, we can deliver upon receiving advance.

     For large quantity or large size, we have to produce 10-15 working days.

Q: Can you supply with sample clutch?

     Of course! We can provide with a sample to your checking quality.

Q: What is the warranty period of the clutches?

     One-year Guarantee.
