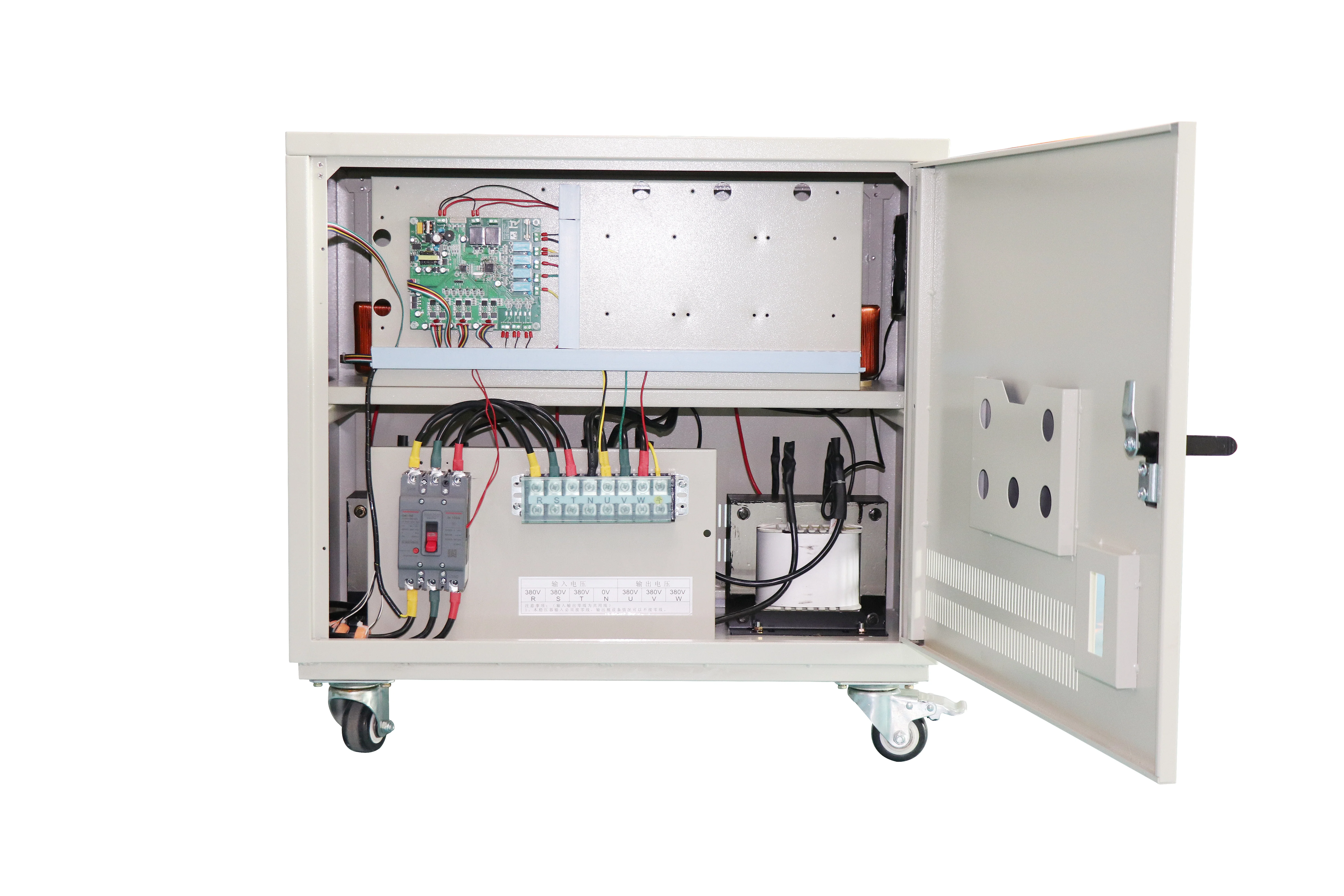

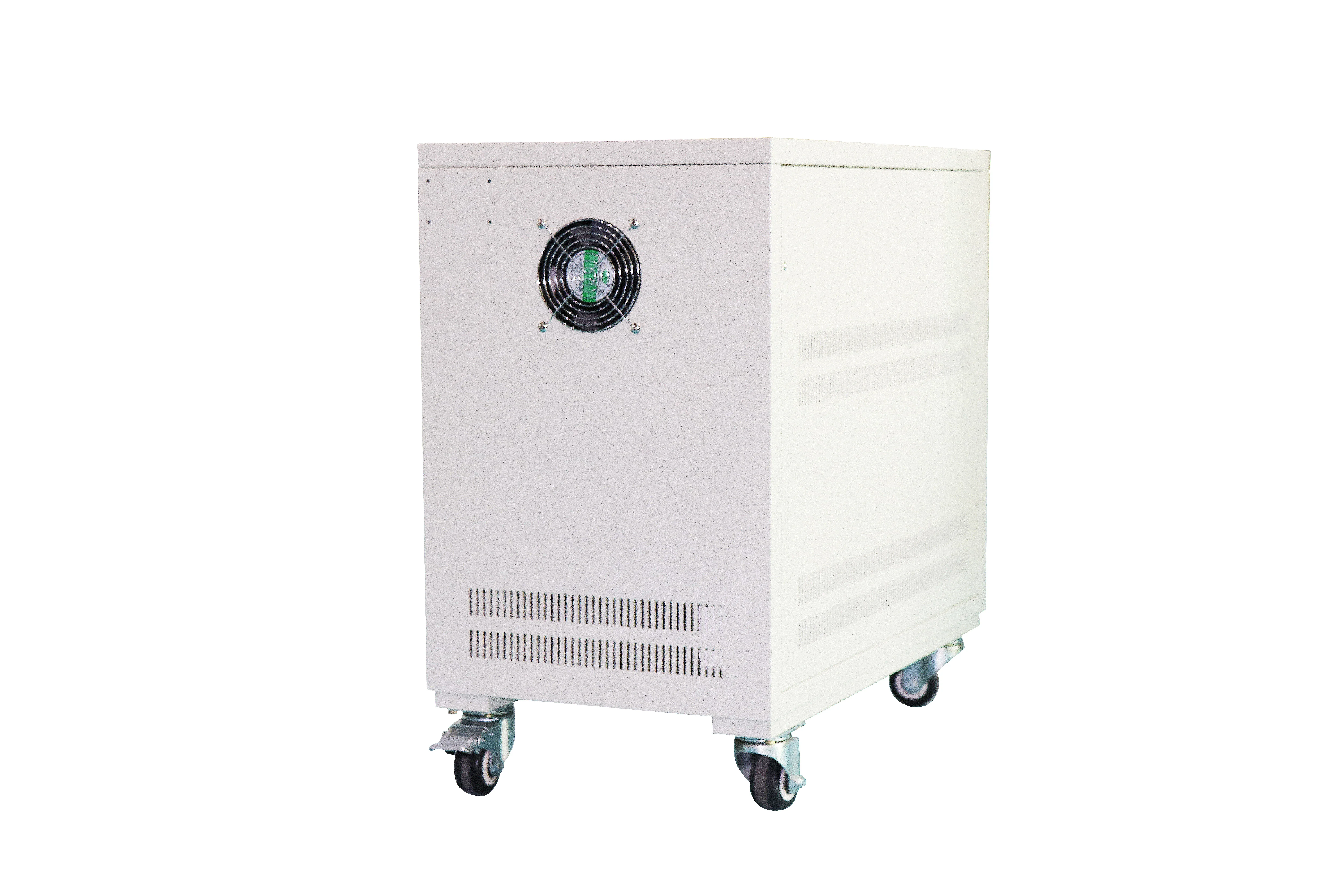

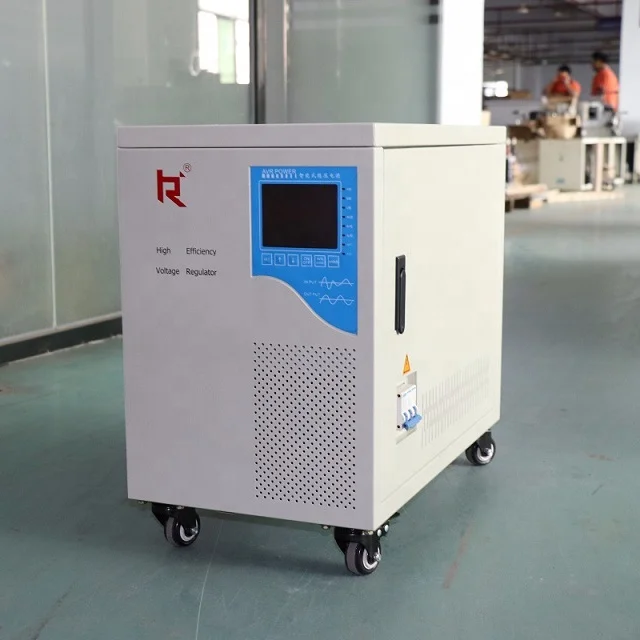

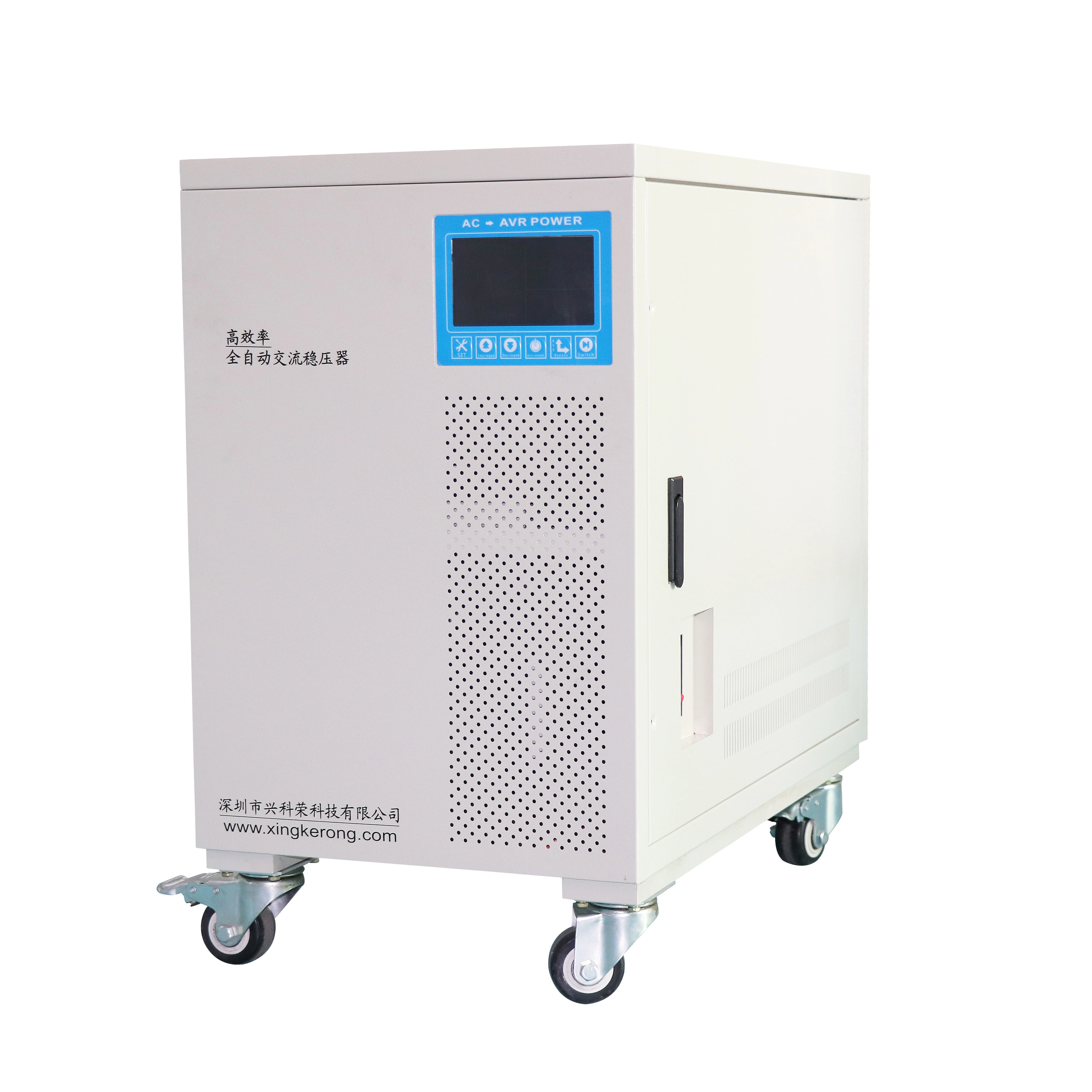

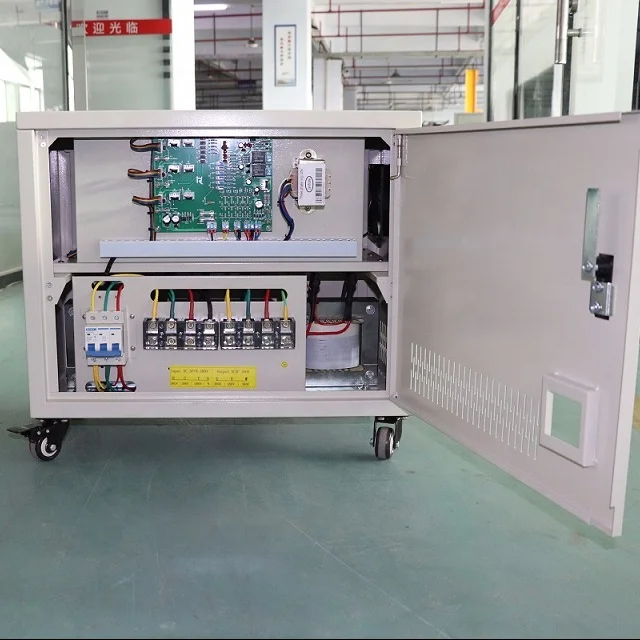

2 years warranty Automatic voltage regulator svc 20kva/30kva for power grid stable

1

Type

AVR

2

Capacity

10KVA/20kva/30kva/45kva

3

AC Input voltage

Switch

3P32A(CHINT Brand)

Phase

Three Phase

Voltage

384V-576V(According your requirements)

Frequency

50/60HZ

4

AC Output voltage

Phase

Three Phase

Voltage

480V(According your reuirements)

Frequency

50/60HZ

5

Rated output current

12A

6

Voltage Accuracy

±1-5%V Adjustable(Factory set±1%)

7

Load working

 continuous working keep 80% load

8

Efficiency

>98%

9

Insulation strength

2500V/Min

10

Insulation Class

H Class

11

Cooling method

Fan system/Natural cooling

12

Resist electric strengh

2500VAC/min

13

Noise

≤60db(Noclude forced air cooling system)

14

Temperature Rise

≤75℃

15

Size:

Length580 *Width 320* High550(mm)

16

Weight :

Net weight:75KG   Gross weight: 81KG

17

Environment

Ambient Temperature

-10~35℃

Related humidity

15~85%(25℃)

Altitude

<1500M

18

Warranty

2 years

19.Protection Function

Over/under voltage protection

When the input voltage exceeds the value of over/under voltage, the stabilizer will protect automatically

Over current

When the current exceeds the rated value, automatically cut off the input

Overload and short circuit protection

When the load exceeds the overload value or short circuit of the equipment, it can cut off the power supply within the specified time;

Position Limitation Protection

When the brush is running over the area,   automatically stop adjustment;

Bypass Protection

When the voltage stabilizer needs maintenance or in failure, the switch can be switched manually in the power supply;

Effective sampling circuit control

 High accuracy, good sensitivity, frequency characteristic measurement, good rate, high input impedance, low output impedance, wide range and low power consumption power supply

Circuit Function

When the sampling voltage is lower than the lower reference voltage or higher than the upper limit voltage, the brush will automatically return to the center;
