TKG 400 meters sound system 500MHz 950MHz Digital 9000 Four Channel UHF wireless Microphone antenna splitter Antenna Distributor
- Category: >>>
- Supplier: Guangzhou Bochuang Audio Equipment Co. Ltd.Guangzhou Ltd.
Share on (62037497058):
Product Overview
Description

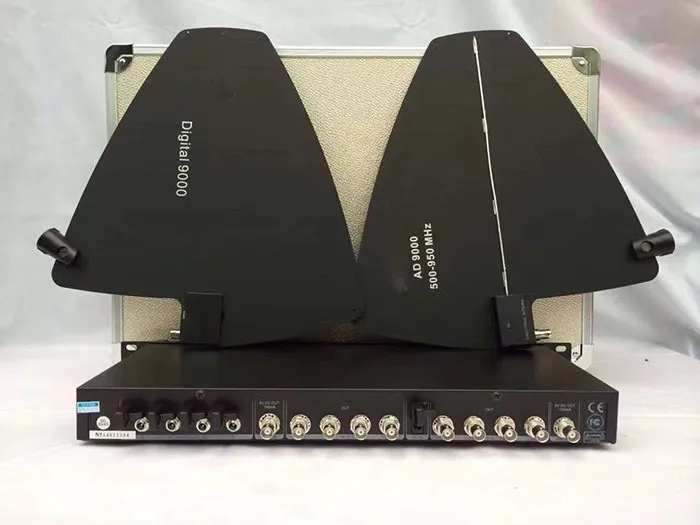

TKG 400 meters sound system 500MHz-950MHz Digital 9000 Four Channel UHF wireless Microphone antenn splitter Antenna Distributor
| Model number: | Digital 9000 |
| Type: | Antenna Distributor for wireless microphone. |
| channels: | 4 |
Features :
Frequency range: 500-950MHz
Input cutoff point: +22dBm
Noise Ratio: 4.0dB Type(Center Band)
Gain: +6-9dB (Center Band)
Output impedance: 15dB min
Impedance: 50Ω
Bandwidth: 450MHz
Socket: BNC female
Power Supply: 100-240V/50/60Hz
Power consumption: 170mA
main feature
Provide a multi-channel system that uses 2 to 4 UHF wireless series or other series of various automatic selection receivers, sharing a pair of antennas,
To simplify the antenna assembly project, improve the receiving distance and efficiency.
The D-707 features a highly dynamic, low-noise active component and a new design that actively balances the current bias, offering ultra-low intrinsic distortion.
Can eliminate the use of mixed interference in multiple channels at the same time, the output gain is approximately equal to 1.
The antenna input socket can be directly configured with various single antenna, coaxial antenna, extended antenna group and logarithmic directional antenna group within the applicable frequency band.
The antenna input connector has a power supply for the booster.
An extended antenna group with an antenna booster and a logarithmic directional antenna group with built-in booster can be directly connected.
Four sets of power output: 12V/600~1000mA.
More designs, please contact us !
With progressive imported test instrument, professional technology research and development team, provide OEM & ODM project to all the clients from all over the world based on the management principle " Quality & Service & Innovation".

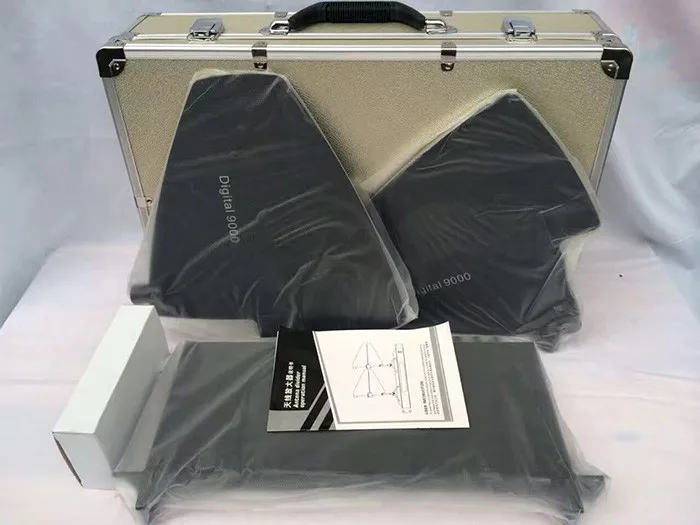

Packaging details:
1. First layer packaging: Produce own package box.(different designs have different packaging)
2. Second layer packaging: a outer kraft box.
