Product Overview
Description
Product Description

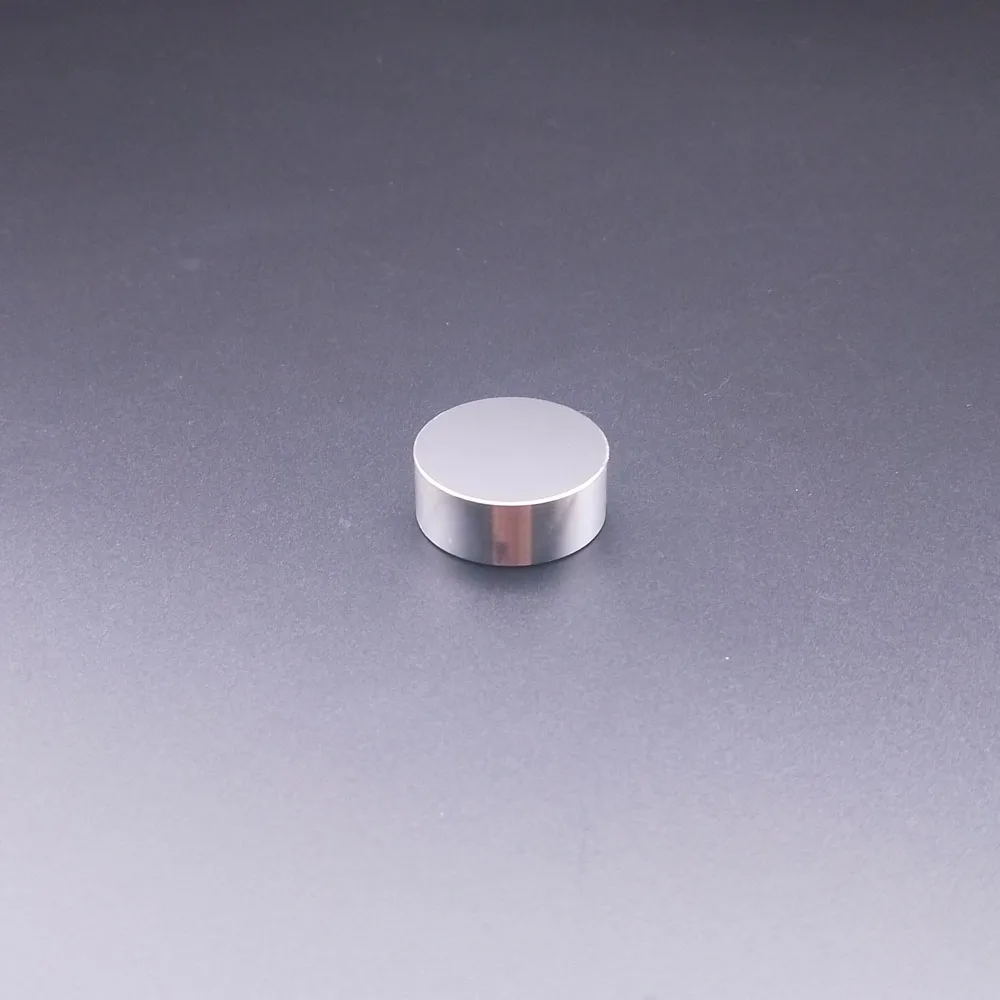

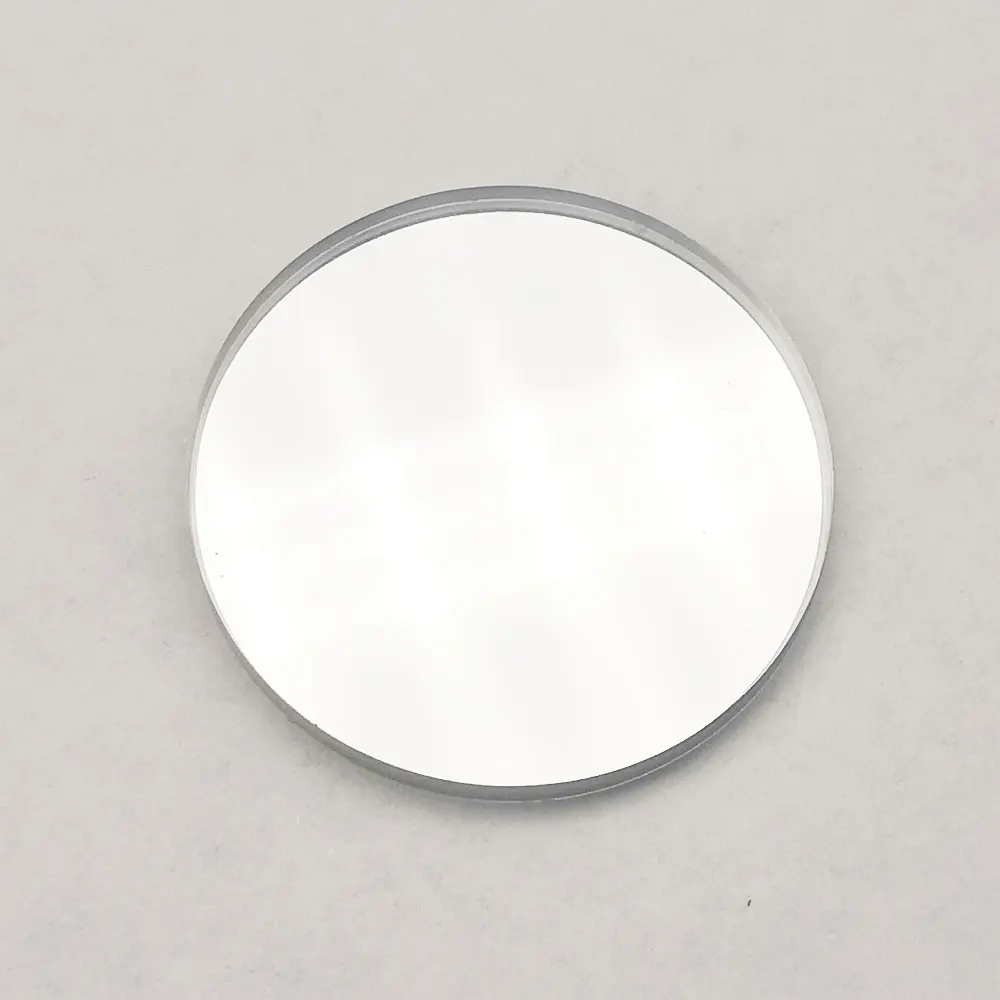

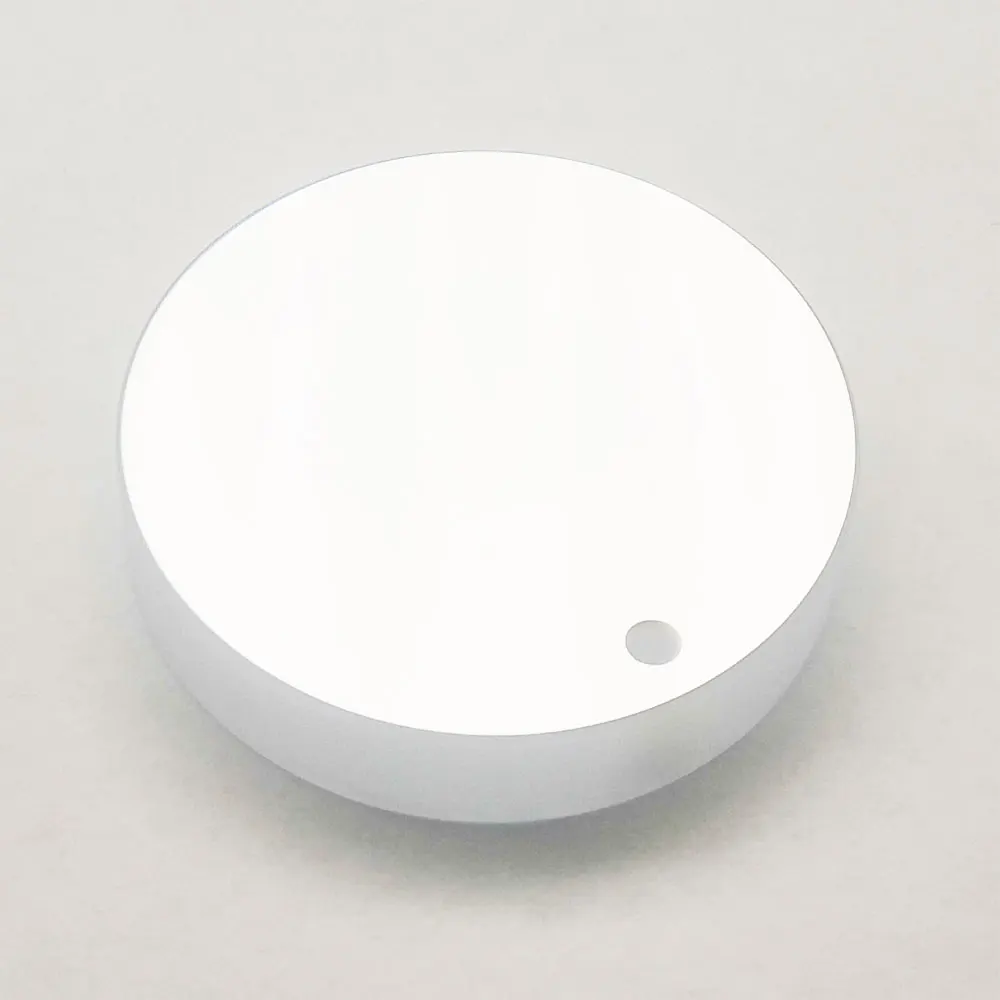

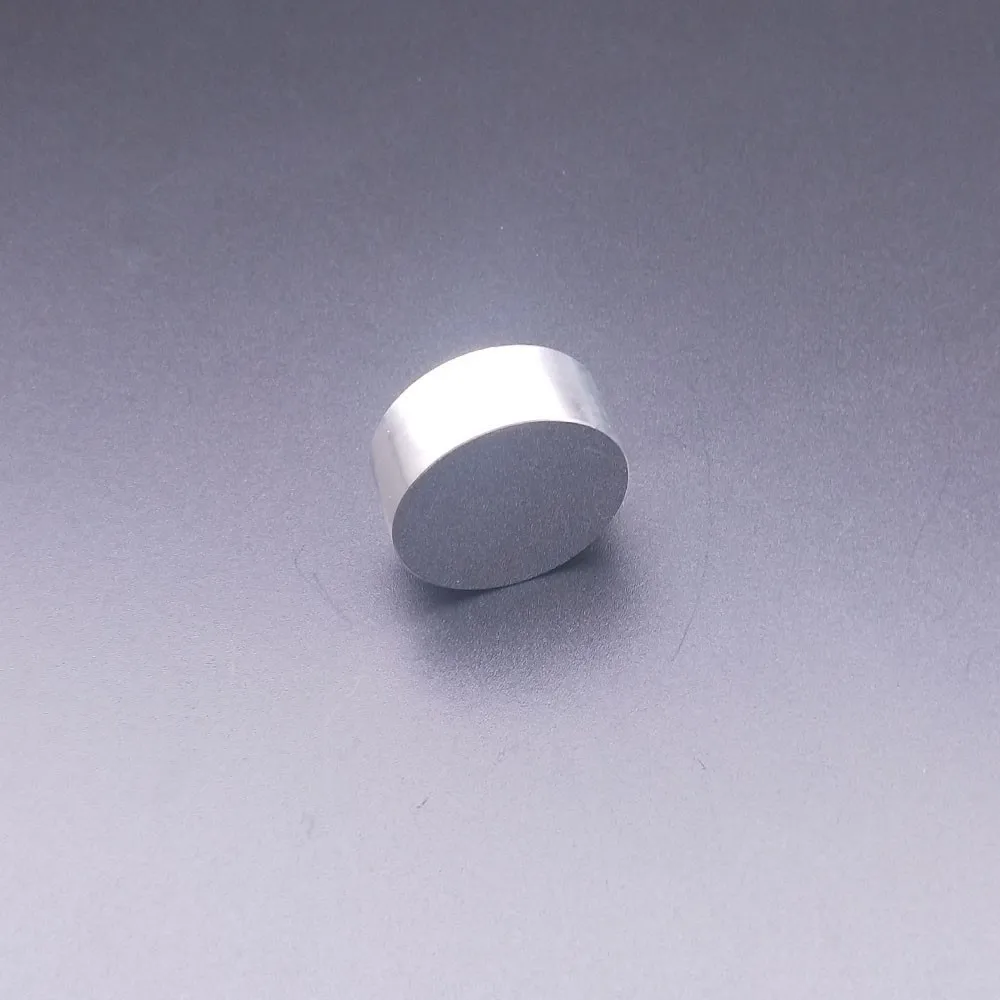

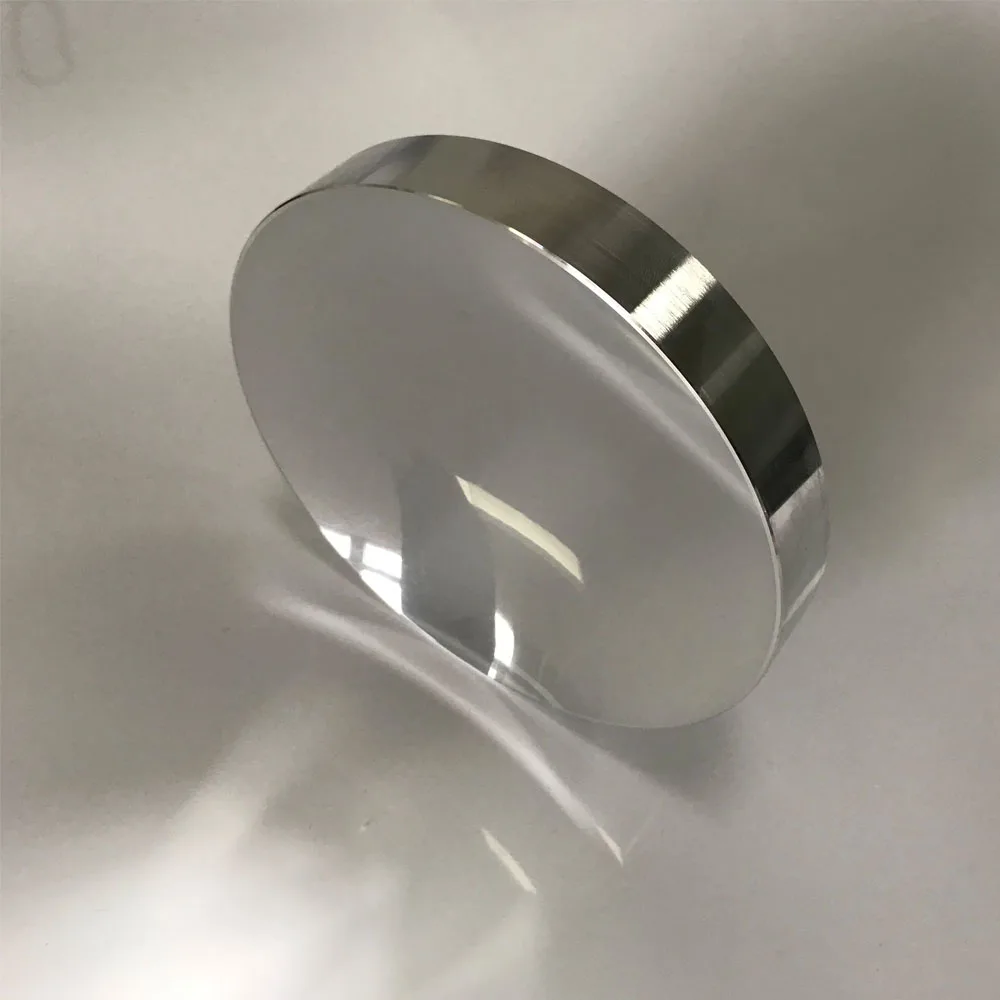

Optical Reflective Mirror
Optical Mirrors are designed to reflect light for a variety of applications, such as beam steering, interferometry, imaging, llumination. Optical Mirrors are used in a wide range of industries, like life sciences, astronomy, metrology, semiconductor, Laser, LiDAR and so on.
Wuhan Especial Optic offers a range of Optical Mirrors in a multitude of reflective coating options, including Protected Aluminum, Enhanced Aluminum, Protected Silver, Protected Gold, or Dielectric. Choosing the proper reflective coating option ensures high reflectivity of the needed wavelength or wavelength range. Optical Mirrors designed for laser
applications are optimized for the given laser wavelength. Additionally, Optical Mirrors designed for lasers feature damage
thresholds that are suitable for the designated laser. Metal substrate Optical Mirrors are ideal for applications requiring a

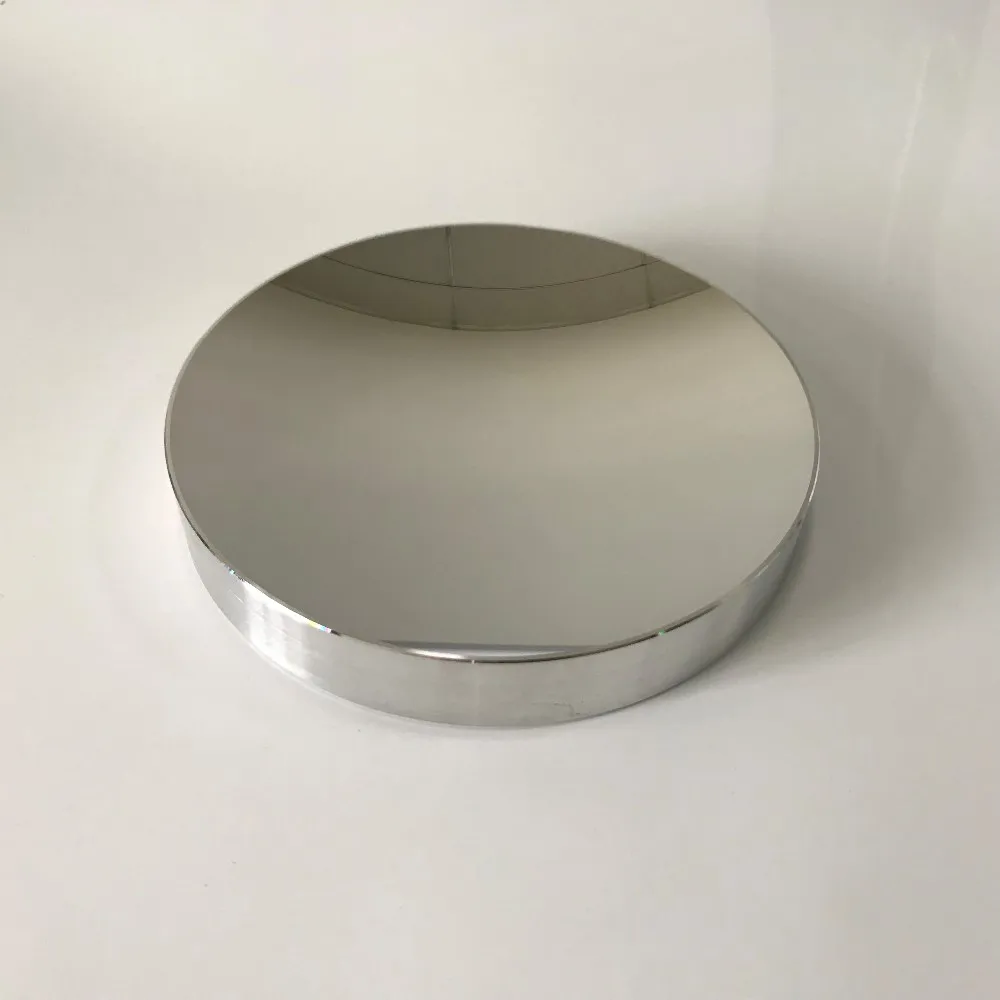

constant coefficient of thermal expansion between the Optical Mirror and the mount. Optical Mirrors with a concave surface are ideal for light focusing applications.
applications are optimized for the given laser wavelength. Additionally, Optical Mirrors designed for lasers feature damage
thresholds that are suitable for the designated laser. Metal substrate Optical Mirrors are ideal for applications requiring a
constant coefficient of thermal expansion between the Optical Mirror and the mount. Optical Mirrors with a concave surface are ideal for light focusing applications.
For sampels or more information, please feel free to write to sales@wheo.cn.
Metal mirror | Dielectric mirror | ||||
Base material | K9, Quartz, silicon, aluminum, etc. | ||||
Parallelism | 1' | ||||
Clear Aperture | >90% | ||||
Surface S1 Shape | Lambda/10@633nm | ||||
Surface S1 Quality | 40/20 | ||||
Surface S2 | Polished/Matte | Lambda/4@633nm | |||
Damage threshold | No | 20J/cm2,20nsce,20Hz@1064nm | |||
Surface S1 Antireflection coating | Center wavelength <0.2%, AOI=0° Center wavelength <0.4%, AOI=45° | ||||
Incident angle | customized | ||||

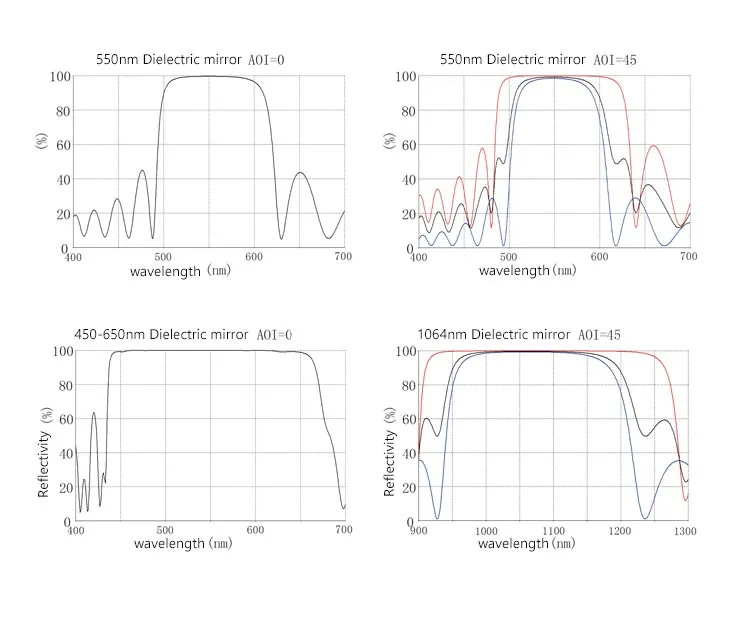

Surface S2 Reflective film | Single point R>99.8%, AOI=0° Single point R>99.4%, AOI=45° Single point R>99.2%, AOI=0° Single point R>99.0%, AOI=0° | ||||
Curvature radius tolerance | +/-0.5% | ||||
Our Company
Wuhan Especial Optic is a leading manufacturer of high precision optics, which was established in 2012 and complied with ISO 9001:2015.
WHEO has around 60 sets of manufacturing equipments including lapping polishing machines, high polishing machines, low polishing machines, coating machines and so on and advanced testing instruments including Interferometers, Spectrophotometers, precision goniometers, and digital micrometers etc.
Our products are not limitted to optical windows, mirrors, lenses, prisms and filters, we can also help customers to develop fully new optics upon their unique use. In addition, we especially have extensive expeience in manufacturing of ultra-high precision, ultra-large size, ultra-thin and special-shaped infrared optical components.Now we're in small mass production of polygon scanning mirrors for several famous autonomous vehicles companies.
We always uphold a philosophy: Your satisfaction is our eternal pursuit! We will make continuous efforts to provide customers with stronger, better and more perfect services.
For more information or free samples, please feel free to reach out at sales@wheo.cn.
WHEO has around 60 sets of manufacturing equipments including lapping polishing machines, high polishing machines, low polishing machines, coating machines and so on and advanced testing instruments including Interferometers, Spectrophotometers, precision goniometers, and digital micrometers etc.
Our products are not limitted to optical windows, mirrors, lenses, prisms and filters, we can also help customers to develop fully new optics upon their unique use. In addition, we especially have extensive expeience in manufacturing of ultra-high precision, ultra-large size, ultra-thin and special-shaped infrared optical components.Now we're in small mass production of polygon scanning mirrors for several famous autonomous vehicles companies.
We always uphold a philosophy: Your satisfaction is our eternal pursuit! We will make continuous efforts to provide customers with stronger, better and more perfect services.
For more information or free samples, please feel free to reach out at sales@wheo.cn.
Our products
Our Service
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
c: AR HR DLC coating or as your request
For more please visit our website: www.wheo.cn
Packing & Delivery
Packing Details: First layer Tissue paper, then Protective film or Capacitor paper, Pearl cotton, Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products.
in common, ≥4 weeks for mass production.
FAQ
What's the way of shipping?
We commonly use UPS, FedEx, DHL, TNT, SF, EMS etc. If you have your own express account, it's great.
How to pay?
We usually use Trade Assurance Order to protect your privilege and you can choose the most convenient terms in this way.
What's the deliver time?
For inventory: generally within 5 workdays.
Customized products: typically 30 days.
How to ensure the safety of payment?
Payment≤5000 USD, 100% in advance.
Payment>5000 USD, 50% upfront, 50% balance prior to shipment.
Can I customize the products based on my need?
Sure, we can customize most optics upon your unique demands. OEM and ODM is also available.
