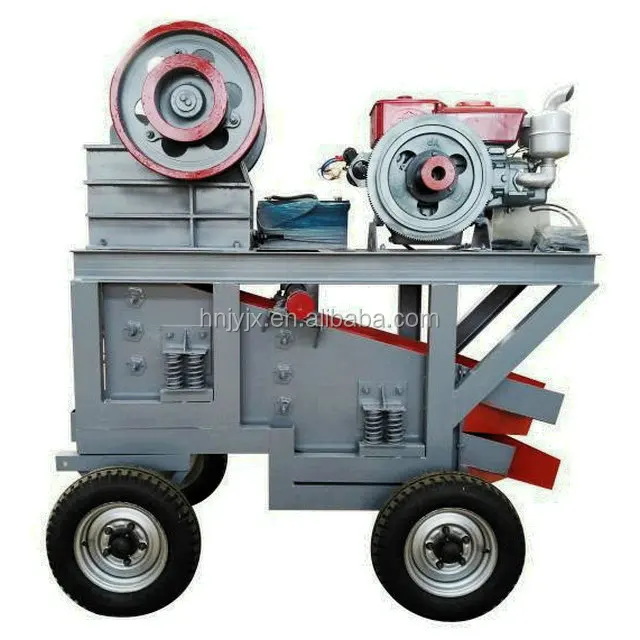

small mobile jaw crusher equipment for sale on gravel stone crushing

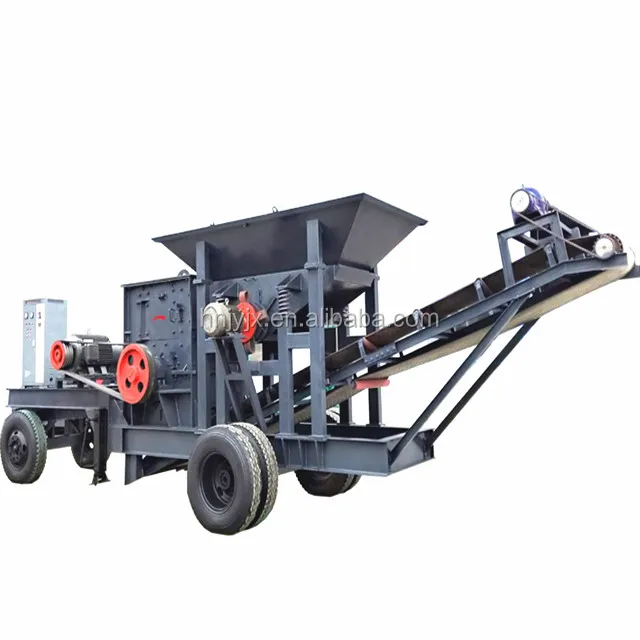

crusher mobile

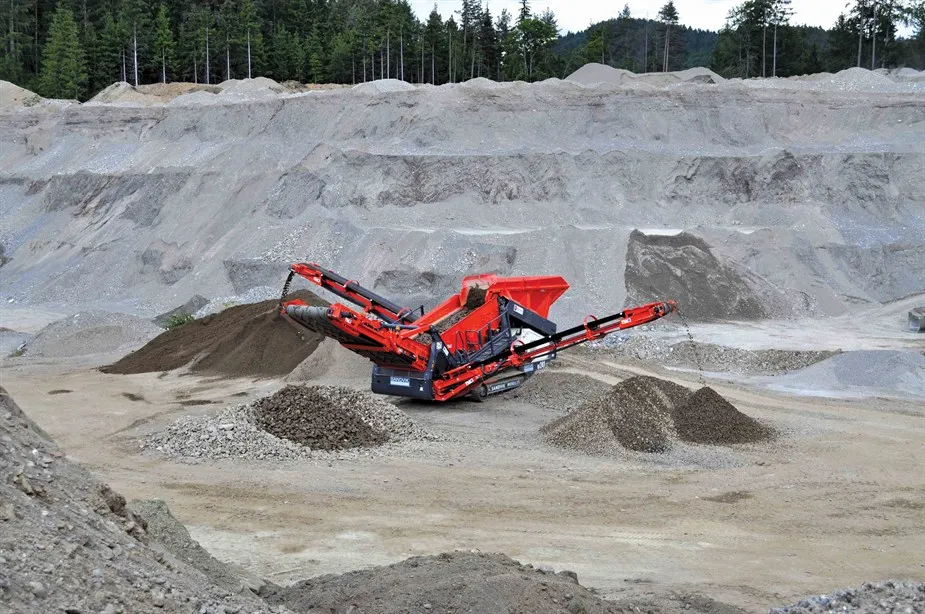

mobile crushing plant is a unique machine that includes three stages of crushing.The main characteristics of the mobile crushing plant are: little space required, improved production capacity, environment protection and of course, great mobility. The mobile crushing plant is mostly used in mining fields and urban construction waste job sites, for both screening and crushing.

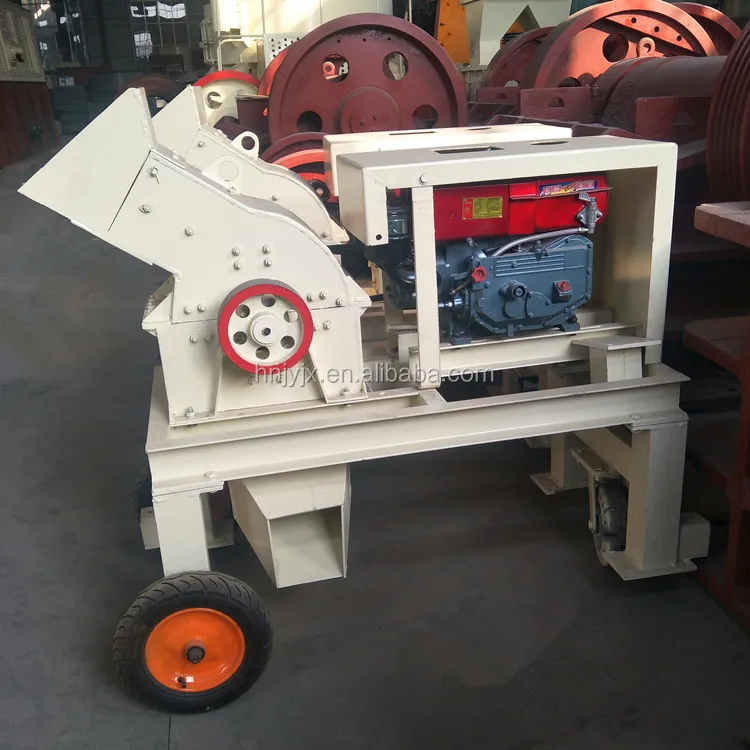

Small portable diesel hammer mill stone crusher technical parameters

Model

Feed size
(mm)

Discharge size
(mm)

Capacity
(T/H)

Motor
(KW)

Weight
(T)

PC 400x300

less than 100

less than 10

5 to 10

11

0.8

PC 600x400

less than 120

less than 15

10 to 25

18.5

1.5

PC 800x600

less than 120

less than 15

20 to 35

55

3.1

PC 1000x800

less than 200

less than 15

20 to 40

90

7.9

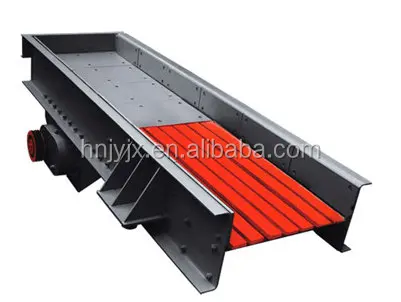

Vibrating feeding system

Type

Size of funnel

(mm)

Max. Feeding size

(mm)

Capacity

(t/h)

Power(kw)

Weight(t)

Overall dimension

(mm)

850×3000

850×3000

400

80-120

7.5

3895

3110×1800×1600

960×3800

960×3800

500

120-210

11

3980

3850×1950×1630

1100×4200

1100×4200

580

200-430

15

4170

4400×2050×1660

1100×4900

1100×4900

580

280-500

15

4520

5200×2050×1700

1300×4900

1300×4900

650

450-600

22

5200

5200×2350×1750


Low Operating Costs – By eliminating the need for transportation, a significant amount of money can be saved. Unlike the traditional crushing plants, the mobile crushing plant crushes the material directly on-site and can either transport the final product by itself or transmit it to a truck, thanks to its long frame.

Reliable & Efficient Performance – The mobile crushing plant includes three stages or three different crushing machines, designed with specific features and similar working principle.The whole unit has a strong structure, providing an incredibly efficient and reliable performance in many industry sectors.

Versatile & Flexible Configuration – Pre-screening, fine screening, and crushing are some of the many operations that can be performed by the mobile crushing plant. Its flexible configuration has a discharge hopper that is capable to screen, crush and transport materials at once. With a powerful diesel generator, the mobile crushing plant can handle event the most challenging tasks.
