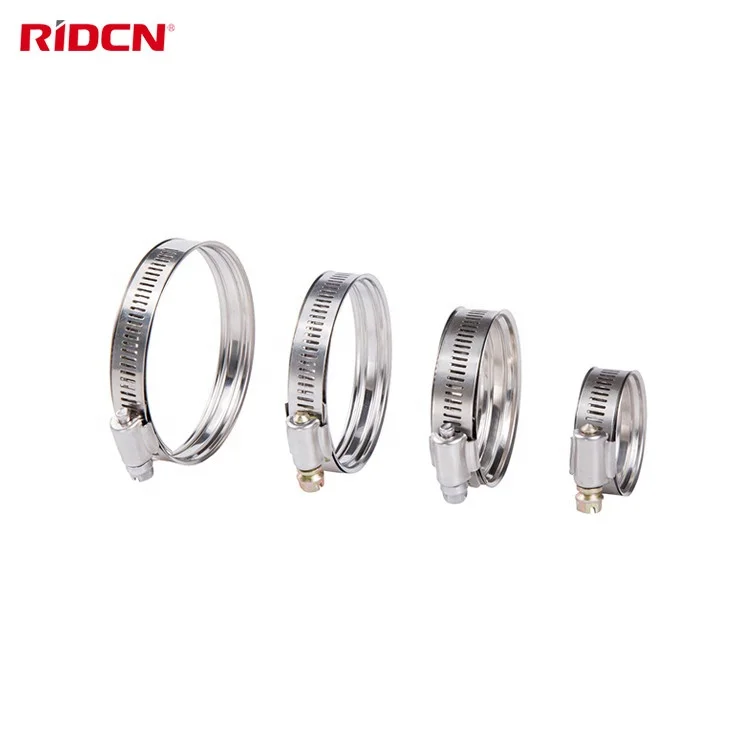

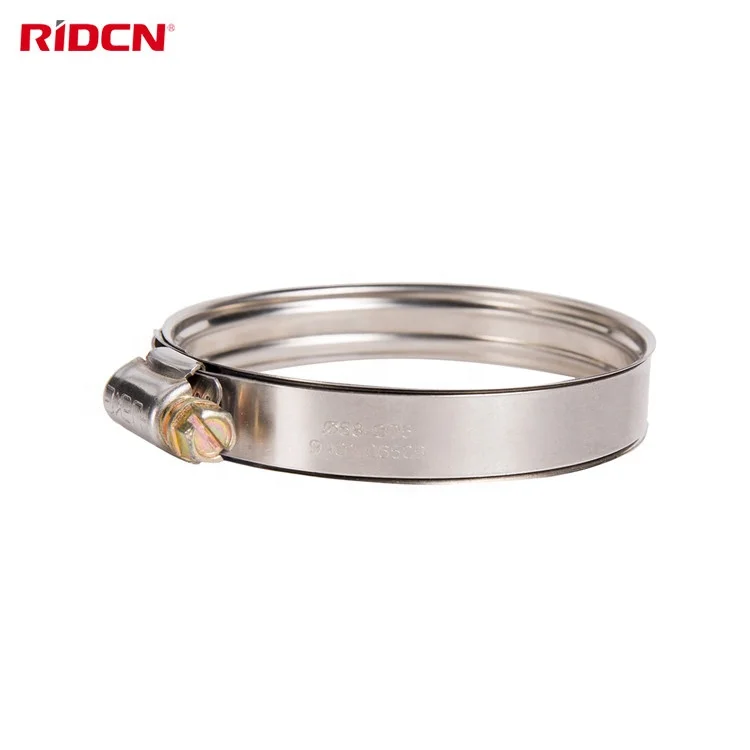

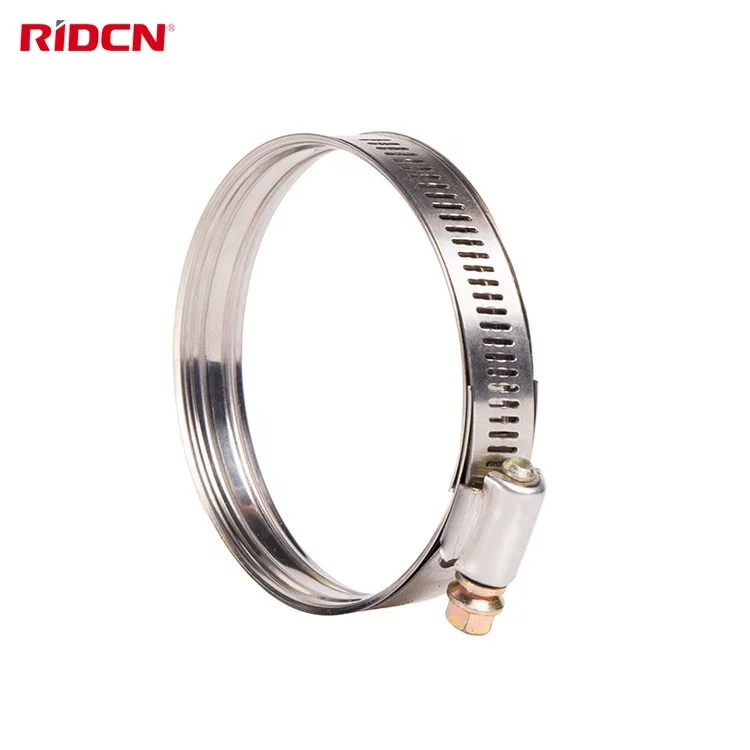

Super Seal Dual Bead Stainless Hose Clamp Sure Grip Worm Gear Clamp

Product Overview

Description



Features:

The bands have punched rectangular perforations that hold strong and connect easily. The inner shield provides superb sealing characteristics and prevents marring of the hose and fumes escaping.

Specifications:

Material: Band &housing is 304 stainless steel ( 201stainless steel is available )

Bandwidth: 12.7mm(1/2 inch)

Band Thickness: 0.7mm(0.028 inch)

Screw: 8mm(5/16 inch) slotted hex head, plated with zinc for long lasting protection

Applications:

This product is perfect for use in air and coolant systems, and is also found in the

automobile,industrial machine,marine, agriculture, construction,etc.



Part NO.	Diameter Range	Bandwidth	Thickness		Torque
	(mm)	(mm)	(mm)	(mm)	(N.m)
37W	26-39	12.7	0.6	0.7	9
56W	39-56	12.7	0.6	0.7	9
59W	42-59	12.7	0.6	0.7	9
65W	48-65	12.7	0.6	0.7	9
75W	58-75	12.7	0.6	0.7	9
85W	68-85	12.7	0.6	0.7	9
95W	78-95	12.7	0.6	0.7	9
120W	100-120	12.7	0.6	0.7	9
Note:We customize clamps according to your special requirements.                Other sizes and alternate materials are also available.
