ROKTOOLS Digital Portable Surface Roughness Meter Surface Profilometer Tester Gauge

Product Overview

Description

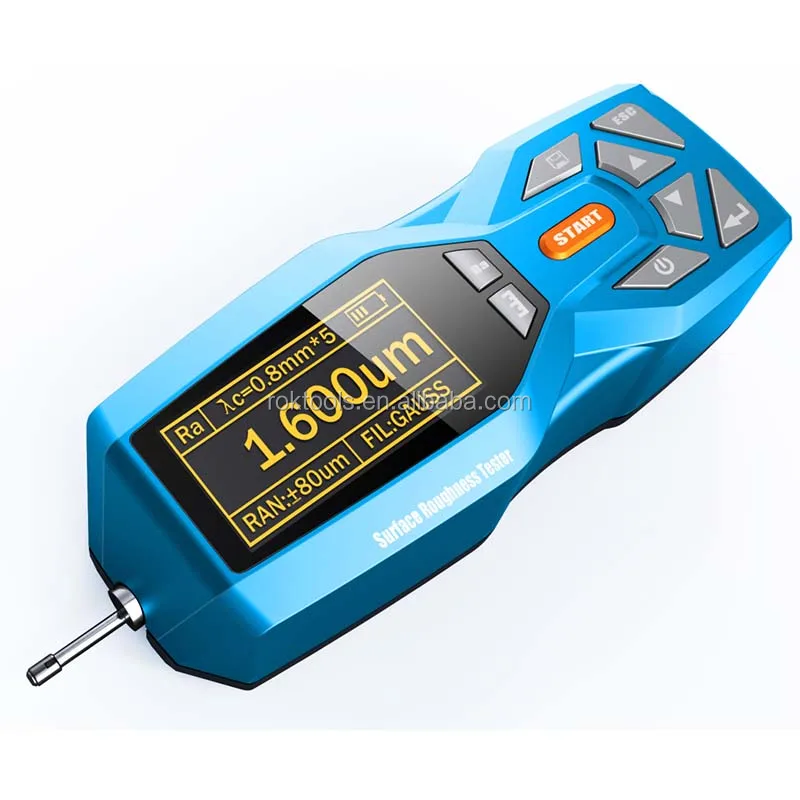

ROKTOOLS Digital Portable Surface Roughness Meter Tester Gauge Surface Profilometer



*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.

*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.

*Optional bluetooth function.

*High price performance.



Specification:



Testing parameters	Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;
Measuring range (um)	Ra: 0.005-16.000 Rz: 0.02-160.00
Sample length (mm)	0.25, 0.80, 2.50
Evaluation length(mm)	(1-5)L
Maximum drive stroke	17.5mm/0.7inch
Indication accuracy	0.001
Indication error	±(7-10)%
Variability	<6%
Data Storage	100 groups
Power	Rechargeable li-battery
Working temperature	-20℃~40℃
Relative humidity	<90%
Size	158mmx63.5mmx46mm
Weight of Host	0.3kg





Package:

Host 1
Standard Sensor 1
Calibration block and bracket 1
Bracket 1
Charger 1
Adjustable support 1
Operating manual 1
Warranty card 1
Certificate of approval 1
Instrument case 1
