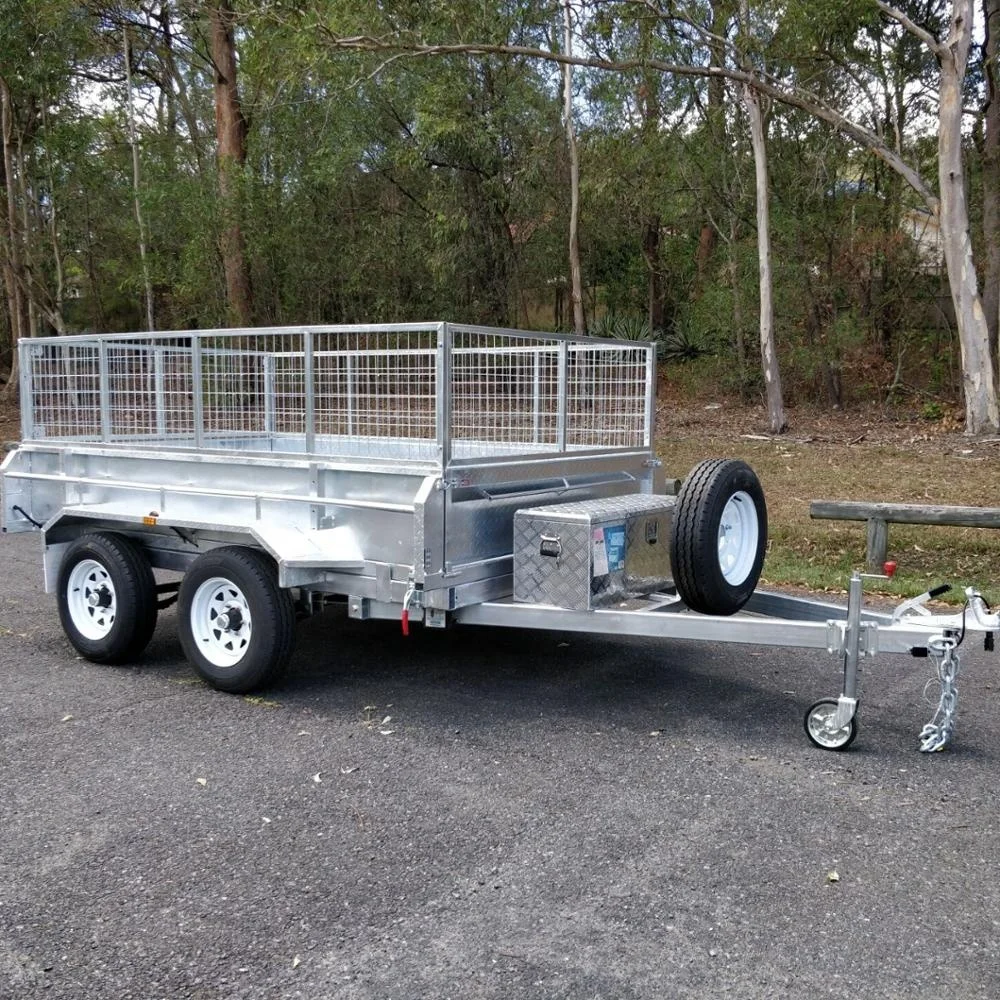

2021 POPULAR HDG 12 x 6 Hydraulic Three Ways Tipper Trailer ATM 3500KG
- Category: Cargo & Utility Trailers >>>
- Supplier: Hunan Ct Industries Co. Ltd.
Share on (62038353736):
Product Overview
Description
Different Size For Hydraulic Tipper Trailer
SIZE (ft) | ATM (kg) | CHASSIS (mm) | INTERNAL TRAILER SIZE (mm) | SPRING | WHEEL |
8×5 | 3500 | 2480×1535 | 2400×1530 | 7 Leaf 7mm Rocker Roller Spring | 195 R15C |
10×5 | 3500 | 3080×1535 | 3000×1530 | 7 Leaf 7mm Rocker Roller Spring | 195 R15C |
10×6 | 3500 | 3080×1835 | 3000×1830 | 7 Leaf 7mm Rocker Roller Spring | 195 R15C |
12×6 | 3500 | 3680×1835 | 3600×1830 | 7 Leaf 7mm Rocker Roller Spring | 195 R15C |
Hot Dipped Galvanised 12x6 Hydraulic Tipper Trailer ATM 3500KG
Product Description
• Technical Specifications
ATM:3500KG
Payload: 2250KG
1900mm Ultra Long Draw Bar makes reverse parking easy
Fully Welded Frame and Chassis
Chassis: 3680mm x 1835mm
Internal Trailer Size: 3600mm x 1830mm
Side: 425mm High Fully Welded
Drawbar: 1800MM Ultra-long Draw Bar for Easy Reversing
Finish: Hot Dipped Galvanized
Body: Drop Down Front/Rear Panel
Flooring: Checker Plate Floor
Lights: LED
Lights Plug: Round or Flat 7 Pin Plug

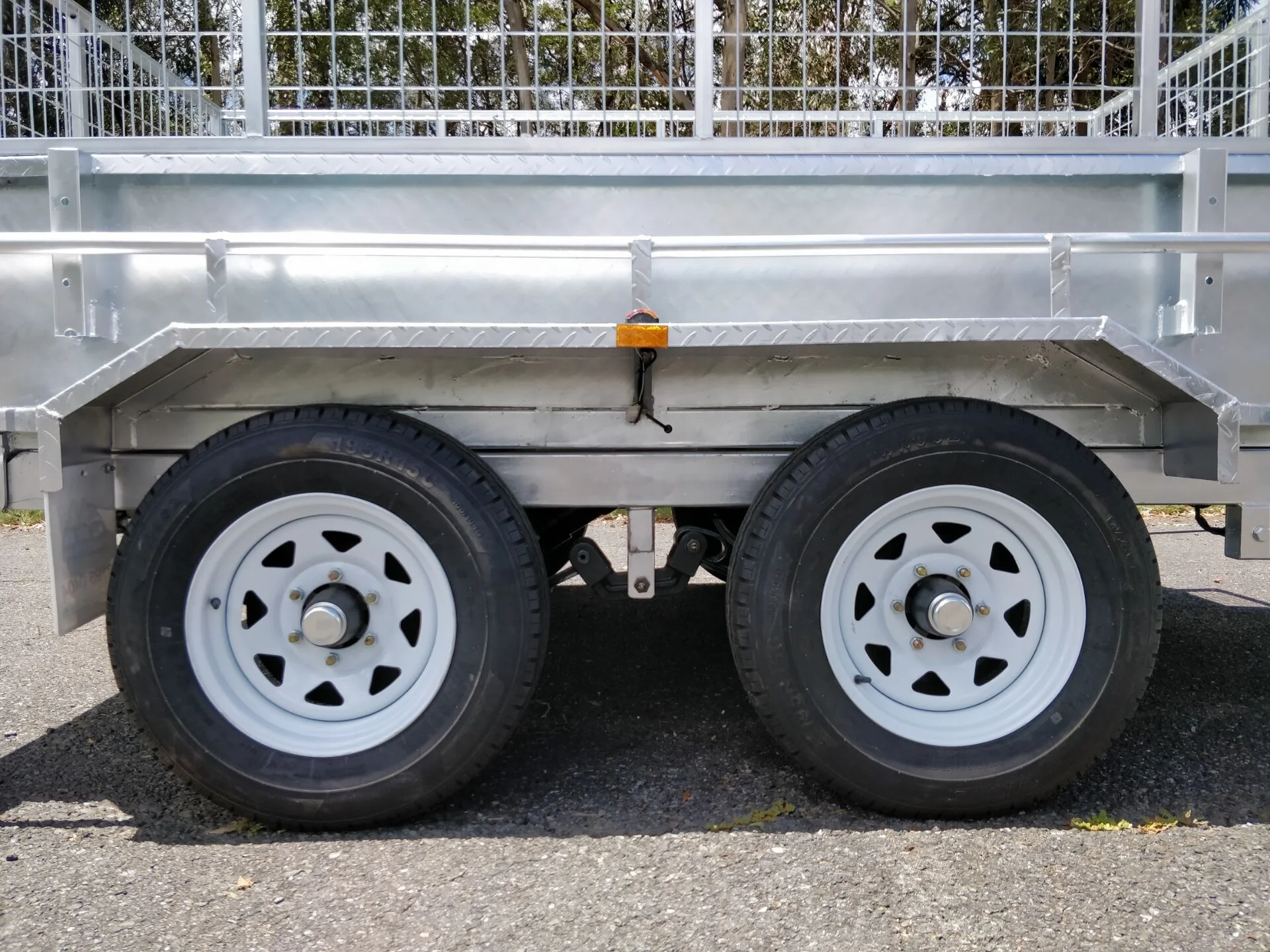

Axle: Dual 50mm Solid Round Axles
Brake: 12 Inch Electric Drum Brake With Dexter Bearing
Spring: 7 Leaf 7mm Rocker Roller Spring
Wheel: Brand New 195 R15C Wheels(Tyres&Rims)
Jockey Wheel: 8 Inch 1500lbs Swing Up
Coupler: 50mm 3500KG Coupling For Electric Brake

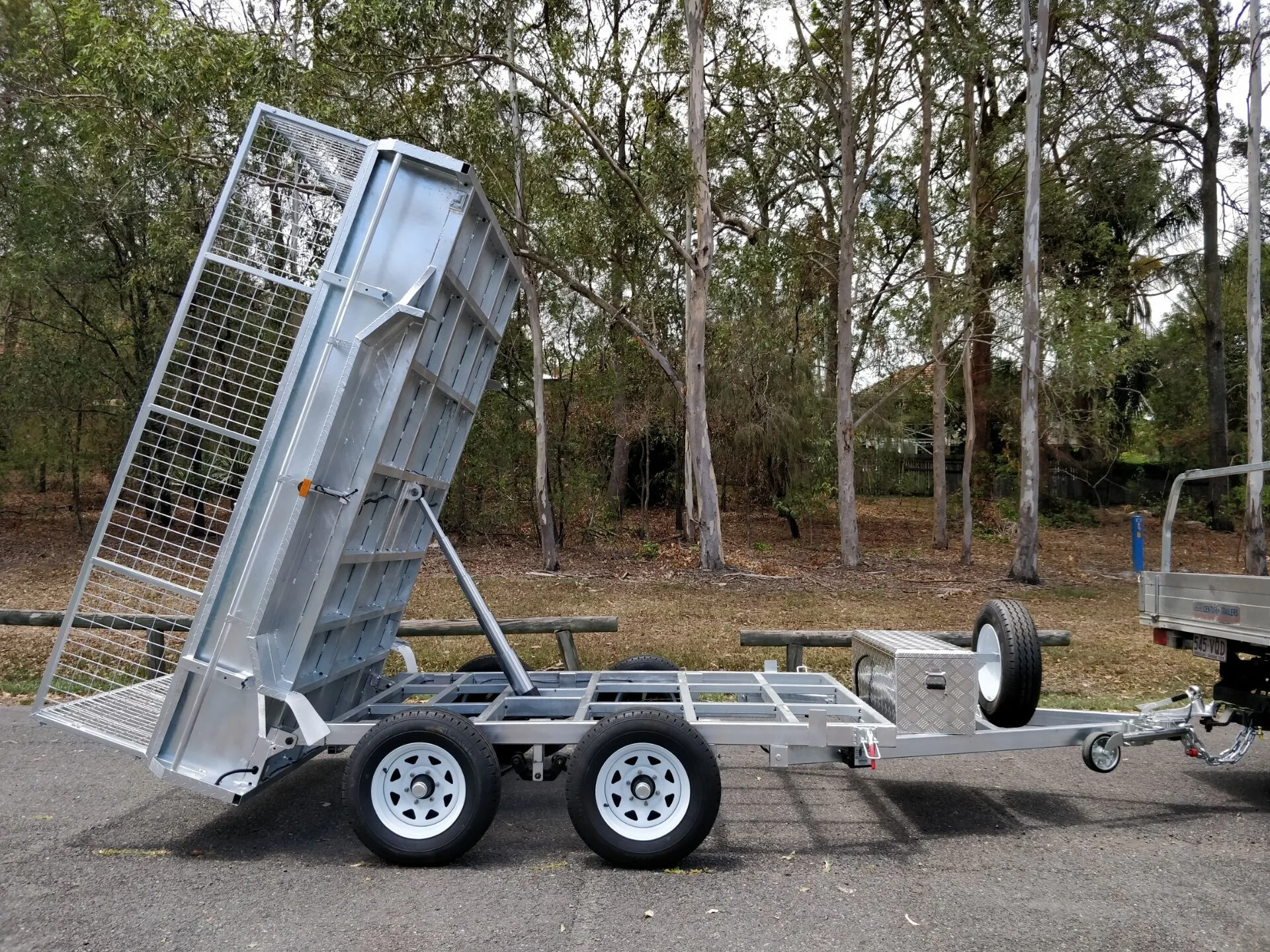

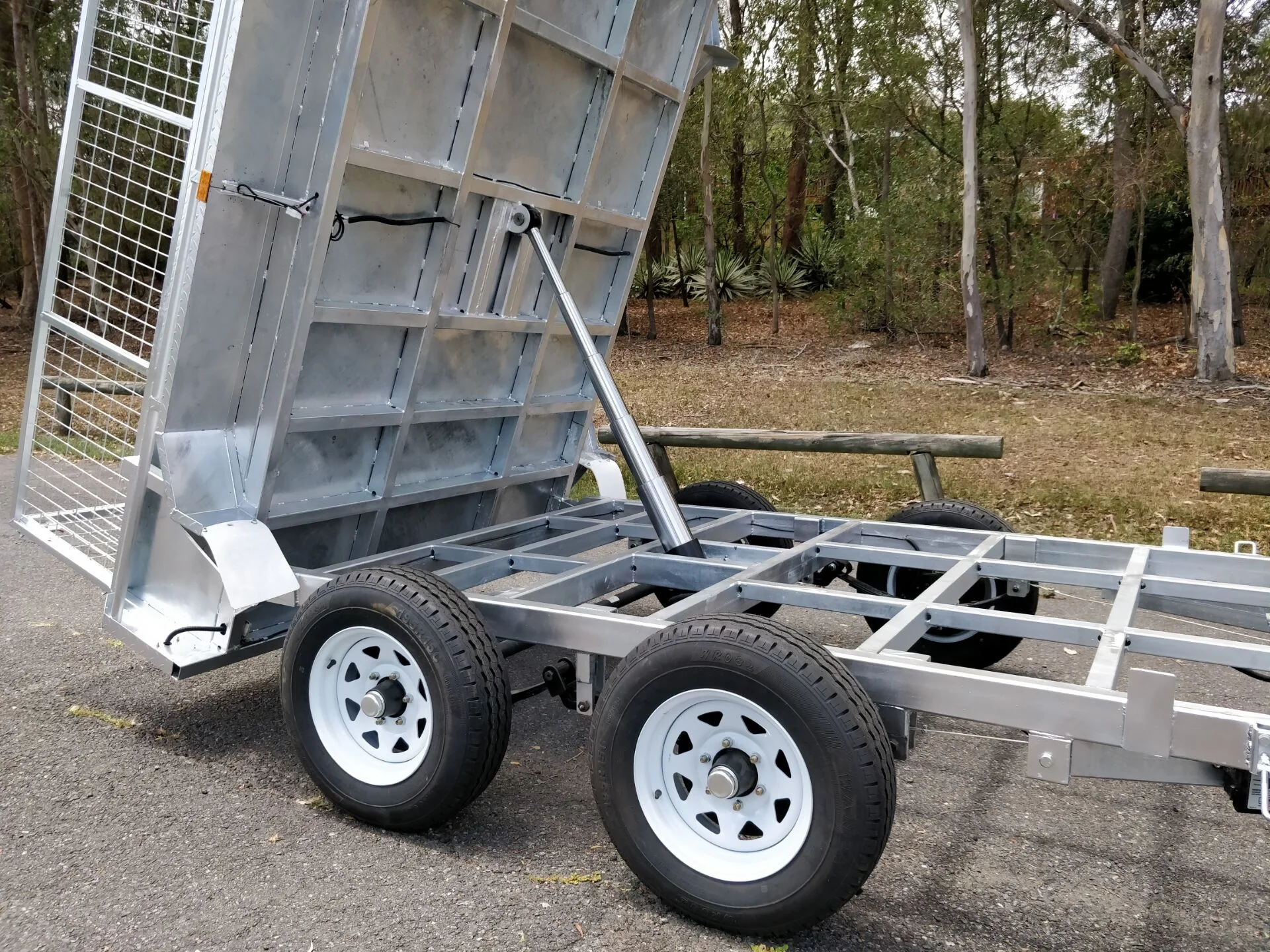

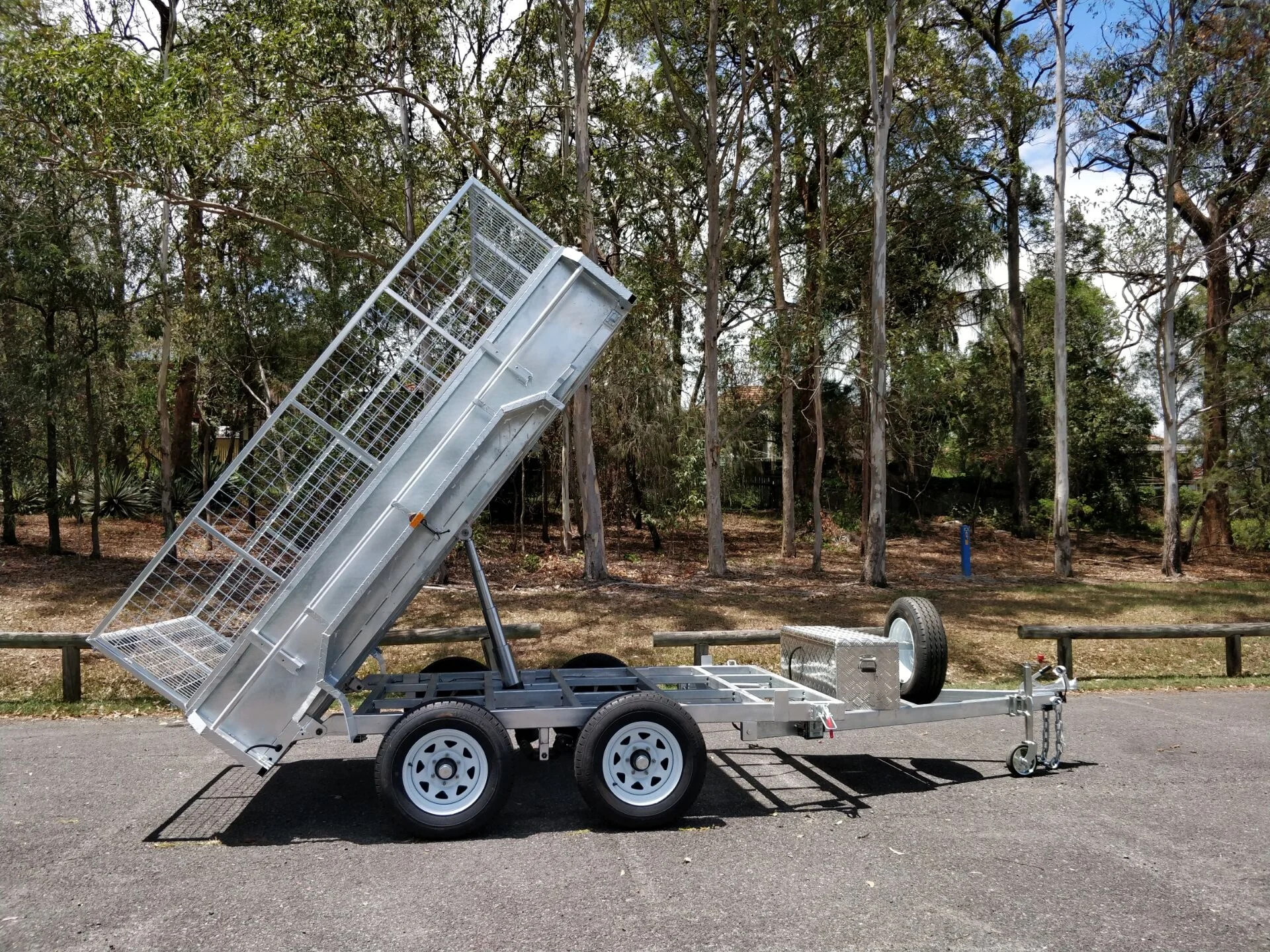

5-Stage Hydraulic Tipping Ram with 4600KG Loading Capacity
12V Automotive Battery comes with Hydraulic System
Electric Brake-away Unit Fitted
Safety Chain: 2 x 13mm
Ladder Rack Holders
Tie Down Rails All Round
Cage(Optional): 600mm Cage/900mm Cage/Cage&Ramp
