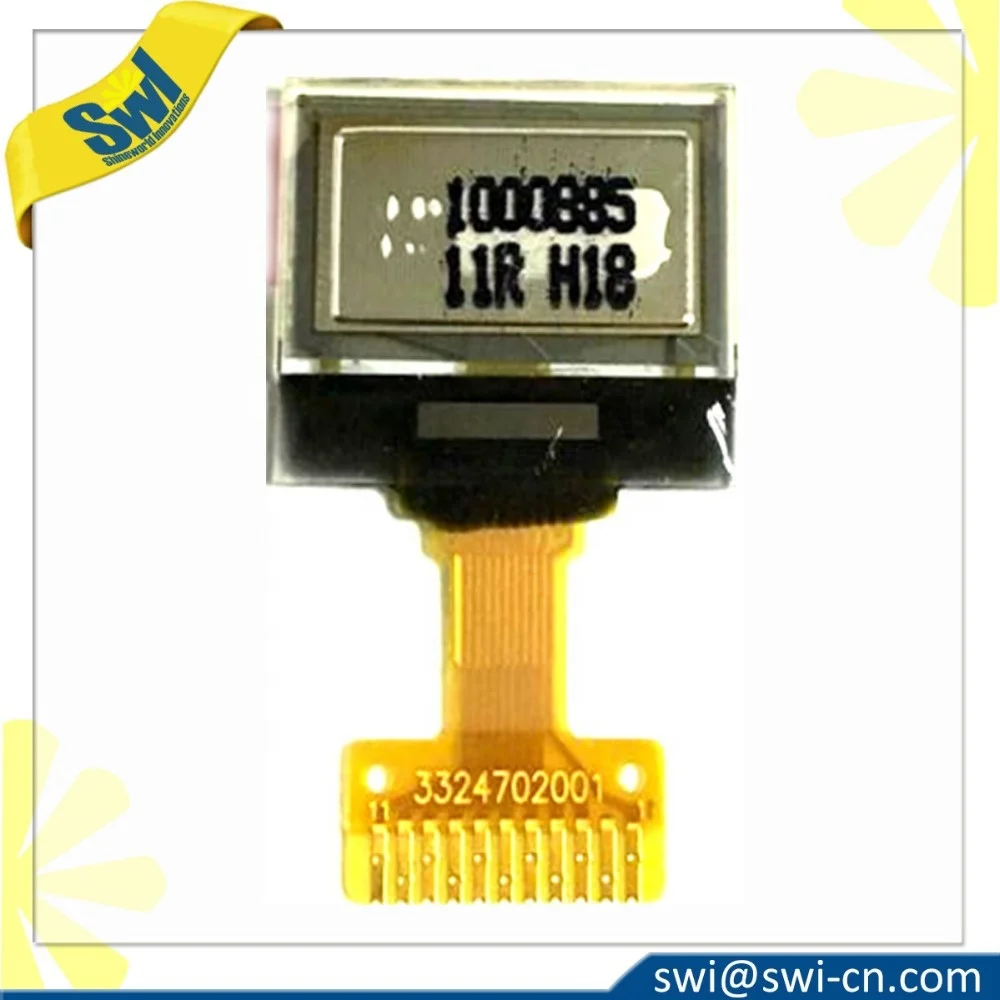

0.48inch white color small oled display72x32 transparent LCD screen
0.48inch white color small oled display72x32 transparent LCD screen
0.48inch white color small oled display72x32 transparent LCD screen

0.48inch white color small oled display72x32 transparent LCD screen

Share on (62038440520):


Price:RUB 133.79

Quantity:


Product Overview

Description

Product Description



0.48"  OLED 4 wire

Diagonal Screen Size0.48inch
ColorMonochrome (white)
Module ConstructionCOG
Number of Pixels72X32
Active Area11.212x4.972mm
Pins11
Drive ICSPD0301
Interface4-wire SPI



Temperature range

ItemMin.Max.
Operating Temperature (°C)-3070
Storage Temperature (°C)-4080

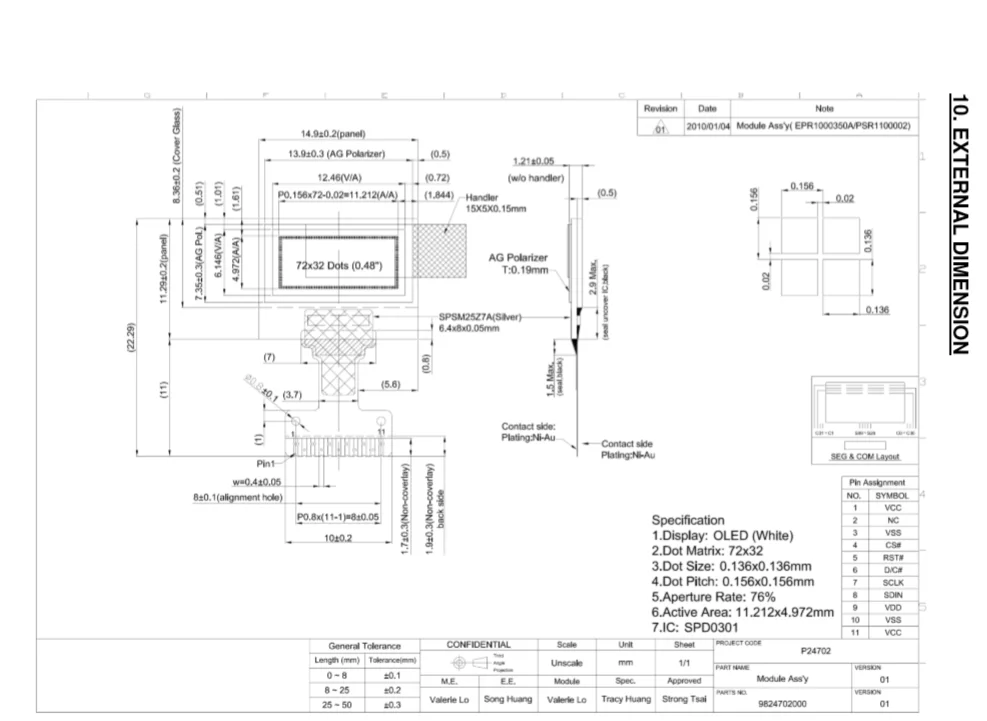

Outline Drawing

 0.48Mono OLED.png

 full color OLED Display.jpg


More Products



OLED more spec..jpg


ABOUT US





1.14 SPI.png

Process Flow

 produce process.png

Trade Information:
Trade Terms: EXW, FOB, CIF, DDU
Payment Terms: T/T, PayPal, Western Union, Escrow
Payment Condition: 40% in Advance as Deposit, 60% Balance before Shipment
Lead Time: 2-6 Working Weeks
Shipping: By sea, Air and Express
