wholesale 1000w fm transmitter uhf/fm radio transmitter broadcast equipment fm broadcast transmitter for tv stations

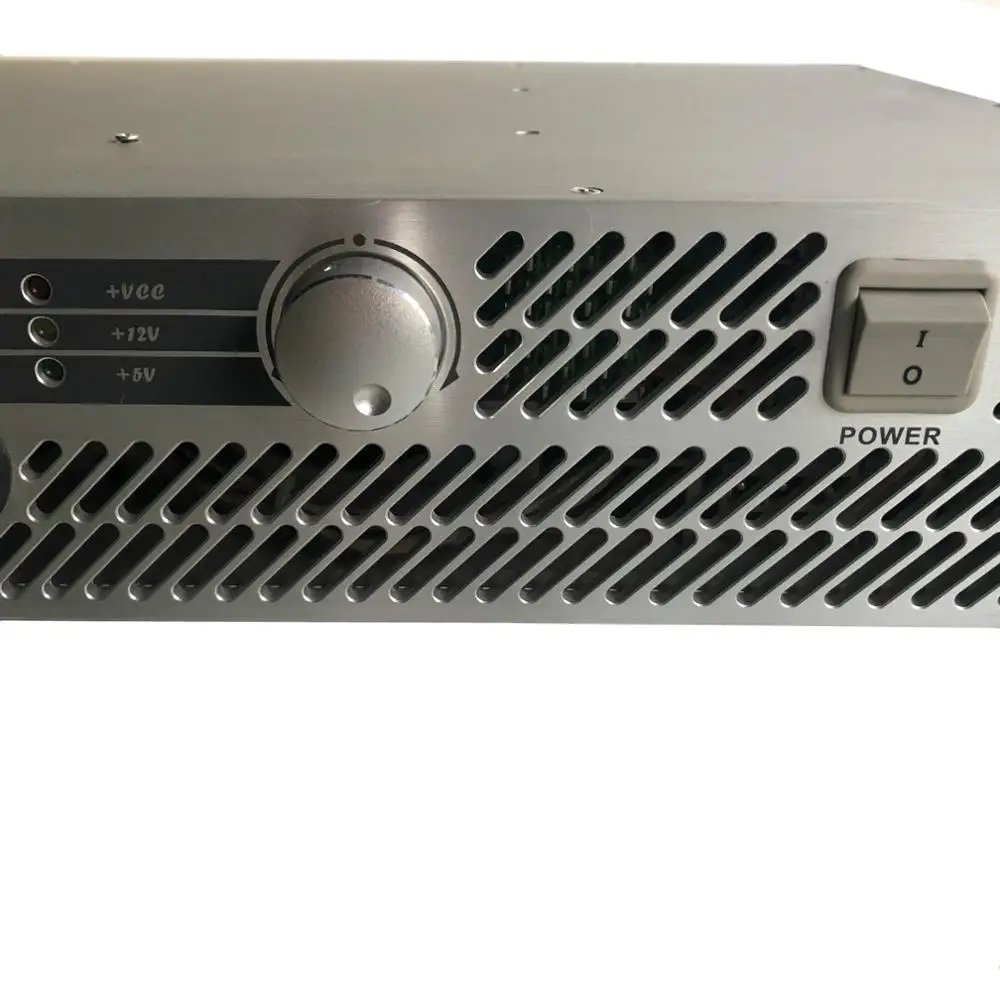

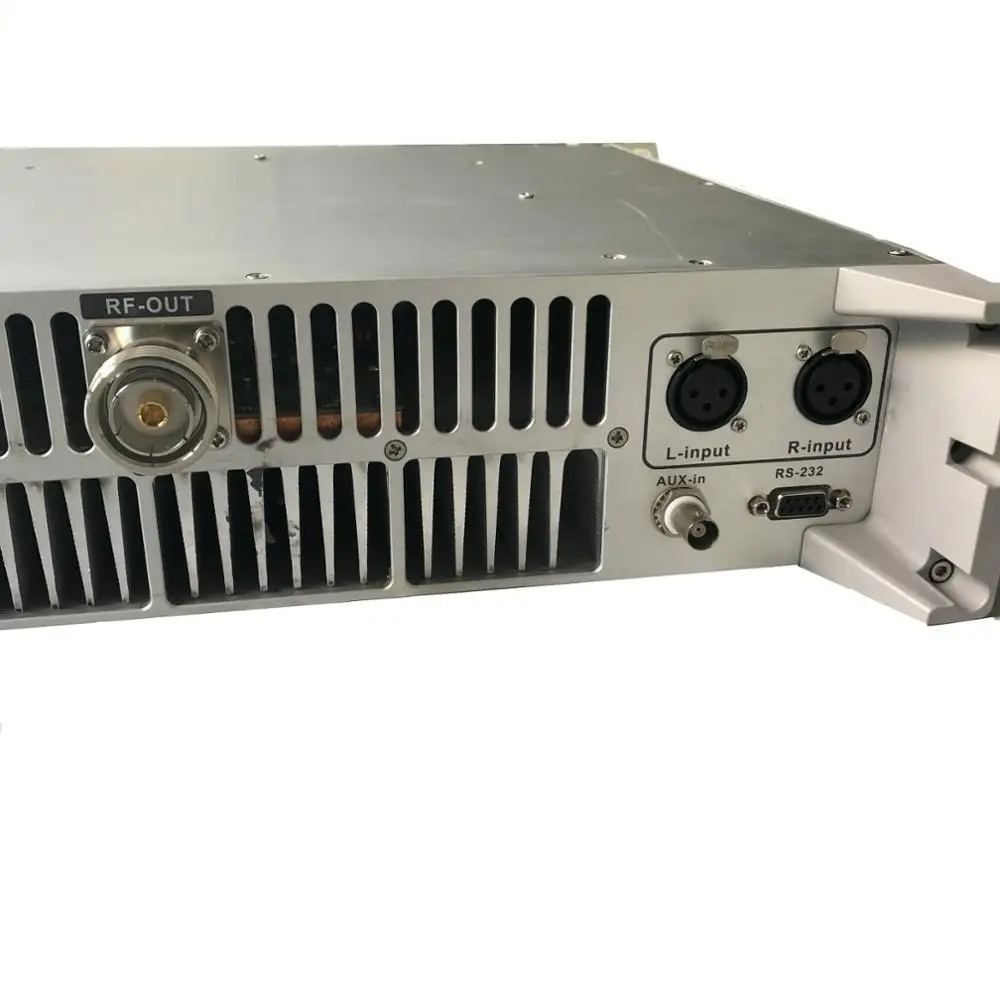

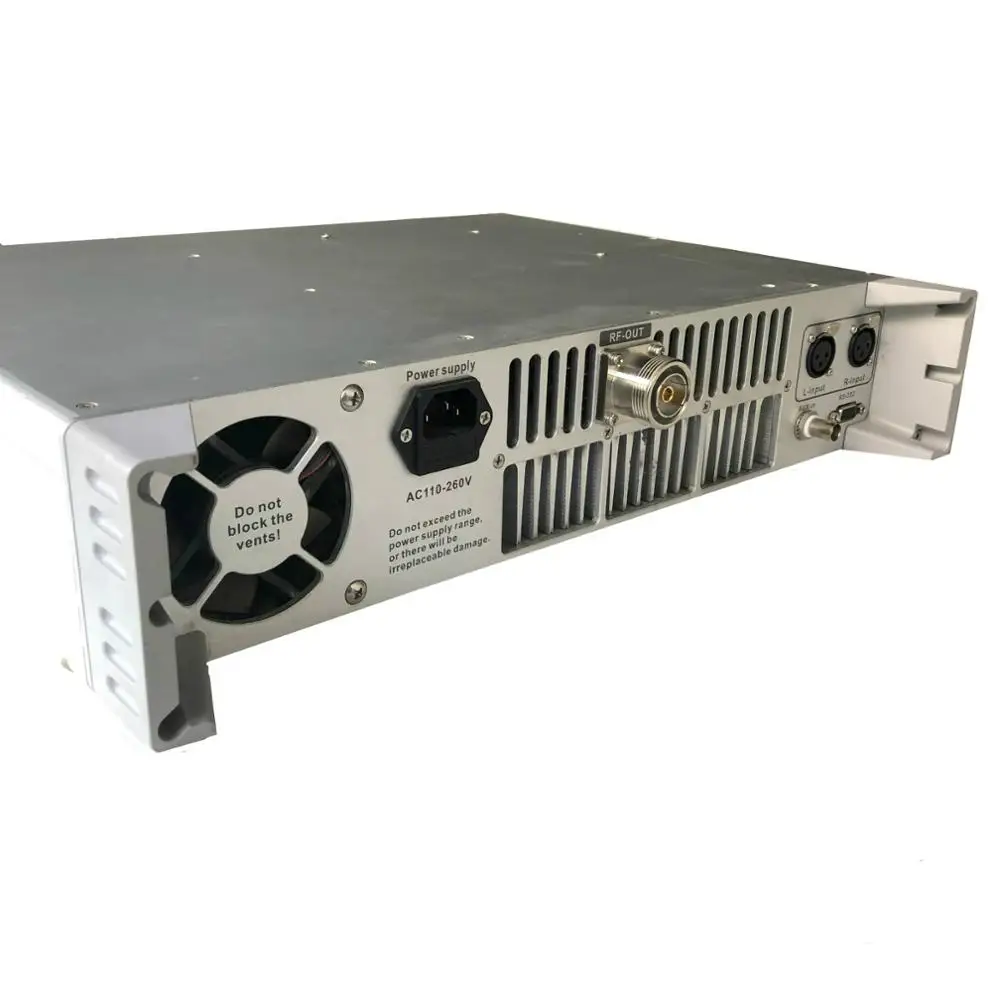

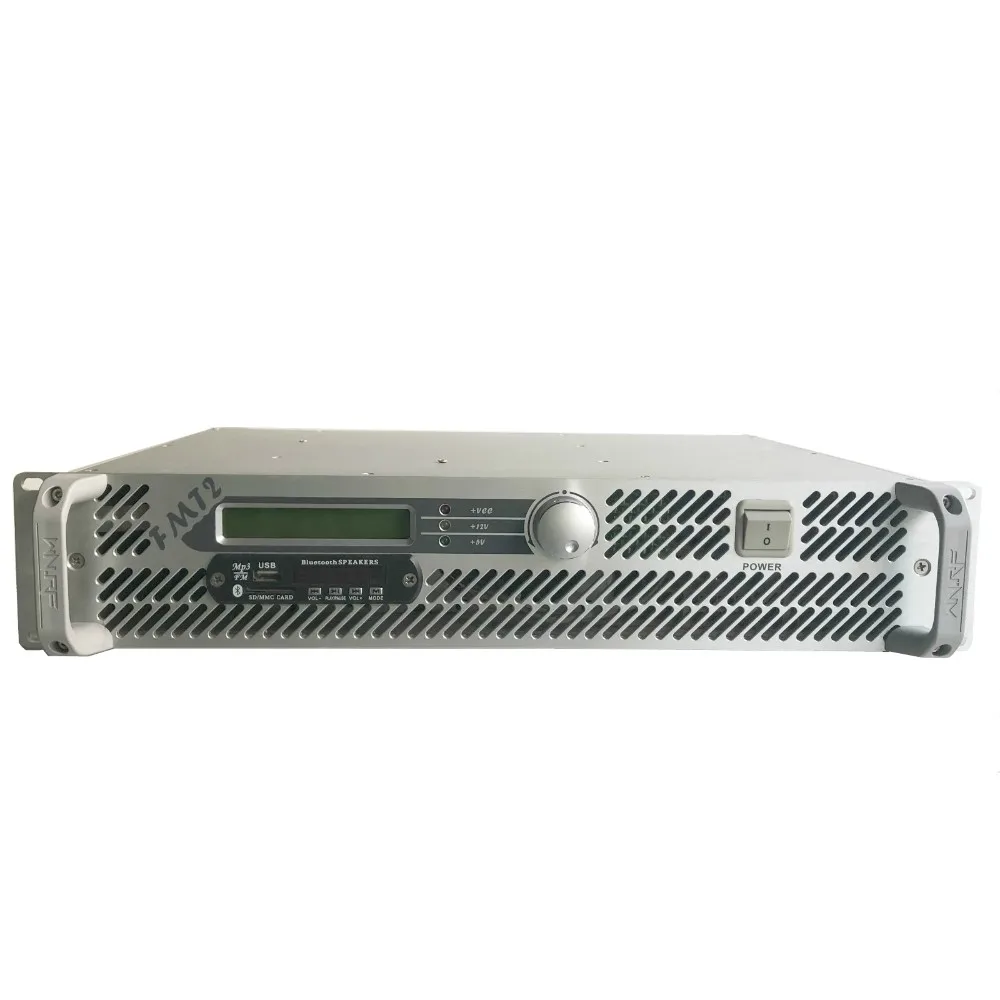

                                                       Vision  Wireless FM Broadcast Equipment 1kw FM Transmitter

The 1 kw fm broadcast transmitters are widely used for professional radio station to transmit high quality FM radio programs, and  power amplifier module has the advantages of good linearity, high gain, high power, high efficiency, long life.

                       Certificates:

Our Service

1. On-line Service

Our Sales & Technical Departments are on-line every day to reply to our customers’ enquiries, solving their problems in order to get perfect broadcasting. The most important benefits of VISION on-line service translated into real broadcasting life:

      Improving broadcasting success, mini-missing off-air

       Reducing maintenance cost, with easy and fast online service solutions

2. Factory Service

VISION’s factory service, with spare parts supply available worldwide guarantees an immediate availability and delivery of spare parts

3. After-sales Service

VISION supports the displacement, assembly and commissioning job at the user’s site to clear out the after-sales worries.

If we don't know too much about the broadcast transmitter, how could we choose the correct model?

Transmitter transmitting distance reference:

Below is a rough outline of the different power FM transmitters. (range is diameter)

Environment: Less electromagnetic interference, open terrain, no obstruction, stable voltage, and the antenna is 30 meters above the ground.

0.1W~5W FM transmitter: 100M~1KM

5W~15W FM transmitter: 1~3KM

15W~80W FM transmitter: 3KM~10KM

80W~500W FM transmitter: 10KM~30KM

500W~1000W FM transmitter: 30KM~50KM

1KW~2KW FM transmitter: 50KM-100KM

2KW~5KW FM transmitter: 100KM~150KM

5KW~10KW FM transmitter: 150KM~200KM

Note: The above distances are for reference only. The highest standards can be enforced when the conditions are the same, but it is difficult to reach the above distances if the environmental conditions are not met.

How far can the transmitter transmit?

The transmission distance depends on many factors, the installation height of the antenna, the gain of the antenna, the sensitivity of the receiver, and the size of the receiving antenna. Environment application: such as buildings and other obstacles that may affect the launch of the antenna; remember that the higher the height of the antenna is installed, the further the distance will be.

Examples:

1. Receive sensitivity and open environment

It used to use a handheld walkie-talkie with a maximum power of 5W in the Gobi Desert to penetrate the desert of about 30KM.

In the same Gobi desert, a 5W FM radio transmitter is used, and the receiving end is a car radio with a distance of 10KM.

2.The same power, different height environment

The altitude of the mountain is 842M, the power is 1000 watts. The receiving end is a car FM radio with a launch radius of ≈ 50KM.

Urban area, 245M high-rise building top, 1000W receiving end is the same as above, the emission radius is ≈18KM.

3. Different powers at the same height

Take the urban roof as an example:

1000w receiving car radio, voice effective distance 18KM, dense area 1^st floor, the voice is not clear.

2KW receiving car radio, voice effective distance 22KM, dense area 1^st floor, the voice is clearer.

3KW receiving car radio, voice effective distance 35KM, dense area 1^st floor, clear voice.

4. The same power is 100W, the same height is 15 meters from the ground, and the antenna is different.

Vertically polarized mechanical antenna, transmitting effective distance 10KM, no hot spots on the antenna.

The rod antenna is fed in series, the effective distance of the launch is 5KM, the antenna joint is heated, and the antenna burns after 2 hours.

Vertically polarized feed (core), the emission distance is 5KM, and the antenna is hot.
