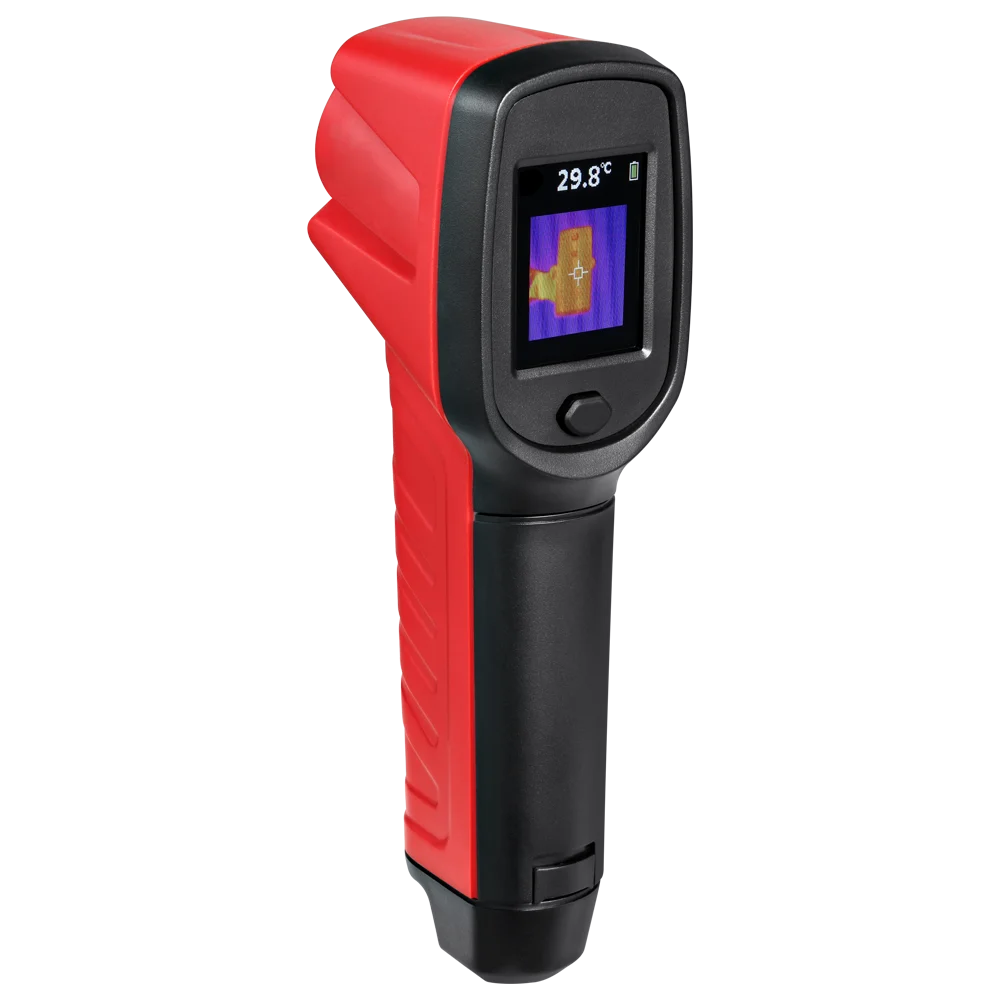

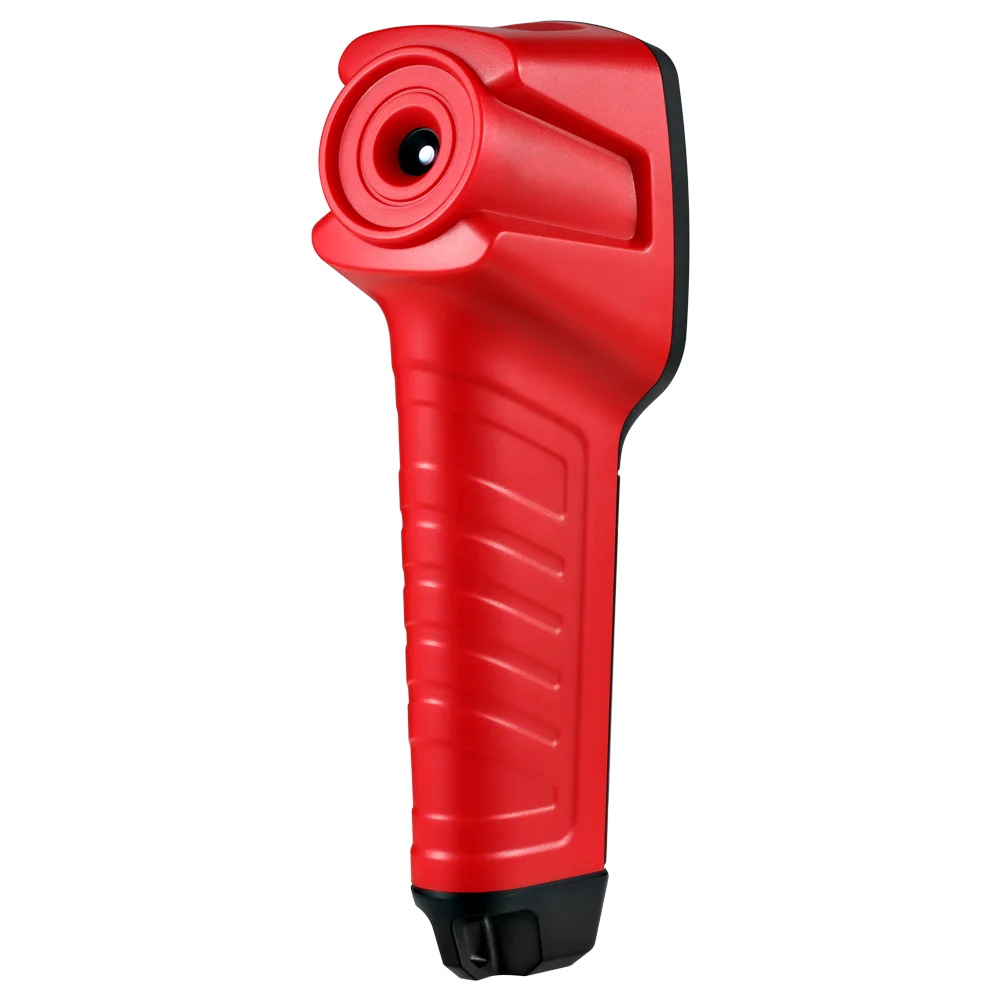

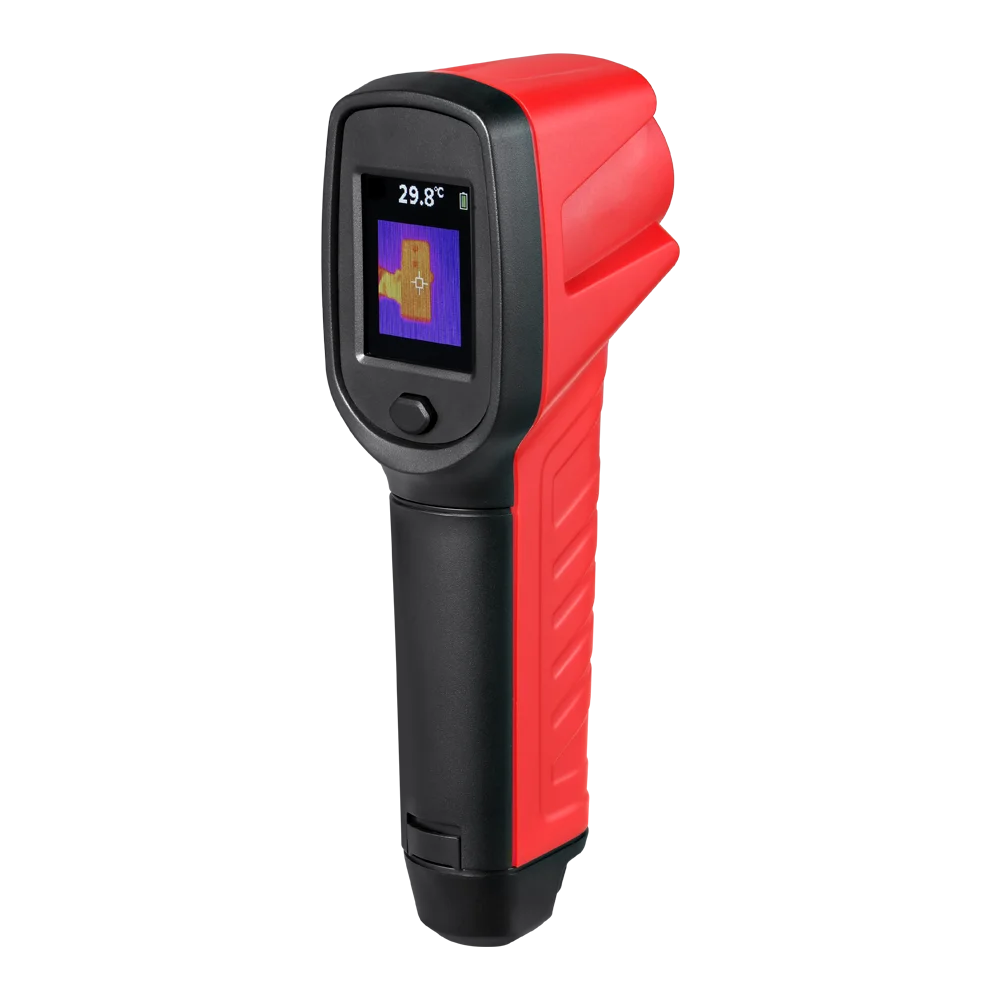

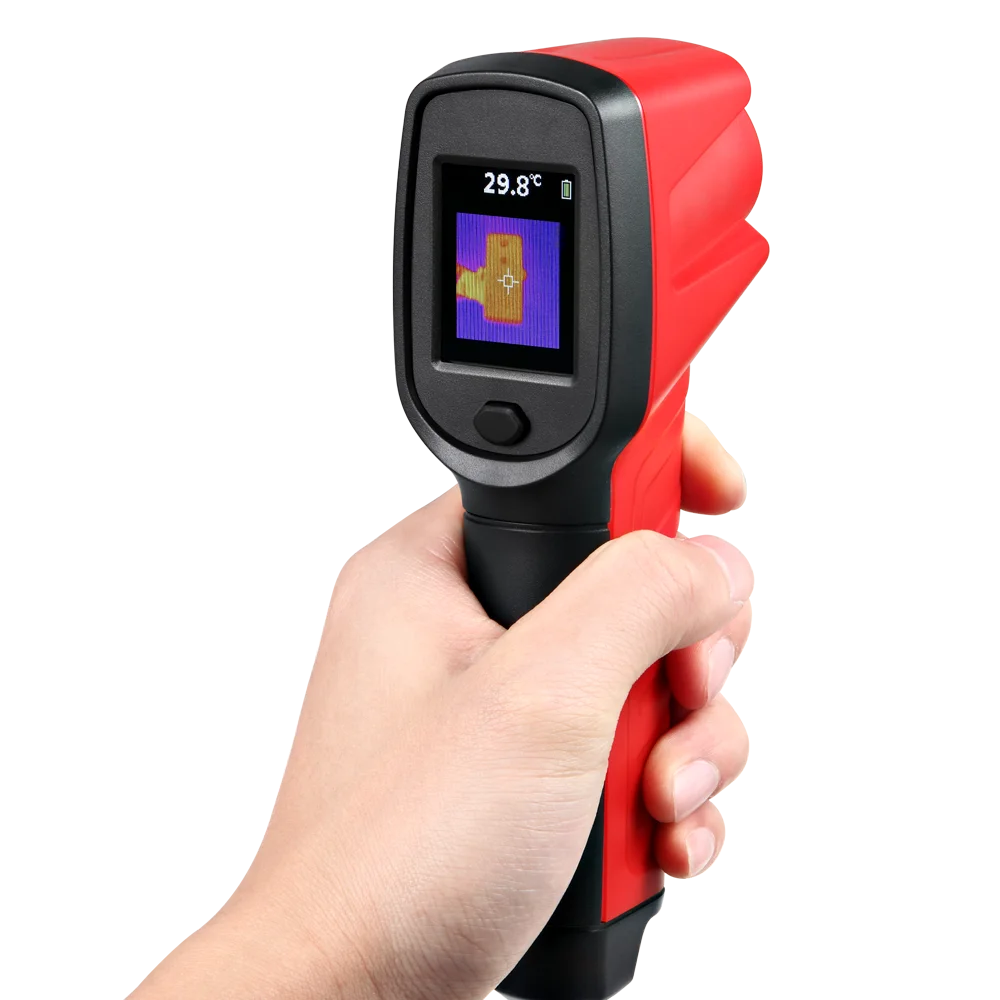

WOYO Thermal Image High Resolution Handheld Infrared Thermal Image with 100*100 Pixels
- Category: >>>
- Supplier: Woyo Smart Technology (Shenzhen) Co. Ltd.
Share on (62038682911):
Product Overview
Description
WOYO Thermal Image High Resolution Handheld Infrared Thermal Image with 100*100 Pixels see the heat in seconds
! We never make misleading/deceptive advertising about image resolution.
! Better Image Fidelity at Same Price Range.
! Better Image Fidelity at Same Price Range.

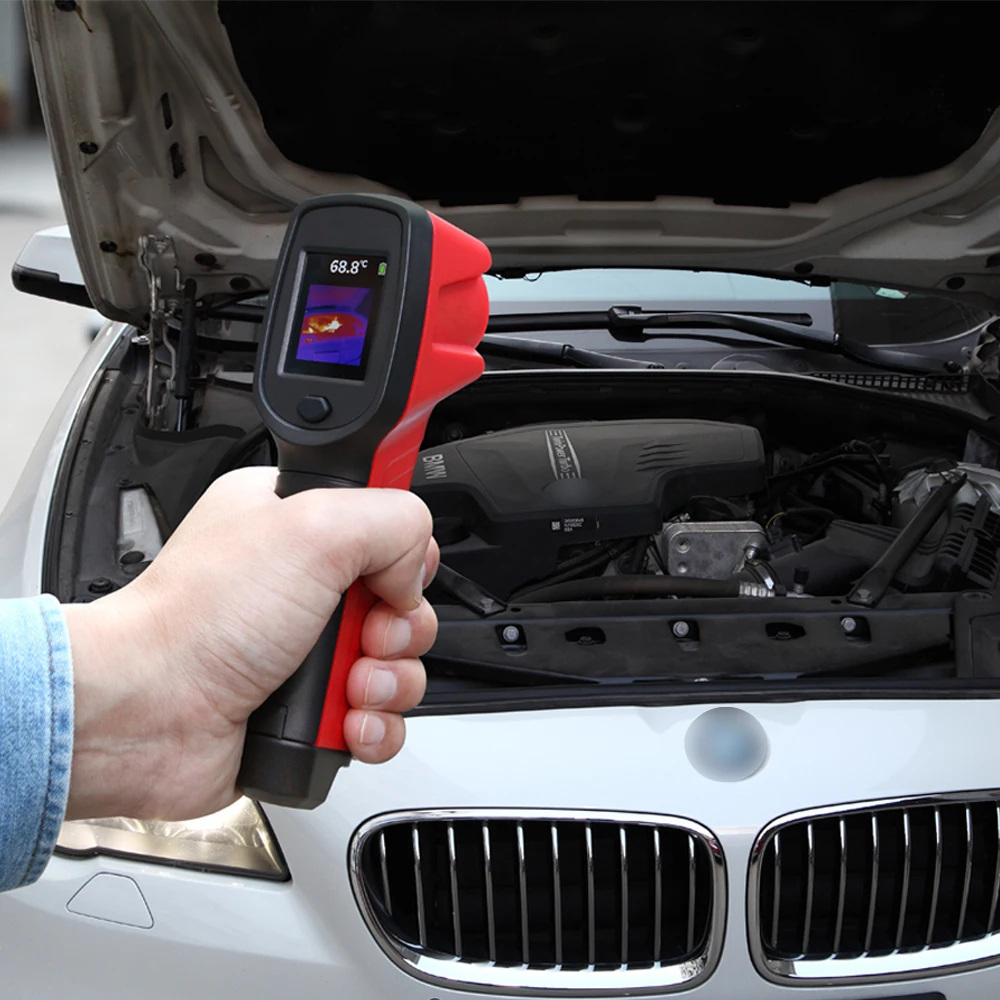

Automotive Application
· Frame an entire scene in a single image.
· Compare brake rotor temperatures for uniformity.
· Quickly identify mechanical wear.
· Troubleshoot mechanical issues.
· Inspect tires and belts.
· Reduce troubleshooting time
Thermal Sensor | |
Sensor Type | Uncooled Infrared Focal Plane |
Pixels | 100 x 100 |
Spectral Response | 8 to 14um |
Frame Rate | 9 Hz |
Thermal Sensitivity | 0.1℃@30℃ |
Thermal Camera | |
Field of View | 37°x 37° |
Focus Range | 0.05m to ∞ |
Focus Adjustment | Automatic Adjustment |
Imaging Specification | |
Spatial Resolution | 6.5 mrad |
Display Screen | 1.8" TFT LCD,128 x 160 |
Color Palette | Hot Iron |
Imaging Display | Infrared Image with Spot Thermal Measurement |
Battery Capacity Display | Icon Display, Low Power Warning |
Image Processing | Automatic |
Temperature Measurement | |
Temperature Range | |
Measurement Accuracy | |
| Self-calibration |
Measurement Type | Focal |
Dist.to Spot Ratio (D.S) | 15:1 |
Units | ℃,℉ |
Battery | 3 x AAA(LR03) |
Battery Life Hours | Continuous Use:6 Hours |
Power Saving Mode | 5 Minutes |
Operating Temperature | -10℃ to 50℃ |
Storage Temperature | -40℃ to 70℃ |
Humidity | ≤90% |
Impact Tesistance Test | 25G,IEC68-2-29 |
Anti-Vibration Test | 2G,IEC68-2-6 |
Drop Test | Designed for 1.5 Meter |
Physical Characteristics | |
Dimensions | 177 x 53 x 65mm |
Weight | Approx.175g |
About WOYO
Established in 2010, the WOYO SMART CO.,LTD is an innovative company driven by technology research and development.
In the early years of development, it mainly focused on the modular R&D business for large state-owned and start-up enterprises.
From the hematology analyzer to children's story machines and from the metro gate control systems to automotive monitoring systems, dozens kinds of technical experiences has been accumulated.
In 2014, the company made comprehensive transformation and begun specialize in the smart automotive maintenance tool industry.
Currently, the Paintless Dent Repair Tool, Heating Bolt Remover and Flameless Lossless Heating System rank top place in the industry with it's comprehensively competitive strengths.
Why choose us?
1. Original Manufacturer/Factory
2. OEM Private Labeling Order Accepted
3. Professional Technical Team
4. Fast Response and Quick Service
Contact us
WOYO SMART CO.,LTD
QQ: 2131721237
Skype: +86 13926522864
Wechat: +86 13926522864
WhatsApp +86 13926522864
Address: 3 Floor, Building 2, Xitou Industrial Area, Minzhi, Longhua District, Shenzhen, China.
