Color Aluminum Composite Panel Alternative wall materials Acp Sheet

Name: Color Aluminum Composite Panel Alternative wall materials Acp Sheet
SKU: 62038795880
Availability: InStock

Price:

Quantity:

Aluminum Composite Sign Panel Sheet 1/8" X 12" X 12" - White Color

Product Description

Width	1000mm/ 1220mm/ 1250mm/ 1500mm/1575mm etc.
Length	2440mm/4000mm or customized
Thickness of Panel	2-8mm
Thickness of Aluminum	0.05-0.5mm
Color	BoDo Standard colors or Customized
Top coating	PE coating for indoor (5-8 years guarantee) / PVDF coating for outdoor (20 years gurantee)

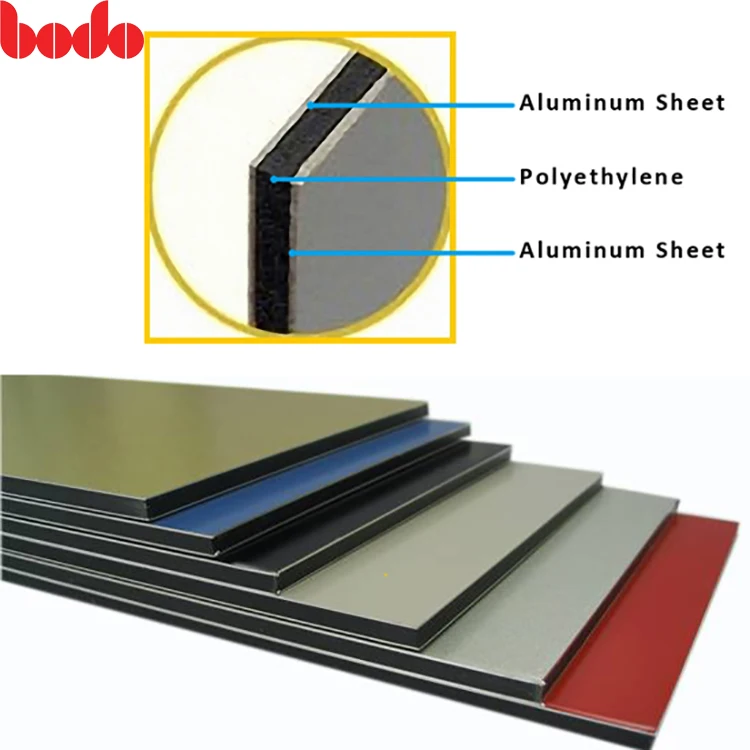

Top Skin	Aluminum alloy coated with PVDF / PE resin
Back Skin	Aluminum alloy sheet coated with primer / mill finish
Core	Non-toxic & low-density polyethylene (LDPE) plastic
Density	0.5-0.55g/cm3
Flame Expansion	BS476-7 S1
FR rated	GB8254-1997 A Class

Performance

Testing Project	Unit	Test Result
Deflection temperature under heat	^.C	117
Flexural Rigidity	Kg/mm2	14.0*1.05
Flexural Elasticity	Kg/mm2	4055
Tensile Strength	Mpa	49.6
Flexural Strength	^Mpa	108
Fire propagation		Class B 1
Smoke develop		≤45
Finishing coating thickness	um	29
Pencil hardness	H	3H
Impact resistance	No crack after 60kg.cm.

Features

1. Excellent rigidity and impact resistance

2. Acid-resistant and alkali-resistant

3. Easy to clean and maintenance

Applicant

1. Interior and exterior wall cladding for commercial or residential buildings

2. Waterproof sheets for bathroom, kitchen, ceiling

3. Decoration material for shops, hotel, subway

4. Building construction materials, material for vehical, boats and traffic signage boardsDecorative panel for cabinets

Product Pictures
