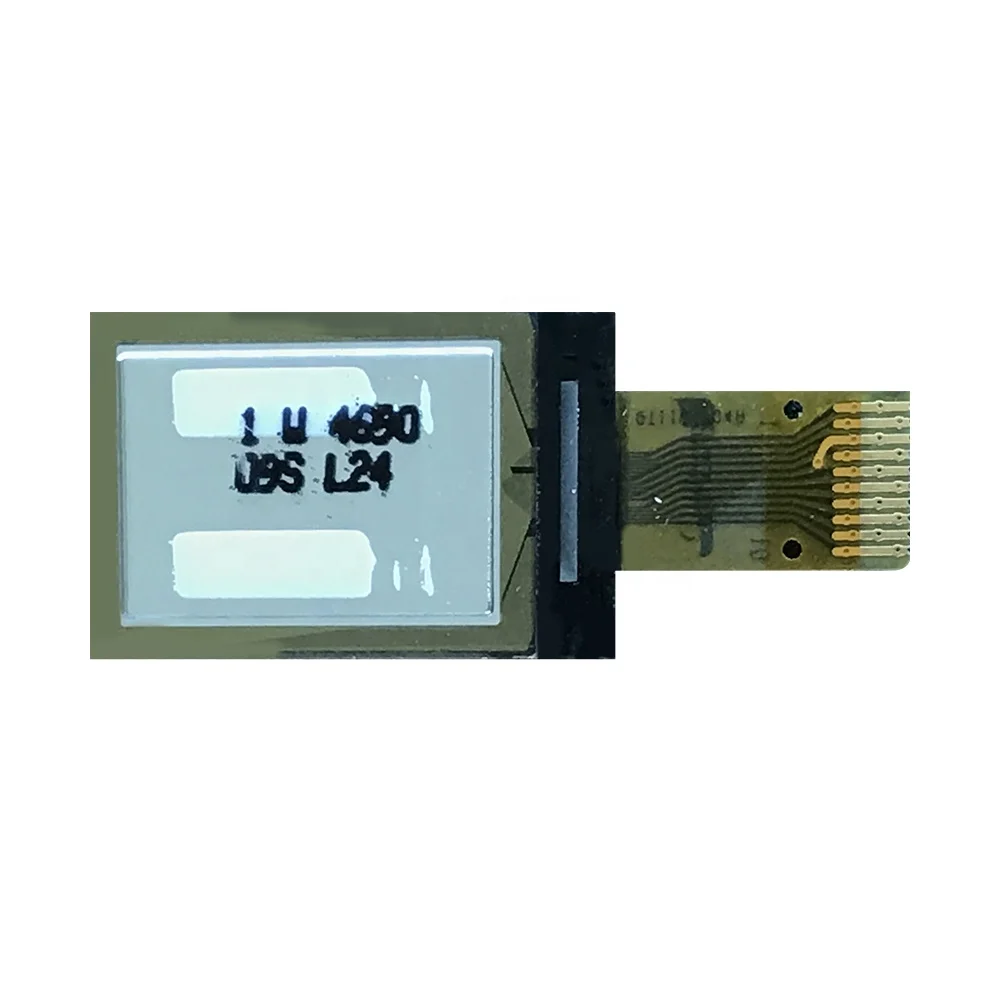

0.73'inch 128x88 SH1107 OLED 10Pins OLED Display
0.73'inch 128x88 SH1107 OLED 10Pins OLED Display
0.73'inch 128x88 SH1107 OLED 10Pins OLED Display

0.73'inch 128x88 SH1107 OLED 10Pins OLED Display

Share on (62038804876):


Price:$1.50 - $1.70

Quantity:


Product Overview

Description


Product Description

Product Description
0.73 Inch OLED 128x88 Monochrome Small OLED Screen OLED Display
Diagonal Screen Size
0.73 Inch
Color
Monochrome (white)
Number of Pixels
128 x 88
Module Construction
COG
Panel Size
14.6*22.34*1.22mm
Active Area
10.54*15.34mm
Pins
10
Drive IC
SH1107
Interface
4-wire SPI


Pixel pitch
0.17x0.17mm
Assembly
Soldering
FPC Length
12 mm
Temperature Range
Item
Min.
Max.
Operating Temperature (°C)
-30
70

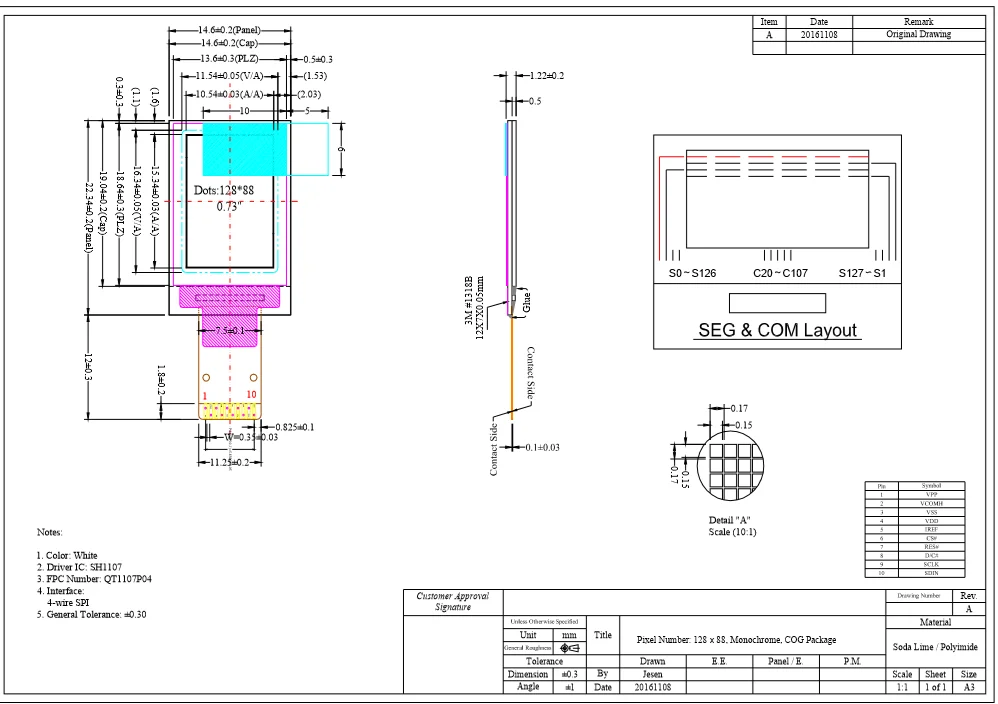

Outline Drawing

 0.73Mono OLED with 10pin.png

 full color OLED Display.jpg


More Products



OLED more spec..jpg


ABOUT US





1.14 SPI.png

Process Flow

 produce process.png

Trade Information:
Trade Terms: EXW, FOB, CIF, DDU
Payment Terms: T/T, PayPal, Western Union, Escrow
Payment Condition: 40% in Advance as Deposit, 60% Balance before Shipment
Lead Time: 2-6 Working Weeks
Shipping: By sea, Air and Express
