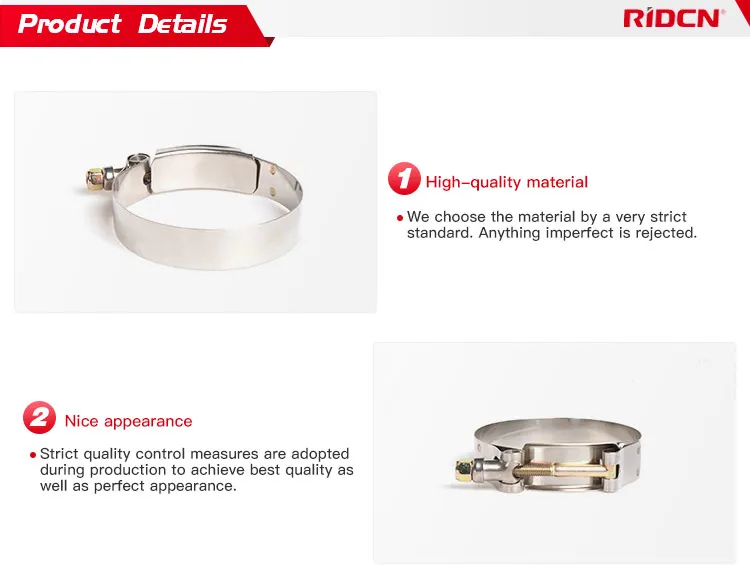

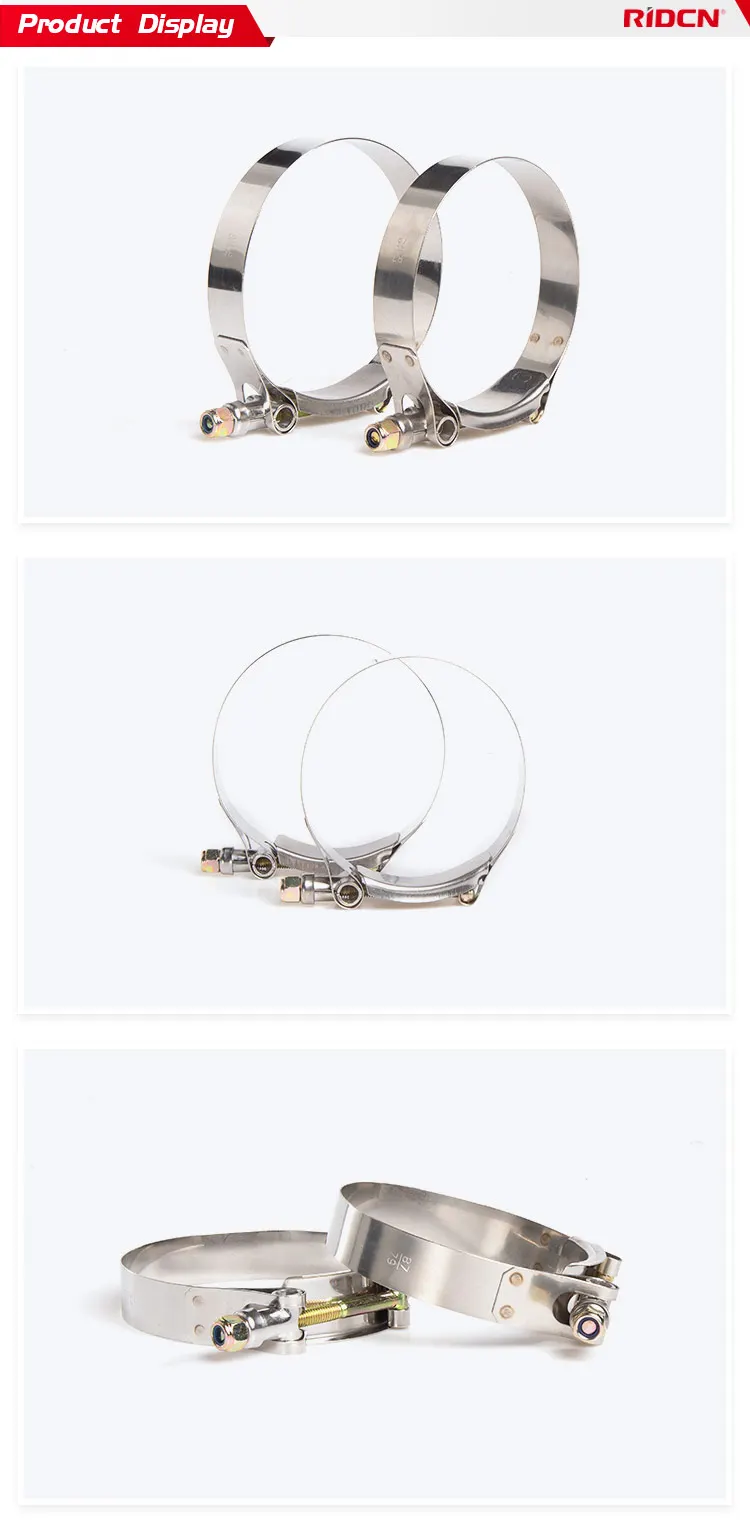

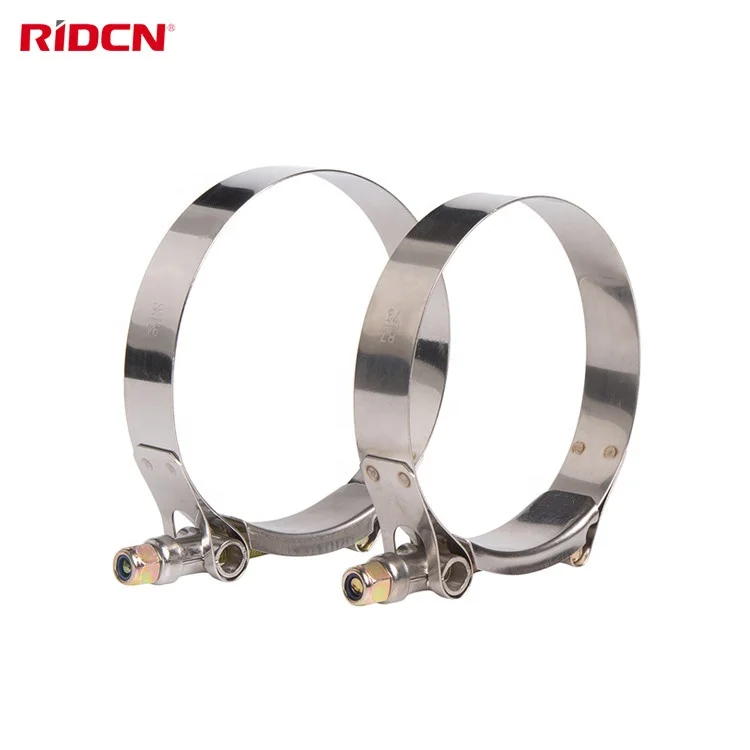

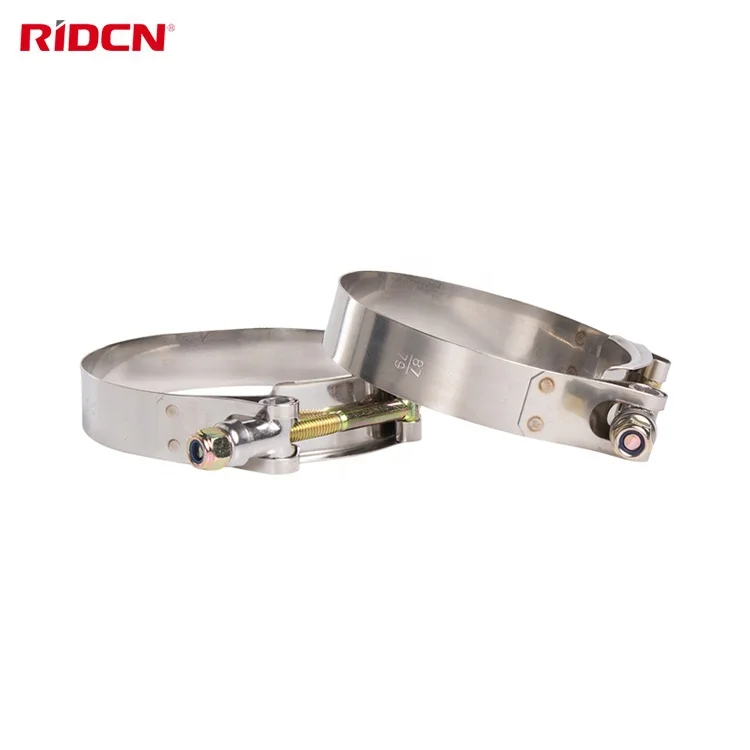

Stainless Steel T Bolt Band Clamp

Product Overview

Description





T-Bolt Band Clamps are designed to provide connections without leaks. We manufacture clamps with rounded band edges to protect soft hose materials. Our T-Bolt Band Clamps provide high tensile strength, durability, and corrosion resistance. They are the perfect choice for medium and heavy-duty applications. T-Bolt Band Clamps are frequently installed on coolant and air-intake systems for construction vehicle, truck, and bus engines and more.



Materials:

Band and bridge: 304 stainless steel.

T-Bolts and Locknuts: Zinc Plated Carbon Steel

Bandwidth: 19mm (3/4inch)

Band Thickness:0.6mm



SAE Size	Clamping Range				N.m
	Inches('')		millimeters(mm)
	Min	Max	Min	Max
/	1.38	1.52	35.1	38.6	8.5
/	1.50	1.64	38.1	41.7	8.5
/	1.63	1.81	41.4	46.0	8.5
28	1.75	2.00	44.5	50.8	8.5
32	1.88	2.19	47.8	55.6	8.5
36	2.00	2.31	50.8	58.7	8.5
40	2.13	2.44	54.1	62.0	8.5
44	2.25	2.56	57.2	65.0	8.5
48	2.38	2.69	60.5	68.3	8.5
52	2.50	2.81	63.5	71.4	8.5
56	2.63	2.94	66.8	74.7	8.5
60	2.75	3.06	69.9	77.7	8.5
64	2.88	3.19	73.2	81.0	8.5
68	3.00	3.31	76.2	84.1	8.5
72	3.13	3.44	79.5	87.4	8.5
76	3.25	3.56	82.6	90.4	8.5
80	3.38	3.69	85.9	93.7	8.5
84	3.50	3.81	88.9	96.8	8.5
88	3.63	3.94	92.2	100.1	8.5
92	3.75	4.06	95.3	103.1	8.5
100	4.00	4.31	101.6	109.5	8.5
108	4.25	4.56	108.0	115.8	8.5
116	4.50	4.81	114.3	122.2	8.5
124	4.75	5.06	120.7	128.5	8.5
132	5.00	5.31	127.0	134.9	8.5
140	5.25	5.56	133.4	141.2	8.5
148	5.50	5.81	139.7	147.6	8.5
156	5.75	6.06	146.1	153.9	8.5
164	6.00	6.31	152.4	160.3	8.5
172	6.25	6.56	158.8	166.6	8.5
180	6.50	6.81	165.1	173.0	8.5
Note:Contact us if you need other sizes.
