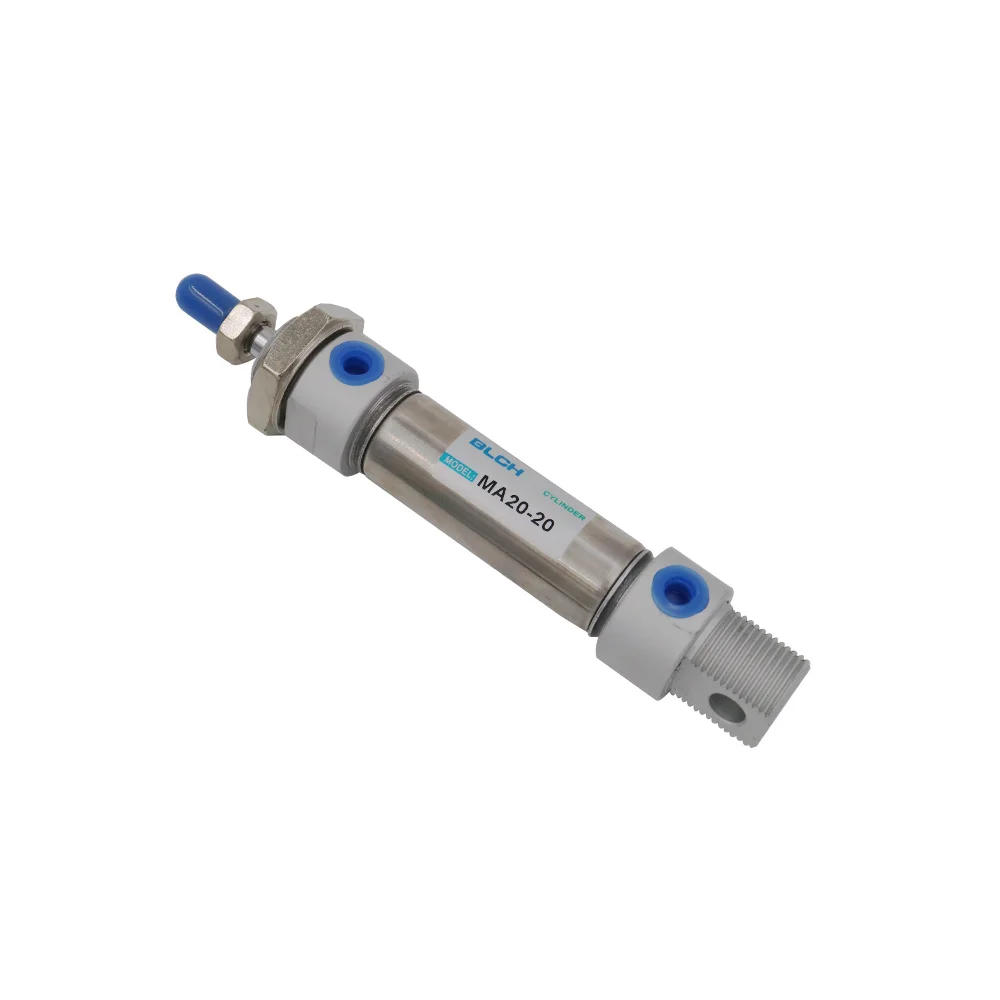

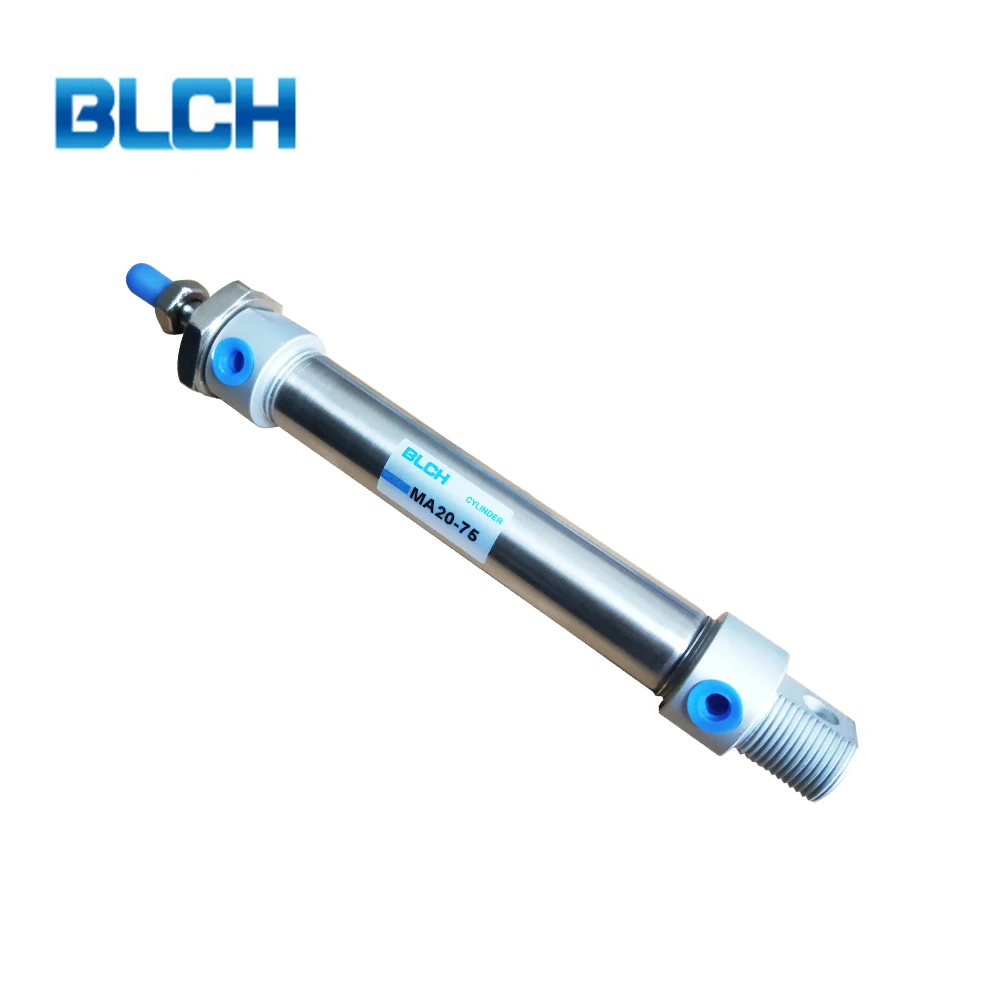

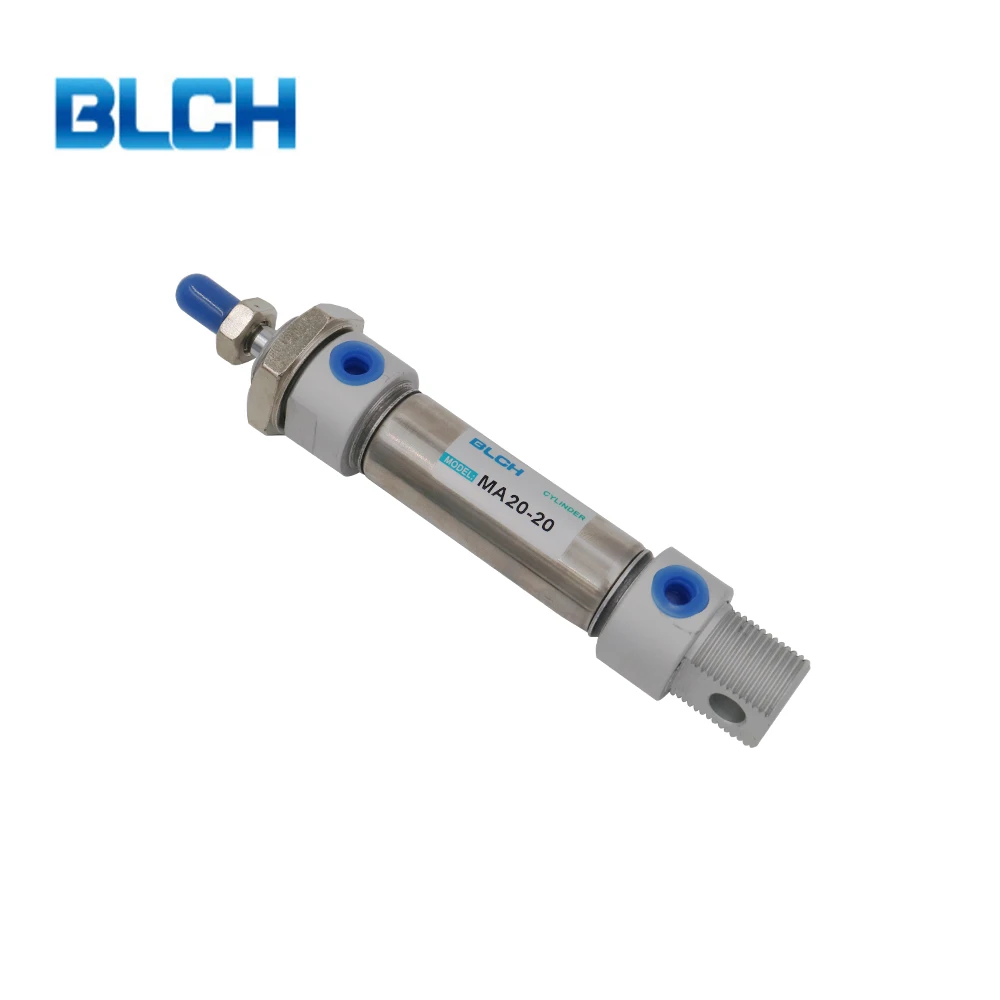

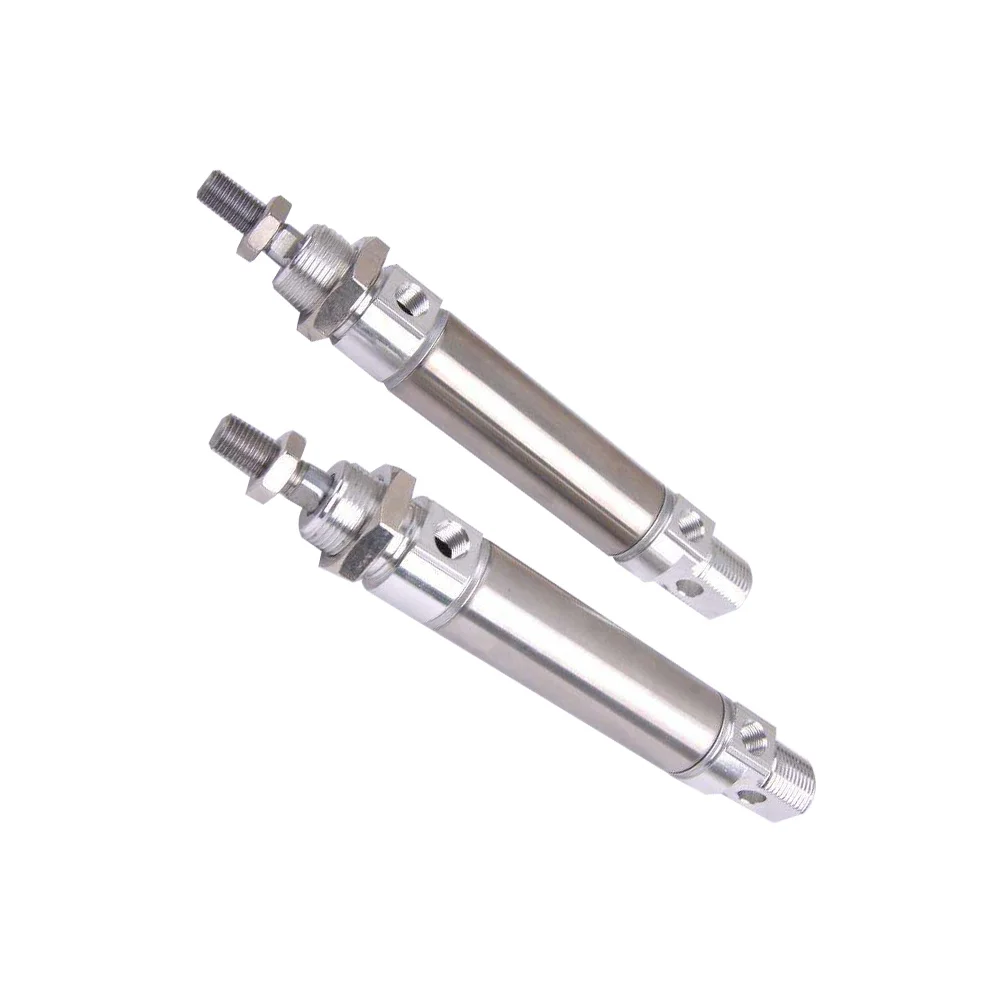

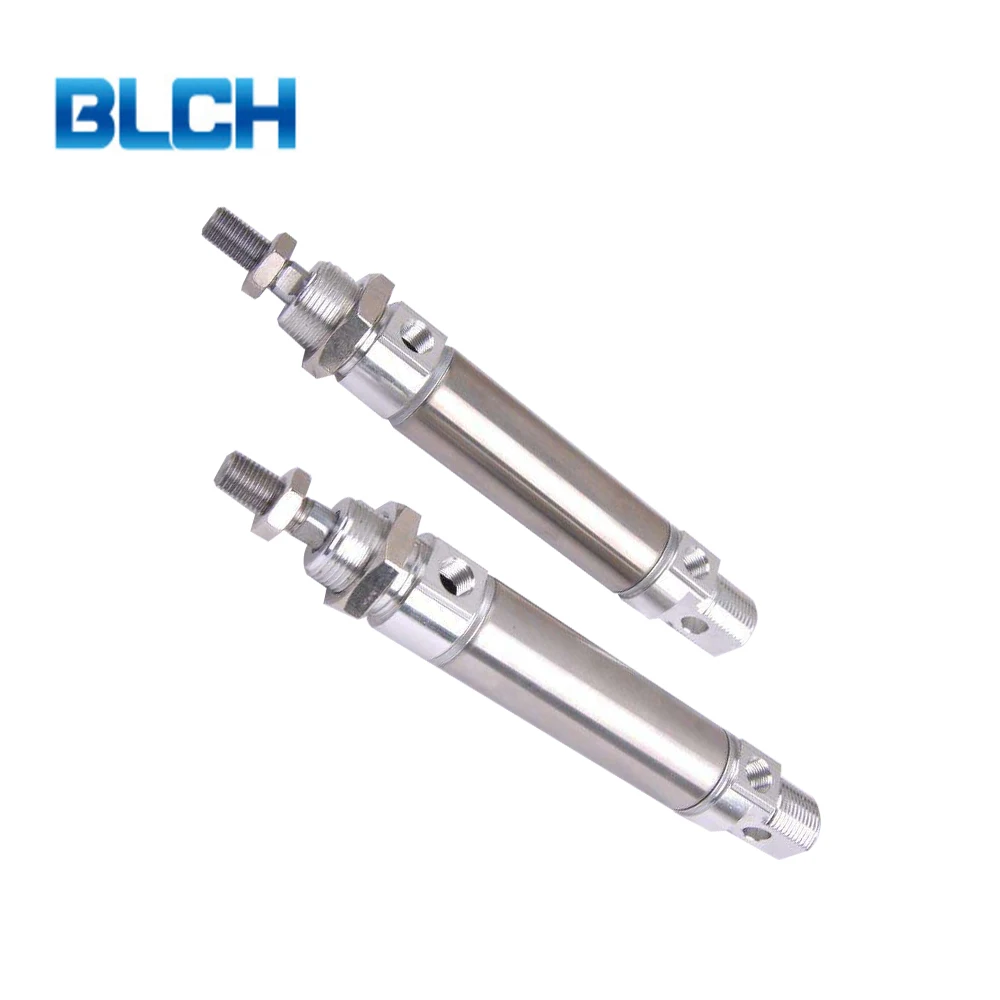

Made in china wholesale Pneumatic MA Series Stainless Steel Double acting aluminum air cylinder
- Category: Pneumatic Cylinders >>>
- Supplier: BLCH Pneumatic Science & Technology Co. Ltd.
Share on (62038872757):
Product Overview
Description
Product Description

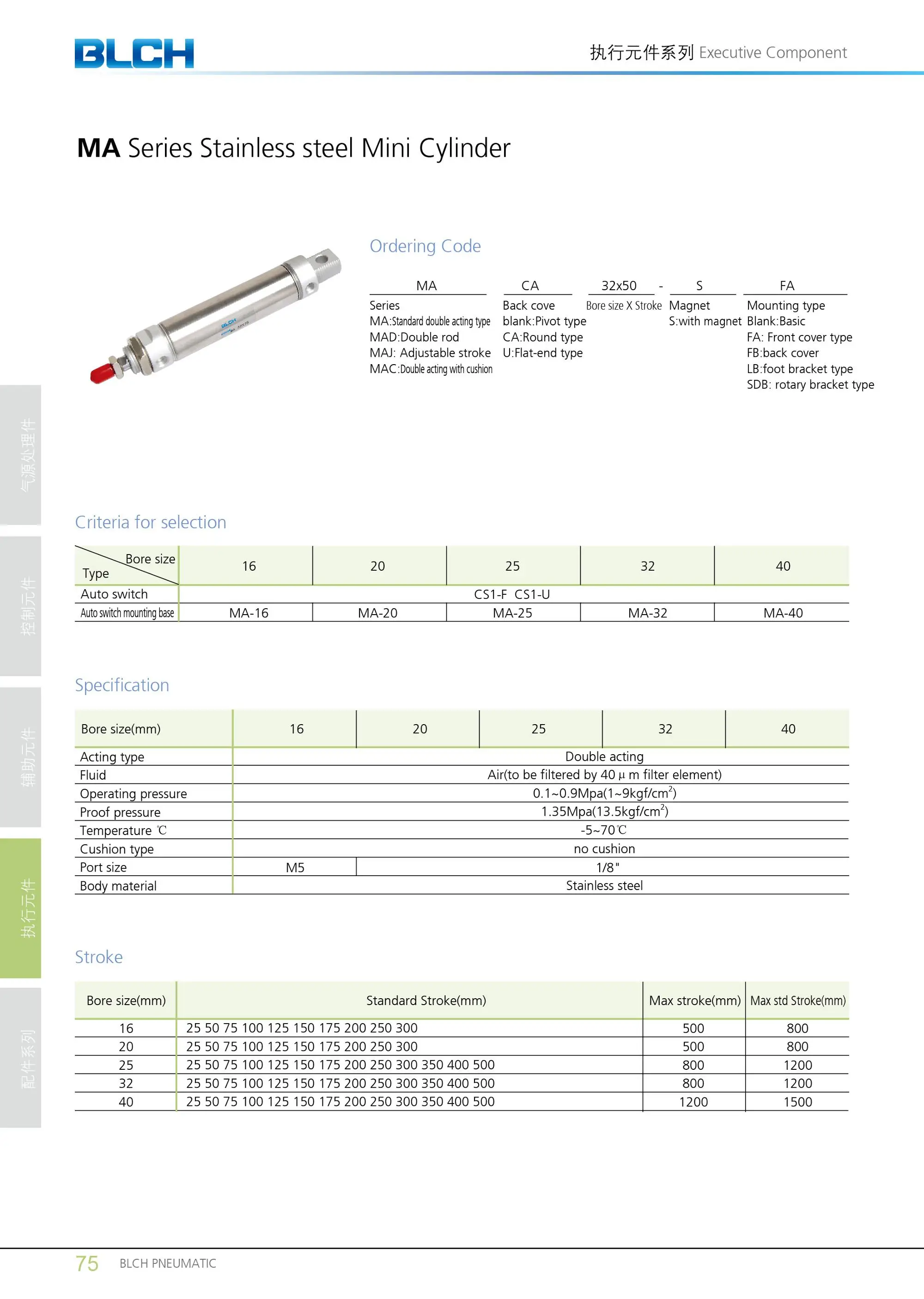

| MA Specification | |||||||||||
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | ||||
| Acting type | MSA,MTA | Single acting | - | ||||||||
| MA.MAD,MAJ | Double acting | - | |||||||||
| MAR | - | Double acting | |||||||||
| MAC,MACD,MACJ | - | Double acting with cushion | |||||||||
| Fluid | Air(to be filtered by 40µ m filter element) | ||||||||||
| Operating pressure | Double acting | 0.1~1.0MPa(15~145psi)(1.0~10.0bar) | |||||||||
| Sing acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | ||||||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||||||
| Temperature ℃ | -20~70 | ||||||||||
| Speed range mm/s | Double acting:30~800 single acting:50~800 | ||||||||||
| Stroke tolerance | 0~150+1.0>150+1.4 | ||||||||||
| Cushion type | MAC,MACD,MACJ Series:Adjustable cushion Other series:Bumper | ||||||||||
| Port size | M5*0.8 | 1/8” | 1/4” | ||||||||
| PT thread,NPT thread and G thread are available. | |||||||||||
Stroke:
| Bore Size(mm) | *Standard Stroke(mm) | Allowable Strock |
| 16 | 25,50,75,100,125,150,160,175,200 | 500 |
| 20 | 25,50,75,100,125,150,160,175,200,250,300 | 650 |
| 25,32,40,50,63 | 25,50,75,100,125,150,160,175,200,250,300,350,400,450,500 | 650 |
MAIN PRODUCTS
Company Information
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer, factory.
Q: What's your main products?
A: BLCH's main products are air treatment unit, pneumatic fittings, solenoid valve, mechanical valve, pneumatic cylinders, PU tubes and other pneumatic parts.
Q: How long is your delivery time?
A: Generally it is 7-10 working days if the goods have stocks. Or it is 10-15 working days if the goods don't have stocks, it is according to quantity and request.
Q: Do you provide samples? Is it free or extra?
A: Our samples are free, we will reduce this cost in your first order.
Q: What is your terms of payment?
A: Alipay, TT, western union
Q: Could you OEM?
A: Yes, we can make OEM for customers.
Packaging & Shipping
