Product Overview
Description
mini ceramic antenna long distance UHF RFID Reader Module for handheld reader
Product Description

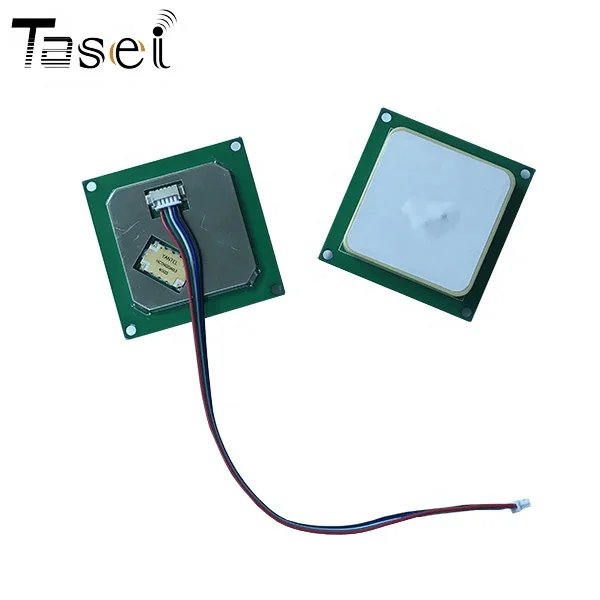

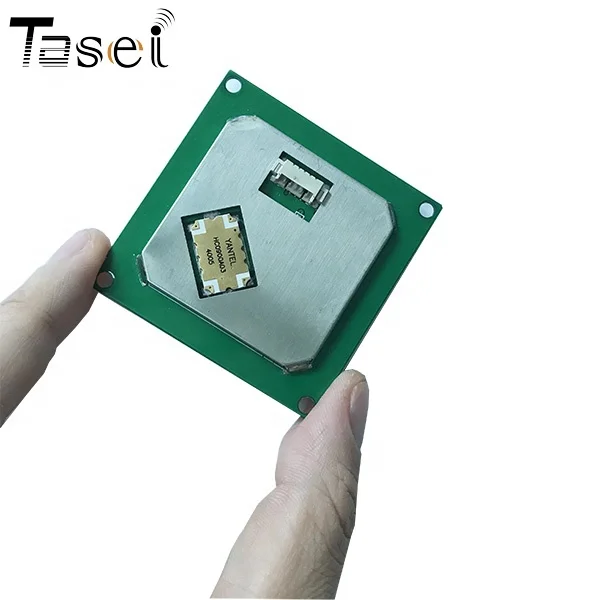

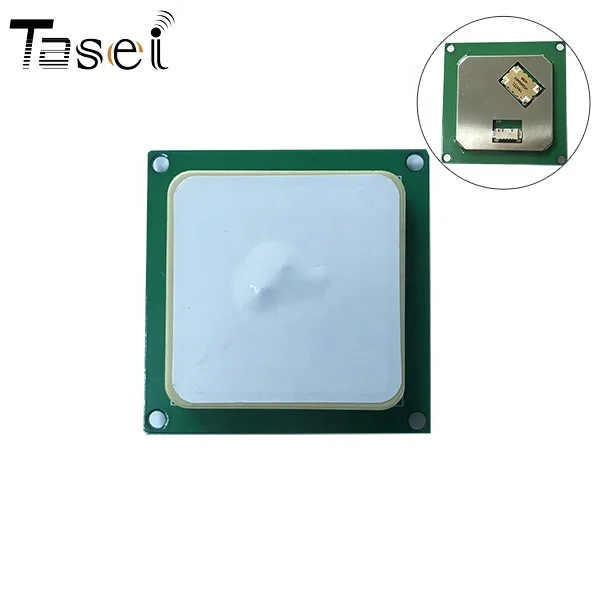

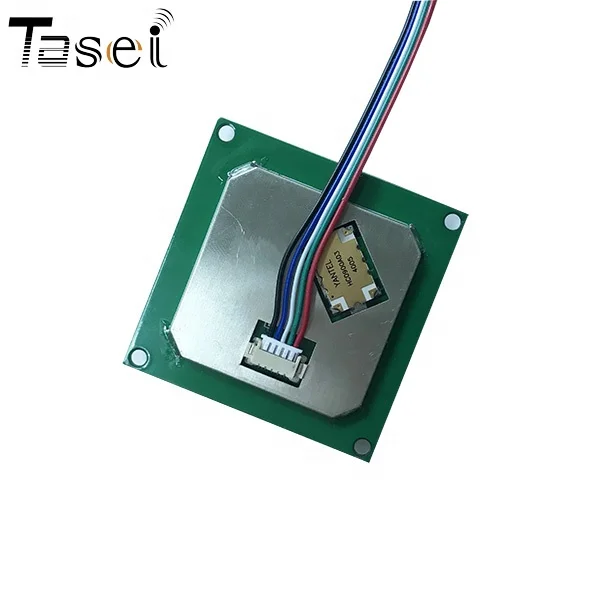

TS-312M is a high performance Integrated module,it integrate antenna and module on one board,mainly used for integrated into handheld reader or others built-in integrated applications
*Stable performance with less affected by rising temperature.
*Super low power consumption; no additional cooling devices required.
*Good consistency in terms of RF parameters.
*Simple peripheral circuit design
Electrical Characteristics | |
Operating Temp | -20°C to 70°C |
Storage Temp | -20°C to 85°C |
Humidity | 95%(+25°C) |
Parameter | |
Protocol | ISO 18000-6C(EPC gen2) ISO 18000-6B |
Frequency Range | 902MHz~928MHz or 865MHz~868MHz or customize others frequency according to your needs |
Working Voltage | DC 3.5V – 5 V |
Standby current | <80mA (EN high level) |
Sleep Current | <100uA (EN low level) |
Operating Current | 180mA @ 3.5V (30 dBm Output,25°C ). 110mA @ 3.5V (18 dBm Output,25°C ). |
Starting Time | <80mS |
Output Power | 0-30dbm |
Output Power Precision | +/- 1dB |
Output Power Flatness | +/- 0.2dB |
RF connector | I-PEX |
Receive Sensitivity | < -70dBm |
Peak Inventory Speed | >50 tags/sec |
Tag Buffer Capacity | 200tags @ 96 bit EPC |
Tag RSSI | Supported |
Host Communication | TTL Uart port
|
Max Baud Rate | 115200 bps (Default and Recommended) 38400bps |
Heat Dissipation | Air cooling (Don’t need external Heatsink). |

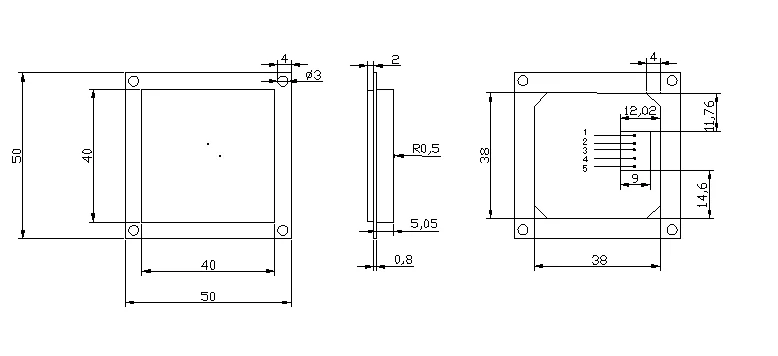

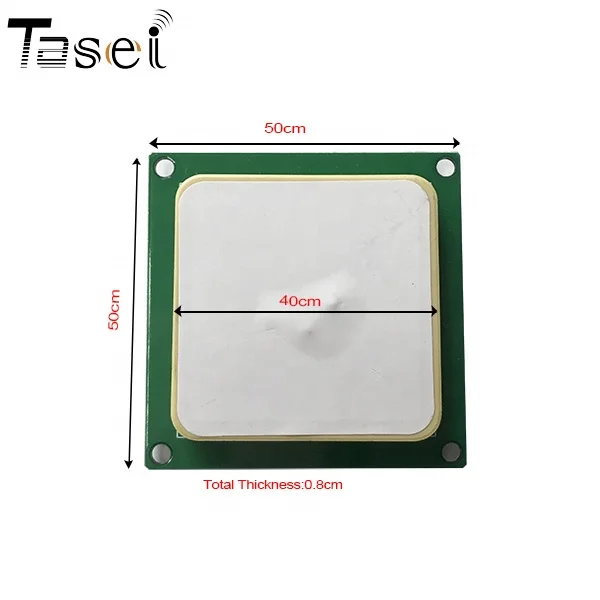

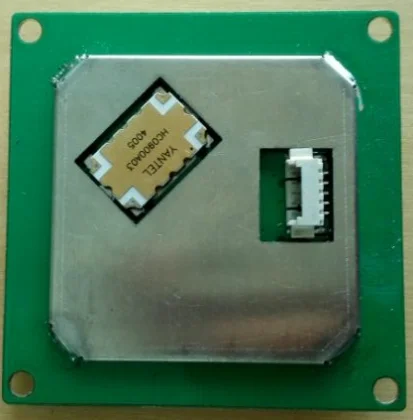

Product details
Interface defination:
| ||
PIN | Definition | Description |
1 | GND | Ground |
2 | EN | High level enable module |
3 | RXD | Grounding |
4 | TXD | |
5 | VCC | Power supply (3.3-5V) |

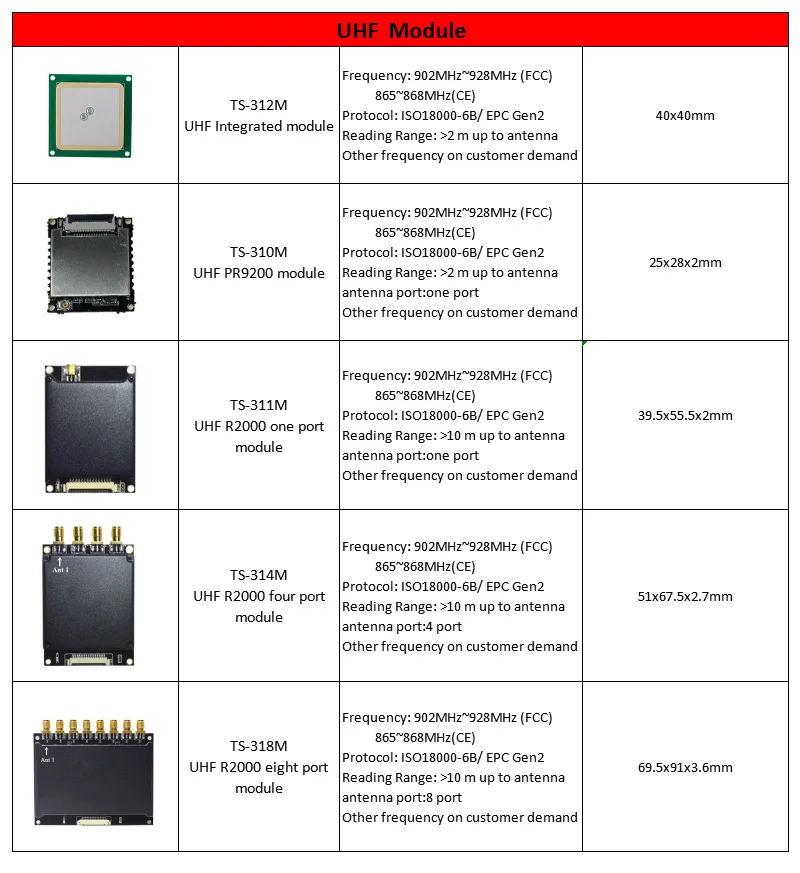

Related Products
Packaging & Shipping
one module is with one package
Ship: 1: By Express(DHL, Fedex,UPS ,EMS etc) ----3-5days
2: By airfreight --- 7-10days
3: By seafreight----15-30days
