XTA 55 inch flexible touch screen film usb touch film
- Category: >>>
- Supplier: Touch Explorer Photoelectric Co. Ltd.
Share on (62039016091):
Product Overview
Description
Product Description
Projected Capacitive Touch Foil

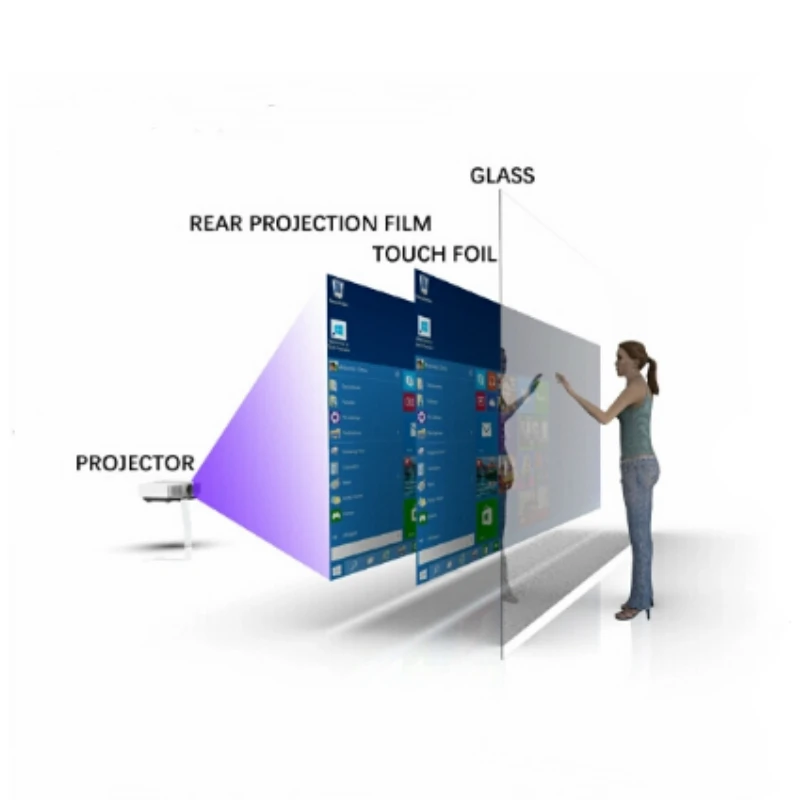

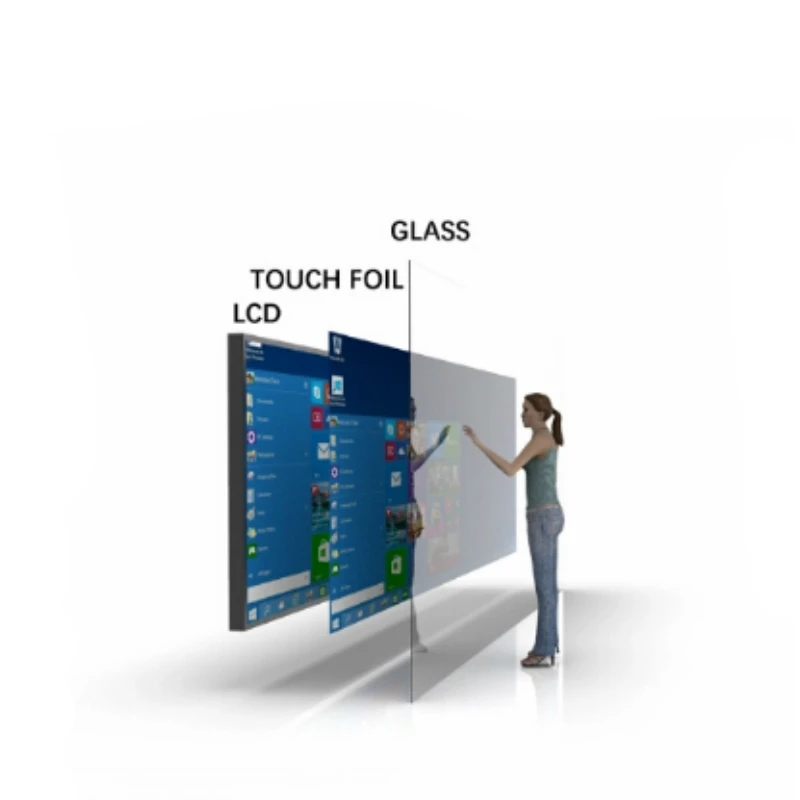

Transforms any glass/acrylic panel or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, digital signage and table top applications
Features
*Light weight, suitable to be laminated to glass, acrylic or photographic film.
*Transparent, no frame.
*Accurate positioning
*No mechanical or pressure-sensitive elements, durable and stable
*Not sensitive to outer light, the change of light would not affect.
*Simple & quick to install.
*High resolution controller

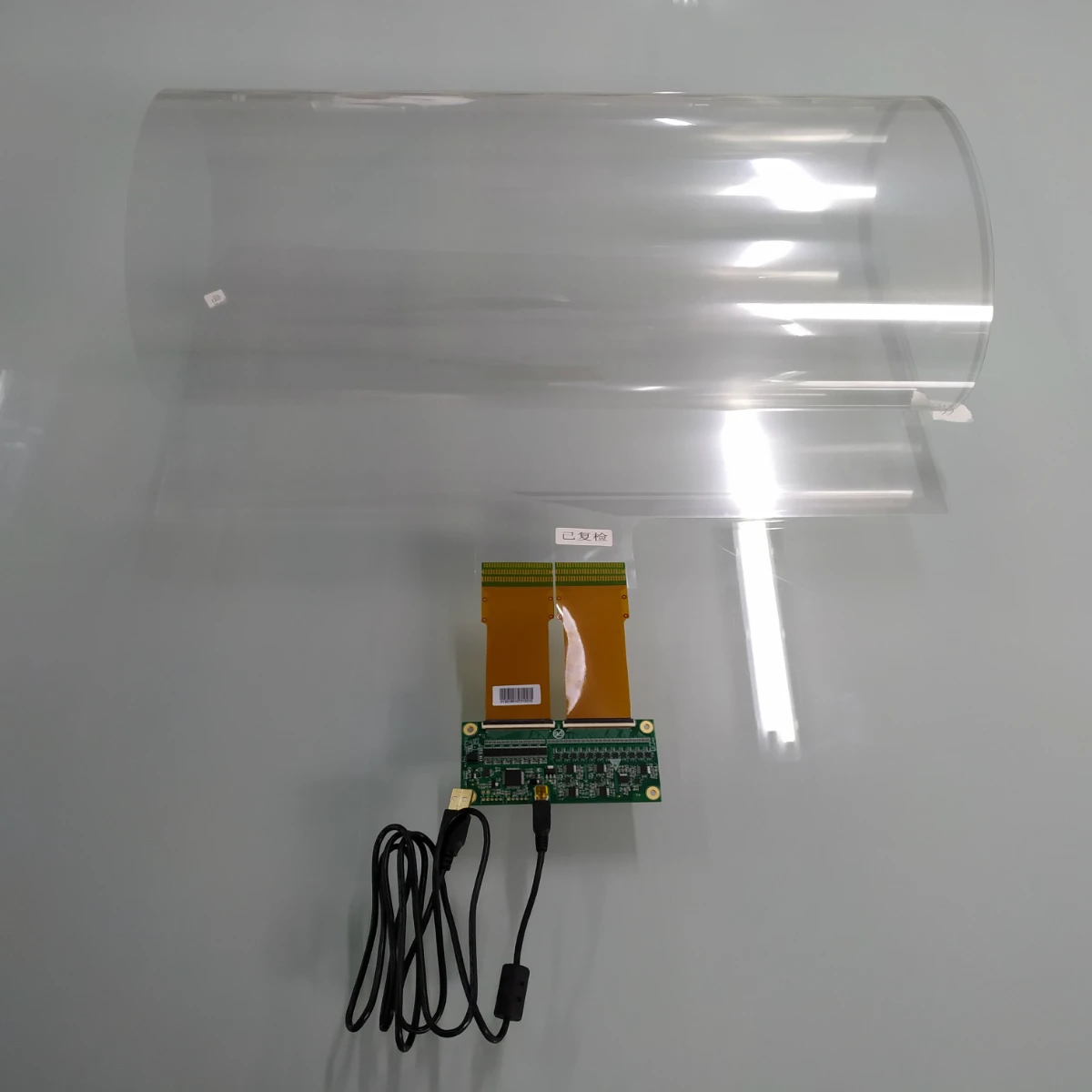

*Includes full installation kit – touch foil, controller board & USB line.

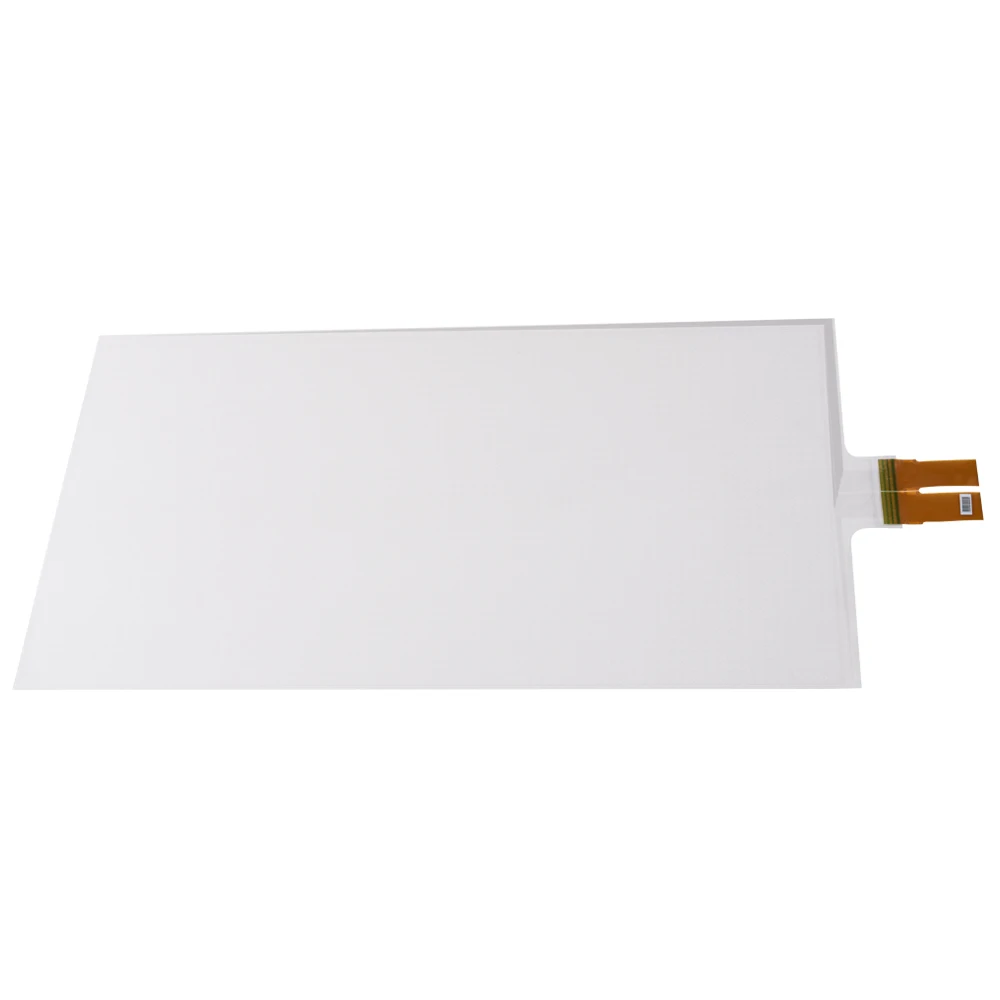

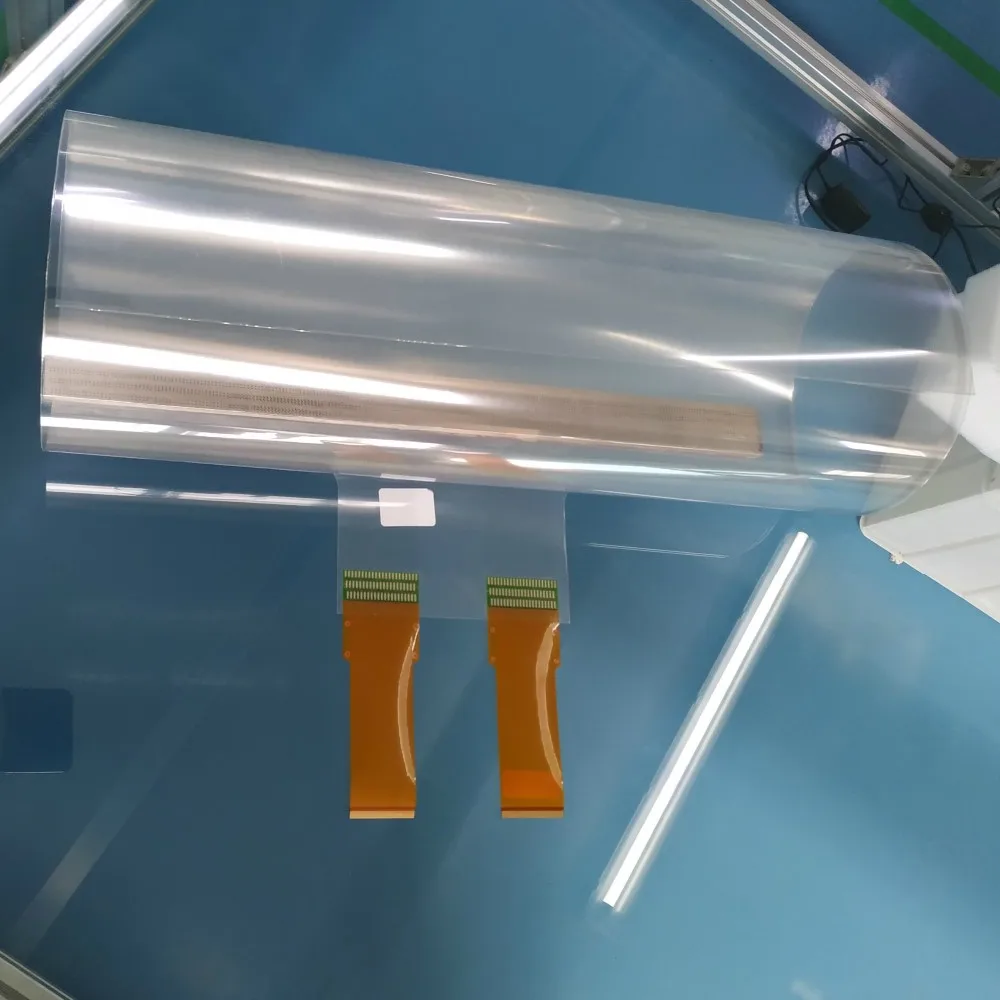

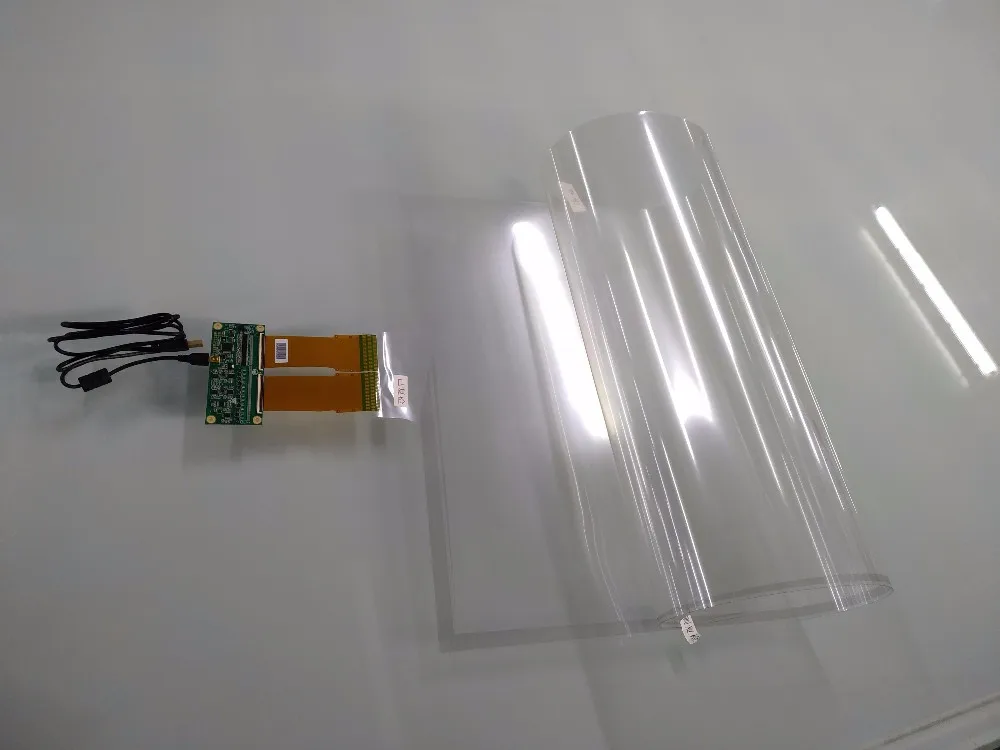

Detailed Image
Specification
Parameteres Item | Technical specification for XT series projected capacitive touch foil | ||||||
Series | XTM | XTA | XTB | XTC | |||
Touch points | 12 | 20 | 30 | 40 | |||
Sizes | 10.1''-32'' | 42~ 65 | 55''-86'' | 86''-200'' | |||
Deviation | ≤0.5mm | ≤0.5mm | ≤0.5mm | ≤0.5mm | |||
Sensor | TX : 24(MAX) RX : 48(MAX) | TX : 56(MAX) RX : 96(MAX) | TX80 RX142 | TX136 RX240 | |||
FPS | 130 | 120 | 120 | ||||
Power Consumption | 1W | 0.5W | 1.15W | ||||
Driver | No need | ||||||
Windows | Win7/8/8.1/10 | ||||||
Andriod | Kernel3.10 or higher | ||||||
Linux | Kernel3.10 or higher | ||||||
Interface | USB2.0,UART | ||||||
Power supply | USB(5V+/-5%DC) | ||||||
Customize | Customizable | ||||||
Waterproof | YES | ||||||
Calibration | Software calibration | ||||||
Certificates | CE,ilac-MRA,CNAS,CAL,CMA,FCC,ROHS,ISO | ||||||
Packing list | touch foil*1 , controller*1 , USB line*1 | ||||||
Thickness | ≤200um | ||||||
Transmittance | >93% | ||||||
Voltage | 5V | ||||||
Transmission | USB2.0 | ||||||
Transmit distance | ≤50m (Add USB signal amplifier, etc.) | ||||||
Safe distance | 2mm(Distance beteween LCD& foil) | ||||||
Operating Temperature | -20℃ ~ 70℃ | ||||||
Storage temperature | -20℃ ~ 80℃ | ||||||
Ambient lightness | Full-angle anti-glare illumination | ||||||
Touch gesture | Click,Drag,Zoom,Rotate | ||||||
Sensing range | ≤10mm | ||||||

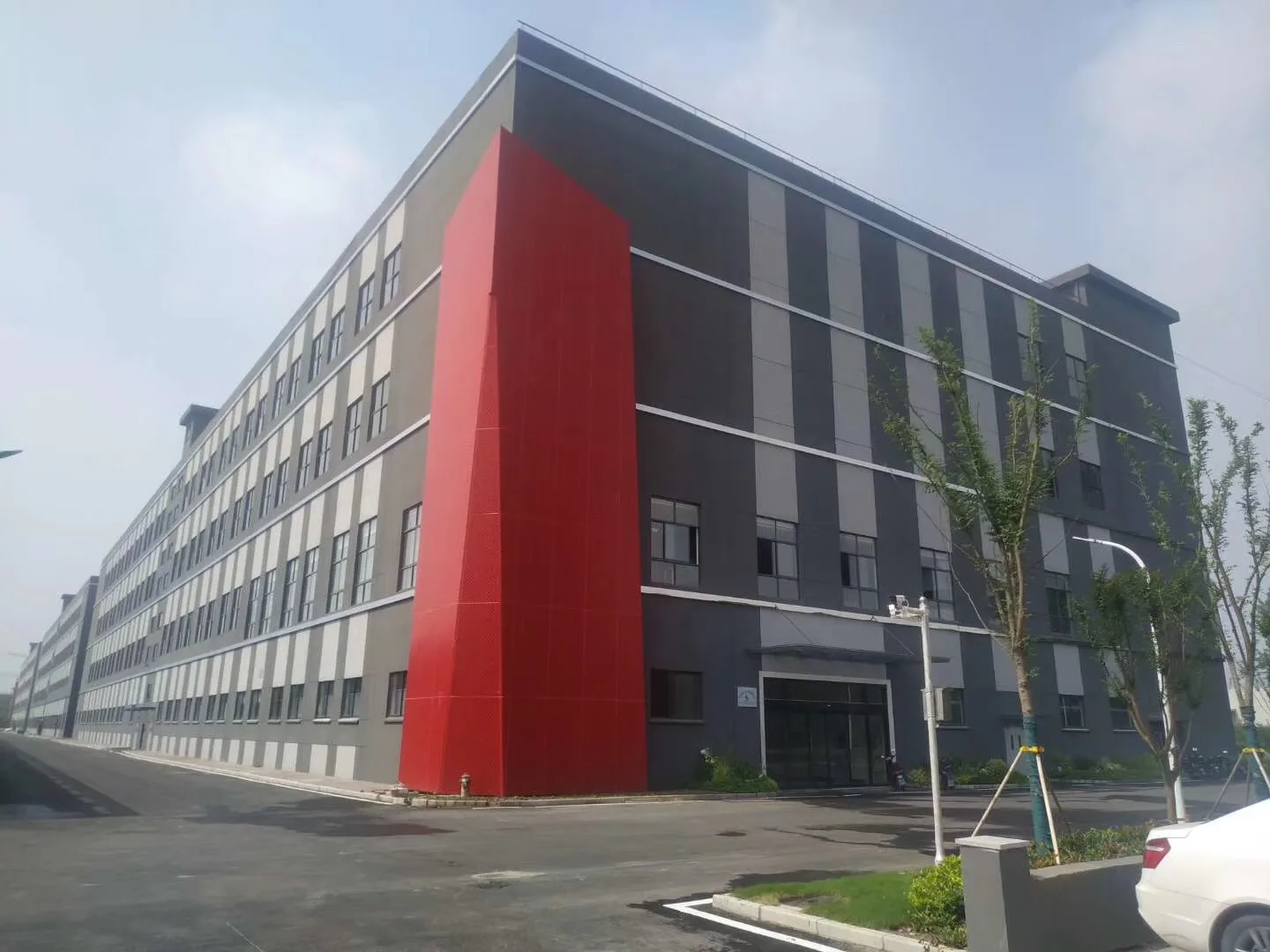

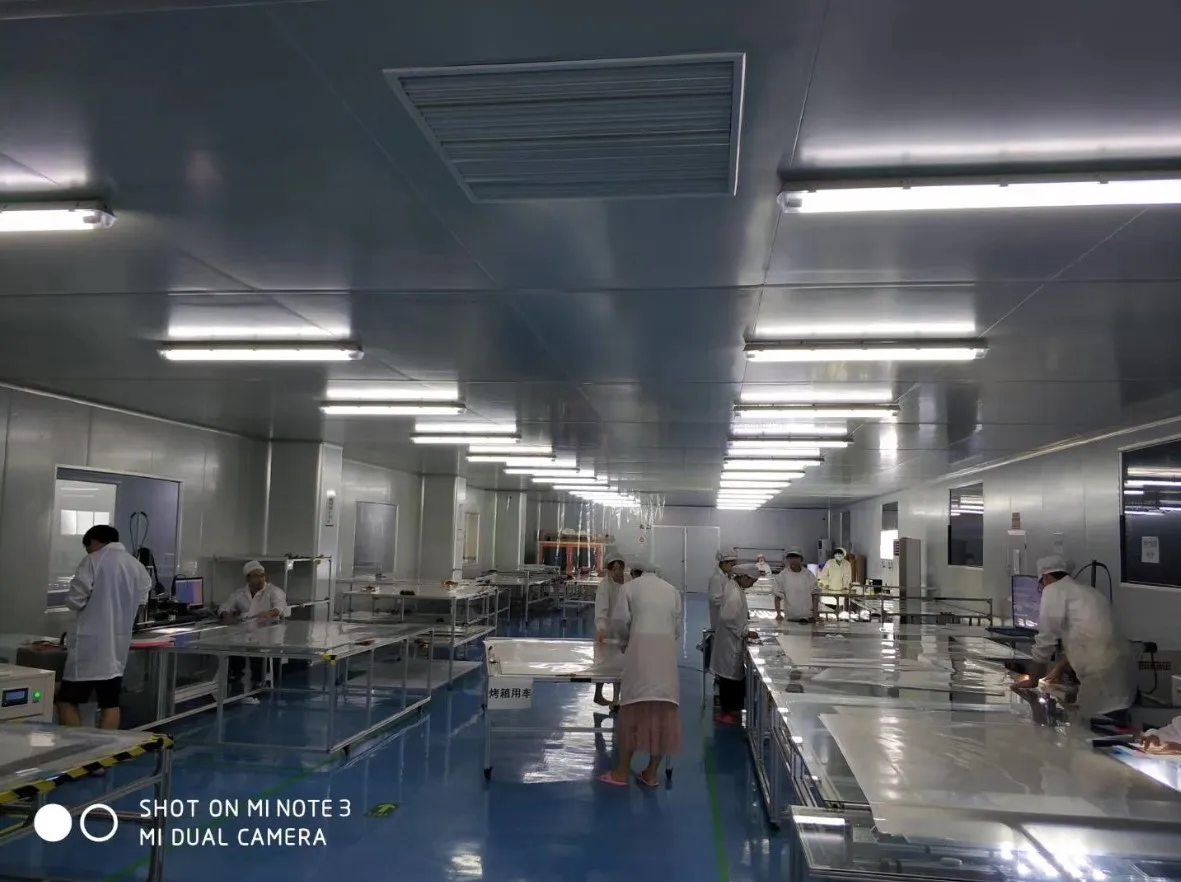

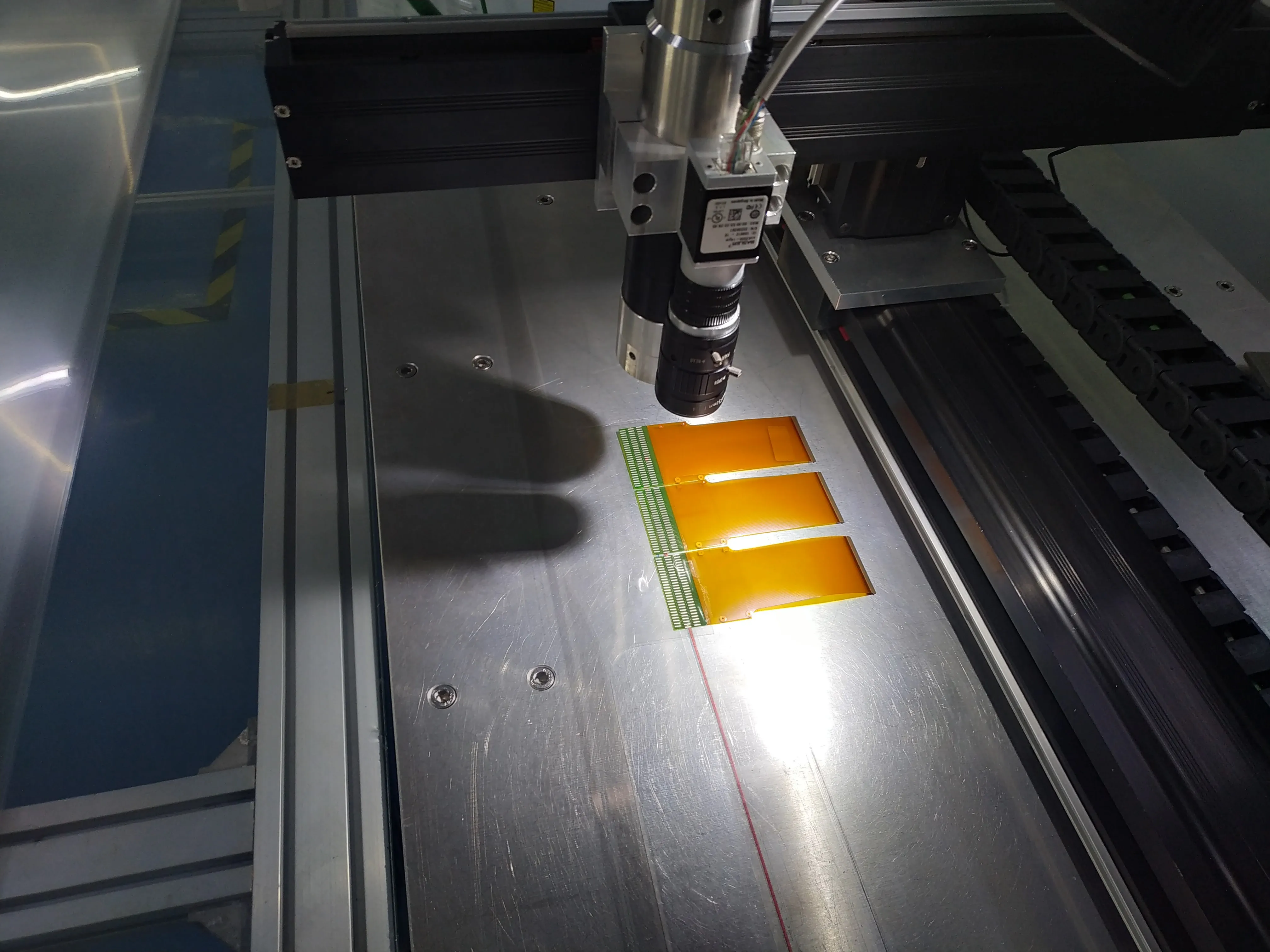

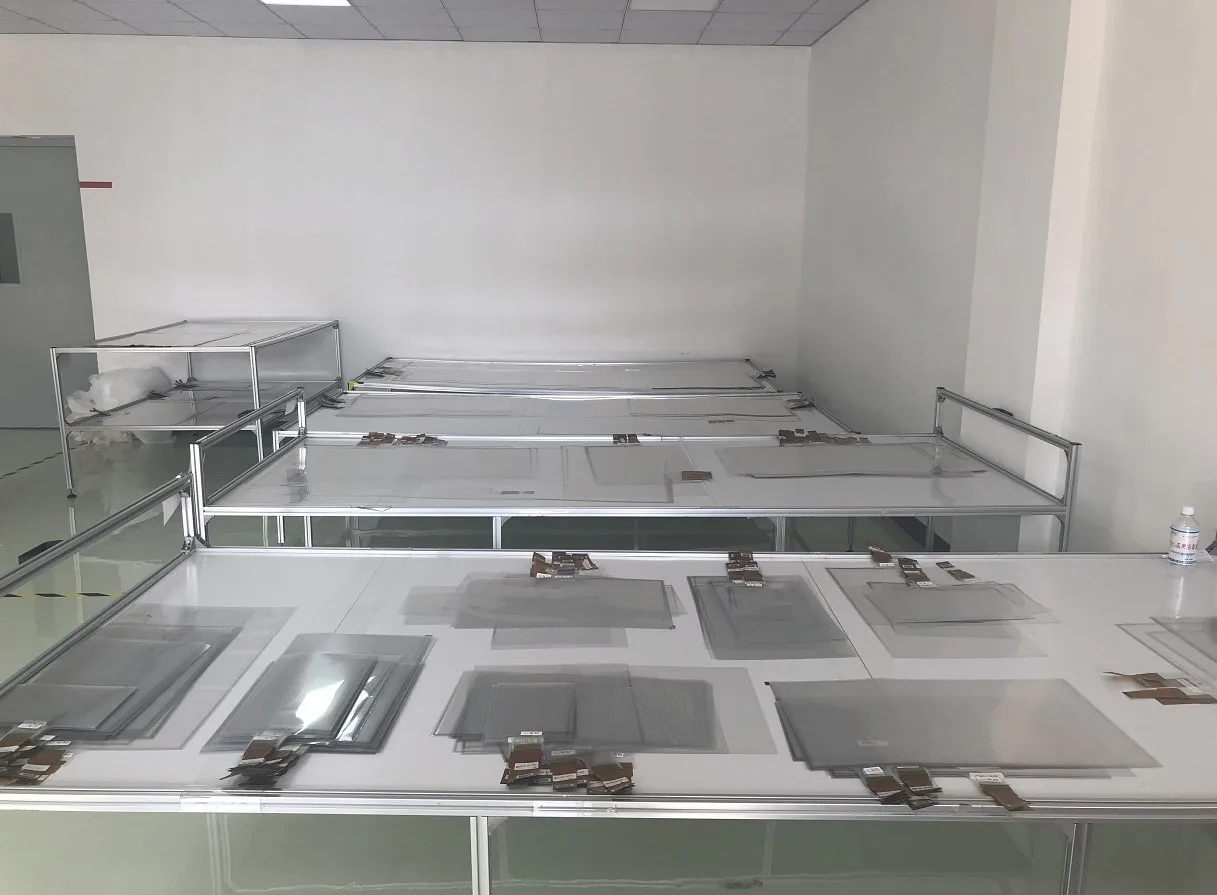

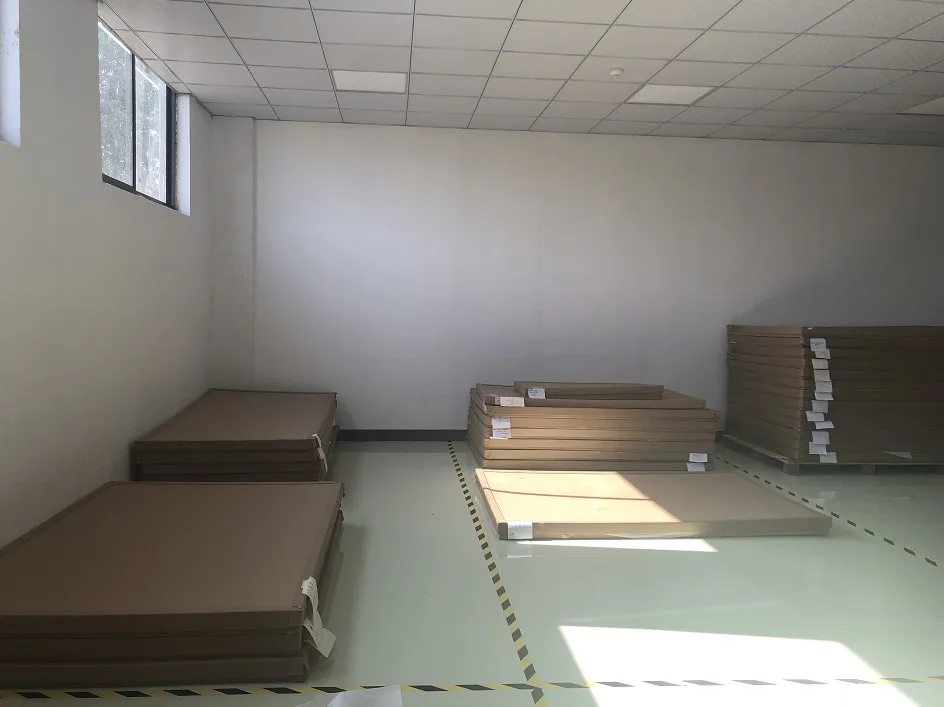

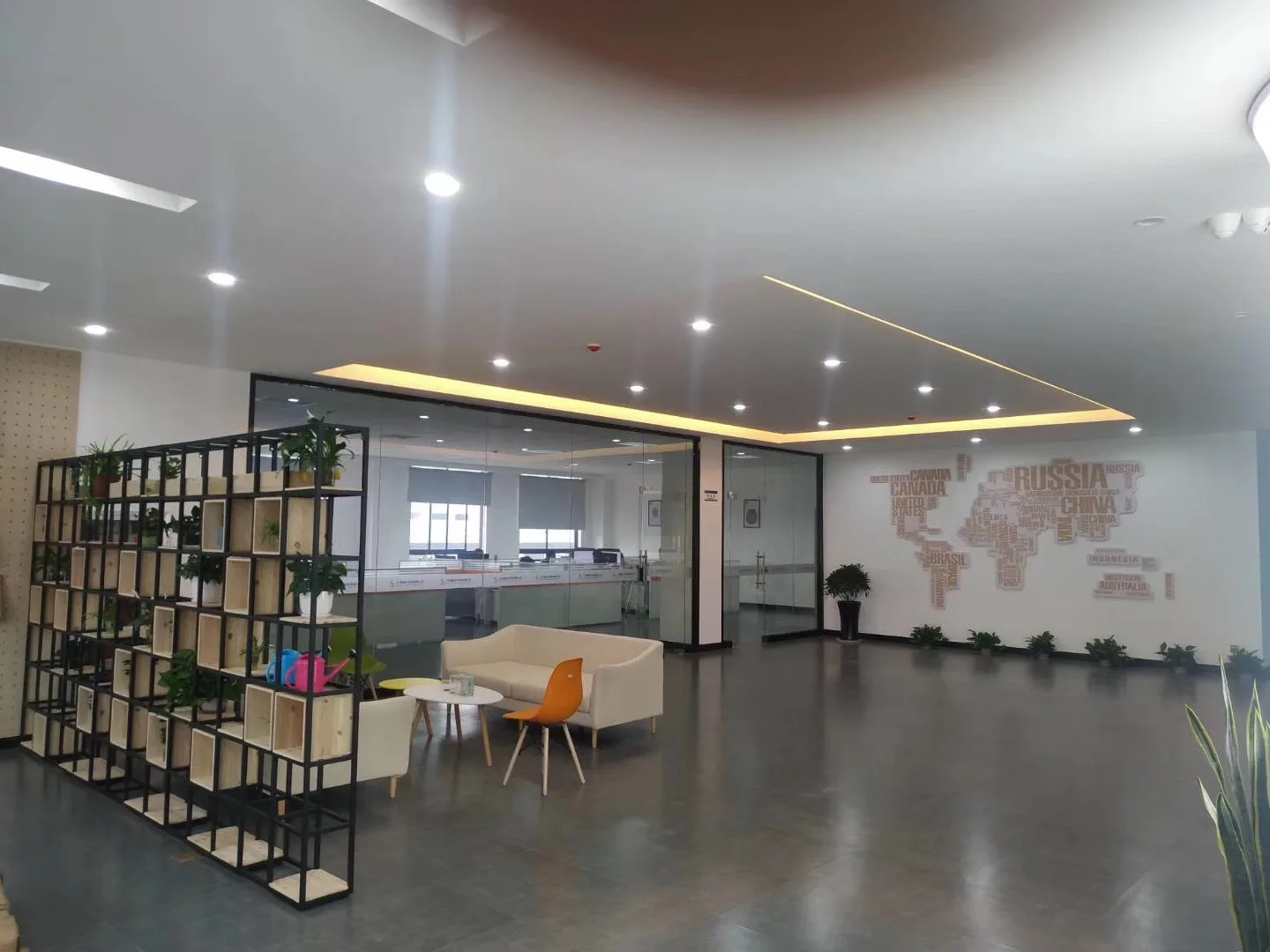

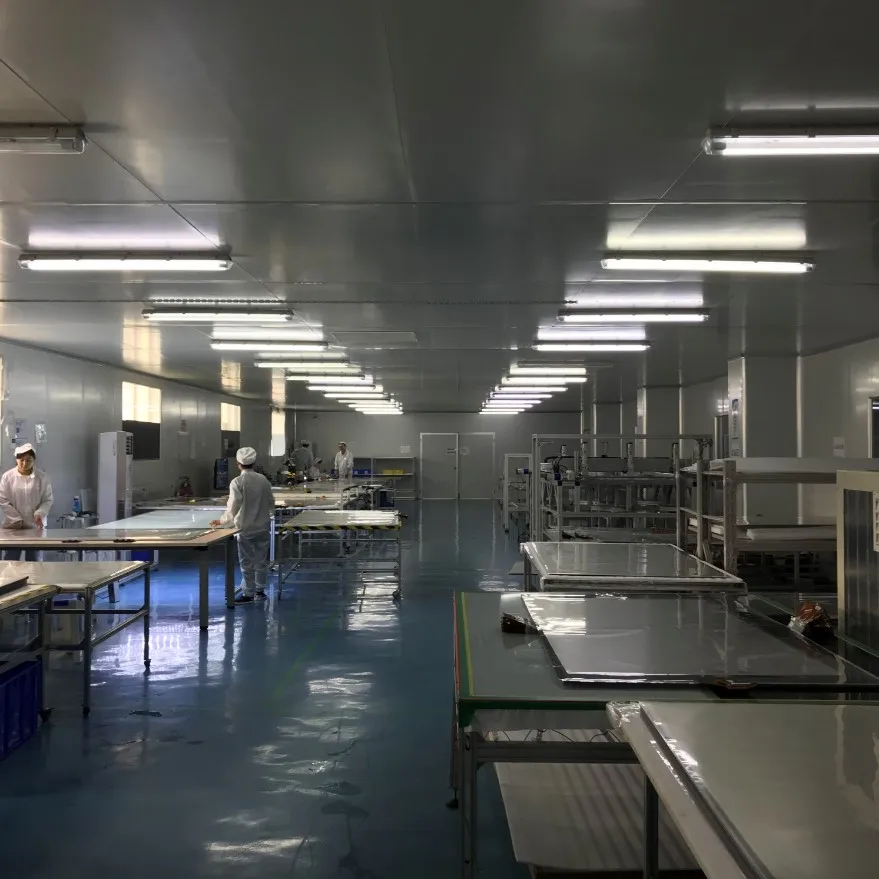

Our Company
Touch Explorer Photoelectric Co., Ltd is Wholly owned subsidiary of SuZhou TouchPlanet Techonology Co.,ltd.
As one of the top manufacturer of touch foil field in China. We control 70% of domestic market.Supply for CVTE(GuangZhou) and Odin(NanJing), which are top leaders in education market.
What we do!?
1.Interactive PCAP touch foil. Size:10''-240''.
What we do!?
1.Interactive PCAP touch foil. Size:10''-240''.
2.Controller board.
Self-developed controller ME series(old version),XT series(new version),ST series(Developing.will be release in 2020)
Self-developed controller ME series(old version),XT series(new version),ST series(Developing.will be release in 2020)
Why choose us!?
1.R&D team over 10 staff focus on developing.
2.Raw material import from Japan and Germany.
3.Customise any big size as your requirement.
4.Capacity of 400sets per day.(eg.86'')
5.Driver free and easy to calibrate within 1 minute.
6.Multi touch functionality (50 touch points) is supported.

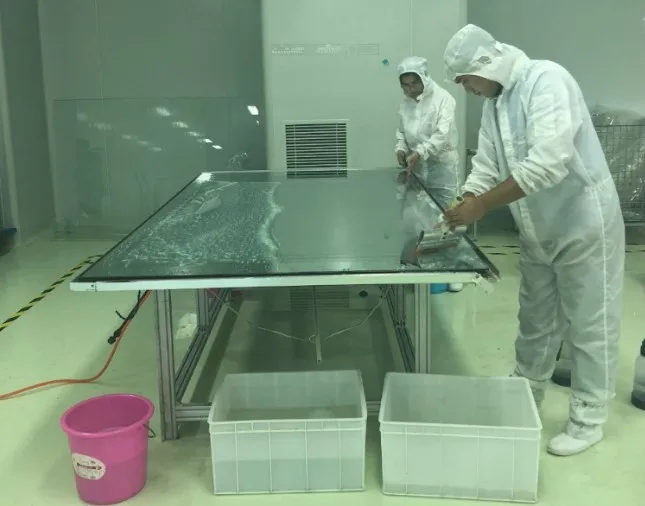

7.Support laminate on glass up to 12mm.

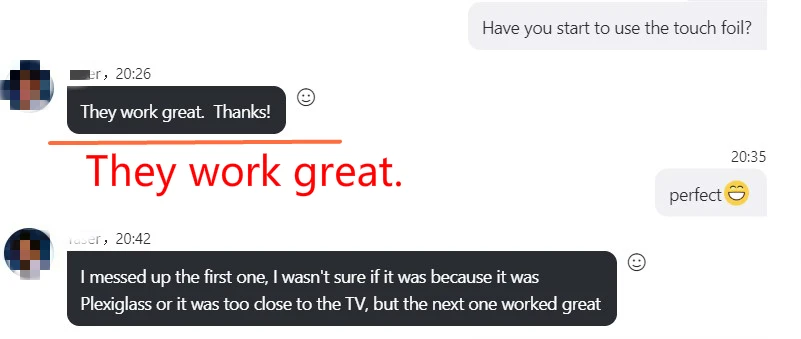

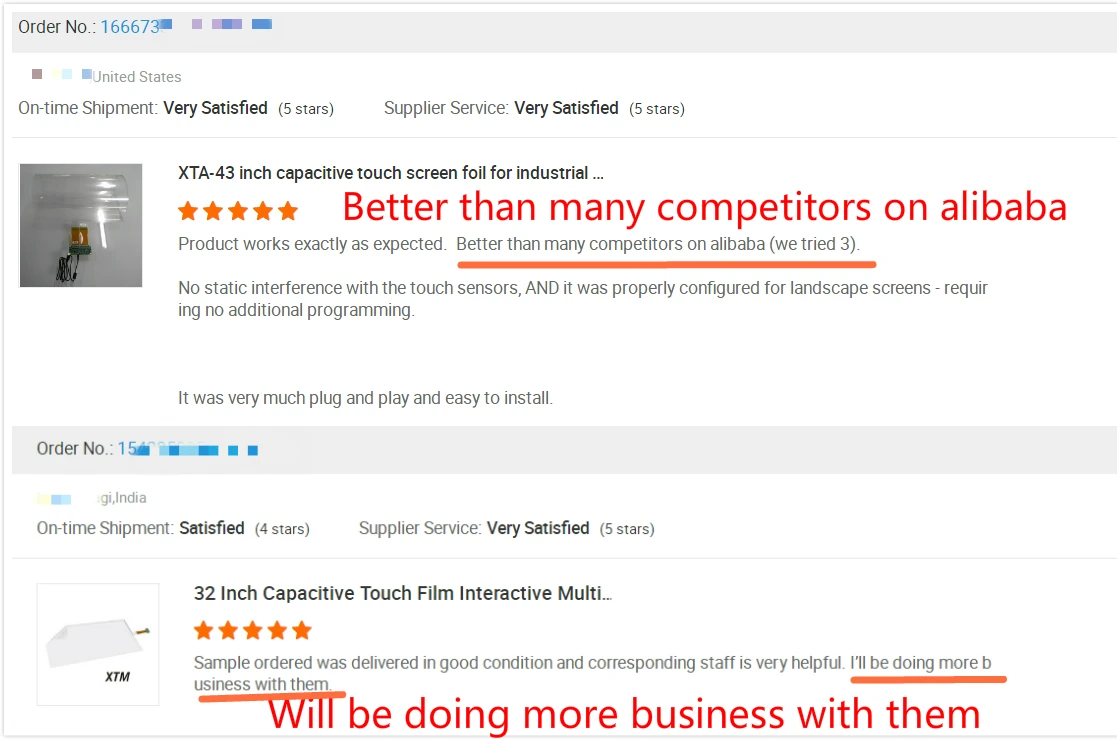

Customer Feedback

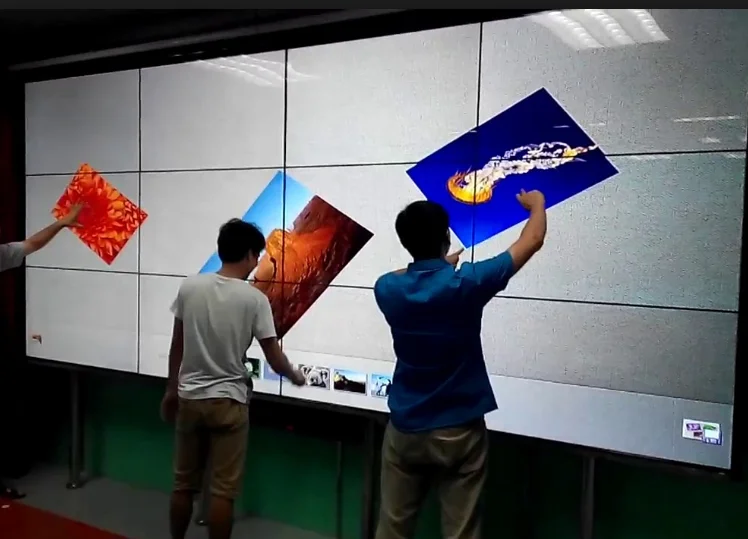

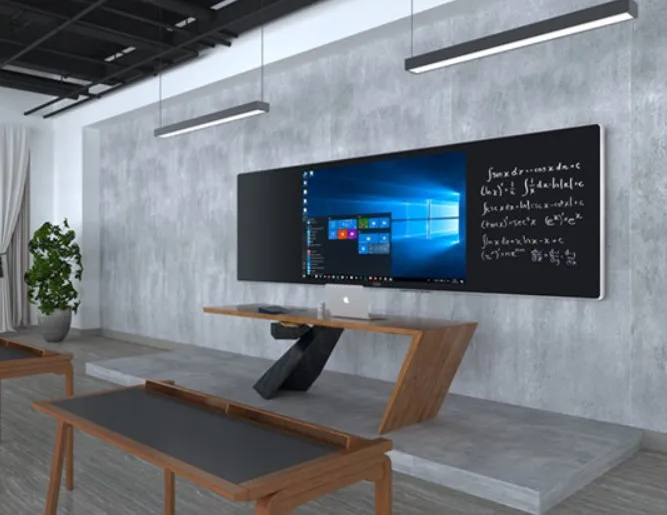

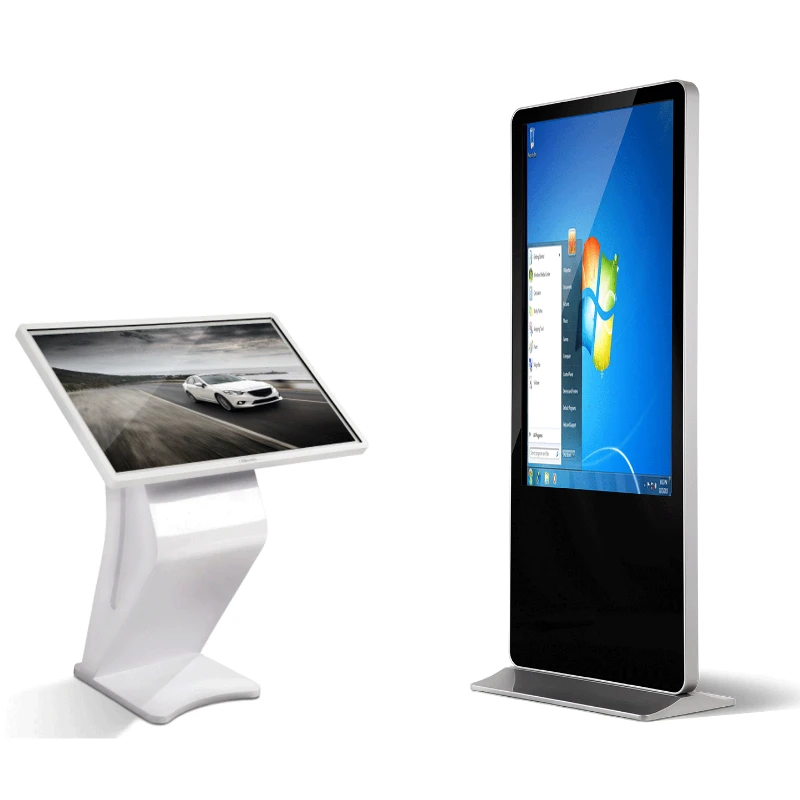

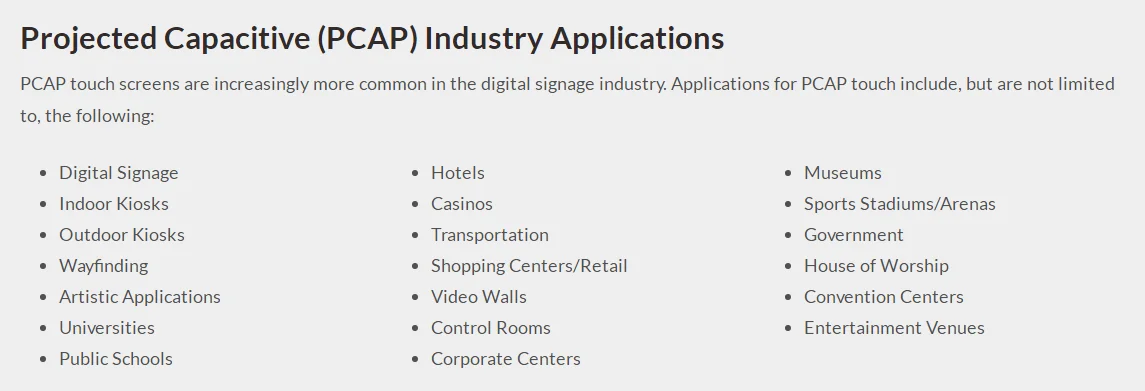

Application
