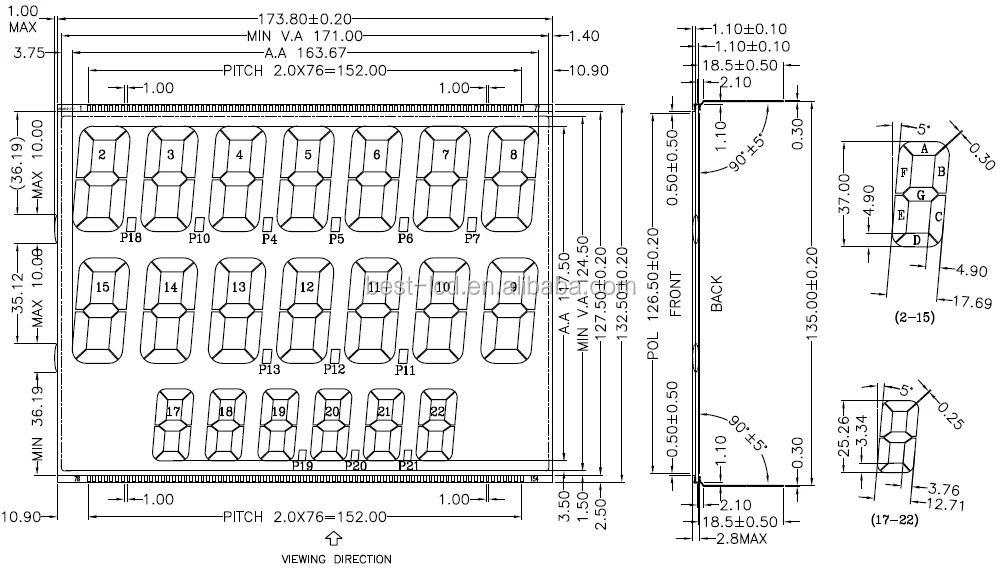

1. Professional Mechanical Drawings:

2. Precisely Technical&Mechanical Parameters FYI:
| Application | For Fuel dispenser/oil machine / Petrol Pump / Gas Station |
| LCD mode | HTN/Positive/Transflective |
| Outline size | 173.80x127.50/132.50x1.10mm |
| Viewing size | 171.00x124.50mm |
| Viewing Angle | 6 O’ clock |
Driving Method | 1/1Duty 1/1Bias |
| Pitch | 2.54mm |
| Connector Type | Pin |
| Operate Temp | -30~80degree |
| Storage Temp | -40~90degree |
| Operative Voltage | 5.0V |
| RoHS / REACH | |


5. Trusted Shipping:

6. Outstanding Capabilities&Services:
Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.
Product Type:
1. LCD Type: TN, HTN, STN, FSTN, VA, COB, COG etc.....
2. Any digitals, Icons, graphic can be customized and designed according to customers' requirements.
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...
5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. The range of operating Temperature: -40~90°C
Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..
7. Workshop View:

8. Contact us:
If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!
Trademanager: cnbestlcd
Skype: helenwang7708
QQ: 627807171
Customize Mono LCD Screen metal pin LCD display 776 Digits LCM
