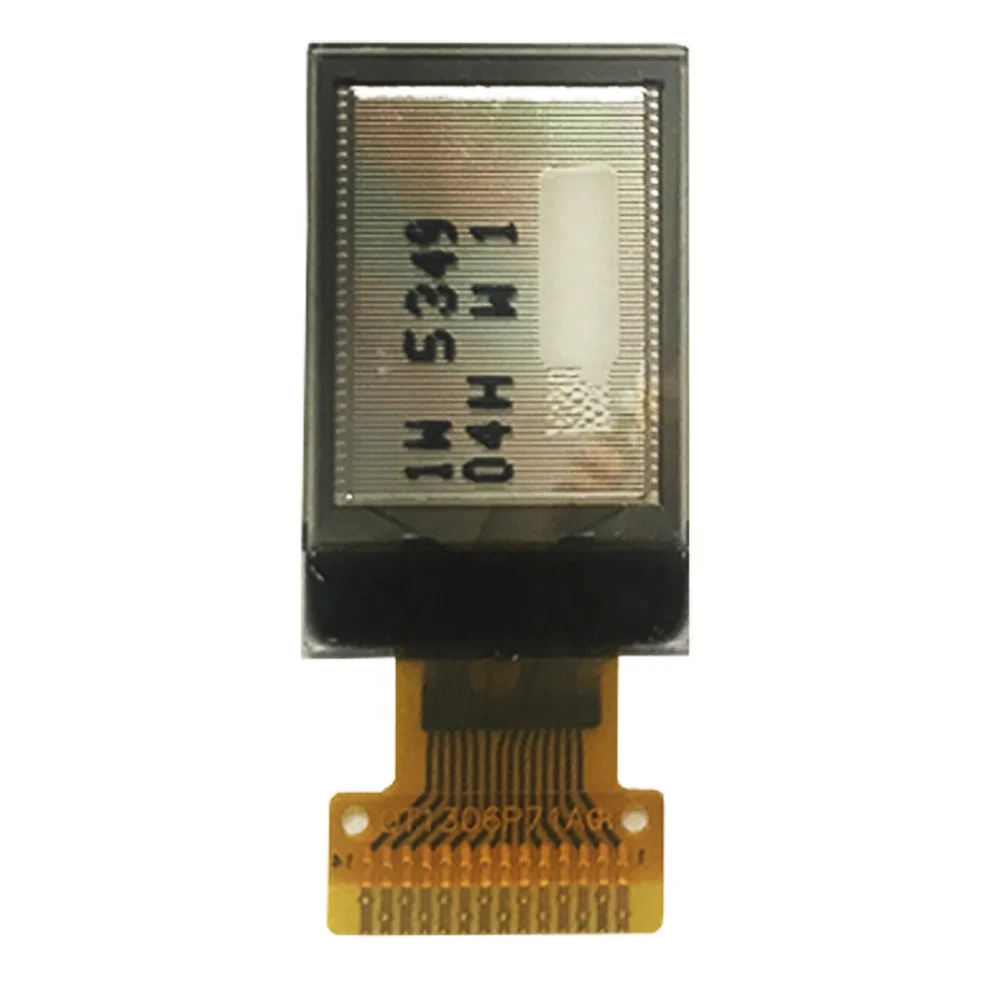

OLED 0.71" LCD White 48x64 Thin Display
Diagonal Screen Size
0.71 Inch
Color
Monochrome (white)
Number of Pixels
48*64
Module Construction
COG
Panel Size
13.9*22*1.2mm
Active Area
10.54*14.7mm
Pins
14
Drive IC
SSD1306
Interface
IIC

Pixel pitch
0.22x0.23mm
Assembly
Soldering
FPC Length
10 mm
Temperature Range
Item
Min.
Max.
Operating Temperature (°C)
-30
70
Storage Temperature (°C)
-40
80

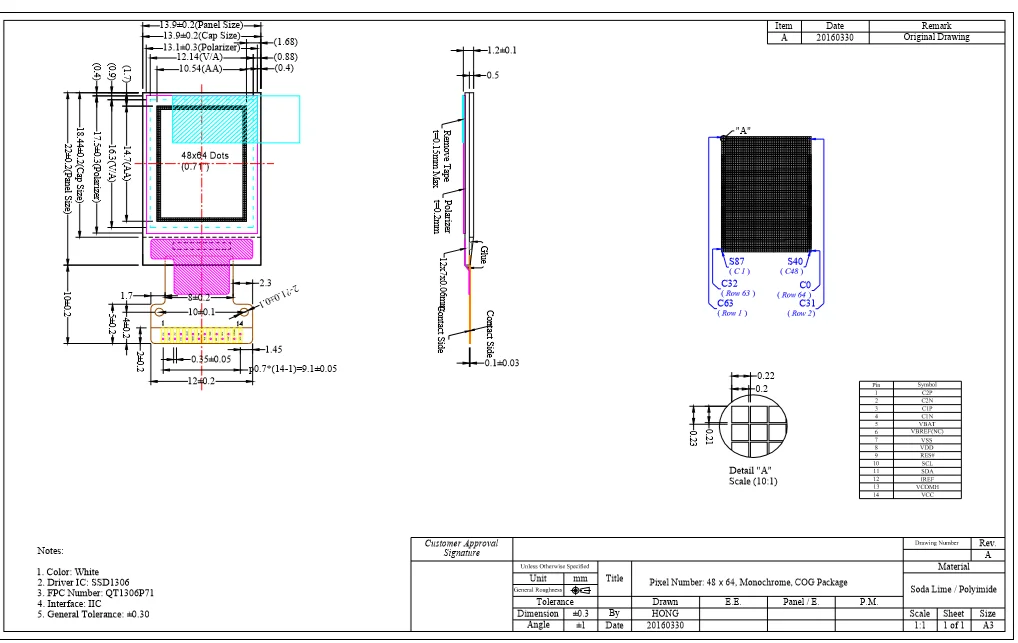

Outline Drawing

 0.71Mono 14pin 10mm.png
