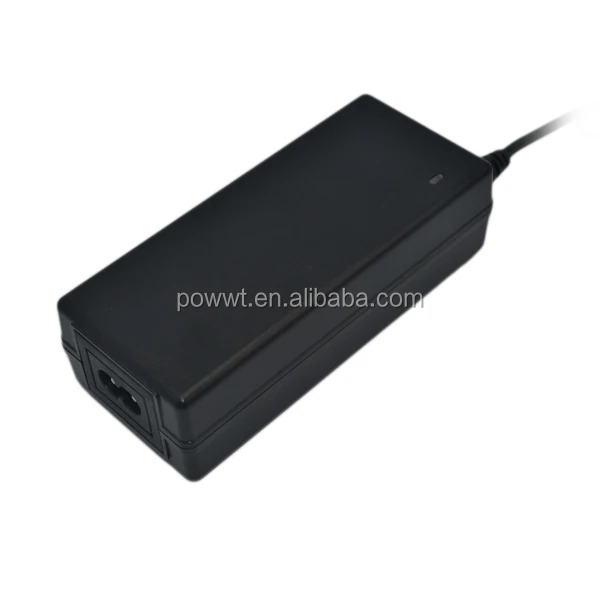

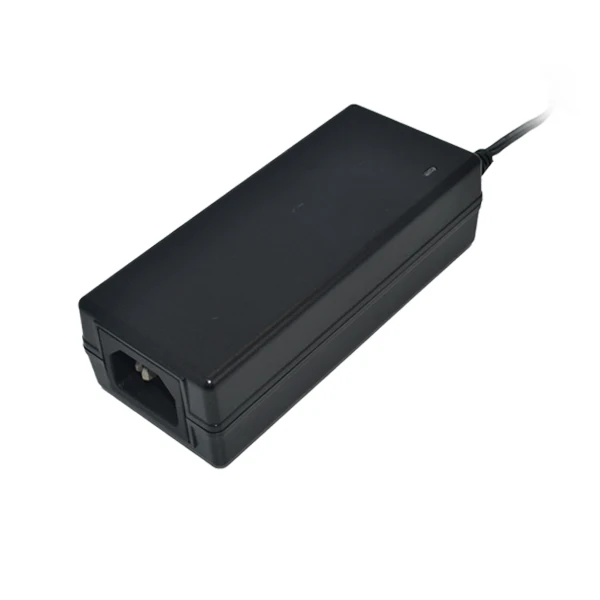

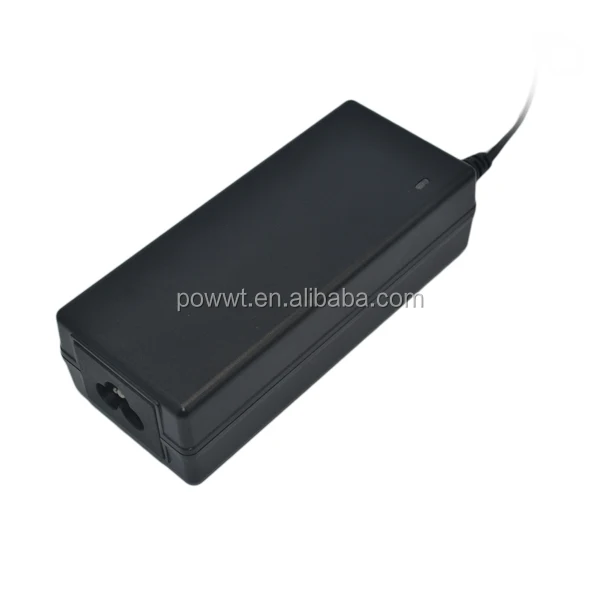

12V5A AC/DC laptop Power Supply, with PSE/SAA/FCC/BS/GS certificate,Power Adapter for OEM&ODM

INPUT

Voltage

90-264VAC universal full range

Frequency

47-63Hz

Current

<1.5A@100V AC input, full load condition

Inrush Current

<40A@115V , <60A@230V AC input.Cold start at 25℃ ambient

Leakage Current

<1.5A@ 264V AC input

OUTPUT

PART NO.

AD65WB05

AD65WB07

AD65WB09

AD65WB12

AD65WB15

AD65WB18

AD65WB24

AD65WB48

Voltage

5V

7V

9V

12V

15V

18V

24V

48V

Max Load

0-6.0A

0-6.0A

0-6.0A

0-5.0A

0-4.0A

0-3.3A

0-2.5A

0-1.25A

Output Tolerance

±5%

±5%

±5%

±5%

±5%

±5%

±5%

±5%

Ripple Noise(MAX)

50mV

70mV

90mV

120mV

150mV

180mV

240mV

300mV

Efficiency(MIN)

≥80%

≥80%

≥80%

≥80%

≥80%

≥80%

≥80%

≥80%

Output MAX

65W

65W

65W

65W

65W

65W

65W

65W

PROTECTION

Over Voltage

over 120%~150 max

Shutdown and latch off, recover after re-start up

Over Load &

Short Circuit

When power supply over 105%~150 max load or short circuit acted,powr supply will be shutdown and recover automatically after the fault is removed

Over Temperature

Over 95℃,the power supply will shutdown.

ENIRONMENT

Temperature

Operating:-20~70℃;De-rating:45~70℃:2.5%/℃;Storage:-40~+85℃

Humidity

Operating: 20%~90% RH(non condensing);Storage:10%~95% RH(non condensing)

SAFETY

Withstand voltage

I/P-O/P:3KVAC,I/P-PE:1.5KVAC,O/P-PE:0.5KVAC,1 minute

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG>100MΩ/500VDC at 25℃/70% RH

Safety standard

UL 60950-1 2^nd,CSA C22.2 No.60950-1-07 2^nd,TU EN 60950-1:2006,

IEC 60950-1:25005,standard, EN61558

EMC

EMI

EN 55032 CLASS B,FCC CFR 47 PART 15 CLASS B,CNS 13438 CLASS B

Compliance to EN61000-3-2 CLASS D,EN61000-3-3

EMS

EN55024:EN61000-4-2,3,4,5,6,8,11

OTHERS

Cooling

Natural Cooling

M.T.B.F.

100K hours

Dimension

115x48x28mm  ( L*W*H ) K-018-CABLE

Packing

N.W.:70g/1pc; 15pcs/1.05kg CUFT/1 CTN
