Lechang Brand Industrial Air Cooled Water Chiller R22/R407c/R134a economical easy install

Product Overview

Description



70HP SCREW COOLED CHILLER

Model         Item		LC-70WS	Band
Power supply		380V/3PH/50HZ
Nominal cooling capacity	Kcal/h	199000
	KW	231
	USRT	66
Refrigerant	Name	R22(or R407C/R404A)	Import of high quality refrigerant
	Refrigeration circuit	1

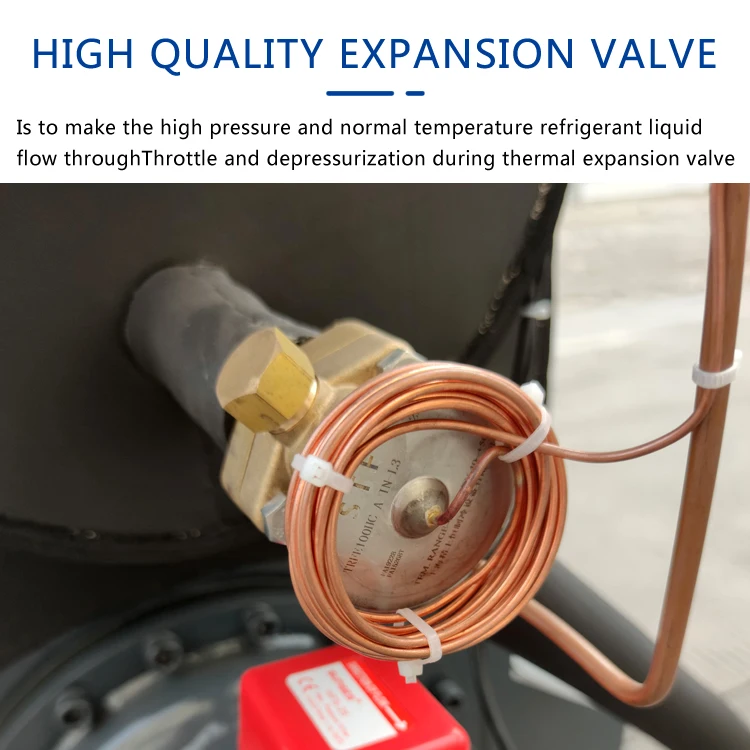

Throttling device	Control method	Thermostatic expansion valve
Compressor	Type	Semi-hermetic Screw	Hanbell(Taiwan)
	Starting
	Energy control	25%-50%-75%-100%
	Input power(kw)	48.5
	Rated current(A)	86
Condenser	Type	Shell tube	High efficiency external thread copper pipe shell and tube type
	Water flow(m3/h)	48.1
	Pressure loss(kpa)	45
	Pipe specification(PT)	3″
Evaporator	Type	Shell tube	High efficiency internal thread copper pipe shell and tube type
	Water flow(m3/h)	39.7
	Pressure loss(kpa)	60
	Pipe specification(PT)	3″

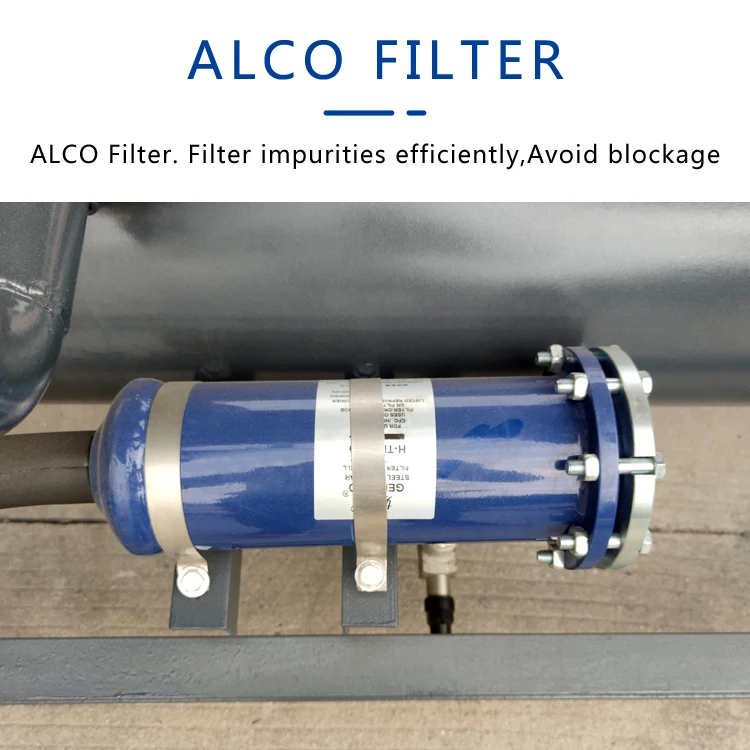

Safety device	Overload protection.high and low pressure protection.exhaust overheating protection.antifreeze protection.power inverse phase protection.hydraulic protection.		JAVE(Taiwan).ALCO(America). Schneider(France).Chint
dB(A)	60.2
Dimension	LxWxH(mm)	3000*900*1750	Wooden case
Machine weight(kg)	1450
Operating weight(kg)	1650

Remark:

1.The capacity is according to the following parameters: ambient temperature:35 ° inlet/outlet chilled water temperature 12 ° C / 7 °



 2.The specifications above are subject to change without notice.



3.Conversion of units:1kw cooling capacity=860kcal/hr



1RT=3024kcal/hr   1kcal/hr=3.969BTU/hr        1HP=0.735KW

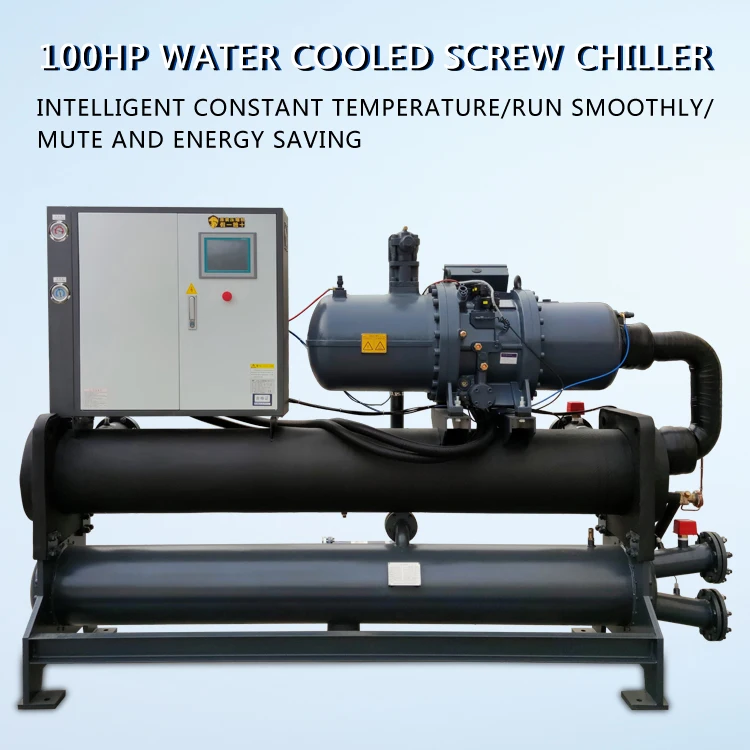

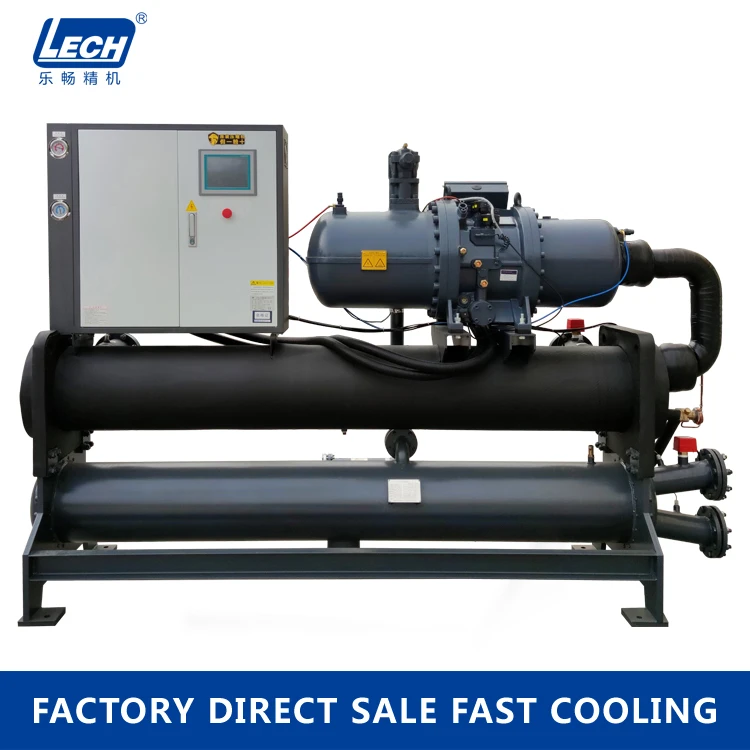

MACHINE PICTURES

OUR FACTORY



OUR CERTIFICATE

FAQ



Q1:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in cooled chiller more than 20 years, we provide wide range of industrial chillers available to suit any cooling need.



Q2:What's warranty and after-sale service of machine?

A:Twelve months Warranty for main machinery part like motor and electric;

Life-long maintenance service(Email and calling service in working hours)



Q3: How to install and run the machine?
A: Our technician have installed the machine before shipping.

Q4: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.



 Q5:How about the quality of your product?

 · Our products manufactured strictly according to national and international standard.

 · We have CE, ISO certification.

 · We take a test on every product before shipping.



 Q6:Whether the product can be customized?

 · We can make products according to customer's requirements.



Q7:Don't know which type you need?

A:Please send us your requirement or contact us directly!



Q8:Don't know how the machine working?

A:Contact us to see the video and get further information!
