High Speed Resin Mixer / High Speed Resin Mixing machine / High Speed Resin compound Mixer

Product Overview

Description

High Speed Resin Mixer / High Speed Resin Mixing machine / High Speed Resin compound Mixer





this High Speed Resin Mixer / High Speed Resin Mixing machine / High Speed Resin compound Mixer apply to mix all kinds of plastic material with accessories of chemical additive agent .we have series of various plastic mixer unit , such as SRL-Z series mixer unit

This High Speed Resin Mixer / High Speed Resin Mixing machine / High Speed Resin compound Mixer is composed of two parts , hot mixing and cool mixing equipment , at same time ,it has drying function .

1.All the inner side contact with raw material are made of stainless steel material .
2.it's well hermetic with a double sealed closure.
3.it has alternative heating ways for option , automatic and manual control
4.it has high automatic degree and is easy to operate , the raw material flows automatic in all   the processing program



Parameters of High Speed Resin Mixer / High Speed Resin Mixing machine / High Speed Resin compound Mixer:

model	Total volume	Dischargeable capacity	Thick liquid leaf rotational speed	Electrical machinery power	Water consumption	Ex-feeding way	External dimensions	Total quantity
SRL-Z100/200	100/200	75/160	650/1300 /96	14/22/7.5	3.5t/h	Air operated	2500×2000×2200	3T
SRL-Z200/500	200/500	150/320	460/920/96	30/42/11	5 t/h	Air operated	4580×2240×2470	3.5T
SRL-Z300/600	300/600	200/360	475/950/96	40/55/11	5.8 t/h	Air operated	4580×2240×2500	3.8T
SRL-Z500/1000A	500/1000	375/650	500/1000 /96	47/67/15	6.9 t/h	Air operated	4600×3000×4050	5.8T
SRL-Z500/1600B	500/1600	375/1200	500/1000 /68	55/75/15	10 t/h	Air operated	4600×3000×4050	7.3T
SRL-Z800/1600A	800/1600	600/1024	370/740/68	60/90/22	10 t/h	Air operated	6230×4230×4480	8T
SRL-Z800/2000A	800/2000	600/1500	370/740/68	83/110/22	12 t/h	Air operated	4850×3860×6550	8.5T

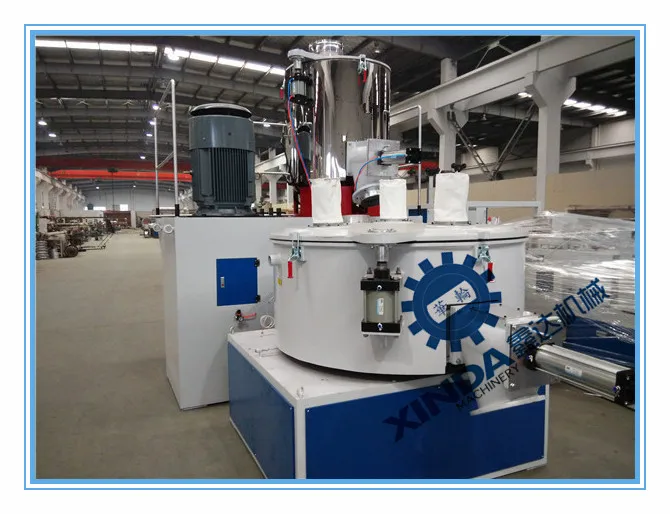

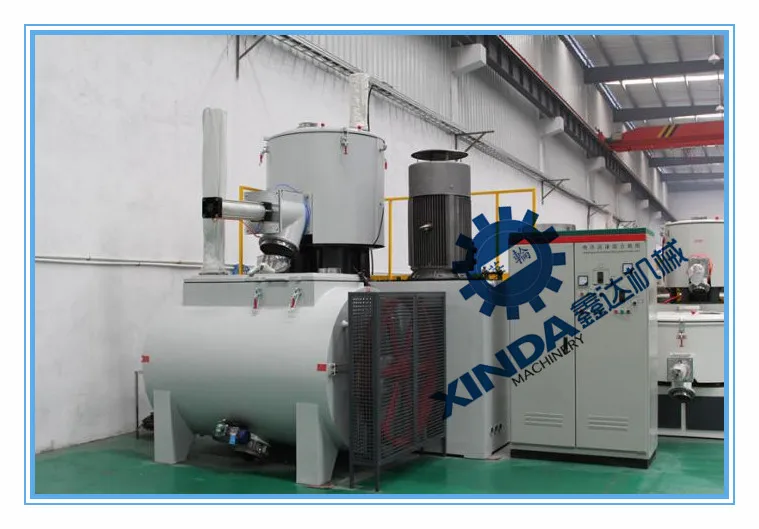

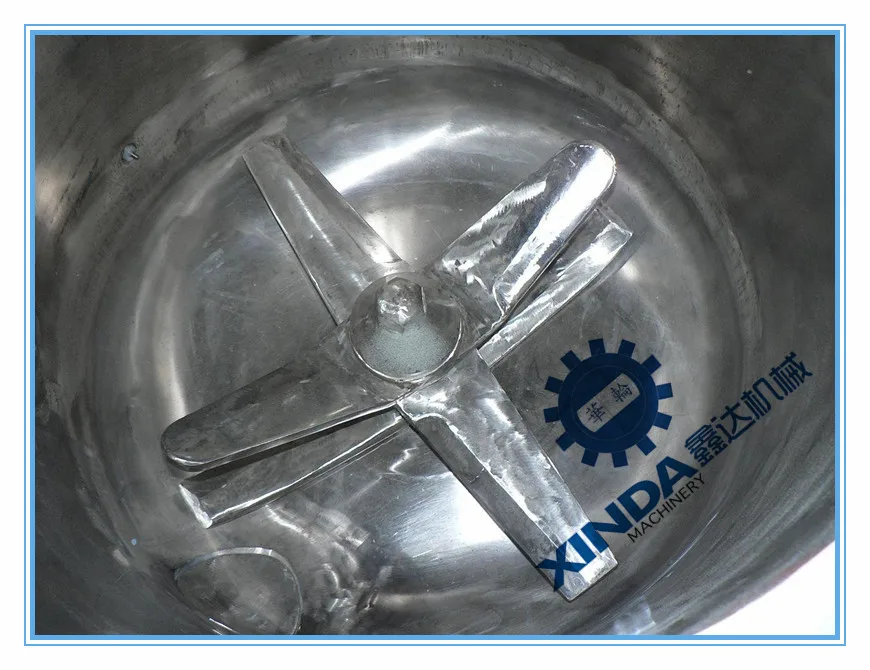

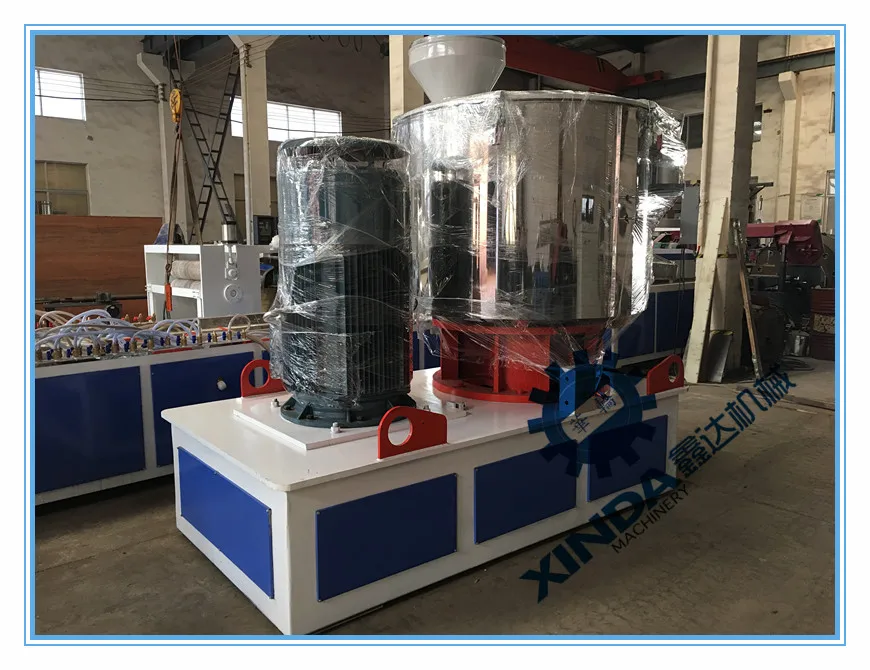

Detail pictures of High Speed Resin Mixer / High Speed Resin Mixing machine / High Speed Resin compound Mixer:

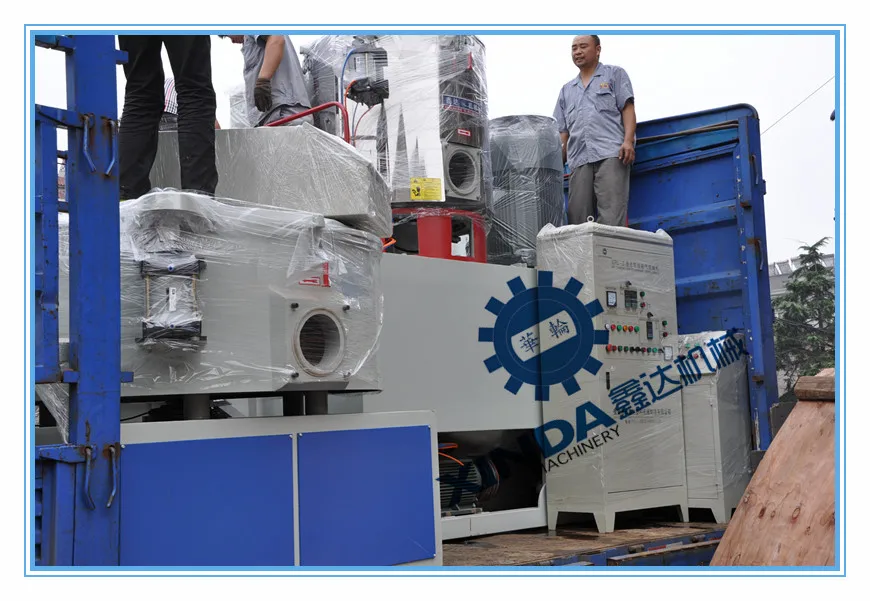

Packaging&Shipping:



Certificates:



Our customers:
