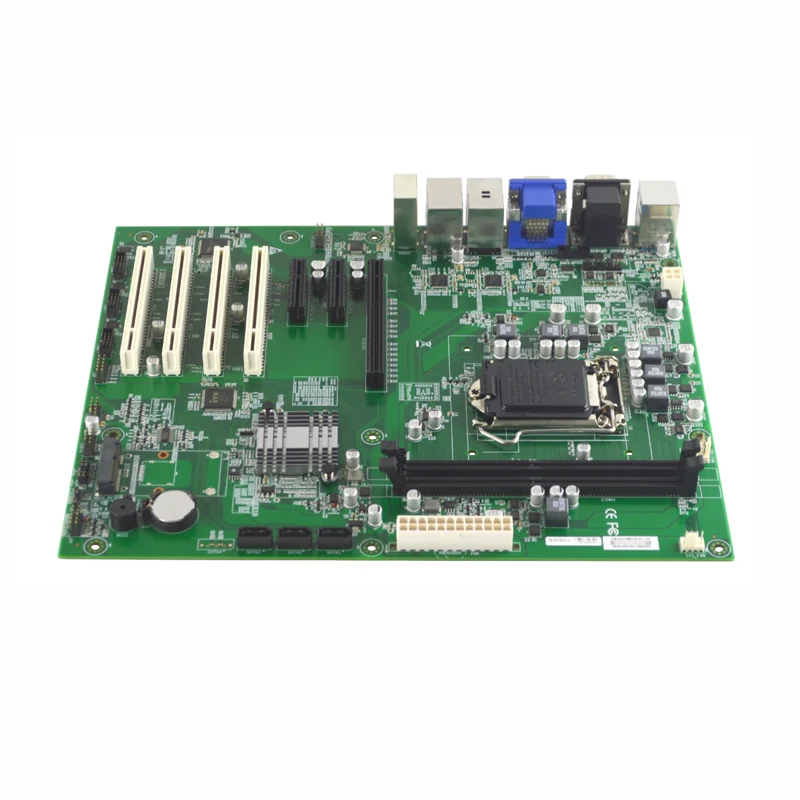

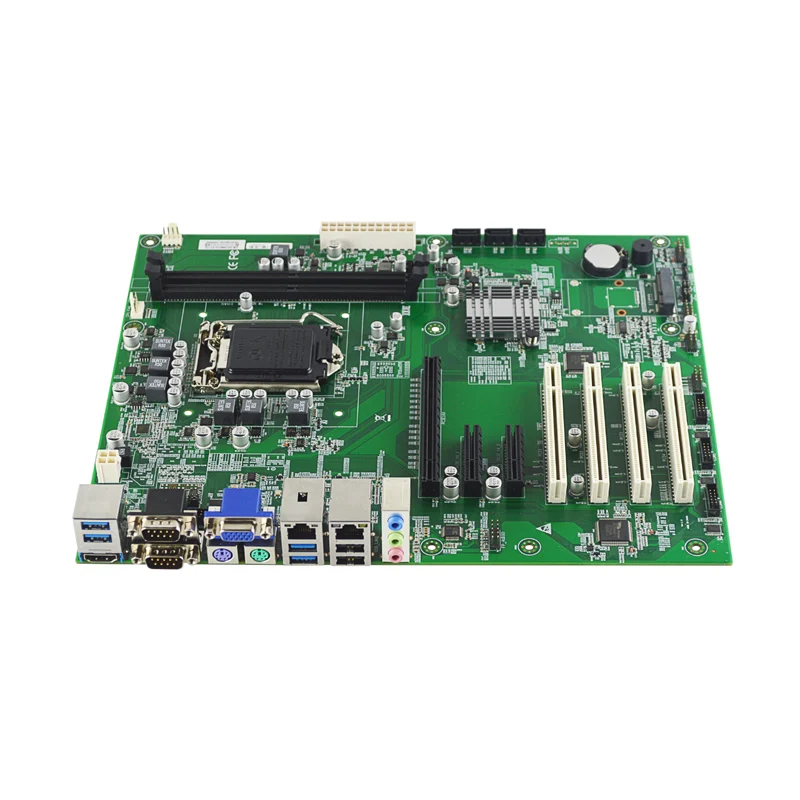

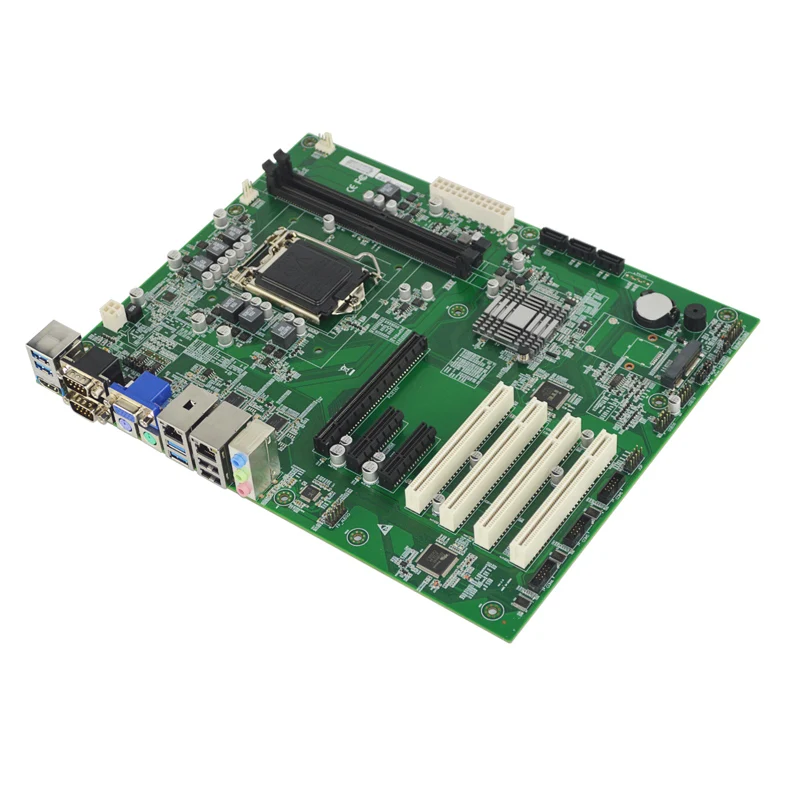

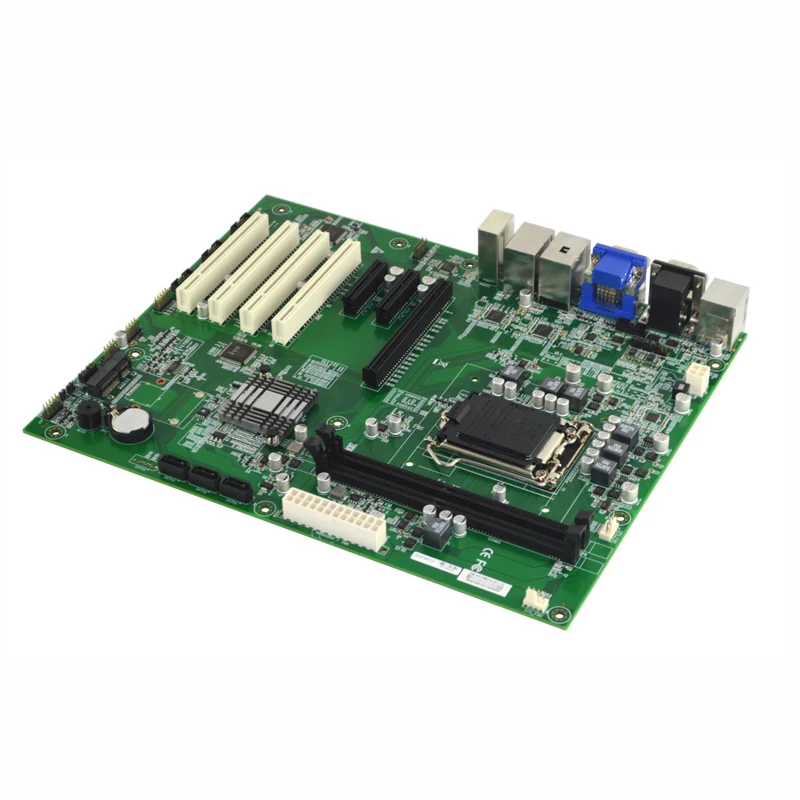

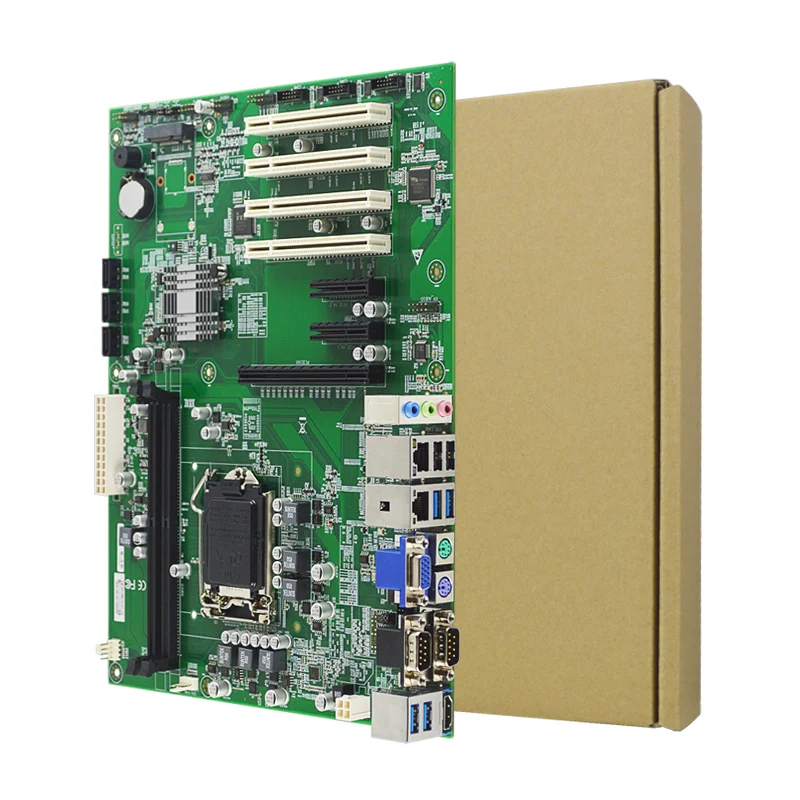

EAMB-1580 is an embedded industrial-grade high-end motherboard based on Intel H110 platform with high performance, high reliability, extensible function and abundant interface resources; Support Intel Skylake/Kaby lake-s LGA1151 Processors.
2 dual-channel UDIMM slots, supporting DDR4 1866/2133/2400mhz memory, memory capacity up to 32GB;
Provided interfaces include: 1* standard DB15 VGA display interface, 1* standard HDMI interface, 1* DP pin (reserved), 4* standard 7Pin SATA interfaces, 2* standard DB9 COM interfaces, 4* 2x5Pin COM pin interfaces, 4* standard USB 3.0 interfaces, 6* standard USB 2.0 interfaces(2* back IO panel interface, 2*2x5pin 2.54mm which can be transferred to 4* standard USB2.0 interfaces.), 2* Gigabit Ethernet interfaces (Intel I211 Gigabit network card chip), 4* PCI, 1* PCIE X16, 2* PCIE X4(actually PCIE X1 bus), 1 MINI PCIE interface, 3* Audio interfaces (Green: line-out, Pink: mic-in, Blue: line-in) 2* PS/2 keyboard and mouse sockets (Purple PS/2: keyboard socket, Green PS/2: mouse socket) 1* 2X5Pin JGP, by SIO derivation, and supports 8-way input and output;
Can be widely used in visual control, network security, firewall, industrial automation, intelligent network terminals and other industries. It can meet the needs of the majority of professional customers in the market.
CPU
Intel Sky Lake/Kabe Lake -S LGA1151 Onboard Processors
Chipset
Intel H110 | Maximum power consumption: 6W
Memory
2*240Pin DDR4 UDIMM sockets support DDR4 1866/2133/2400 MHz (up to 32GB) | Not support ECC PS:Skylake CPU support maximum 2133MHz, Kaby Lake support maximum 2400MHz
BIOS
AMI EFI BIOS
Super I/O
Fintek F81866AD 1* 2*5Pin programmable input/output interface (JGP) 2 *single-hole PS/2 sockets| purple for PS/2 keyboard socket| green for PS/2 mouse socket,COM3/DB9 1 *2x4Pin PS/2 keyboard, mouse pin connector (reserved)
Ethernet
2*RJ45 Gigabit network interface Intel I211 network chip | support adaptive 110/100/1000Mbps and WOL function
Graphic control
Intel SkyLAKE/KabeLAKE bulit-in GPU
Display interface
VGA:1*DB15 | Maximum resolution:1920*1200@60HZ HDMI:1*HDMI | Maximum resolution: 4096*2160@60HZ DP:1*2*10Pin DP can be transferred out of DB25 through the extension cable | Maximum resolution: 4096*2304@60HZ support VGA+HDMI, VGA+DP, HDMI+DP Independent 2 displays
SATA interface
4*SATA3.0
USB interface
4*USB3.0 rear interfaces, backward compatible with USB2.0 6*USB 2.0 (2 for rear IO panel interface, 2*2*5Pin 2.54mm pins for transfer to 4* USB 2.0)
Serial port
2*DB9 vinterface 4*2x5 Pin 2.0mm contact pin can transfer to DB9 COM1-COM6 extracted from IO, COM1-COM6 support RS232 COM1 support R422/RS485, COM3 cantransfer to DB9 choose mouse interface or PS/2 keyboard
Realtek ALC662 audio control chip | support Two-channel stereo 1*Green is Line_out |1* Pink MIC_in |1* Blue Line_in 1*2x5Pin FP_AUDIO support Mic-in2 and Line-out2
GPIO
8-bit programmable digital I/O pin
Expansion slots
1*PCle*16 (support PCIE 3.0) 2*PCle*4 (actually PCIE*1, support 2.0) 1* MINI PClE,support MSATA/WIFE(built-in SIM can support3G ) 4*PCI (support PCI 2.3)
Fan slots
2*4Pin CPU
Watchdog
255-level timer causes a reset when overflowed
Power requirement
24+4Pin ATX supply
OS

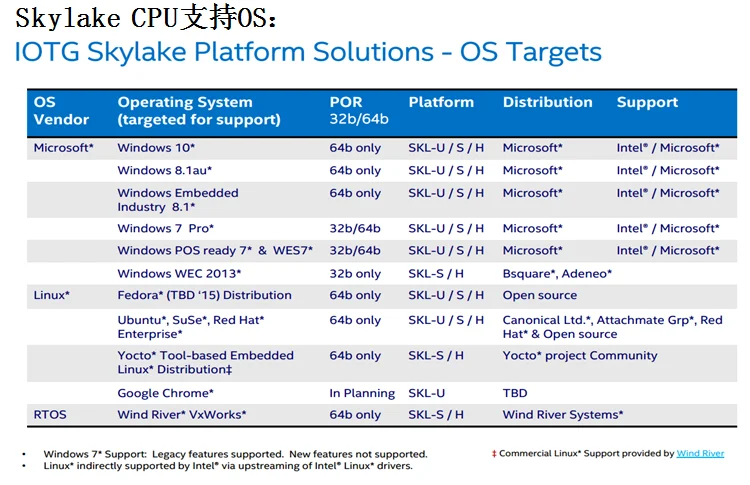

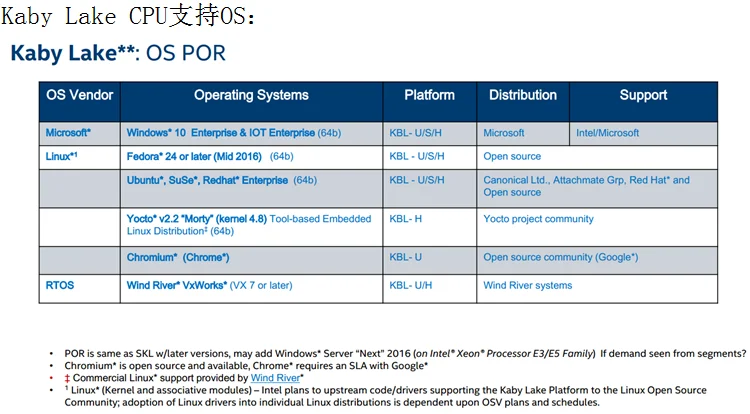

Windows7 32/64bit | Windows8.1 32/64bit | LUNX
Working environment
Temperature:0~60℃; Humidness:5%~95% Relative humidity with non-condensation; Storage temperature:-40~80℃.
Size
305mm*244mm
