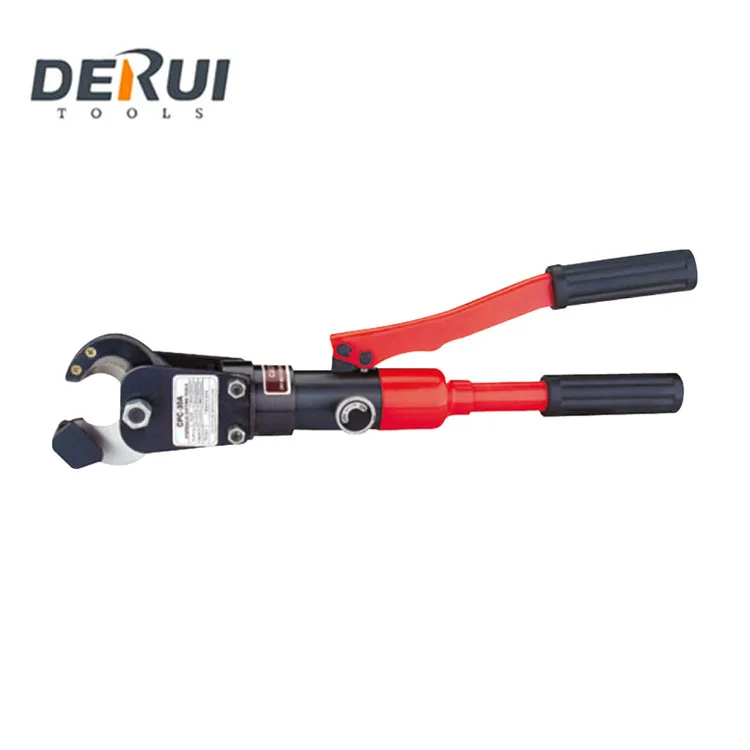

CPC 30A 7T Manual Hydraulic Cable Cutter

Product Overview

Description



1.Movable style blade for quick replacement.



2.Pin style head for cutting,wire at any position.



3.With good design of whole products.



4.Accurate adjustment before ex works delivery



5.The oil pipe couple fitted with PT3/8"thread.



6.To be worked with pedal pump, manual pump and electric driven hydraulic pump.







PRODUCT  PICTURES:























Model	CPC-30A	CPC-30H	CPC-40B	CC-50B	CPC-100A
range of application	30mm (Electrical wire/ Telephone cable wire)	50mm Electrical wire/40mm ACSR	38mm Electrical wire/40mm ACSR/38mm Telephone cable wire	50mm Electrical wire/50mm Telephone cable wire	100mm Electrical wire/100mm Telephone cable wire
crimping force	7 ton	7 ton	7ton	12ton	7.5 ton
Length	500mm	300mm	380mm	330mm	560mm
weight	4kg	3.5kg	4kg	6KG	13kg
packing size	657*95*170mm	657*95*170mm	355*90*195mm	350*180*105mm	600*90*240mm
package	steel case	steel case	steel case	steel case	steel case
