Fully Automatic Sludge Dewatering Filter Press Membrane Filter Press
- Category: >>>
- Supplier: Henan Remont I/E Co. Ltd.Henan Ltd.
Share on (62039320984):
Product Overview
Description
Membrane slurry filter press
Product Description
Membrane filter press is one kind filter press that using the membrane filter plates. In the process of operation, in the end of feeding the material, high hydraulic liquid or gas(0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.
Advantages
Decrease moisture content of filter cake
Increasing filter cake dryness and decrease moisture content of filter cake, filter with membrane has a second time filtering on filter cake that was finished by static filtering. Restructuring filter cake and increasing density is for that substitutes a part of moisture content and increases filter cake dryness. According to former experience it can decrease 10%-40% moisture content. For different industries, the lowest moisture content can reach 12.5%.
Technical Parameters
| Model | Filter area | Plate size(mm) | Cake thickness | Number plate | Pressure | Motor power | Size(m) | Weight |
| XMG30/870 | 30m² | 870*870 | 30mm | 23 | 0.6MPa | 2.2KW | 3.18*1.2*1.3 | 3046Kg |
| XMG40/870 | 40m² | 870*870 | 30mm | 30 | 0.6MPa | 2.2KW | 3.57*1.2*1.3 | 3593Kg |
| XMG50/870 | 50m² | 870*870 | 30mm | 38 | 0.6MPa | 2.2KW | 4.11*1.2*1.3 | 4057Kg |
| XMG60/870 | 60m² | 870*870 | 30mm | 46 | 0.6MPa | 2.2KW | 4.55*1.2*1.3 | 4597Kg |
| XMG70/870 | 70m² | 870*870 | 30mm | 54 | 0.6MPa | 2.2KW | 4.99*1.2*1.3 | 5136Kg |
| XMG80/870 | 80m² | 870*870 | 30mm | 62 | 0.6MPa | 2.2KW | 5.43*1.2*1.3 | 5636Kg |
| XMG80/1000 | 80m² | 1000*1000 | 30mm | 46 | 0.6MPa | 4.0KW | 5.12*1.5*1.4 | 5651Kg |
| XMG100/1000 | 100m² | 1000*1000 | 30mm | 57 | 0.6MPa | 4.0KW | 5.78*1.5*1.4 | 6628Kg |
| XMG120/1000 | 120m² | 1000*1000 | 30mm | 69 | 0.6MPa | 4.0KW | 6.5*1.5*1.4 | 7644Kg |

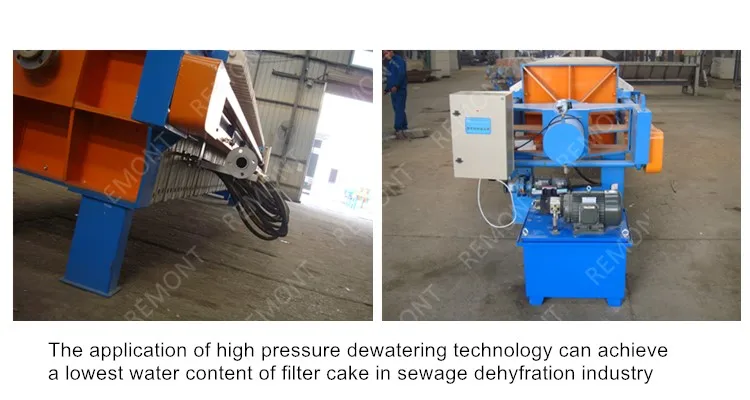

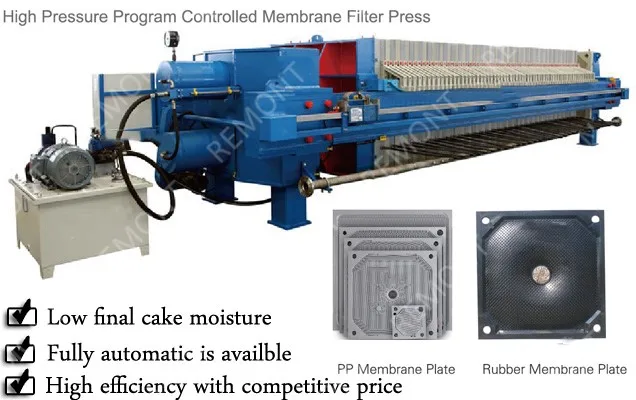

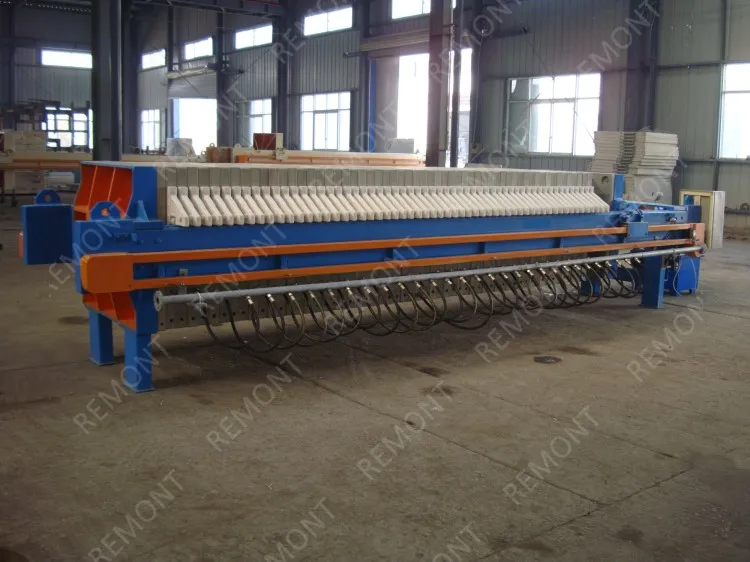

Detailed Images
Application
Membrane filter press for industrial waste water are suitable for solid-liquid separation in pharmaceutical, chemical, pharmaceutical, metallurgy, dyes, food, ceramics, oil refineries, sewage treatment and other environmental protection industry.
Our Services
| Pre-Sales Service: —— 7/24 technical service on line. —— Free water sample test. —— Engineer on-spot investigation. —— View our Factory. | After-Sales Service: —— One Year Guarantee. —— Training how to install the machine, training how to use the machine. —— Engineers available to service machinery overseas. |
Packaging $ Shipping
Buying Guides
Filteration area:_____m²
Raw material: _____
Solid-liquid ratio:
Capacity:_____
Voltage: _____
