precast hollow core slab production machine

Category: Board Making Machinery >>>
Supplier: Shandong OYADE New Building Material Co. Ltd.

Price:RUB 11,476,530.00

Quantity:

Product Overview

Description

Light wieght wall panel eps concrete machine mould car

eps sandwich panel machine line is in order to adapt to recent development trend of building materials, our company bold innovation design of highly automated production lines, which enables the waste water and materials be reused through elaborate design.
This is our unique design, can full automatically demoulding, 20panels/time. So can save a lot of your labor cost

Machinery Parameters
Capacity	20,000sqm~600,000sqm per year
Thickness	50-250mm thickness. special sizes need to be customized
Length	2440~3600mm, special sizes need to be customized
Width	610mm , special sizes need to be customized
Raw material	There are mainly two different types 1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add) 2. Fomed cement+additives
Finished board type	1. Composite board/sandwich board, with surface board 2. Lightweight solid panel, without furface board
Surface board types	1. Calcium silicate board 2. Fiber cement board 3. Mgo board
Electrical components	There are mainly two different types

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Main Equipment

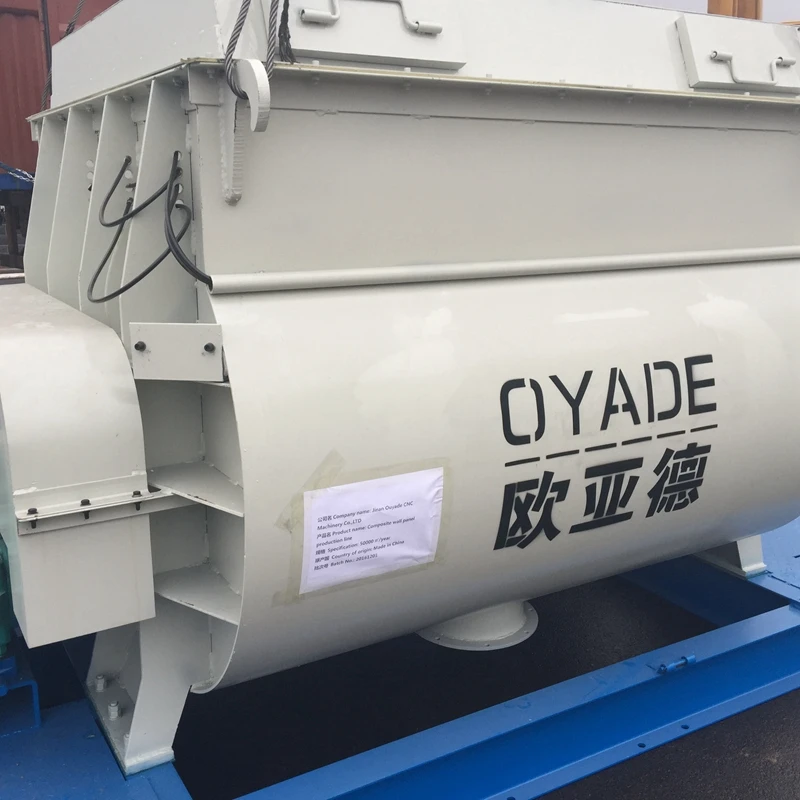

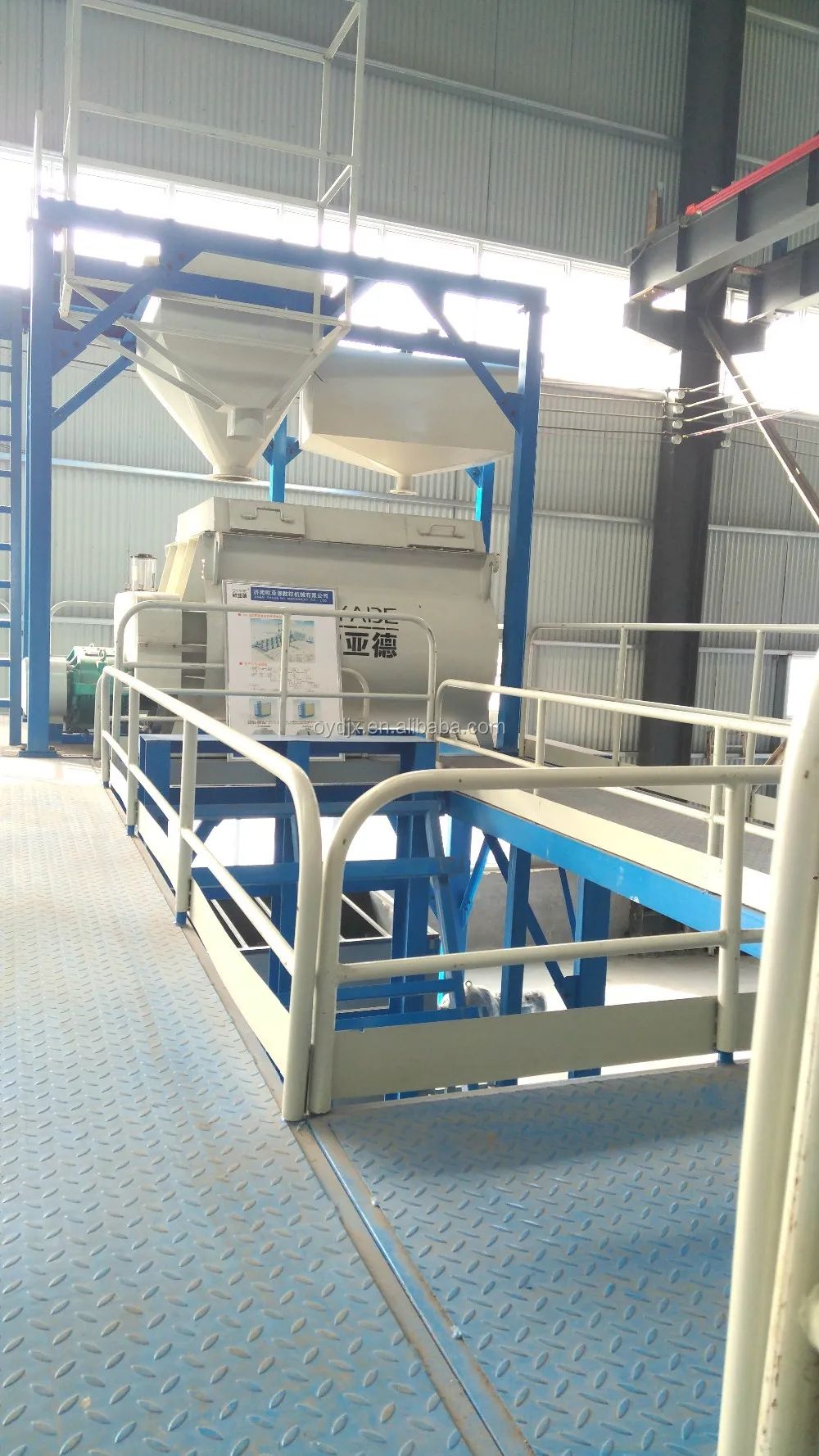

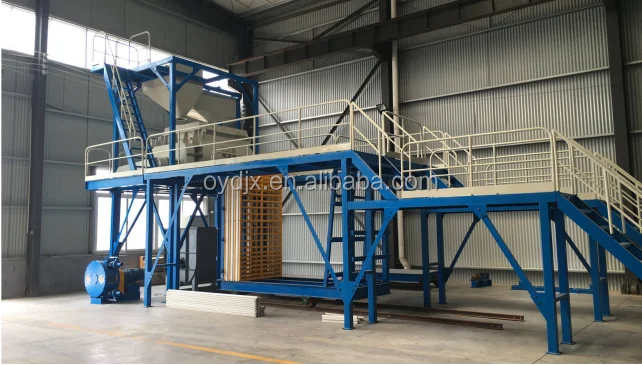

Name: full automatic mixing platform

Brand: OYD brand

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Full automatic meteriing for raw materials

Each raw material is automatically mesured, so can ensure the eaxct formula.

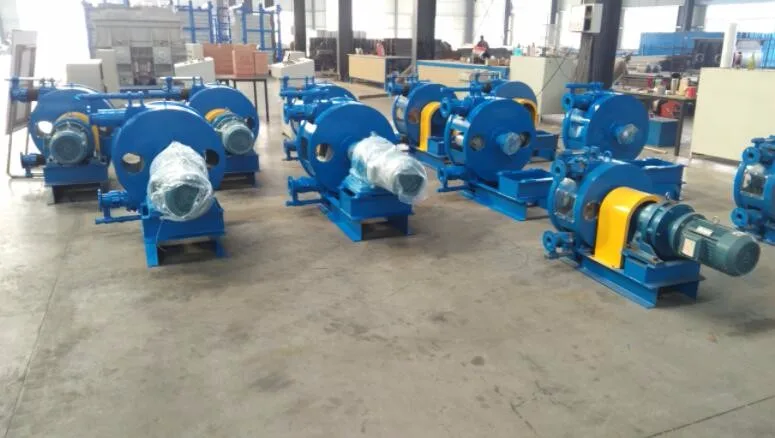

Name: Pumping system
Brand: OYD brand
Used to paste into the mold, can avoid the air holes.

The feeding machine can be movable, or fixed, matched well with the mold car, easily operate

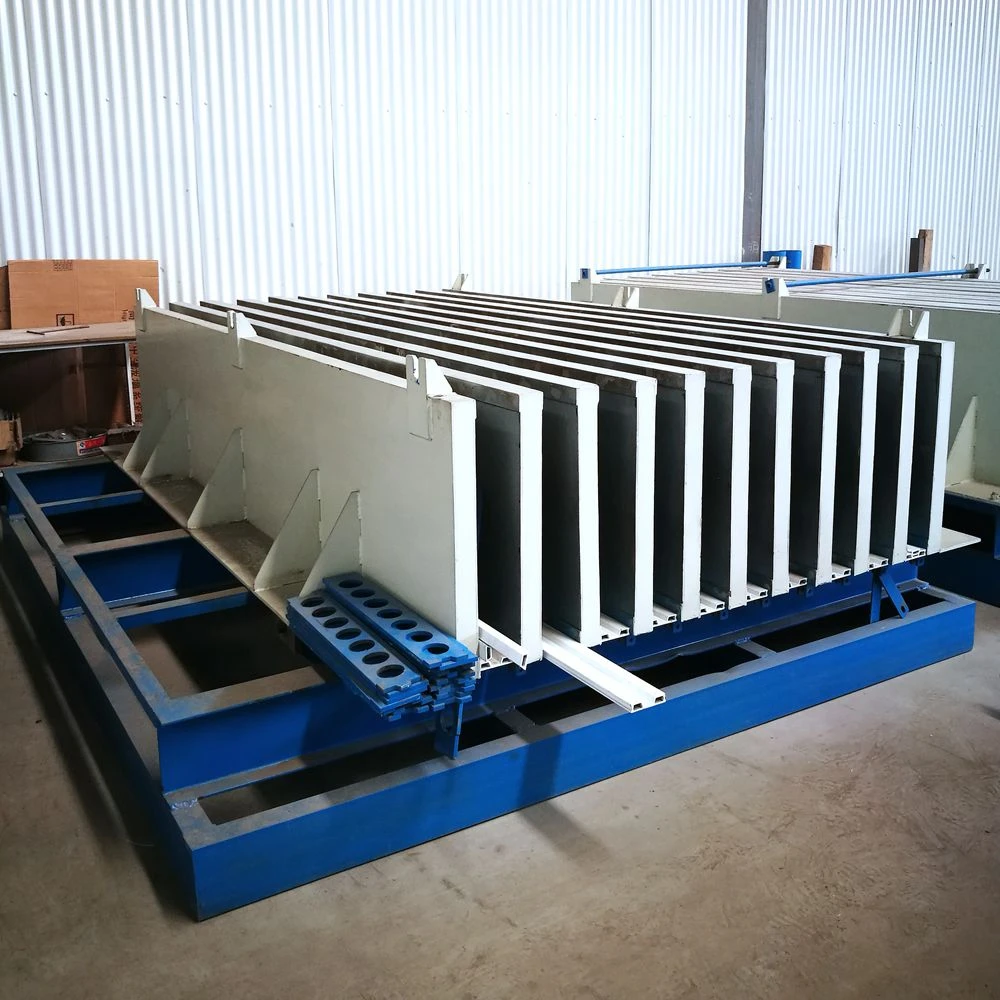

Name: Full automatic mould car
Brand: OYD brand

Full automatic open and demoulding, no need workers to lift the panel

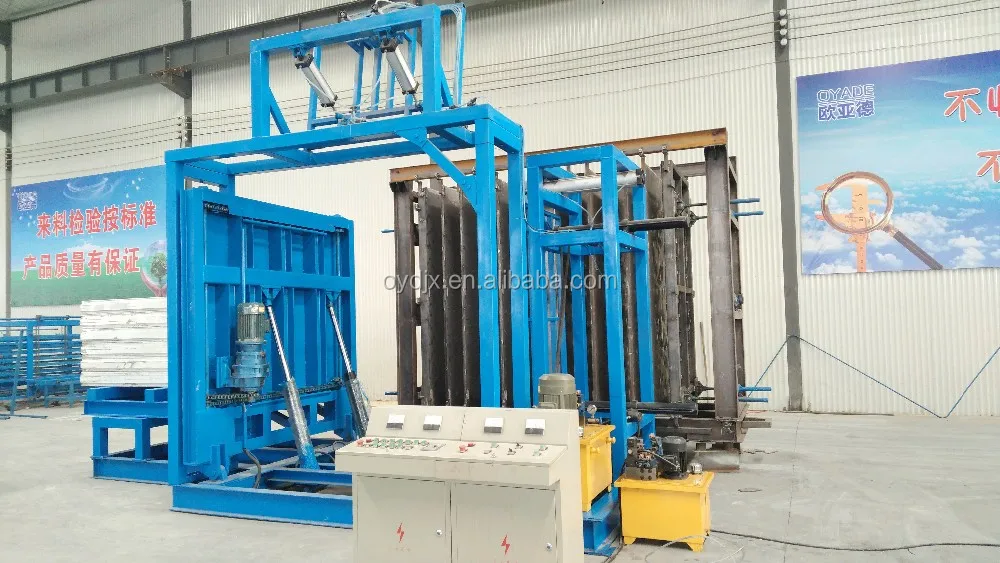

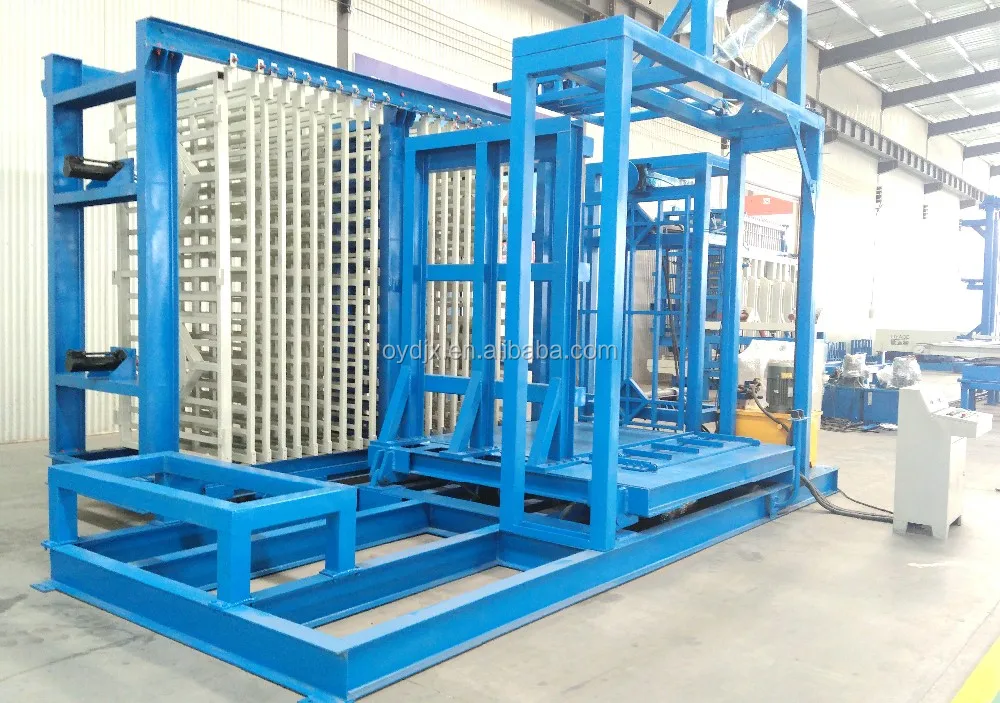

Name: Automatic unloading machine
Brand: OYD brand

After curing, unloading the wall panel and stacking.

our unique advantages: unloading 20panelss per time.

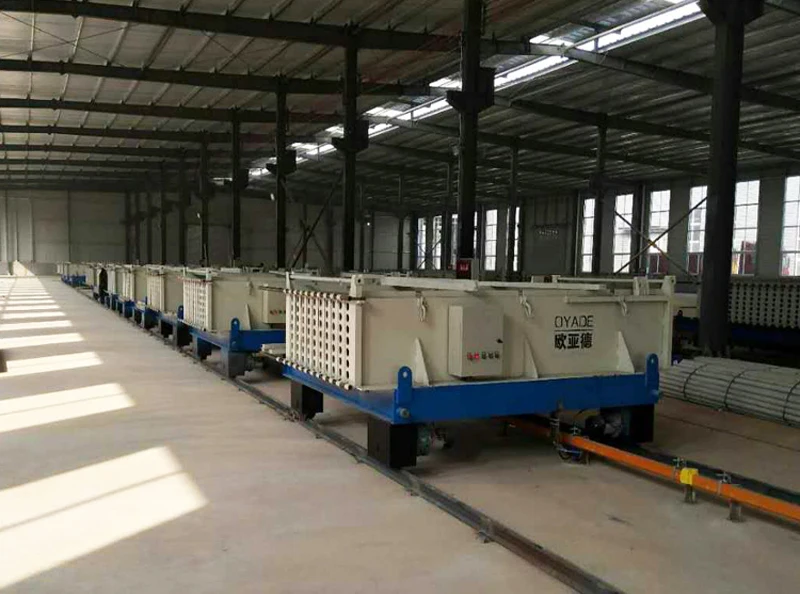

mold car traction system

Boiler system

EPS foaming machine

Certifications

We have over 10 patented technology in our country.Would love to show to you when you come.

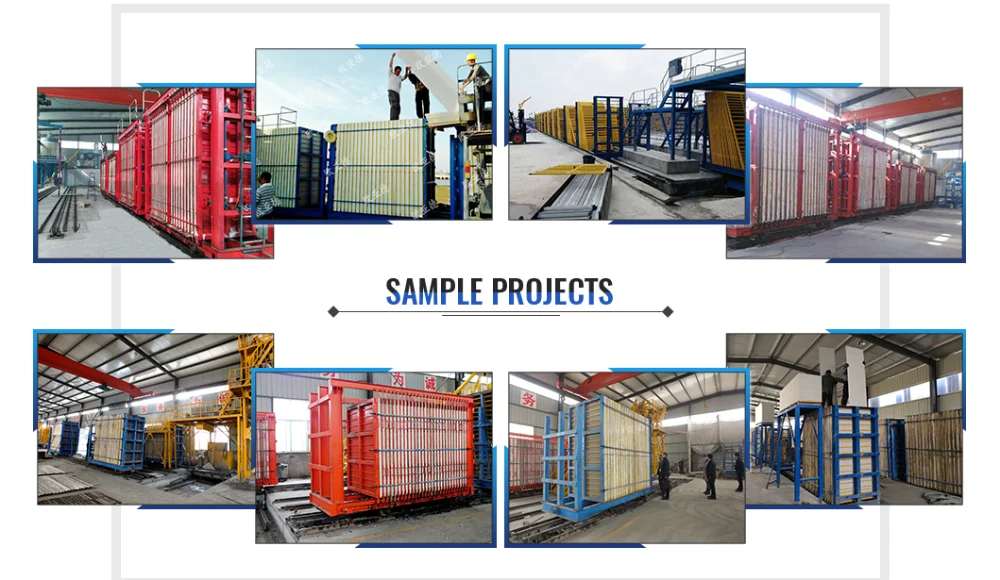

Sample Project

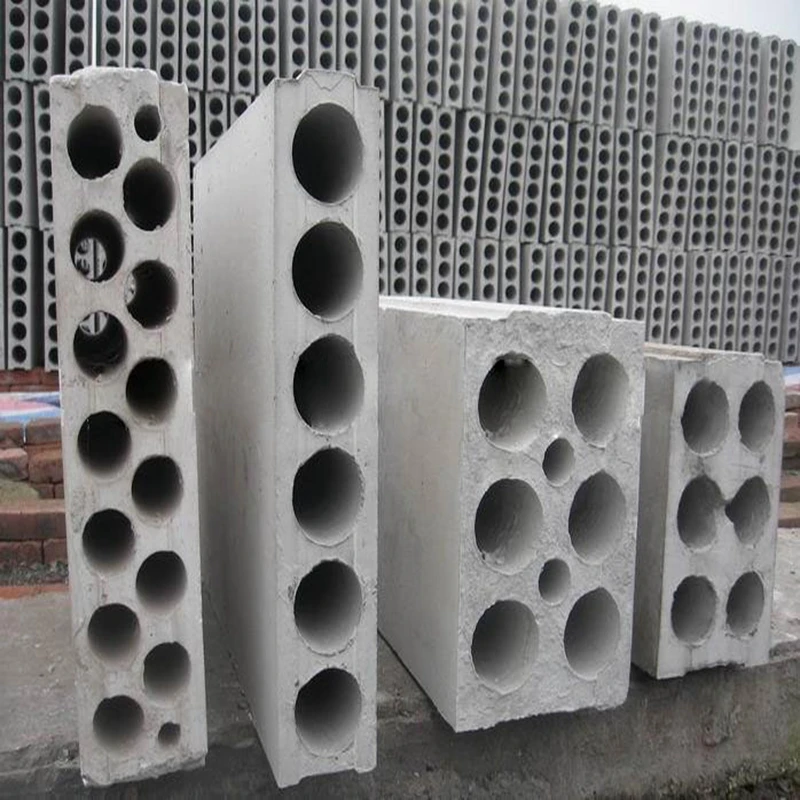

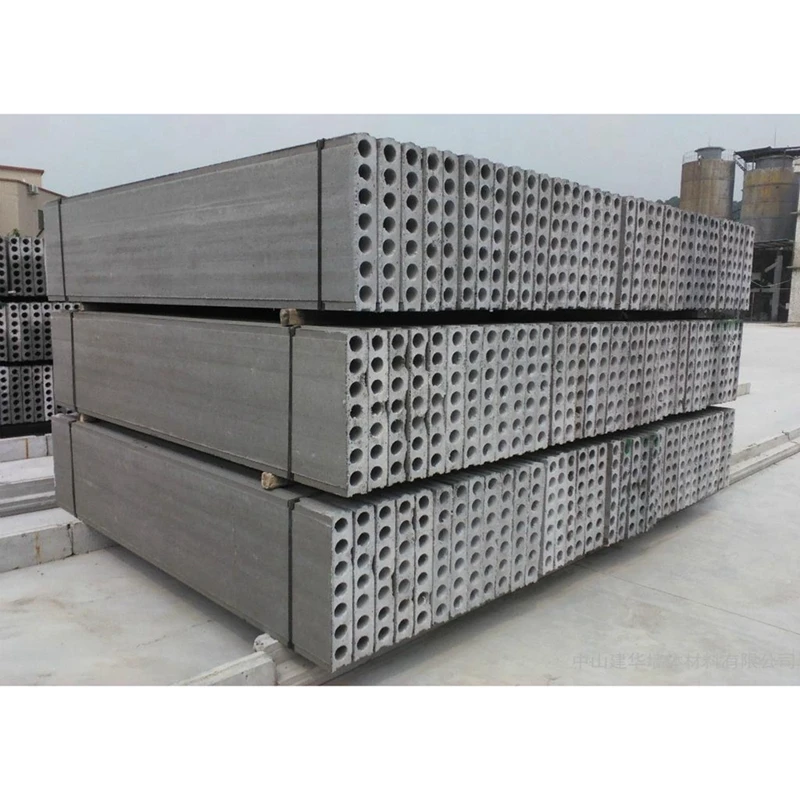

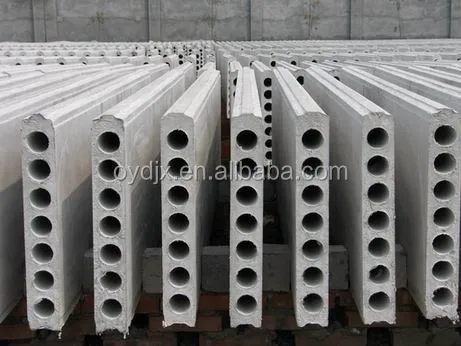

Finished Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Main parameters

Popular product Specifications

EPS Lightweight wall panel

Panel thickness(mm)	Panel width(mm)	Panel length(mm)
60	610	2440-3000
75	610	2440-3000
90	610	2440-3000
100	610	2440-3000
120	610	2440-3000
150	610	2440-3000
180	610	2440-3000

Raw material

Name

Cement

Fly ash

Sand

Polystyrene particles

Admixtures

Calcium silicate board

Water

Note: using normal cement, no steam curing facilities, the temperature is about 20 ° C

Mold car specification
Panel thickness	Panel width	Panel length	Quantity(block/each car)	Sqm/car
50	610	2440	66	98.2
60	610	2440	58	86.3
75	610	2440	48	71.4
90	610	2440	42	62.5
100	610	2440	38	56.6
120	610	2440	34	50.6
150	610	2440	28	41.7
180	610	2440	24	35.7

Note: if mold car works with conversion and traction system, it can realize automatic mobile transportation.

Packing & Delivery

We have very mature skill for the exporting required package. Never worry about the damage during sea transportation.

Our Factory Contact

Products
Jinan Oyade CNC Machinery Co., Ltd. is specialized in designing and manufacturing lightweight wall panel production forming machine. With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Experience
Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience .With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Promise
After installation and commissioning, we will provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
