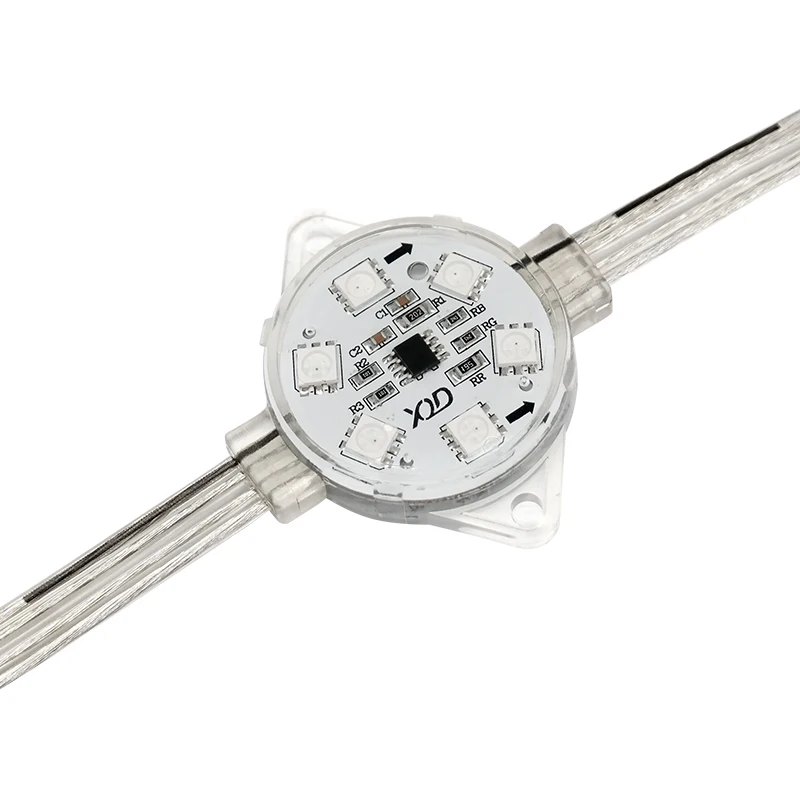

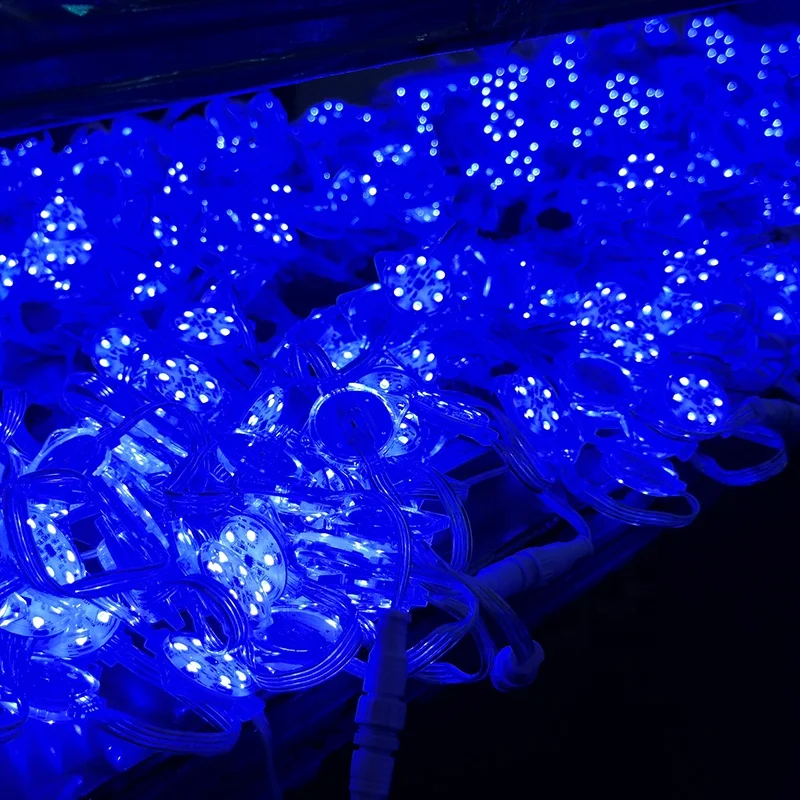

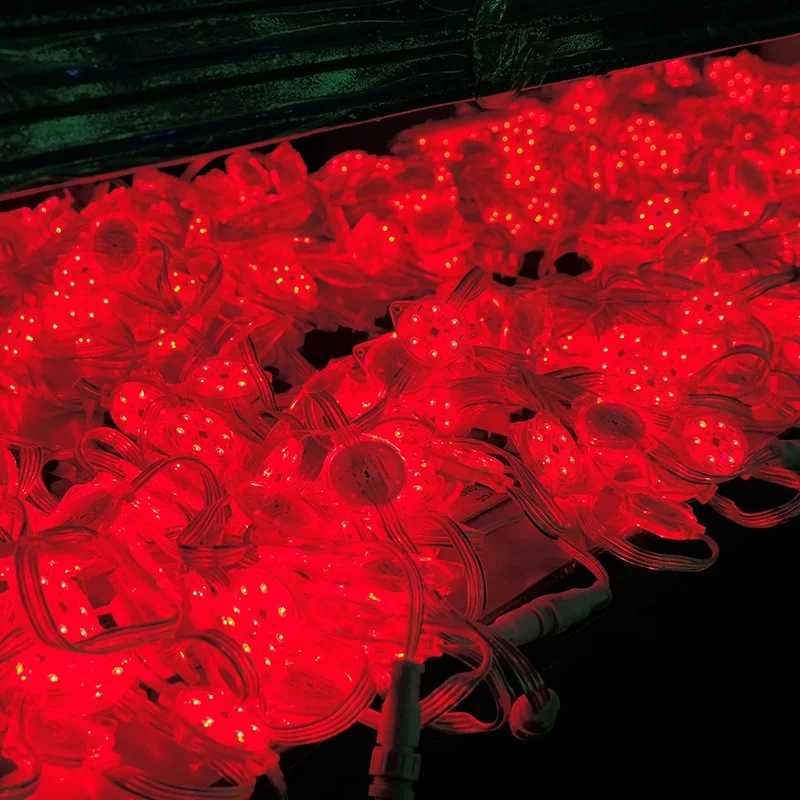

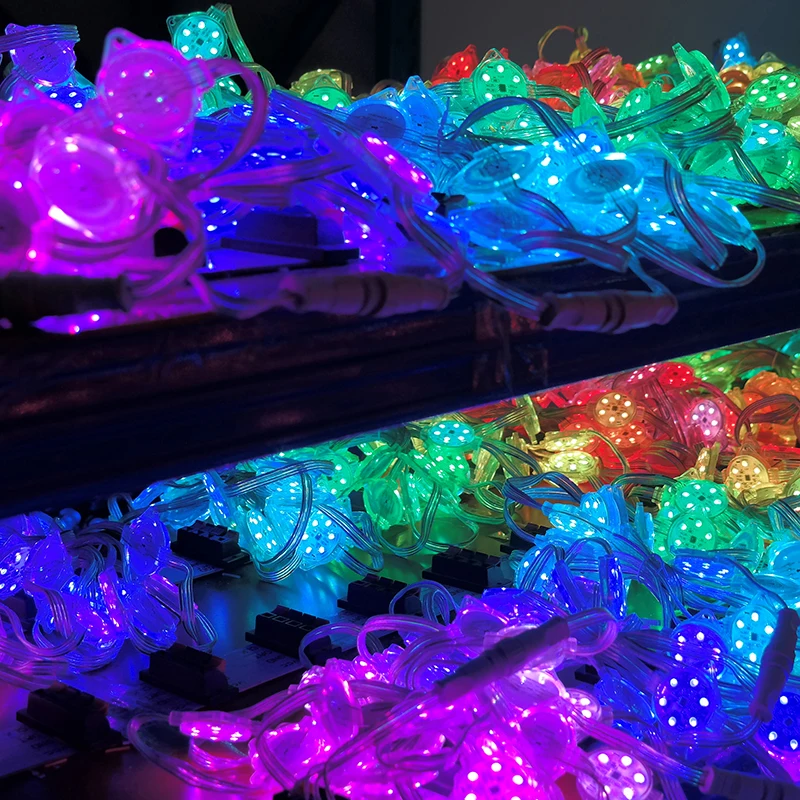

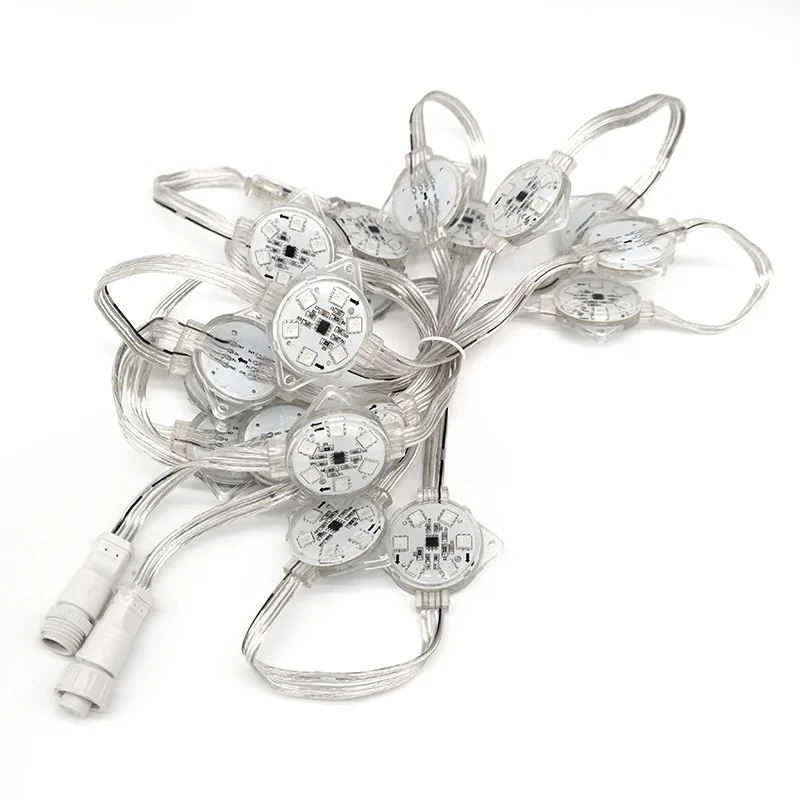

40mm pixel led light RGB 5050 SMD DMX512 IP68
- Category: LED Point Lights >>>
- Supplier: Shenzhen Xinqidian Opto Technology Factory
Share on (62039455554):
Product Overview
Description
Overview
Product feature
1. Adopt integrated molding process, high protection level;
2. High-quality flame retardant rubber, anti-UV, anti-salt fog;
3. Adapt to multiple installation methods, simple and reliable installation;

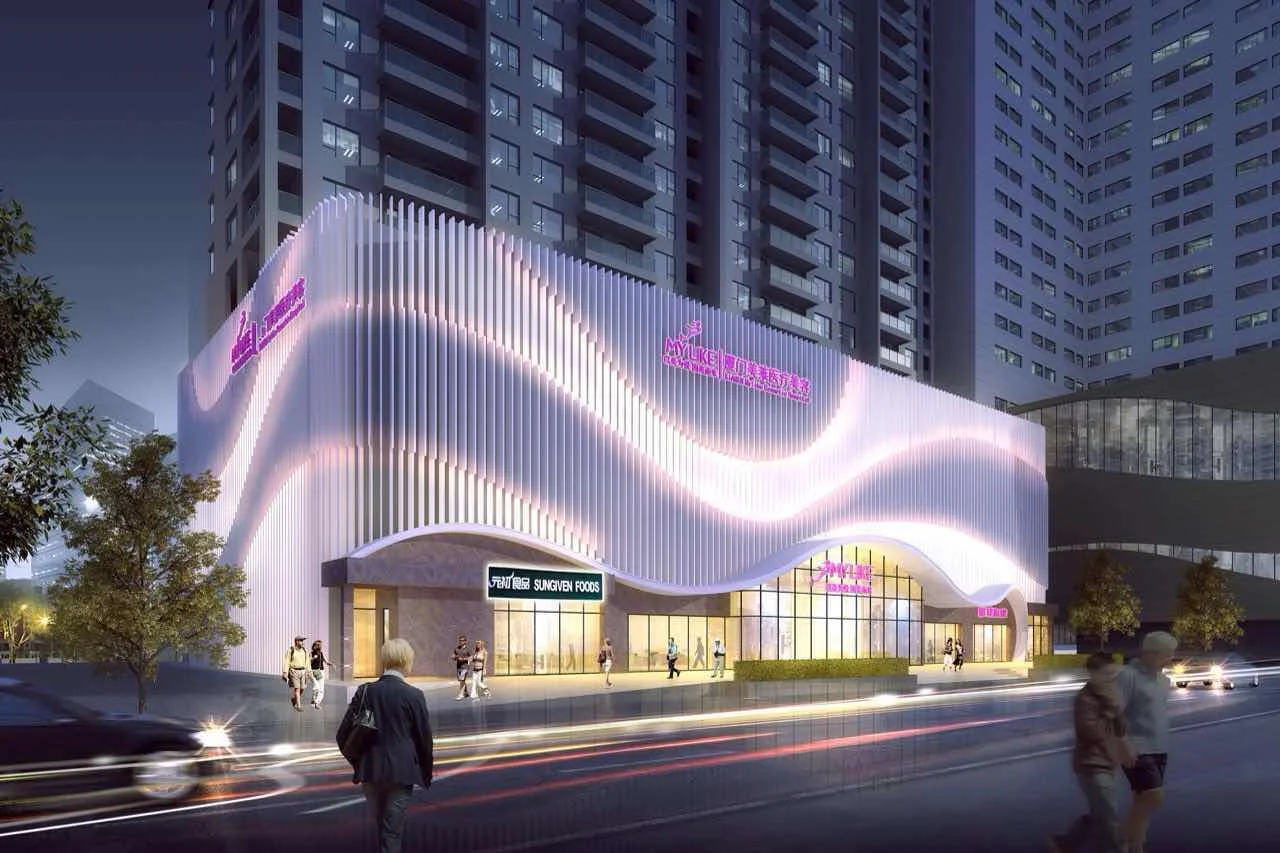

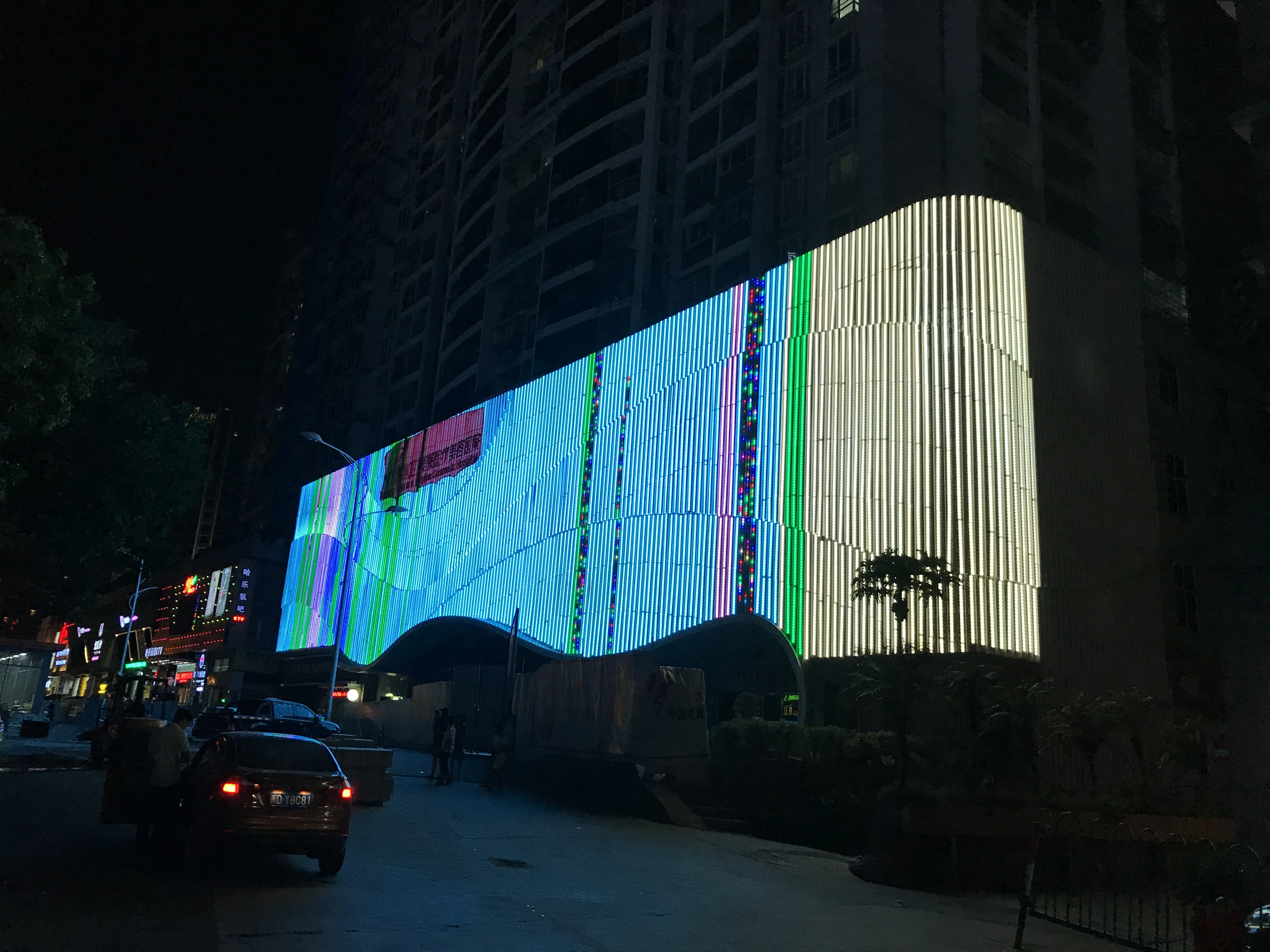

4. It is often used to outline building outlines, and it can be a perfect substitute for
line liht products, to achieve the effects of flowing water, horse races, video images,
etc. It can also produce large advertising displays, large city signs and text light
sources.
2. High-quality flame retardant rubber, anti-UV, anti-salt fog;
3. Adapt to multiple installation methods, simple and reliable installation;
4. It is often used to outline building outlines, and it can be a perfect substitute for
line liht products, to achieve the effects of flowing water, horse races, video images,
etc. It can also produce large advertising displays, large city signs and text light
sources.
Product basic parameters | Product optical parameters | ||||
Product model | XQD-DZ104 | LED color | RGB | ||

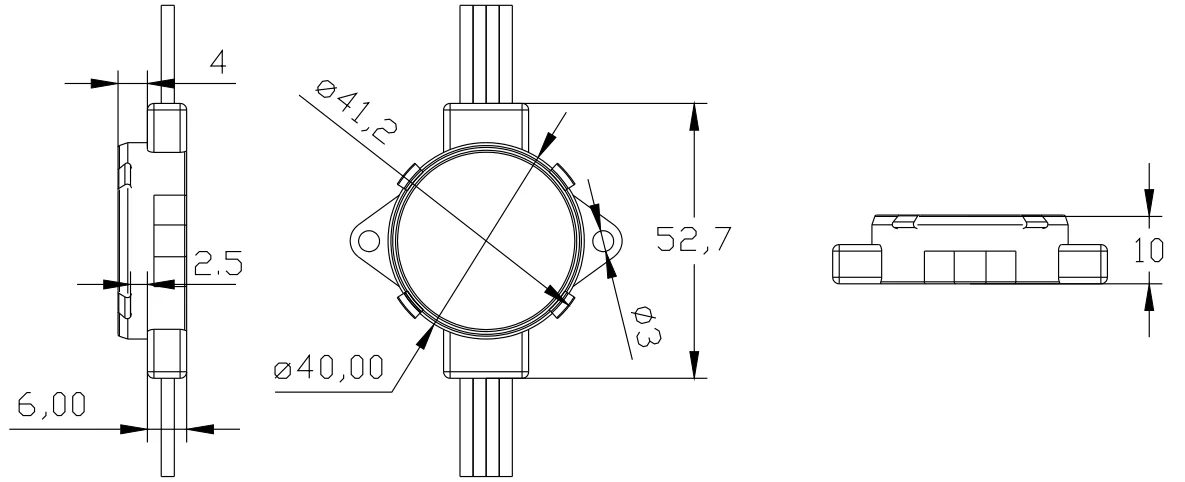

Product size | Φ40mm*10mm | Beam angle | 120° | ||
Application environment | Indoor / outdoor | Color resolution | 3*8bit | ||
Product weight | ≈23g | Lamp beads | SMD5050*6LED | ||
Shell material | PVC | Pixel luminous flux | 54.7lm | ||
Maximum number | 100PCS/string | Brightness | 19.1cd | ||
Center distance | Minimum 7CM | Product protection parameters | |||
Product life expectancy | 50000 hours | waterproof level | IP68 | ||
Product electrical parameters | Shell flame retardancy | V-0 | |||
Operating Voltage | DC24V | UV resistance level | 4 | ||
rated power | 1.44W | Salt spray test | Salt spray resistance | ||
Supporting system | Impact resistance | IK10 | |||
Control System | DMX512 | Electrical safety level | Ⅲ类 | ||
Power Systems | DC24V | safety certificate | CE FCC RoHS | ||

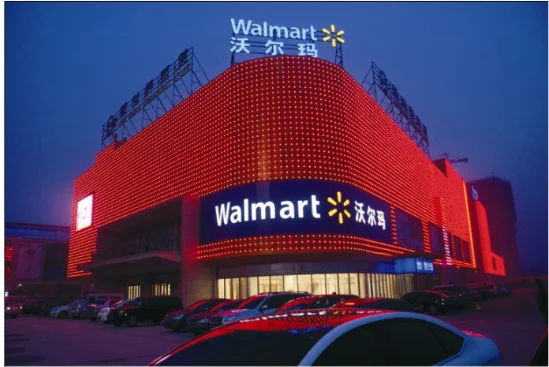

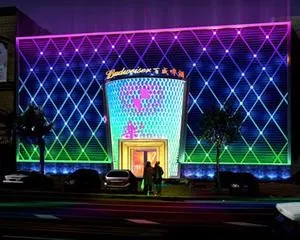

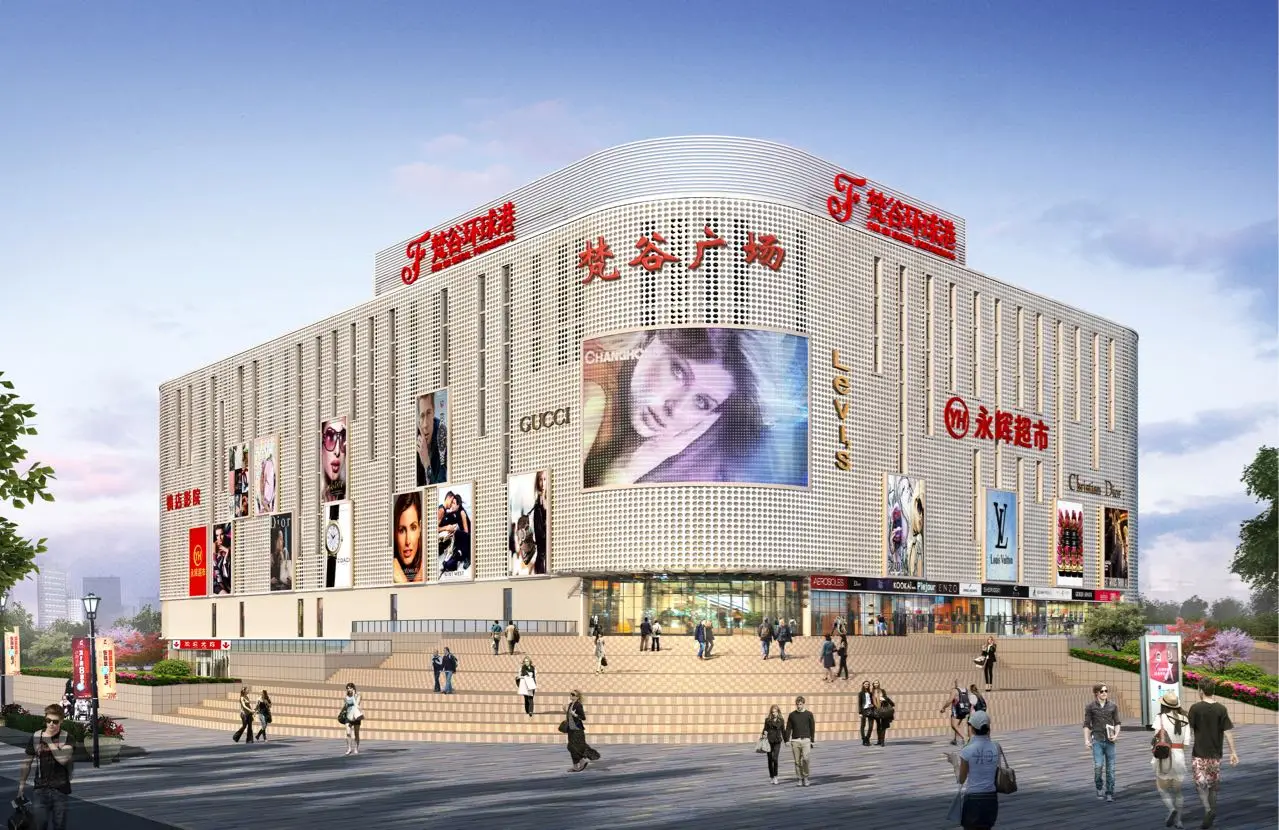

Projects

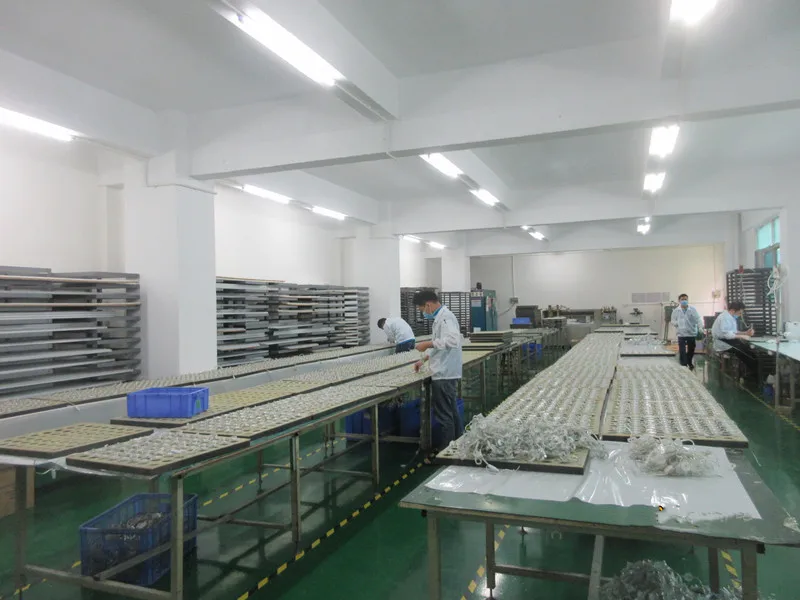

Company Information
