Полипропиленовый стакан/Полипропиленовый Контейнер для аккумуляторов, машина для переработки отходов пластика
- Category: Recycle Washing Line >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd
Share on (62039551464):
Product Overview
Description

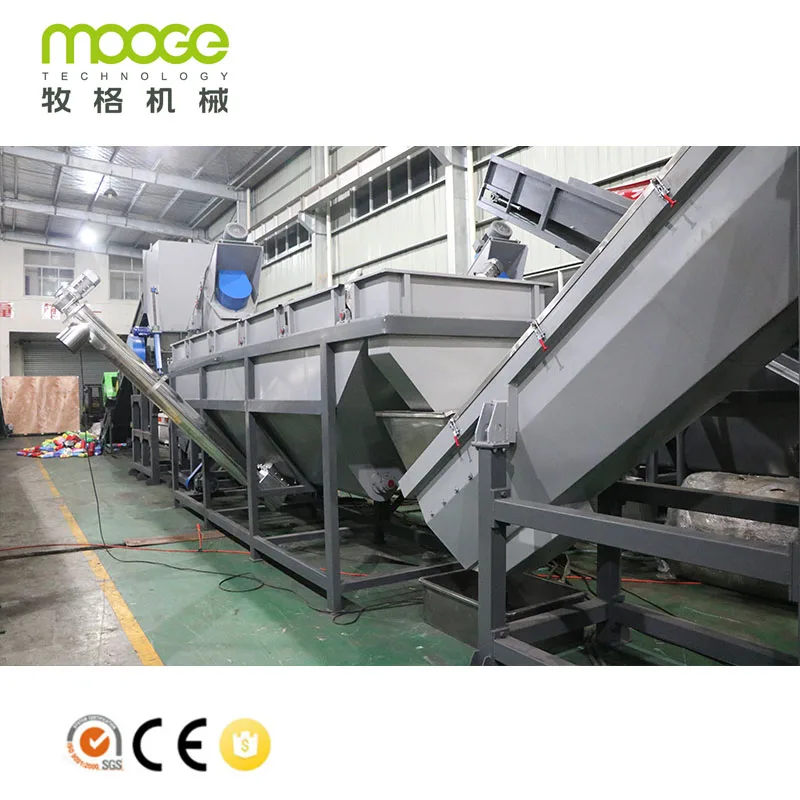

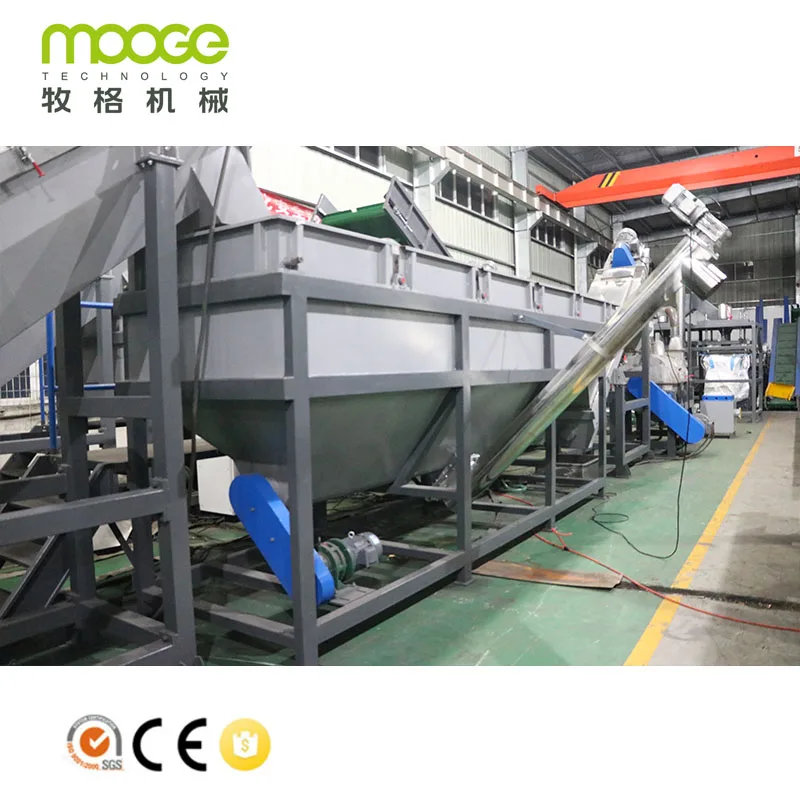

PP cup/pp battery box waste plastic recycling machine
This washing recycling machine is used trecycling the waste HDPE/LDPE/PP/PE bottles, and buckets, hollow containers , pp cap, pp battery box and so on. which can be used to make granules directly or some other use. The whole line is full automatic and of high effciency. Low noise and easy operation.
Remark:
1- we can supply 300kg/h,500kg/h and 1000kg/h,u can choose the suitable one what u real need.
2-According to your material you can choose different machine.
3- We can customize make the line according to your workshop.
4- We can also provide granulating line

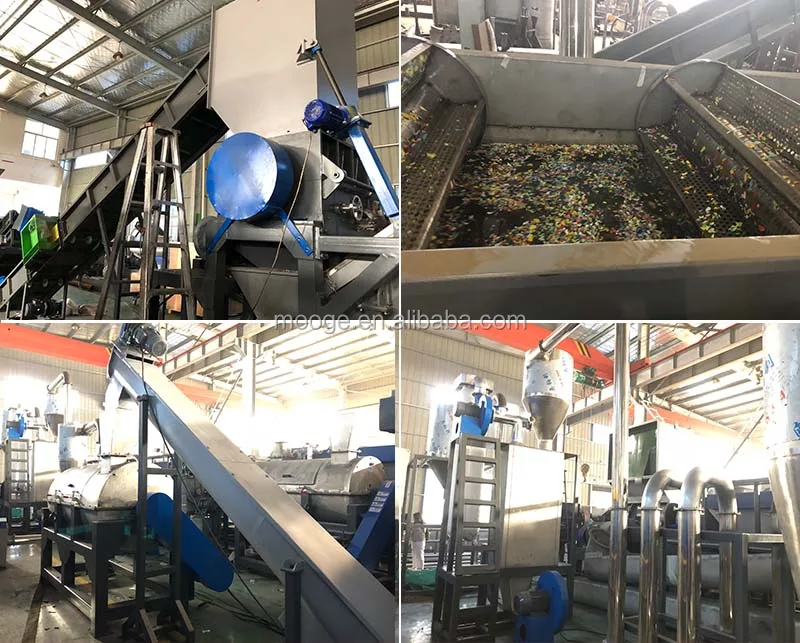

Components List of the HDPE bottle recycling line:
S/N | Item Name | Function/Remark |

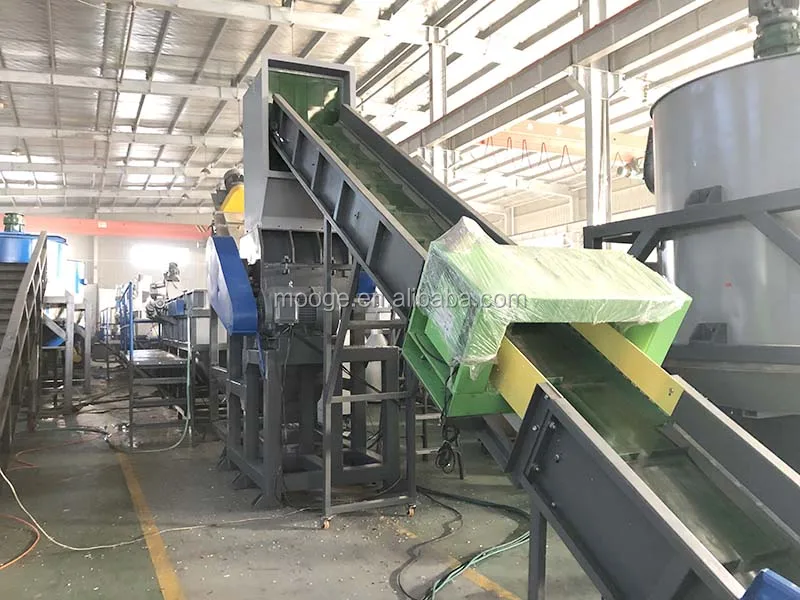

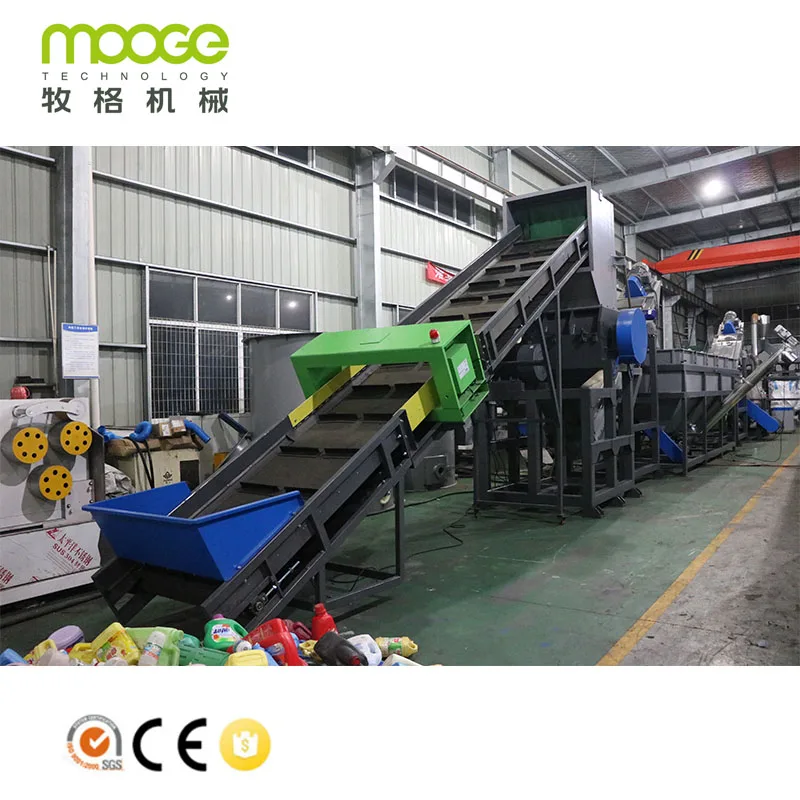

1 | Conveyor Belt | Feeding material |

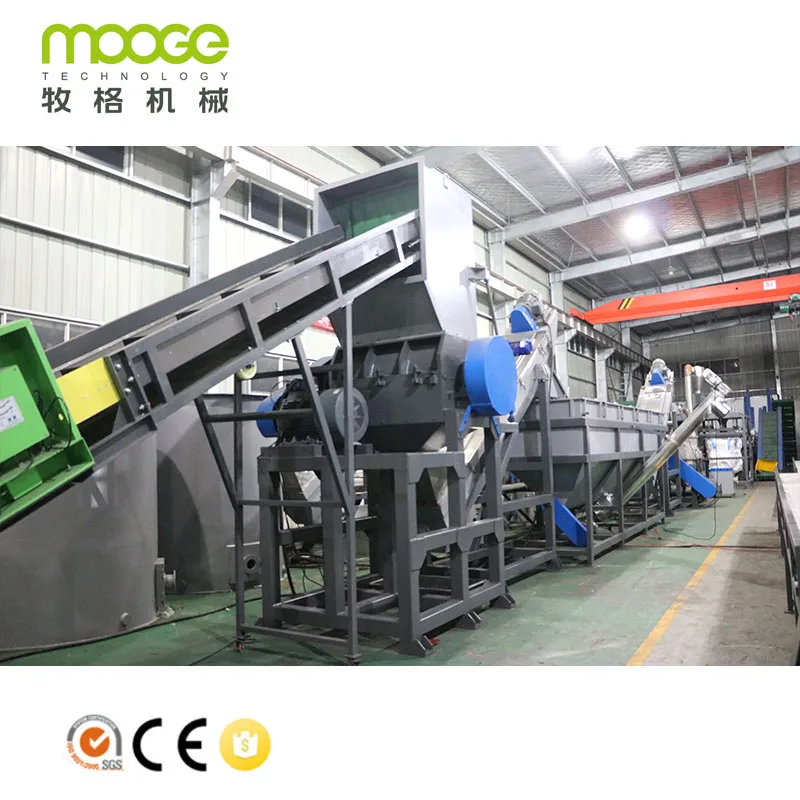

2 | Wet Crusher | Crushing the material into small size |
3 | Friction Washing loader Machine | Washing out the sand, soil and loading the material |

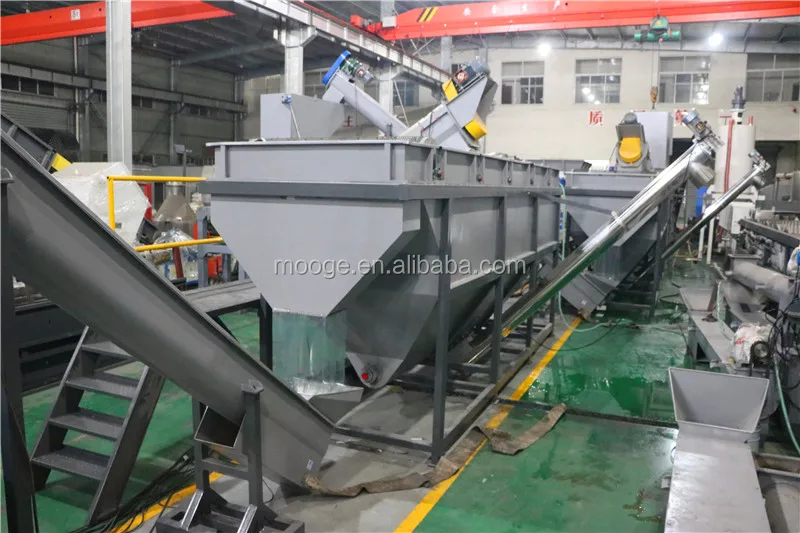

4 | 1st Floating Washing Tank | Floating washing separate the sand,soil and other dirties |
5 | Screw loader | Loading up material to next process |
6 | High speed friction washer | Remove the humidity from the flakes |
7 | 2nd Floating Washing Tank | Floating washing separate the sand,soil and other dirties |
8 | Screw loader | Loading material and drain out water from material |

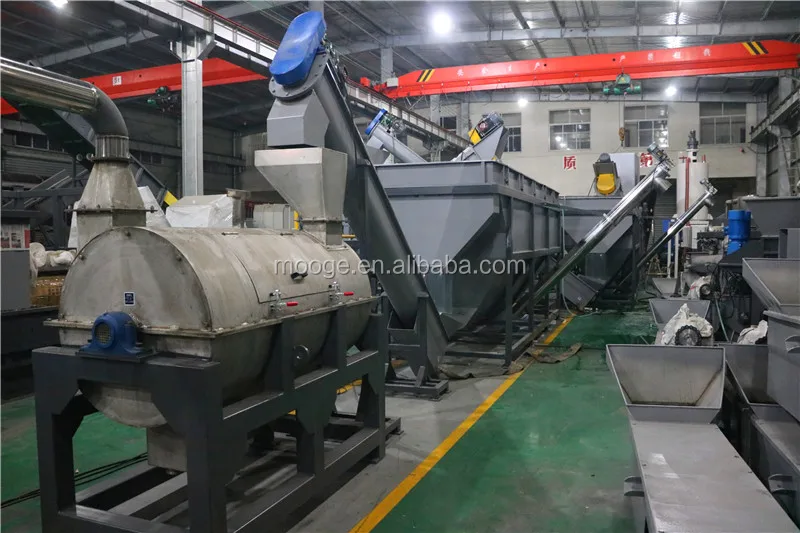

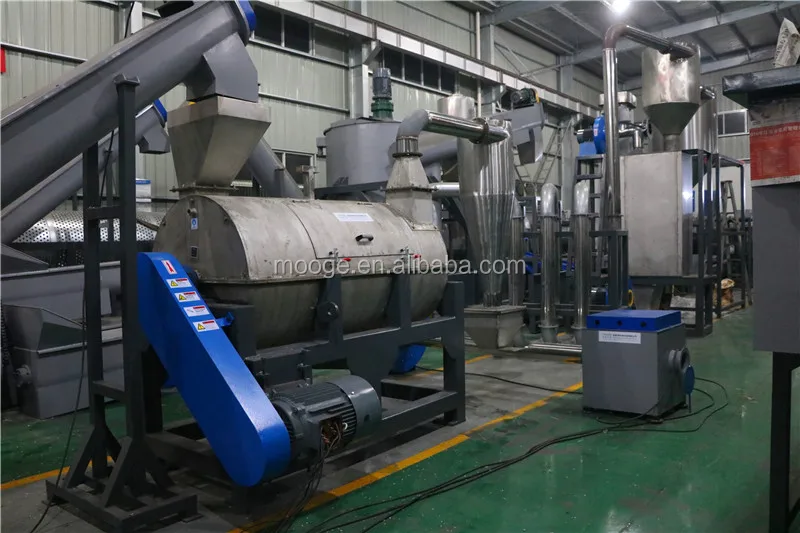

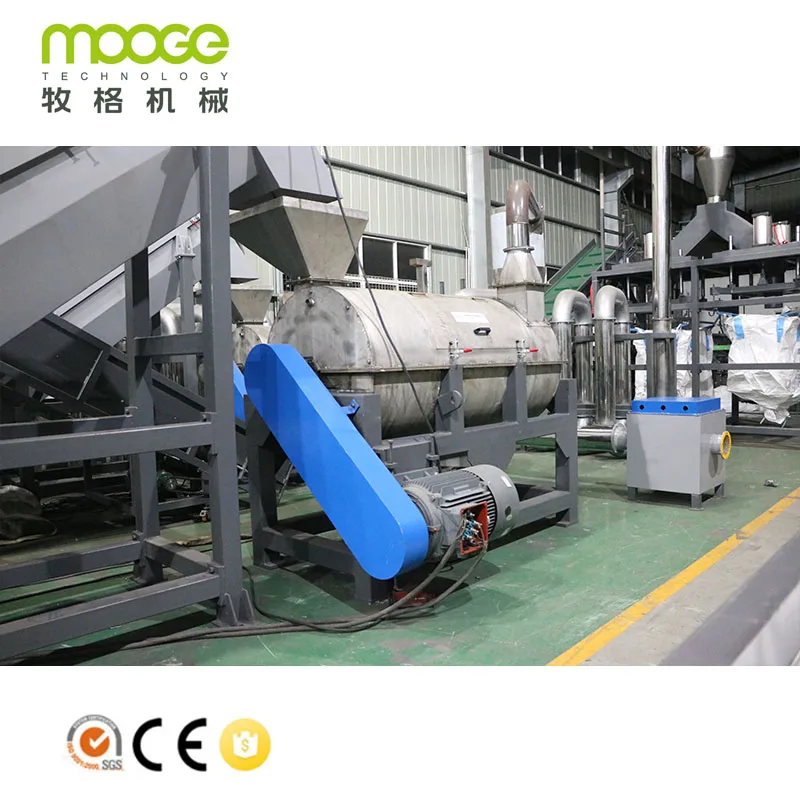

9 | Horizontal dewatering machine | Remove the humidity from the flakes |
10 | Hot air drying system | Drying the flakes |
11 | Collecting Silo | Collecting material |
12 | Electricity Control box | Control the line on/off |
13 | Free Spare Parts |
Technical Date
| Model | Capacity | Installed Power | Hot Washing | Water Supply | Man Power | Area Required |
| MEB-300 | 300kg/hr | 90kW | Optional | 4-5 m3/hr | 1-2 | 22m*5m*3.5m |
| MEB-500 | 500kg/hr | 115kW | Optional | 5-6 m3/hr | 2-3 | 25m*6m*5.5m |
| MEB-1000 | 1000kg/hr | 215kW | Optional | 7-8 m3/hr | 4-5 | 35m*6m*5.5m |
