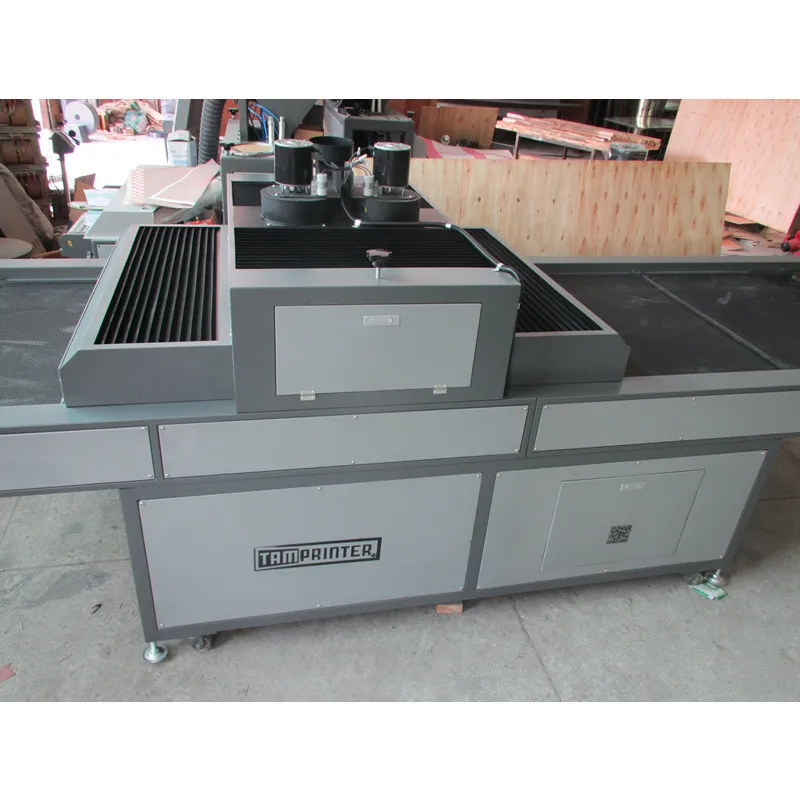

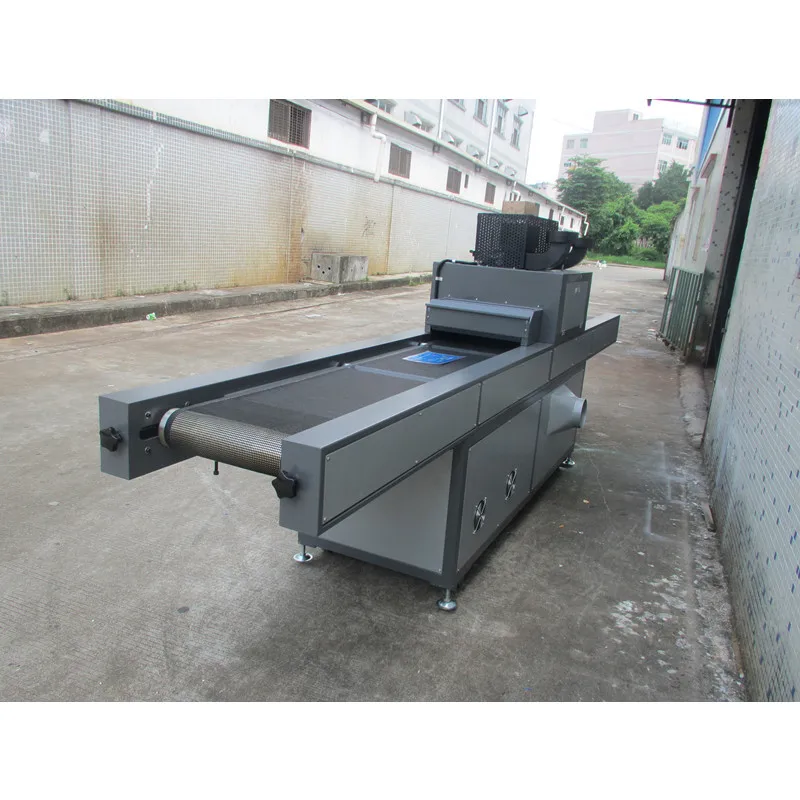

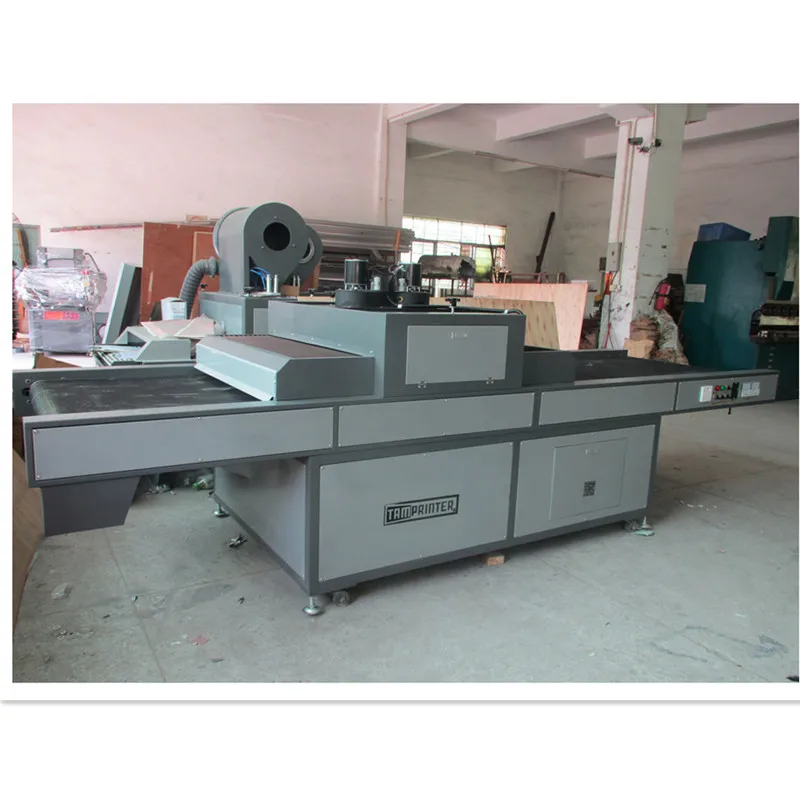

Printing Dryer Drying Tunnel Screen Uv Curing Machine
- Category: >>>
- Supplier: Shenzhen Tamprinter Printing Machinery Co. Ltd.
Share on (62039587483):
Product Overview
Description
Product Description
Technical parameters:
| Model No. | TM-UV1000L |
| Conveyorbelt width(mm) | 1000mm |
| UV light power(kw) | 5.6kw*2 |
| Conveyor speed(m/min) | 0-25m/min |
| Power (v/kw) | 380/12.8 |
| Dimensions (WXHXLmm) | 4050*1300*1400mm |

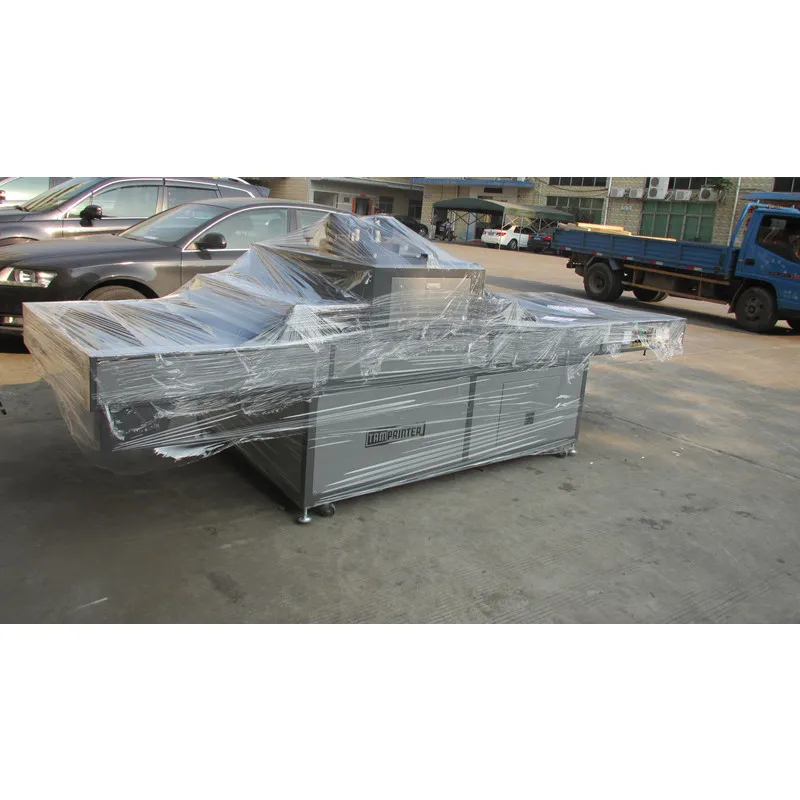

Plywood 4.2*1.45*H1.7m , about 500~600kg
Application:
It is apply to the special effects such as wrinkle, frosted refraction gem crystal and convex oil on the bullion paperboard, metal, glass, plastic, and also the UV curing of the offset printing ink on the offset press production.
Features:

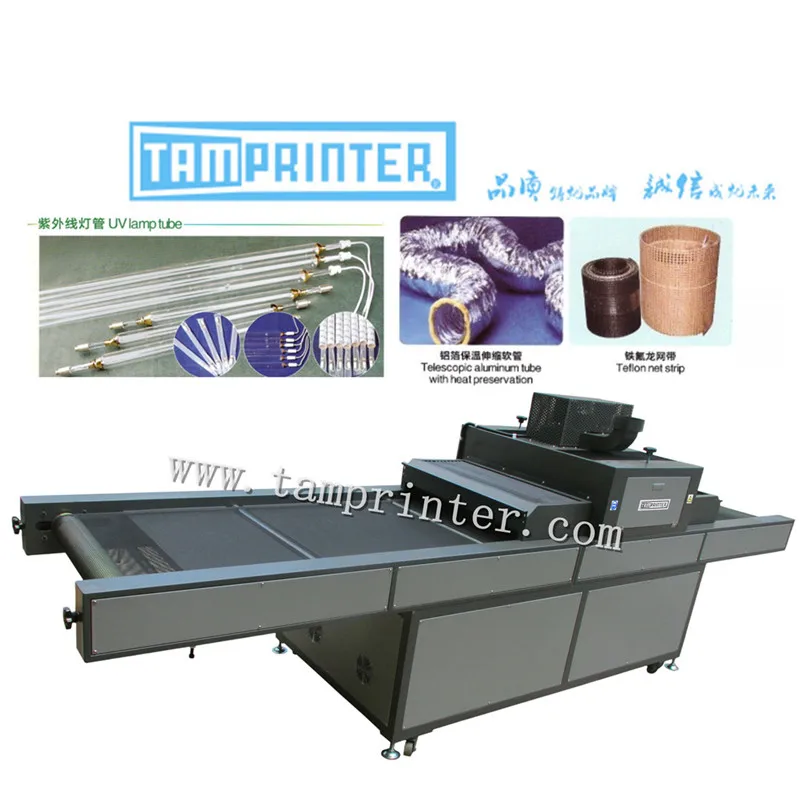

1. With Teflon or stainless steel net, transmit speed steady and can be adjusted.
2. With two UV lighting tubes, can turn on the light according to the need.
3. Wink-dry makes the surface of the stocks high hardness and rub resistance.
4. Tunneling-based make the whole machine light barrier good and without harm.
5. Equipped with powerful nether induced draughe system and big intake airway, can absorbs the stock on the mesh belthard. It can be used with production line and other equipment easily.
hot tags: High quality UV curing machine
