KEYILASER 30w fiber laser marking machine price metal 30w laser marker triumph

Product Overview

Description

30w fiber laser marking machine price metal 30w laser marker triumph



Applicable Material

Laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.



Applicable Industry

1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc

2. Instrument: Panel Board, Nameplates, Precision equipment, etc.

3. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

4. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.



Technical Parameters

Product Name    Product ID	FB serial laser marking machine                                                                             KY-M-FB
Marking Parameters	Marking Size	110mm*110mm(Any other else)
	Marking Speed	0-11000mm/s
	Marking depth / Roman Type , Character Height 1mm	0.01-0.5mm( Depending on the material )
	Marking Content/ Character Types	Text/letters/numbers/symbols/graphics/design/logo, etc.                                             Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding
	Min. Spot Size	0.02mm
	Marking Width	0.01-0.2mm(Depending on the material)
	Repeatability	±0.003mm
Laser Characteristics	Laser Type  / Wavelength	Fiber Laser/1064nm
	Output power(General)	≤20W
	Power Stability(8h)	<±1%ms
	Beam Quality	M2<1.2
	Modulation Frequency	20-80(KHZ)
	Laser Safety Class	Class IV
Other Info	System Protection Rating	IP54
	Cooling	Air Cooling
	Operating Environment Requirements	Temp.:8℃-40℃; Relative humidity≤95%RH;                               Air dust≤0.01g/m³;Atmospheric pressure ≤86—106Kpa
	Power Supply	220V±5%,50Hz±5%   Single-phase AC power supply
	Power Consumption	<0.5KW

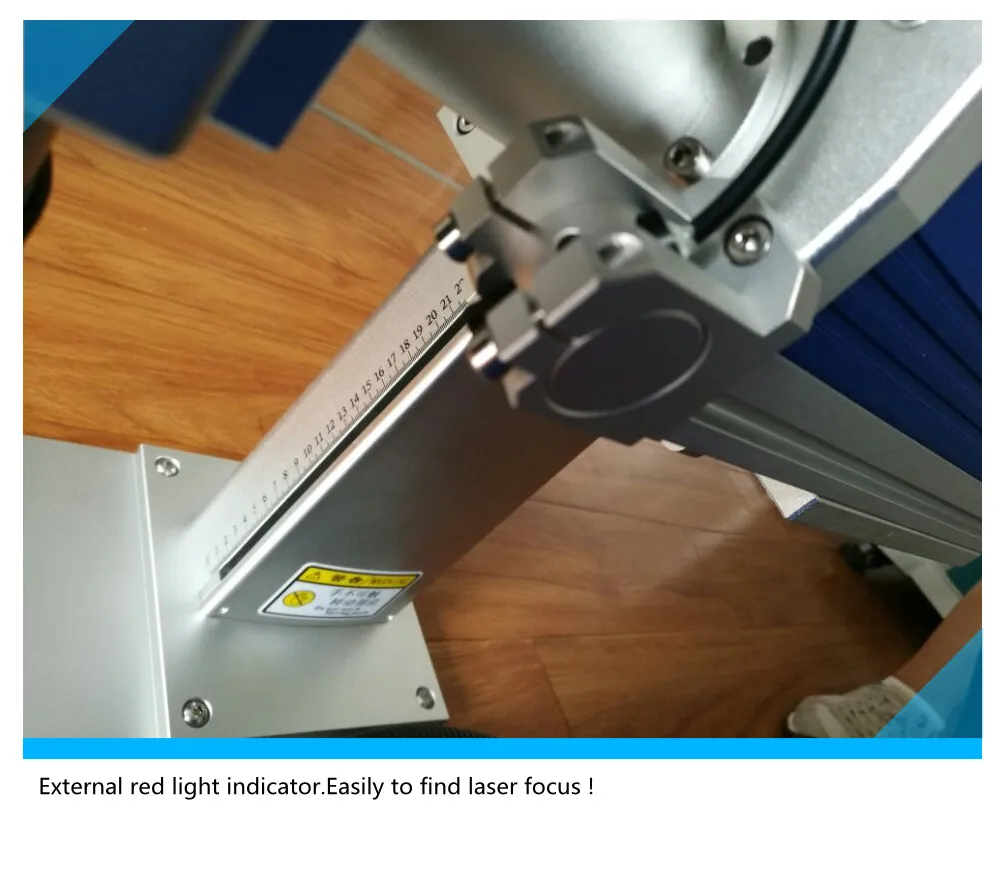

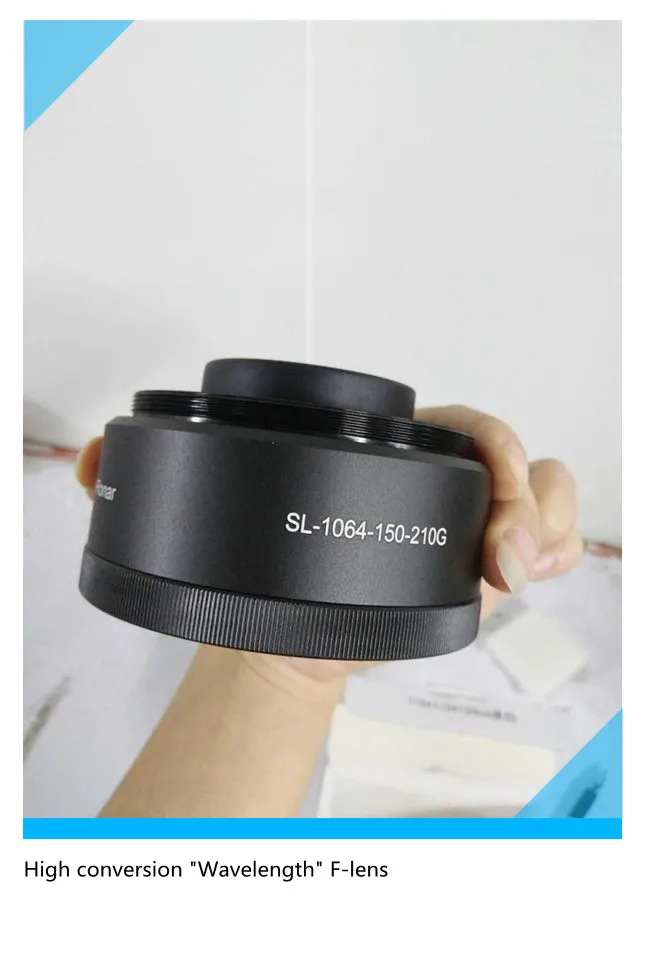

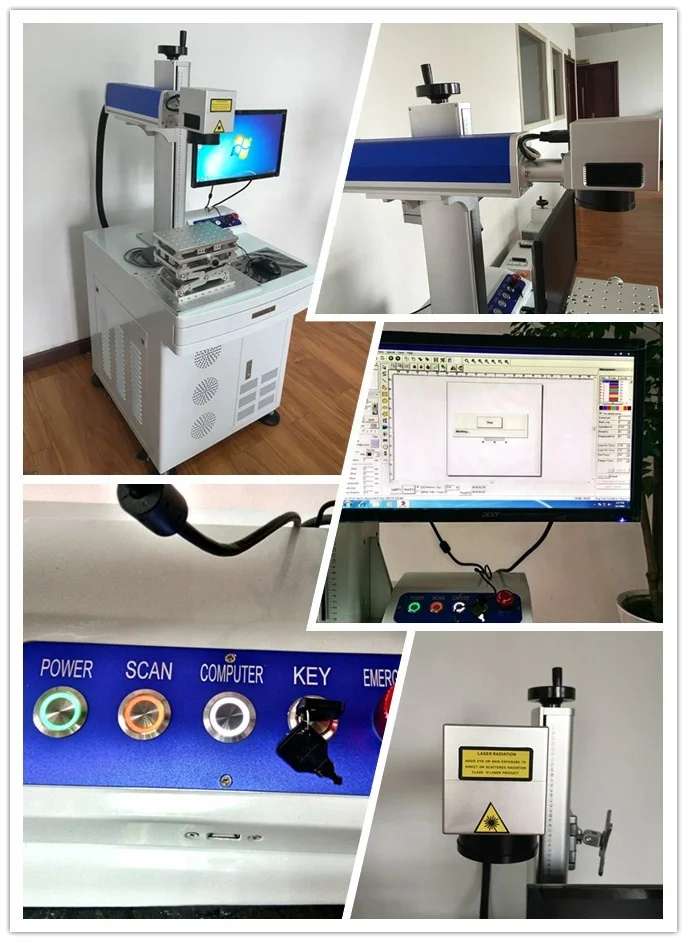

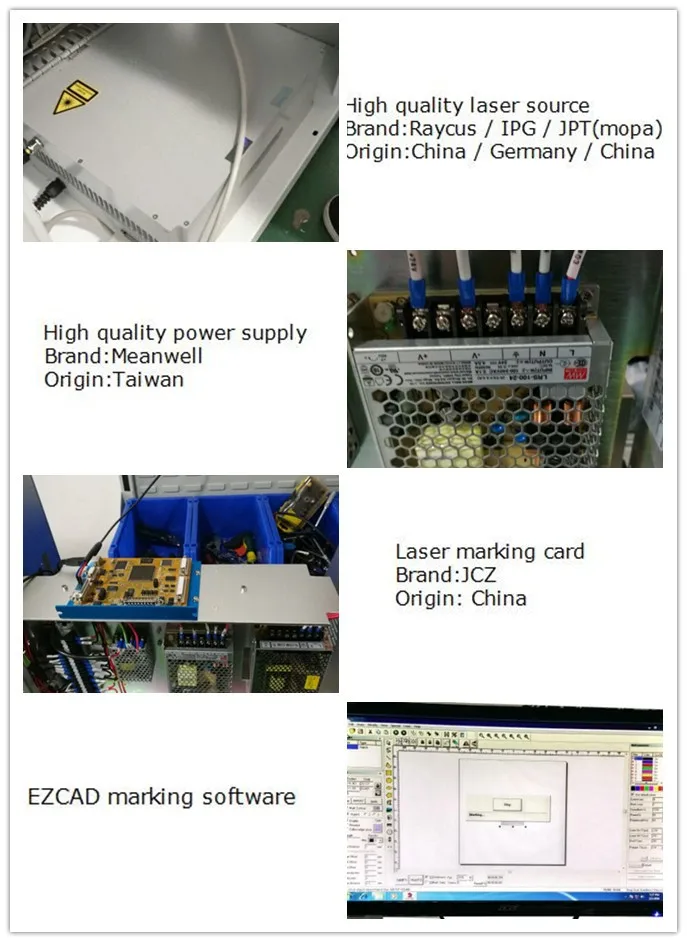

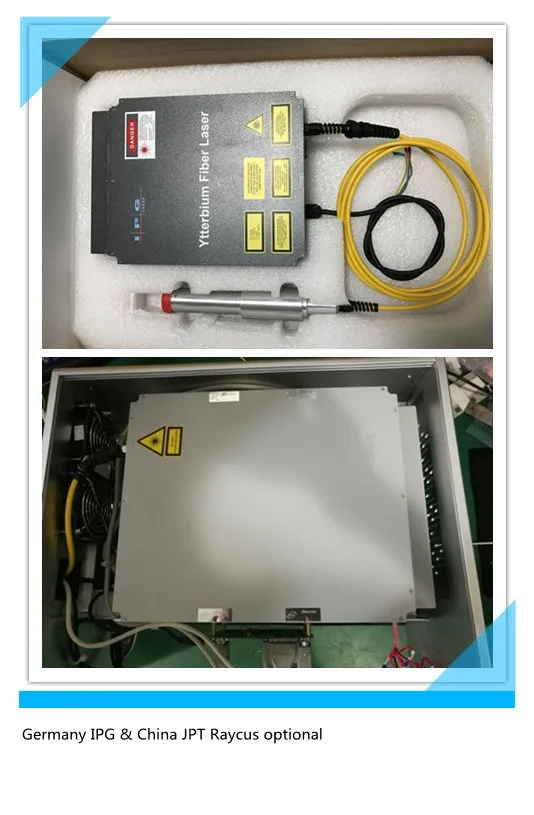

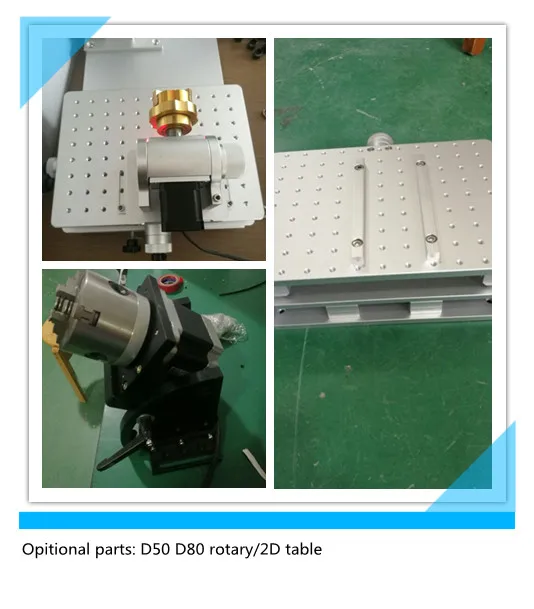

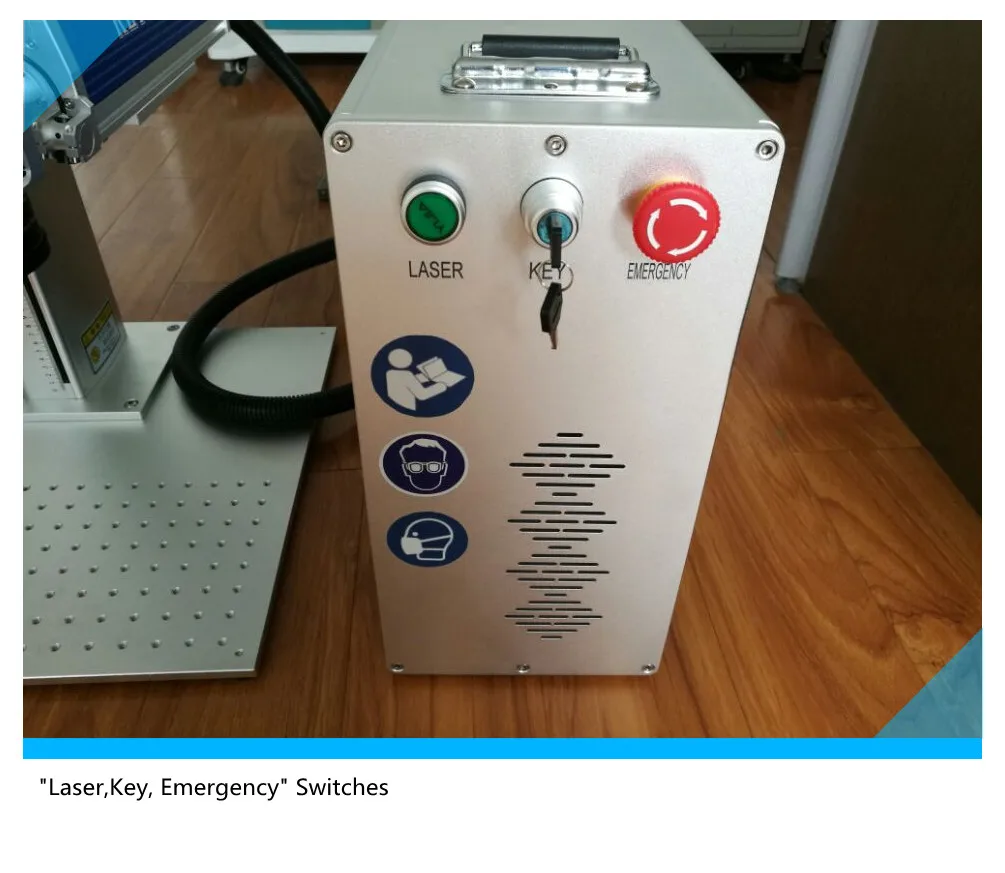

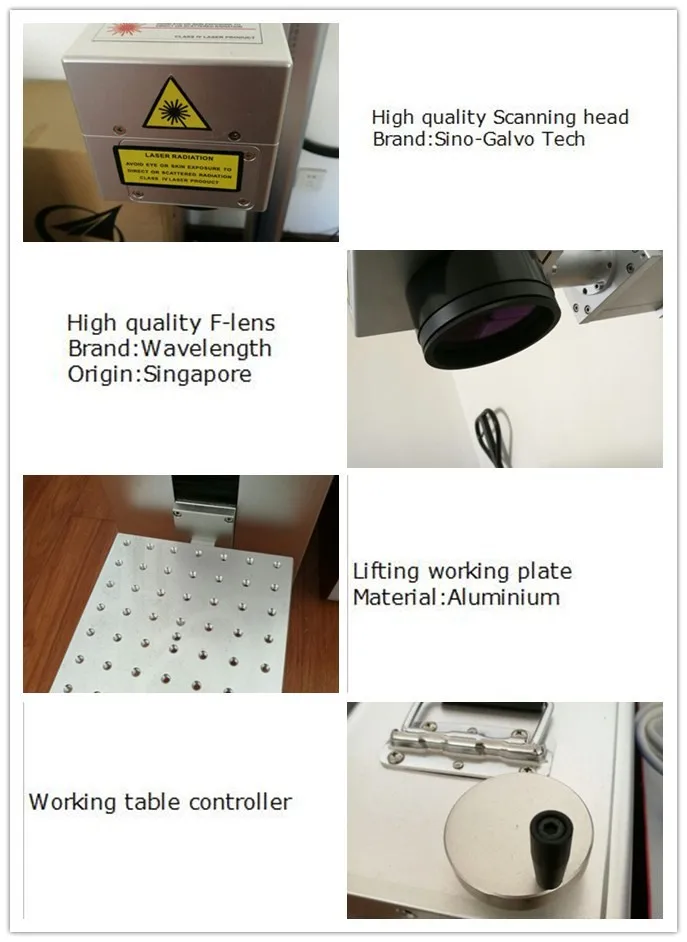

Products Detail:

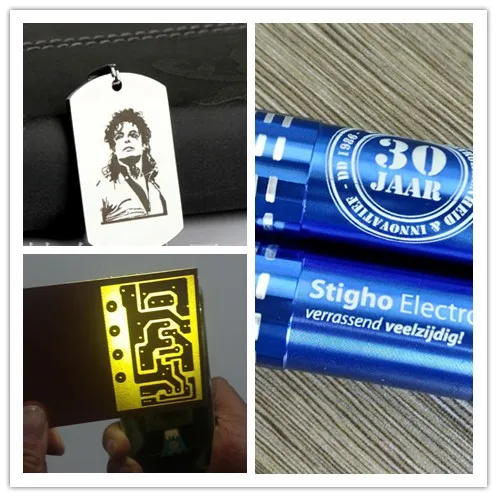

Marking Samples:



FAQ:

1. What materials do you need to mark?

Fiber laser marking machine can mark on metal materials and some non-metal materials:

Metal materials: stainless steel, carbon steel, iron, brass, cooper, alloy, aluminum, gold and silver etc.

Non-metal materials: ABS, PVC , PPR and PE etc.



CO2 laser marking machine can mark on non-metal materials: wood, glass, ceramic,leather,paper and plastic bottle etc.



UV laser marking machine is for high precision marking, it is cool light, will not burn or damage the material surface. It can mark on most metal and non metal materials, it is mainly used in 3C electronic industry,mobile phone, remote control, panel and sanitary ware etc.



2. What is the marking size and marking depth?

The standard marking size is 110x110mm, if you need mark bigger size, and have requirements of the marking depth, you can choose higher power laser marking machine.



3. Do you need to move the machine to different working places?

If you need to move the machine to work in different places and need it to be small and portable, you can select portable laser marking machine.

If you just need it work in a place, no need to move, you can select desktop type laser marking machine.



4. What watt is suitable for me?
♦ If you are not sure, please tell me marking depth, and marking material, we will customized the suitable products for you.
