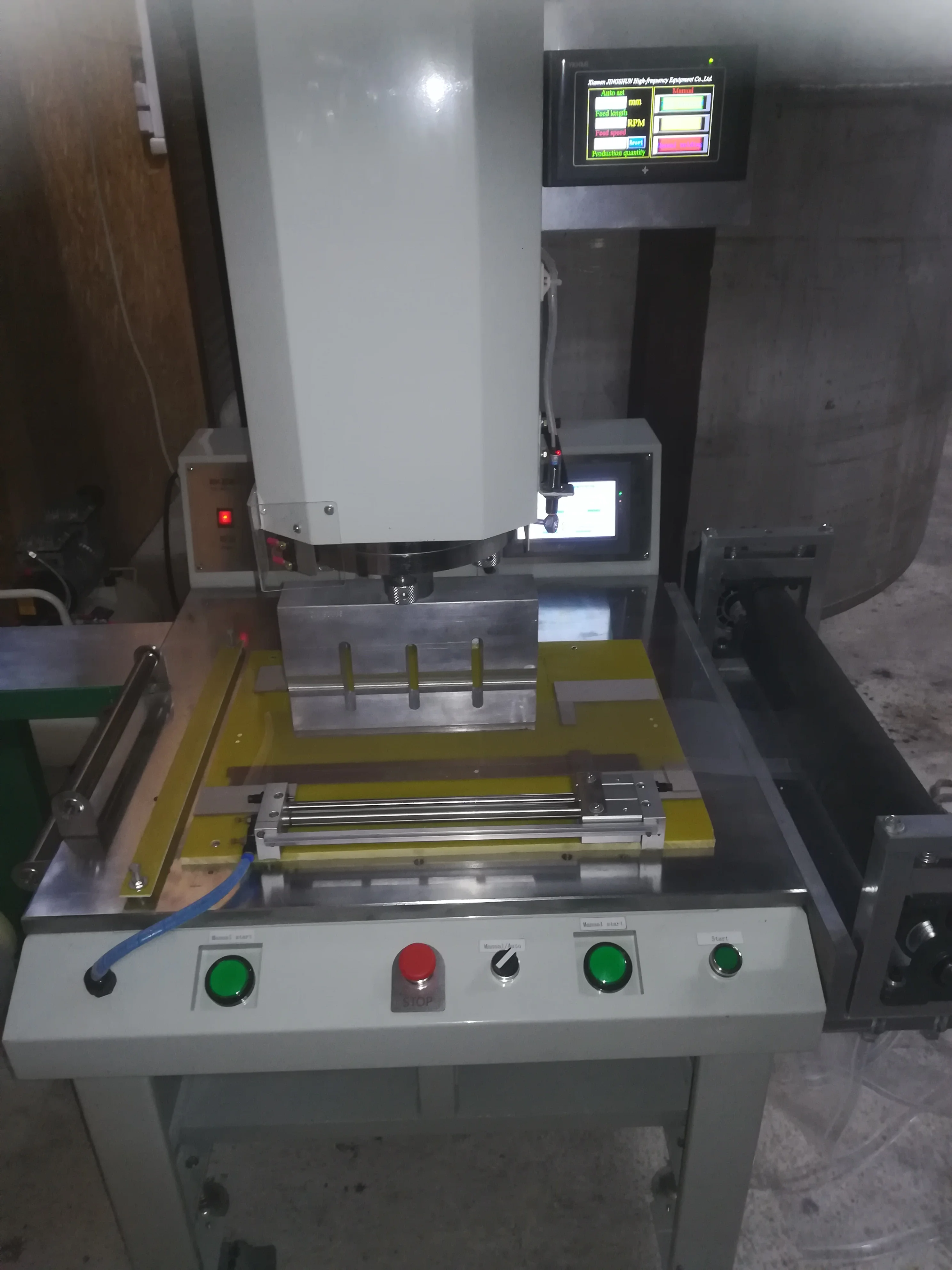

4200W price automatic ultrasonic plastic welding machine

Product Overview

Description

4200W price automatic ultrasonic plastic welding machine



Advantages:



1. ISO9001 & 20 years experiences accumulation

2. Can process blister packing, raincoat, garment,many products with big working stroke



Description:



When the ultrasonic wave works on the thermoplastic contact surface, thousands of times of high frequency vibration that reach a certain amplitude arise per second and transmit ultrasonic energy to the welding area via the upper weldment. Due to big acoustic resistances around the interface between the welding areas, local high temperature is generated. Furthermore, because of the bad thermal conductivity of plastics, the heat energy can’t be emitted immediately, centered in the welding area. Then the plastic contact surfaces fused quickly, after a certain pressure, they are fused together.



When the ultrasonic waves stops, keep the pressure for a few seconds to solidify it to form a solid molecular chain for welding purposes. The welding strength is equivalent to that of raw materials.



The quality of ultrasonic plastic welding depends on the amplitude of the transducer welding head, the applied pressure and the welding time. The welding time and the pressure of welding head are adjustable. The amplitude is determined by the transducer and the booster. The interaction of these three quantities has a suitable value. When the energy exceeds the appropriate value, the fused amount of the plastic is over large, the welding material deform easily; If the energy is small, it is not easy to weld firmly, and the applied pressure cannot be too large. This optimum pressure is multiplied by the side length and the margin of welding portion per 1 mm.



Specification:



Product Name	4200W price automatic ultrasonic plastic welding machine
Model	JGP-1542
H.F. Output Power	4200W
Voltage	1ΦAC220V or 3ΦAC380V
Frequency	15Khz
Work Pressure	0.15-0.8Mpa
Profile Size(mm)	1100*810*2100
Net Weight	550kg
NOTE: We will improve design continuously, so no prior notice for any design changement.

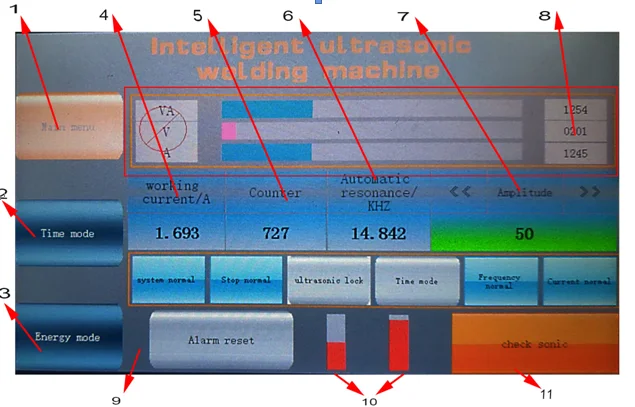

1. Main menu Click to enter the Main menu

2. Time mode Click to convert to time welding mode and set the welding parameters on this screen.

3. Energy mode Click to convert to energy welding mode and set the welding parameters on this screen.

4. Working current when click the sonic wave detection, this display will change with the amplitude.

5. Counter Show the times of the machine has been working, and presses the text area count to clear it.

6. Automatic resonance Display the optimum resonant frequency

7. Amplitude The device output amplitude adjustment touch screen, settable from 10% to 100%

8. Inner parameter display: Display the operation status of the circuit, no action required from users.

9. Fault display and disposal Display various faults, such as when the system is failure, the fuse is damaged.

10. Internal parameter display: Display the operation status of the circuit, no action required from users.

11. Check sonic Click to test whether the sonic frequency runs normally.

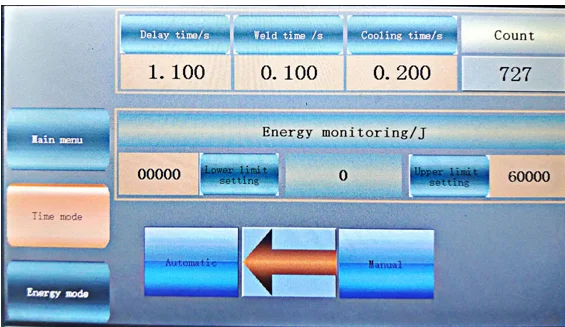

Time Mode:

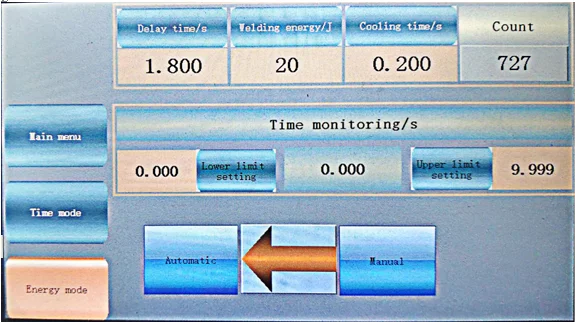

Energy mode

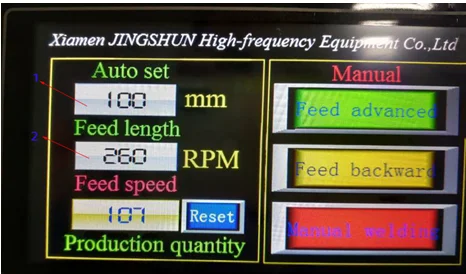

Automatic feed setting
