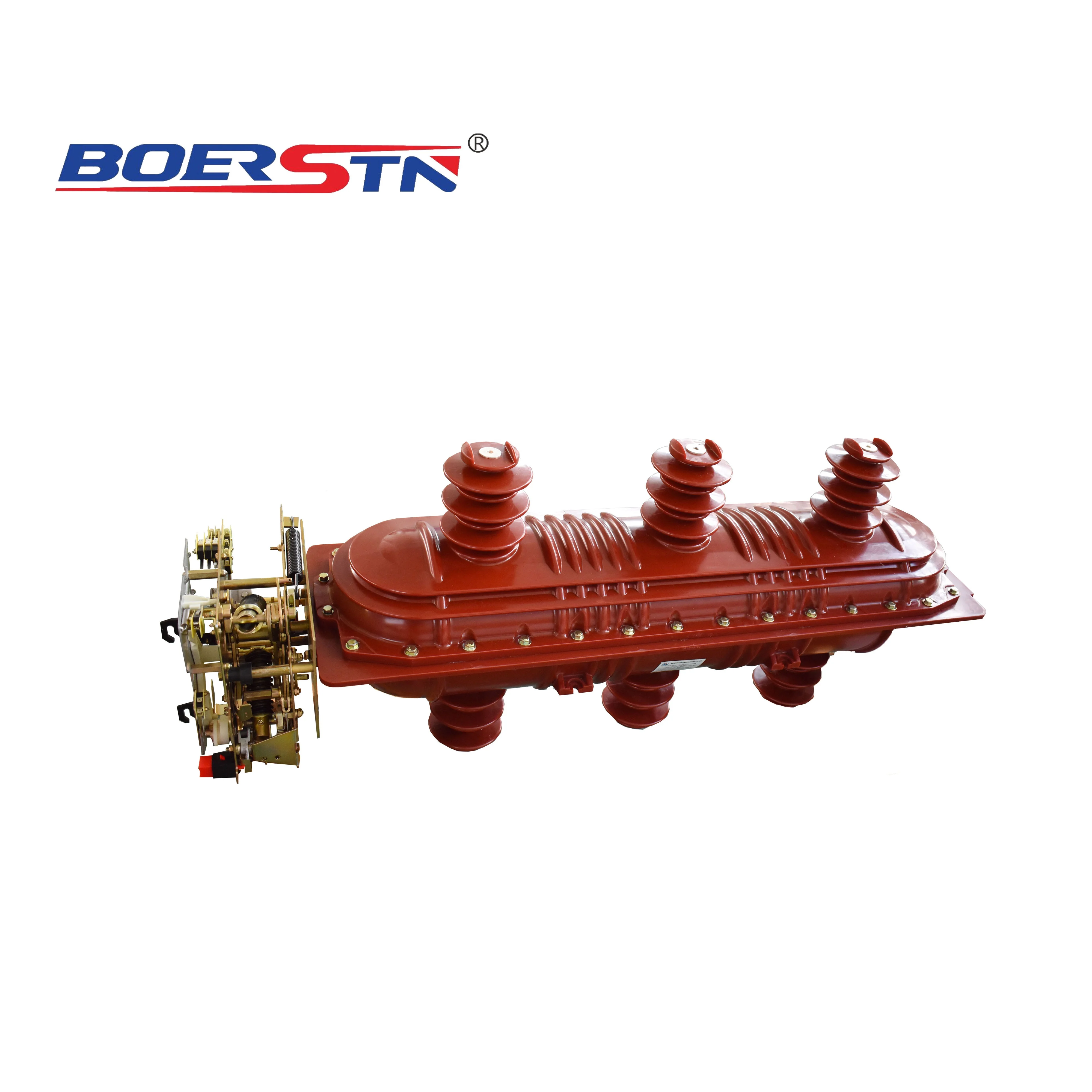

33kV 34.5kV 36kV 40.5kV SF6 Gas Load Break Switch Indoor Epoxy Resin Enclosure

 BRFLN36-36KV(40.5KV) an indoor high-voltage SF6 load switch, an switchgear with the rated voltage of 36kV/40.5KV, adopted with SF6 gas as an arc-extinguishing and insulation medium, including the three contactors for switching-on and switching-off and to-ground, and is characteristic in its small volume, its convenient installation and operation and its the great adaptability with surroundings.

BRFLN36-36KV(40.5KV) of an indoor high-voltage SF6 load switch and BRFLN36-36D of SF6 load switch plus fuse combination can function to protect and control the electric equipments for power supply and transformer substations especially being suitable for ring net cabinet, cable branch cabinet and distribution switching substation.BRFLN36-36 of an indoor high-voltage SF6 load switch and BRFLN36-36D load switch plus fuse combination are complied with the standards of IEC60265-1-1998, IEC60420 etc.

 a)  Air temperature

Maximum temperature: +40℃; Minimum temperature:-35℃

b)  Humidity

Monthly average humidity 95%; Daily average humidity 90% .

c)  Altitude above sea level

Maximum installation altitude: 2500m

d)  Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e)  No frequent violent shake
