Заводская изготовленная на заказ полуавтоматическая машина для выдувания ПЭТ бутылок, 1 полость, 5 галлонов

Заводская изготовленная на заказ полуавтоматическая машина для выдувания ПЭТ бутылок, 1 полость, 5 галлонов

Category: >>>
Supplier: Xinchang Rise Sun Trading Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

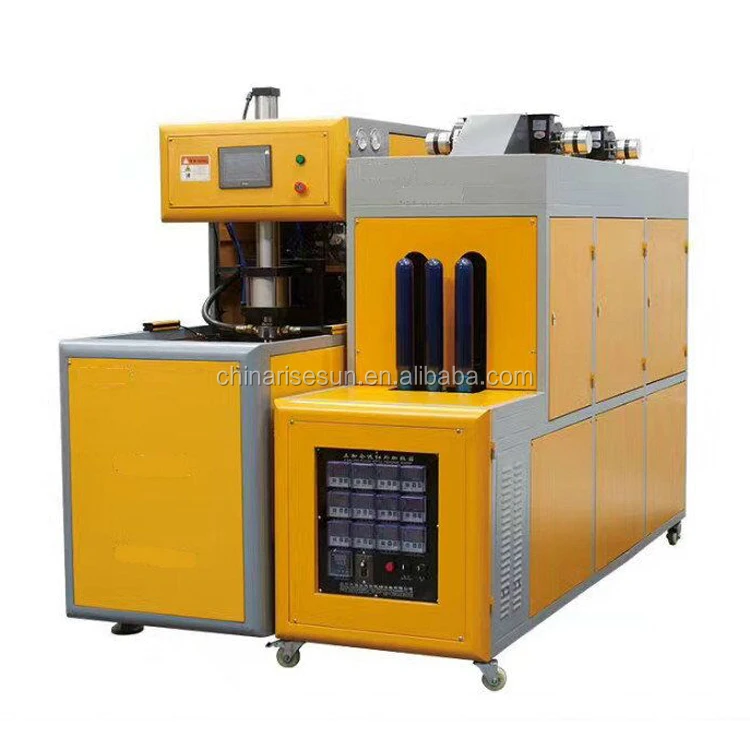

Semi-Automatic 5 Gallon Blow Molding Machine (1 Cavity)-25L

· Main Character

Scope

Applicable to 3 gallon, 4 gallon, 5gallon

water bottles, beer kegs, etc.

· Technical Parameters

Container

Max. Container Volume ltr | 25
Max. Neck Diameter mm | 130
Max. Container Diameter mm | 300
Max. Container Height mm | 520

Actual output depends on bottle shape and preform quality. Above technical parameters are subject to continual update,please take the real products as the base.
Technical Parameters					RS-25L-A	RS-25L-B
Molding	Clamping Force	kg	30000	30000
		Clamping Stroke	mm	360	360
		Stretching Stroke	mm	500	500
		Bottom Stroke	mm	/	/
		Cavity Spacing	mm	200-300	200-300
		Number of Cavity	Cavities	1-2	1-2
		Carriage Unit	pcs	19	96
Theoretical Output			bph	80-150	200-300
Electrical System	Total Power	kw	39	42
		Heating Power	kw	38*1KW=38	40*1KW=40
		Number of Lamp Layers	Layers	19	10
Air System	Operating Pressure kg/c㎡	kg/c㎡	7-9	7-9
		Low Pressure Air Consumption	ltr/min	800	800
		Blowing Pressure	kg/c㎡	20-30	20-30
		High Pressure Air Consumption	ltr/min	1600	2400
Chiller	Operating Pressure	kg/c㎡	2-4	2-4
		Temperature Range	℃	10-12	10-12
		Consumption	kcal/min	1000	1000
		Flow Rate	ltr/min	300	300
Machine(Blower)	Blower Dimensions	mm(LWH)	21807401900	21807401900
Machine(Blower)		Blower Weight	kg	1250	1250
Machine(Heater)	Heater Dimensions	mm(LWH)	26507201950	21706701600
Machine(Heater)		Heater Weight	kg	600	400

· Features

1) Adopt PLC control system, easy to operate.

2) Upgrade power efficency.

3) Simplified operation by HMI control panel.

4) Modular design facilitates maintenance.

5) Save investment and enhance capacity.

6) Minimun space.

Other Machine

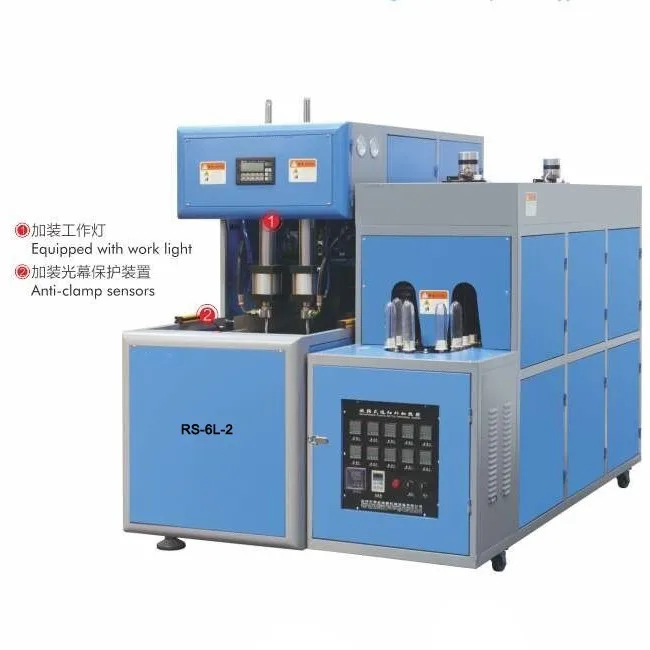

RS-6L-2
