PART II. Three types of surface treatment for PVC ceiling panel:
1. Two color printing: First you will need an extra printing machine, and this printing machine work separately, you need first produce white color PVC ceiling panel, and then use the printing machine to get different design pattern PVC ceiling.
2. Lamination: Use glue to stick the design paper on the surface of PVC ceiling panel. It is connected with the PVC ceiling panel extrusion line.
3. Hot stamp print: Transfer design pattern from hot stamping foil to the surface of PVC ceiling tile. It is connected with the PVC ceiling panel production line.
PART III. PVC ceiling panel manufacturing process:

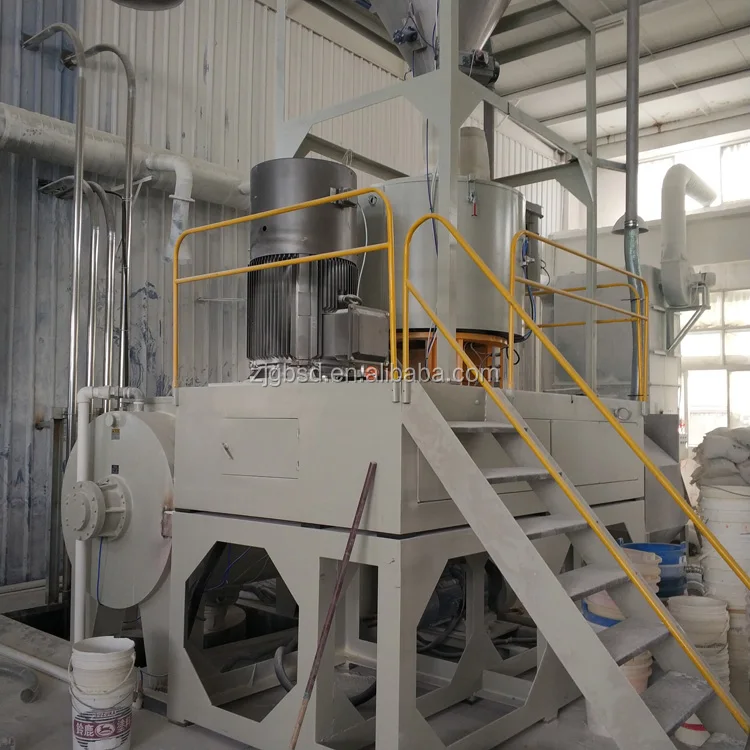

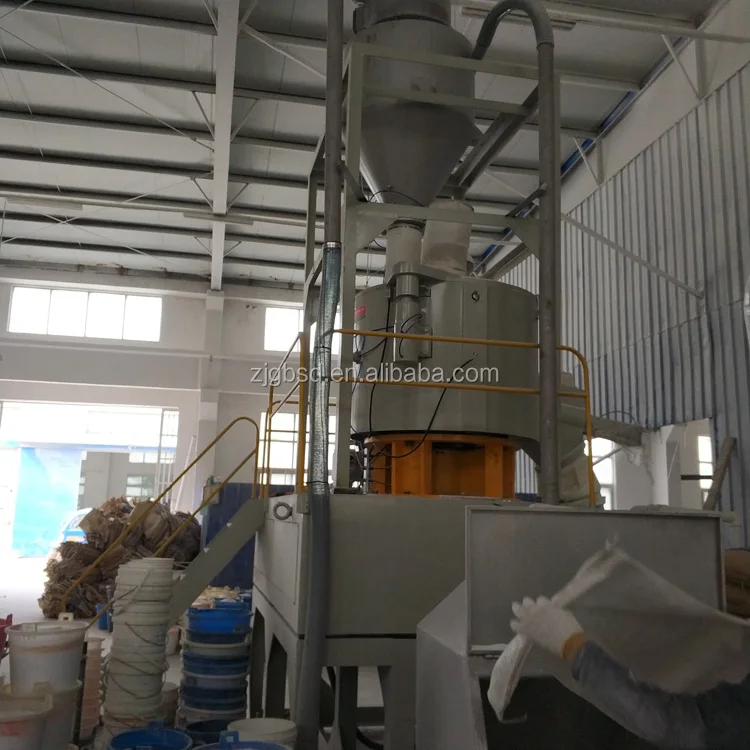

Step 1: Raw material mixing according to theformula. Step 2: Use PVC ceiling panel making machine and 3 kinds surface treatment to get product. you can use hot stamping or lamination or two color printing on the PVC ceiling panel surface to get diffferent design pattern. Step 3: Bad product recycling. During the second step. normally it will occur some waste pruduct, so it will be necessary for you to recycle it.
PART IV. Model and Parameters of PVC ceiling panel machine:
Model
51/113
55/110
65/132
Product width
200mm-250mm
200mm-500mm
250mm-600mm
Extruder
SJSZ51/102
SJSZ55/110
SJSZ65/132
capicity per 24h
>800m2
>1200m2
>1600m2
Packaging & Shipping
Our Services
The sample service
1. We can send you the video of the running machine.
2. You are welcome to come to visit our factory,and see the machines running.
3.If we get the permission of the customers who have bought the machines from us,we can provide you their contact information and you can go and visit.
Customized service
1.We will give our professional suggestions and factory layout design according your
situation: the workshop area,material,power,filling type,the kinds of the bottlesand so on.
2.We provide turn-key project .
Installation service
We will send our engineers to your factory to help you installing the machines and also train your staff until they can operate the machine well.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
After-sales service
1.We provide one year warranty for machines.
2 .24x7 hours technical support for life-long
3. All needed wearing parts or maintenance spare parts after warranty time will only need our production cost and willdeliver to you in 7 days by courier.
4.Our business information will be confidential to any third party unless you permit .
