Small Powder Coating Spray Booth with filter Recovery
- Category: Metal Coating Machinery >>>
- Supplier: Hangzhou Kafan Machinery& Equipment Co. Ltd.
Share on (62040079526):
Product Overview
Description
Product Description

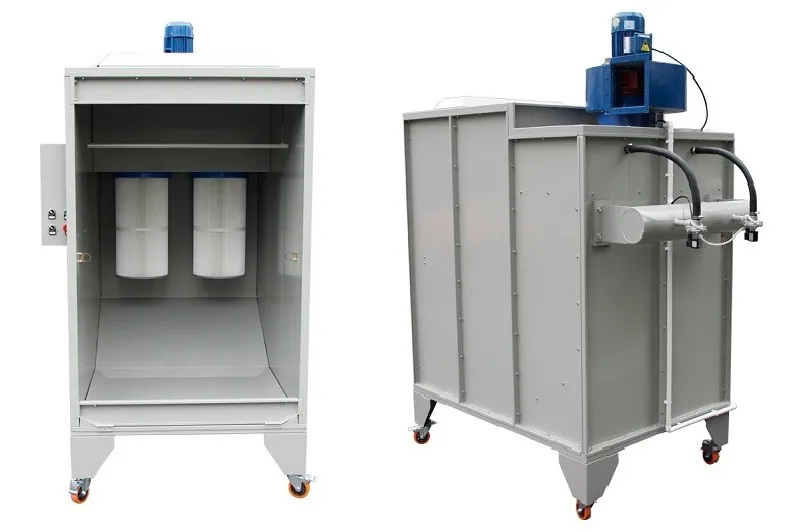

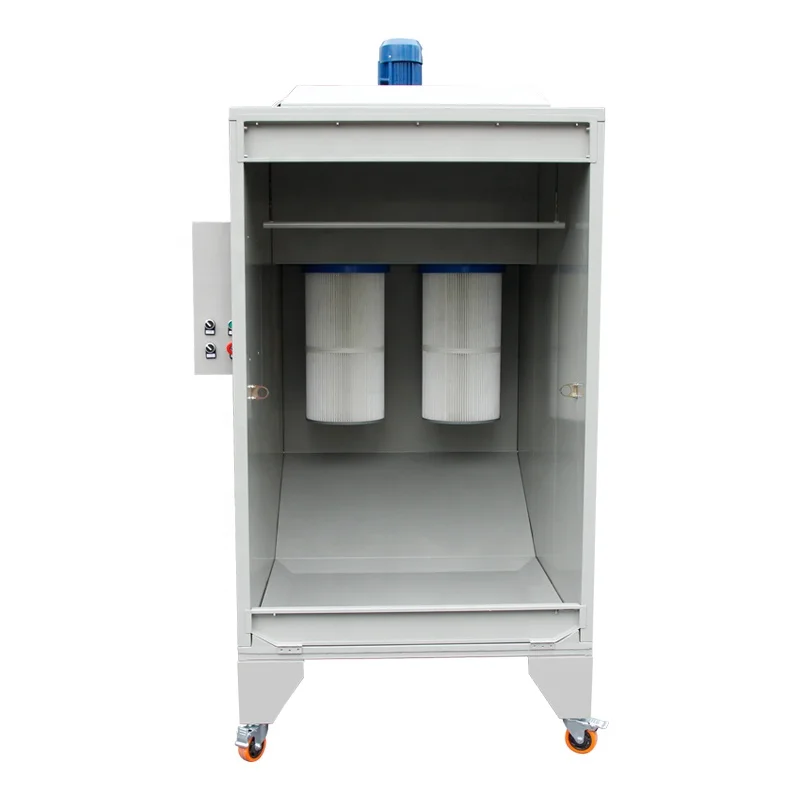

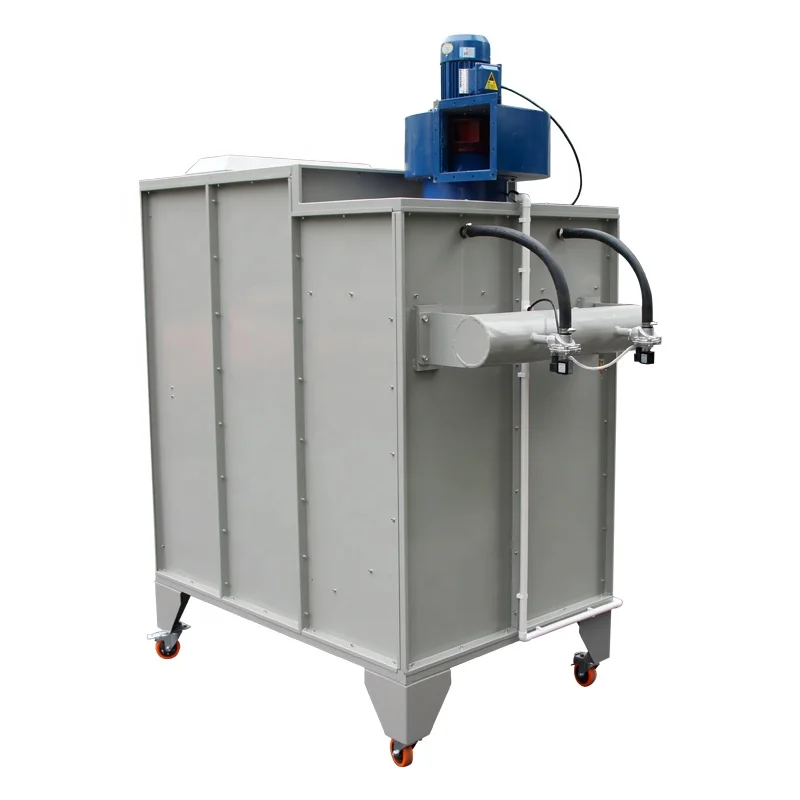

KF-1115 Small Powder Coating Recovery Booth
KF-1115 small powder coating recovery booth with working size (width1000*depth1000*height1500mm) meets small to medium sized powder coating applications, such as alloy wheels, bicycle parts, small accessories, electronic products, and other metal parts.
Innovative design small powder booth with 2 pcs of cartridge filter and fan motor reaches high performance of powder recovery.
Main Features
1) Ready-to-use shipped, only allows an easy electric and pneumatic connection after received.
2) Factory direct sale, reliable quality, affordable price. Standard model, quick delivery.
3) High quality steel plate board, which is powder coated performs durable and wear-resistance.
4) Compact design electrostatic powder coating booth, easy operation and less maintenance.
Powder Coating Recovery Booth Specifications
Model | KF-1115 Closed Powder Coating Booth |
Working chamber size | W1000*H1500*D1000mm |
Overall dimensions | W1200*H2000*D1500mm |
Power supply | 220V/380V, 50/60hz(customized) 3phase |
Nominal power | 0.75kw |
Filter Material | 100% polyester |
Filter Count | 2pcs |
Filter Cleaning | pneumatic |
Air consumption | 805-1677m^3/h |
Detailed Images

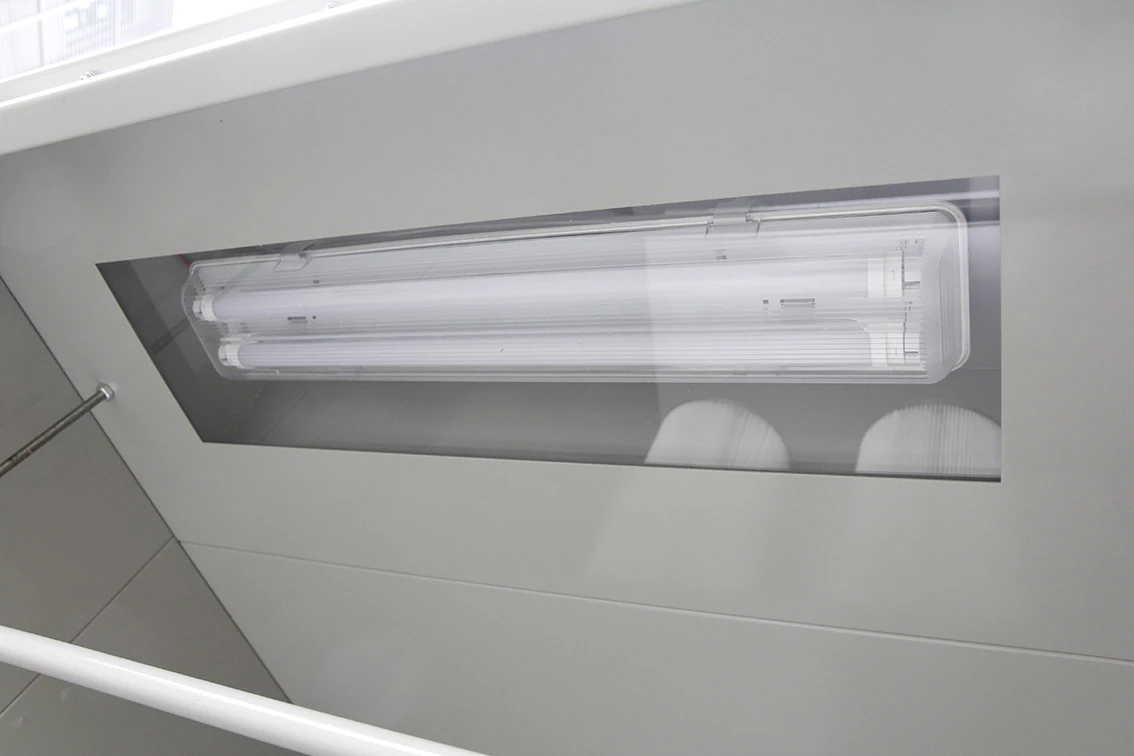

Explosion-proof lights
Each operation port is equipped with independent top explosion-proof lighting, with sufficient and bright internal light, safe and
energy-saving, and convenient maintenance.
energy-saving, and convenient maintenance.

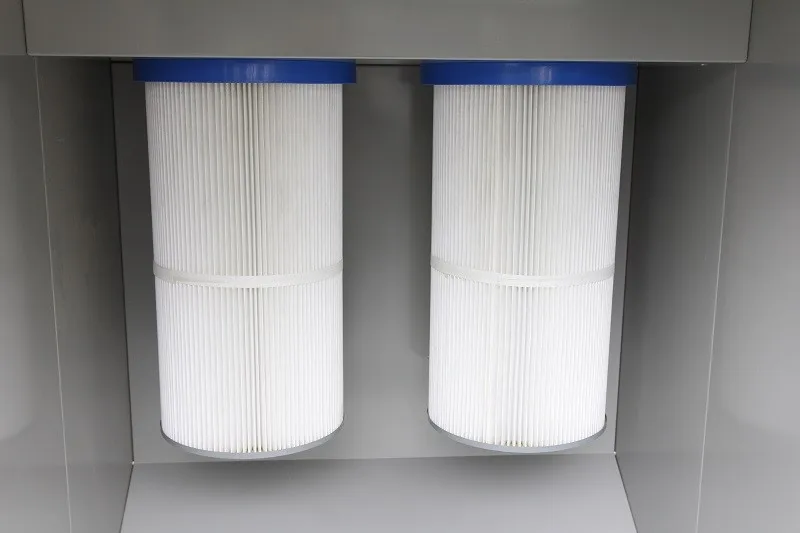

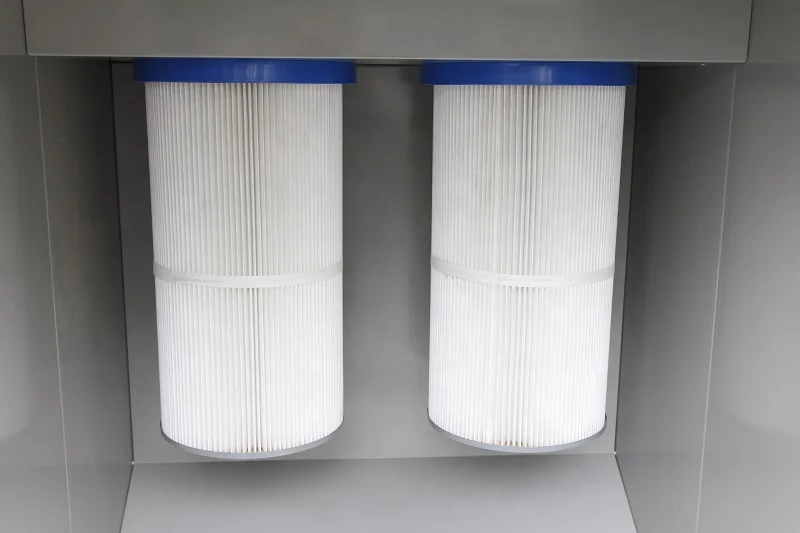

Filter Powder Recovery System
Quick-release type cartridge filters, easy for cleaning and color change. 2pcs, Dia325xHeight600mm, 100% polyester.
High precision filters ensures great performance of oversprayed powder recovery.

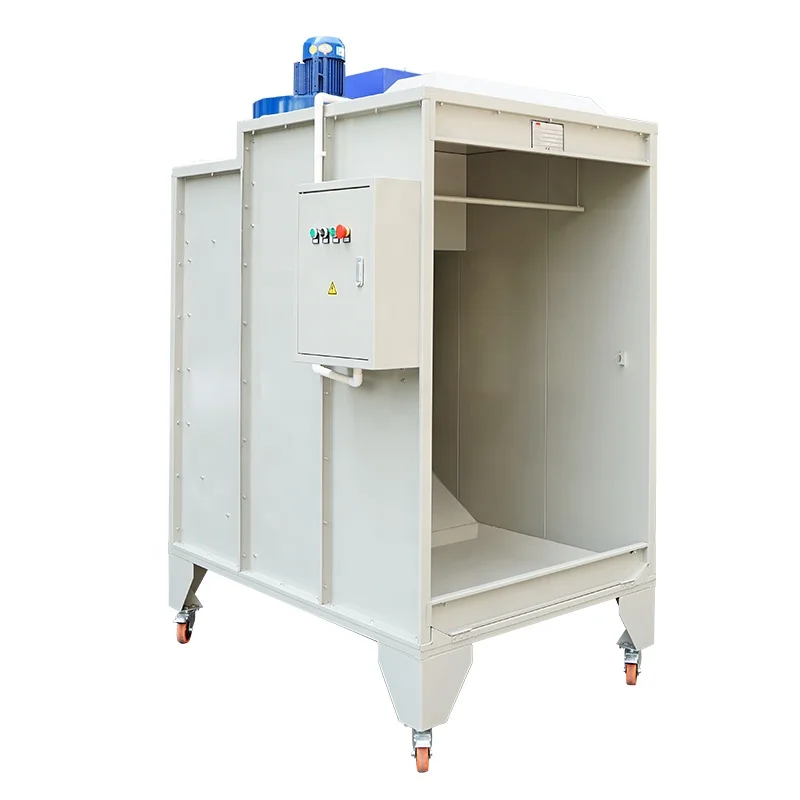

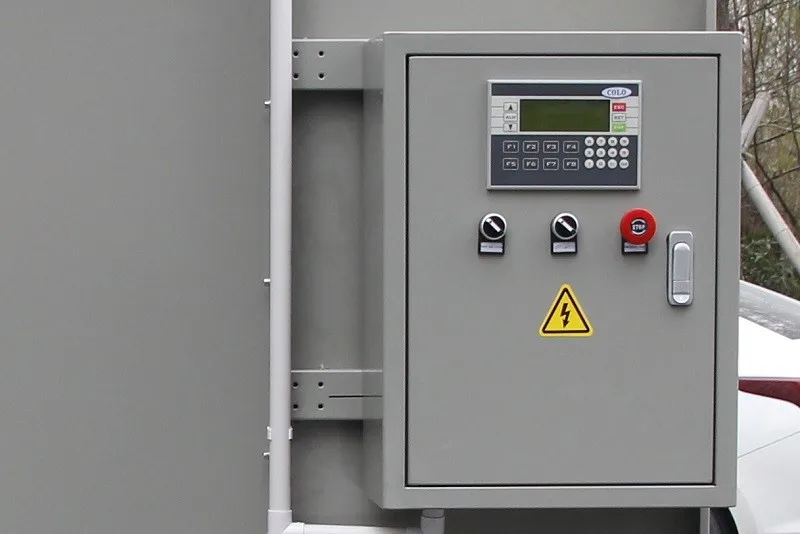

PLC Operation Panel
The user-friendly PLC panel gives you an easy access to control the cleaning of filter and working of fan.
Simple and low fault rate.
With emergency stop button for safety.

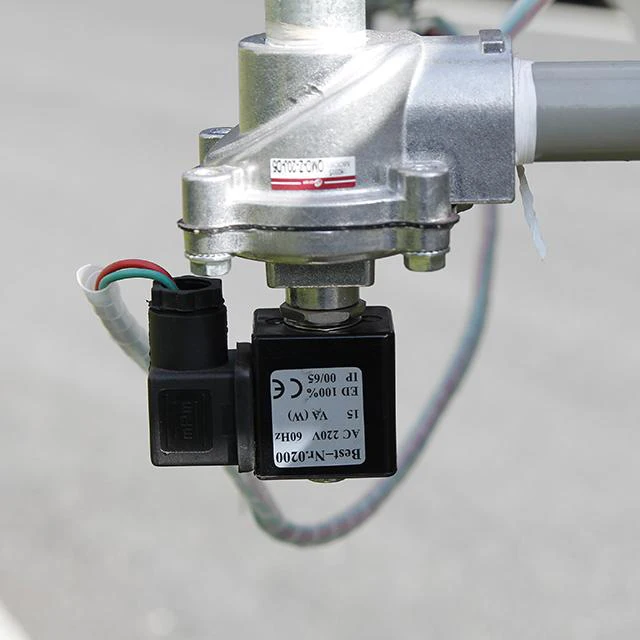

Pulse Solenoid Valve
Each filter element is individually controlled by a pulse solenoid valve, which can clean up the accumulated powder and improve the powder recovery rate.

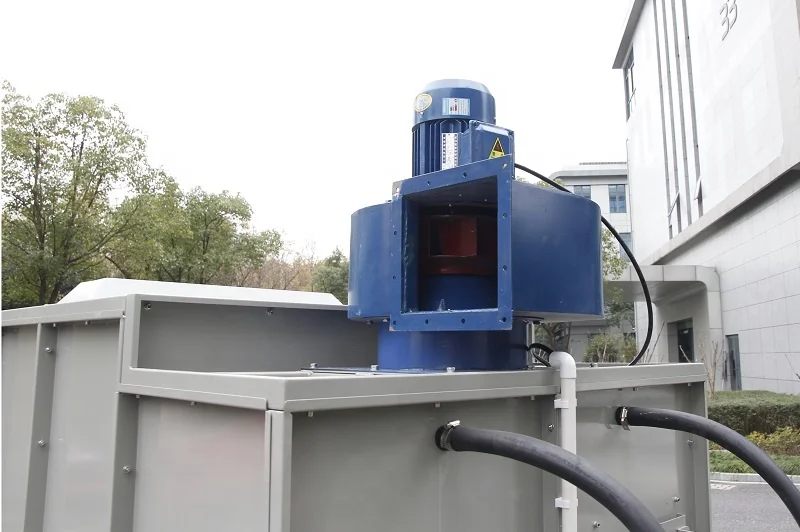

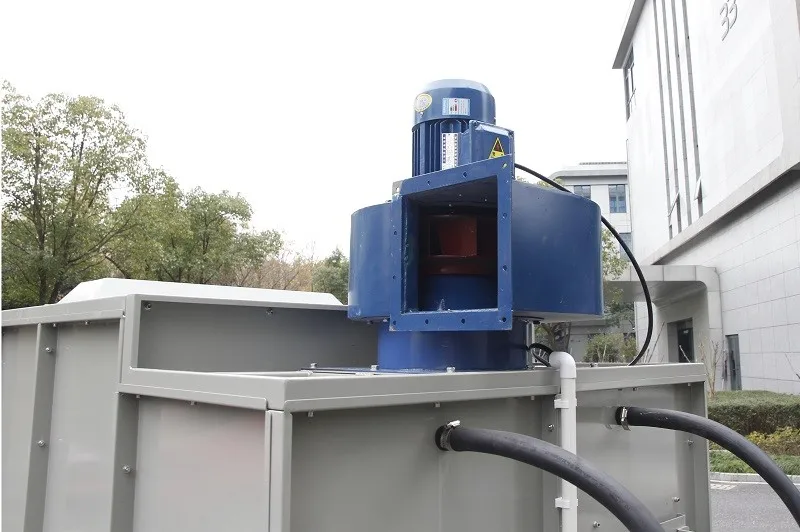

Circulation Fan
0.75kw centrifugal fan motor effectively and powerfully extract air free of powder particles. It is energy-saving and long lifespan.

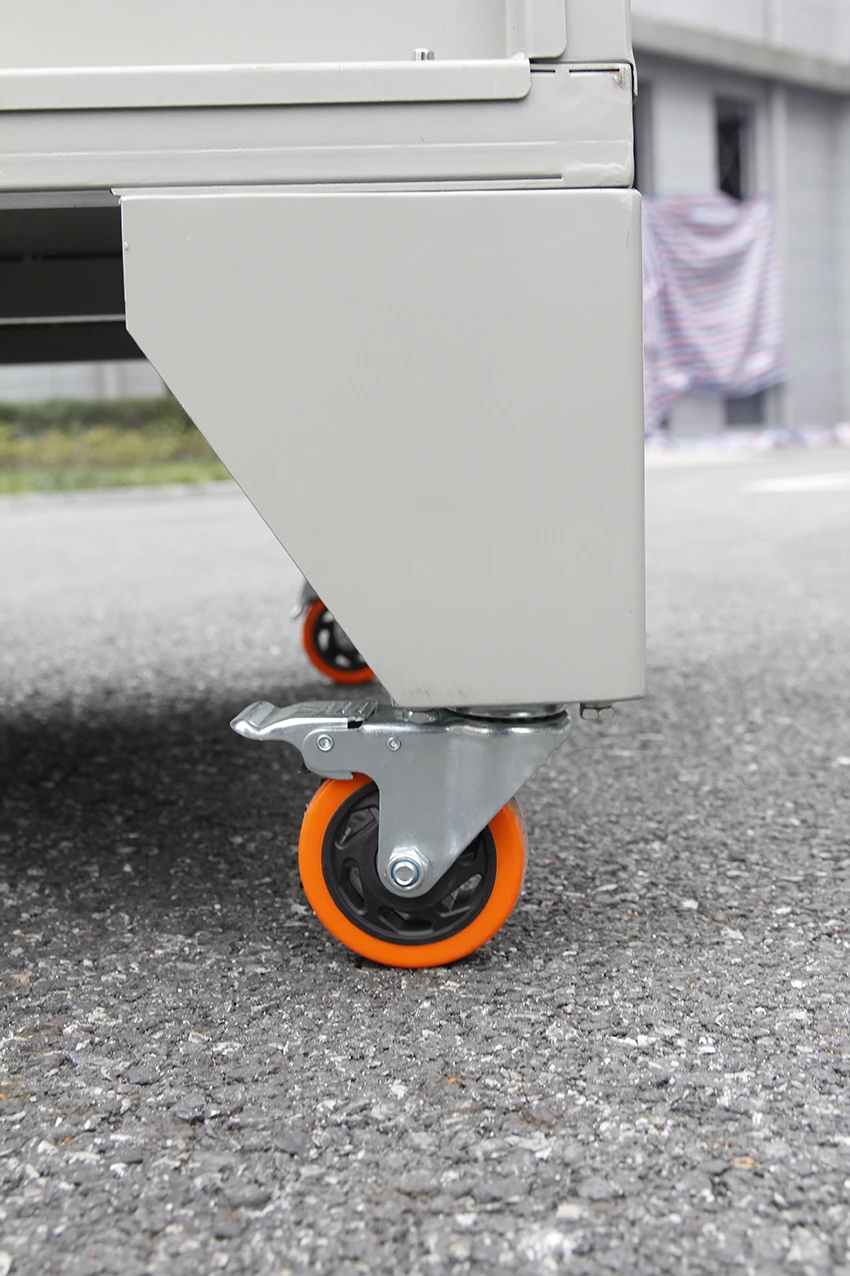

Bottom Wheels
Four wheels at the bottom of the powder coating booth can easily move the booth to anywhere you want, makes it portable and
convenient to use.
convenient to use.
Related Products
Catrige filters
Powder coating oven
Lab oven
Company Profile
HANGZHOU COLOR POWDER COATING EQUIPMENT CO., LTD is a leading manufacturer of electrostatic powder coating equipment since year 2009. All the products we manufactured confirm to CE, ISO 9001 standards.
* Electrostatic powder coating manual systems
* Gun parts and accessories
* Manual powder coating spray booths
* Automatic fast color change powder booth systems
* Electric/Gas/Diesel Heated Powder curing ovens
* Automatic powder coating guns with control cabinet
* Powder coating reciprocator
* Powder management center
* Overhead conveyor systems
* Manual powder coating lines
* Automatic powder coating lines
* Pretreatment equipment (sandblasting, dipping, spraying)
* Electrostatic liquid painting equipment
All these technologically advanced and high-quality devices and systems are developed and manufactured in COLO's 4000m^2 factory in Hangzhou, China. We have a strong team of technical specialists, workers, sales people and after-sale services to provide you not only good products but also well-rounded services.
We export the products to a wide range of industrial users from more than 100 countries, and build a broad network including international wholesalers from US, UK, Canada, Austrialia, Mexico, Malaysia, Thailand, Vietnam, Poland, Peru, Brazil, etc.
After-sales Service
1. The warranty period for the core components such as PCB or cascade of our products is one year. During the warranty period, the core components can be repaired or returned free of charge if they are not damaged by human beings.
2. After the goods are delivered, our after-sales team will follow up the products and solve all kinds of problems that customers may encounter immediately.
3. We have our own professional technician team. When you encounter problems, you can send pictures or videos to our after-sales personnel. We will give you the guidance of the technical team as soon as possible, so that you solve the problem at home.
2. After the goods are delivered, our after-sales team will follow up the products and solve all kinds of problems that customers may encounter immediately.
3. We have our own professional technician team. When you encounter problems, you can send pictures or videos to our after-sales personnel. We will give you the guidance of the technical team as soon as possible, so that you solve the problem at home.
Certifications

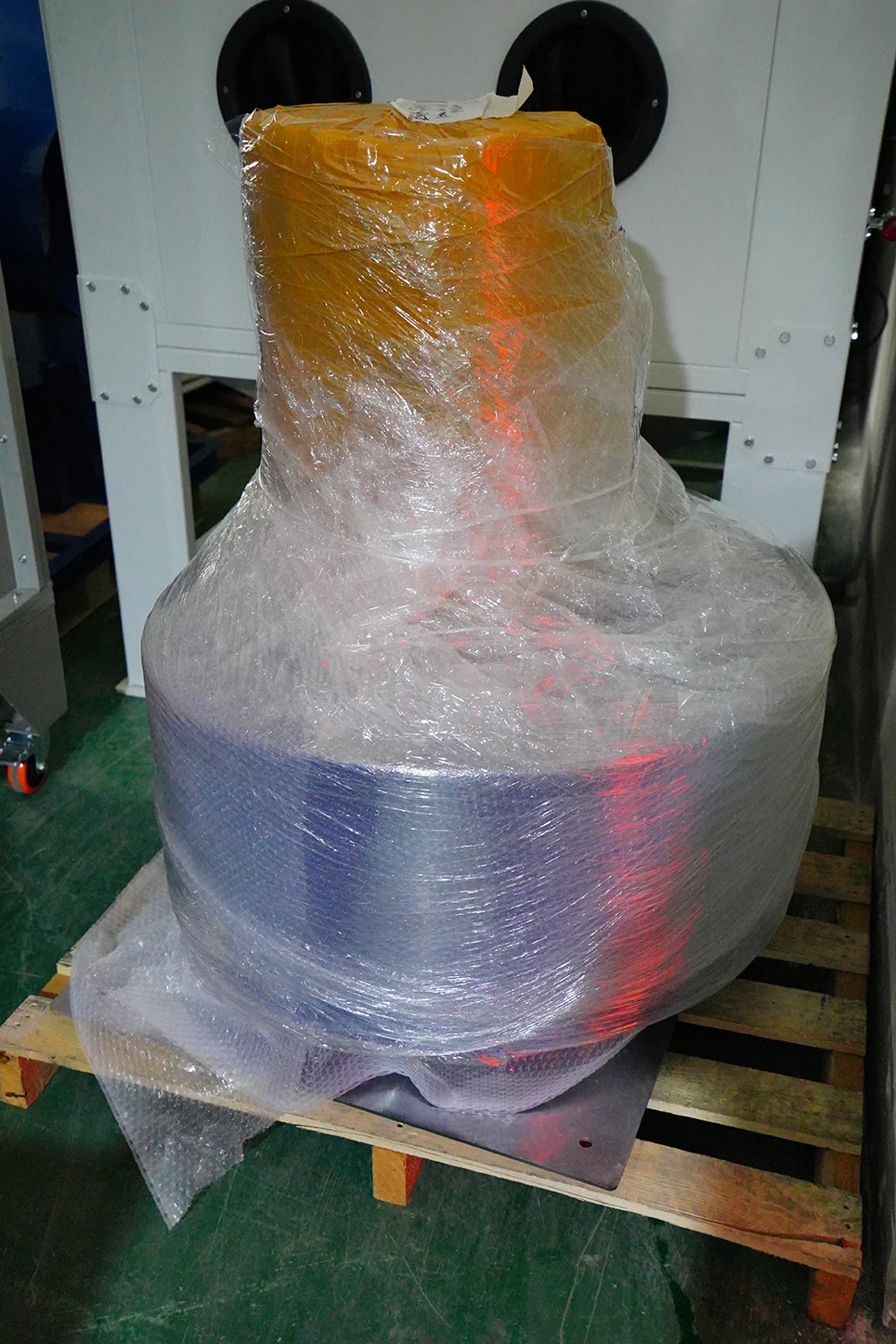

Packing & Delivery
