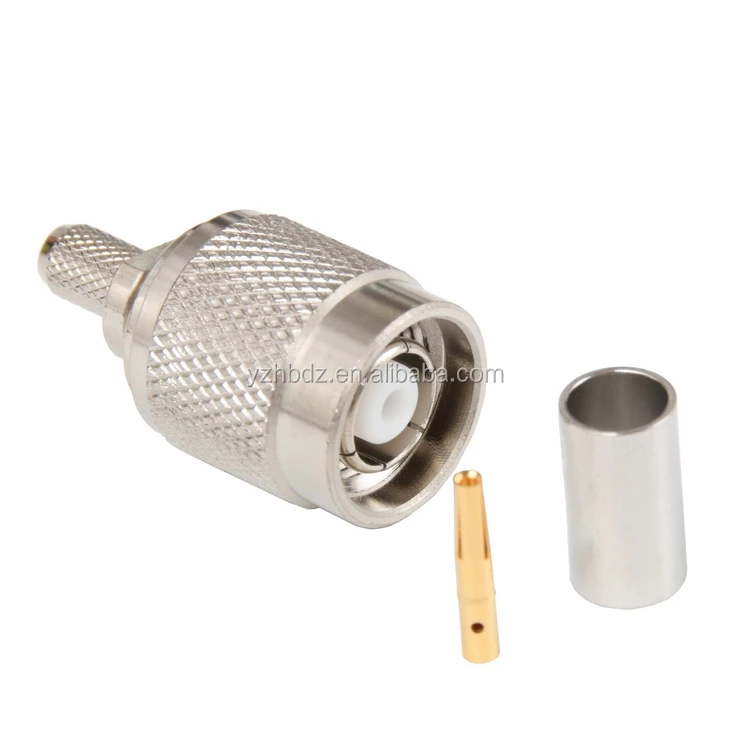

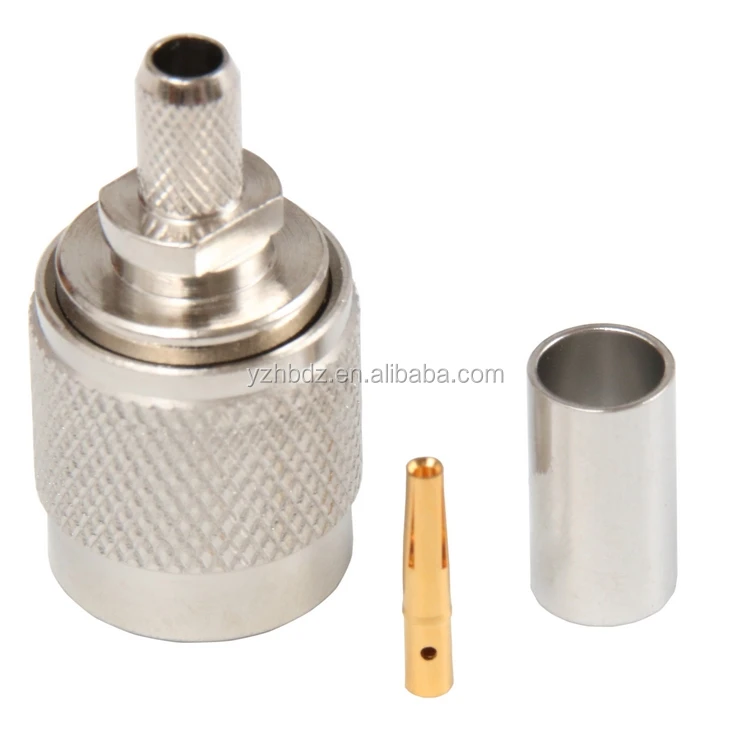

Hongbo TNC Male Connector For RG213 SYV 50 7 1 RP TNC RF Connectors

Product Overview

Description

    TYPE TNC is a kind of RF coaxial connectors with screw Coupling mechanism, Characteristic impedance is 50Ω. The characterisitic of connector is in wide working frequency, reliable connection, great vibration performance etc. They are used in connection with RF coaxial cable in the computer network, radio station, the mini-car telephone, navigation of spaceflight, microwave monitor system using radar and all kinds of radio equipments.



Major Technical Characteristics		MATERIAL & PLATING
Temperature Range:	-55~+155°C(PE Cable -40~+85°C)
Impedance:	50Ω	Body	brass	Nickel plated
Frequency Range:	DC~11GHz
Working Voltage:	500V r.m.s at sea level	Resilient contact	Tin bronze	Gold or silver plated
Withstanding Voltage:	1500V r.m.s at sea level
Contact resistance:	a)Center Contact   ≤10m Ω b)Outer Contact ≤ 2.5m Ω	Pin contact	brass	Gold or silver plated
Insulation resistance:	≥5000MΩ	Socket contact	Beryllium-copper	Gold or silver plated
Center Conductor retention force:	≥0.57N	insulator	PTFE
Insertion Loss	≤0.20dB	Crimp ferrule	Copper alloy	Nickel plated
Voltage Standing Wave Ratio:	Straight  ≤1.22/ 3GHz Right angle ≤1.30/3GHz	O-ring sealing	6146 silicone rubber
Durability(mating):	≥500times(cycles)



Q1.How can I get some samples?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q2.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q3.Can you do OEM or ODM?
A: Yes, we can do OEM and ODM products.

Q4.How does your factory do regarding quality control?
A1: In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q5. What's your payment way?
A1.We accept Alipay/West Union/TT. All major credit cards are accepted through secure payment processor ESCROW.
A2.Payment must be made within 3 days of order.
A3.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.

Q6. How abort the shipping?
A: For small orders, we will send the goods by international Express like Fedex, DHL, TNT , UPS or SF, usually it takes 3-5 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.
