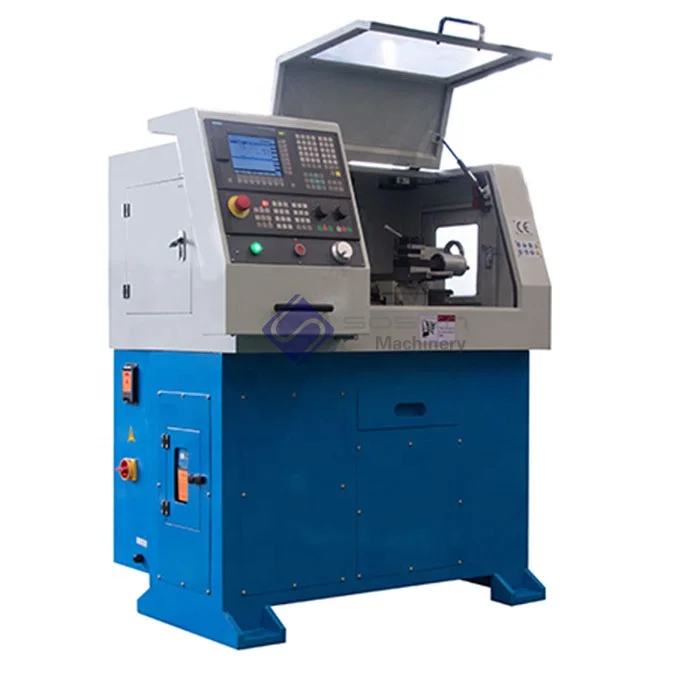

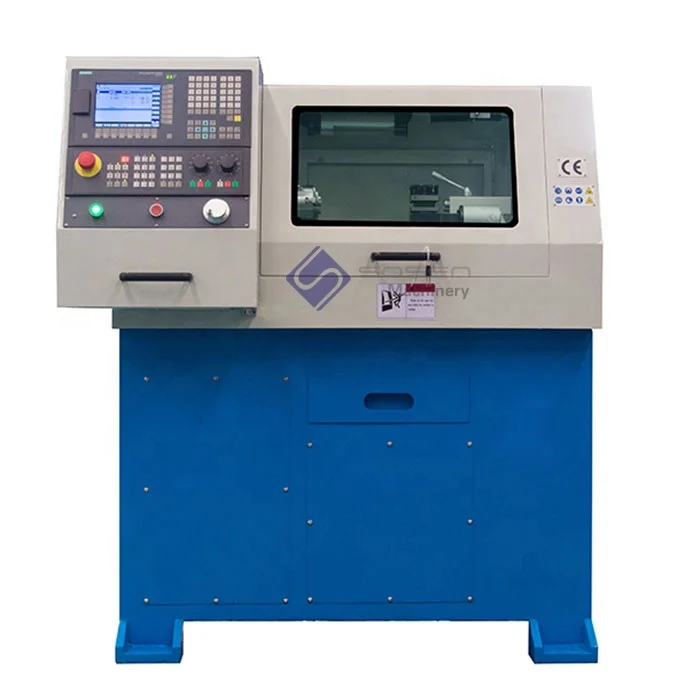

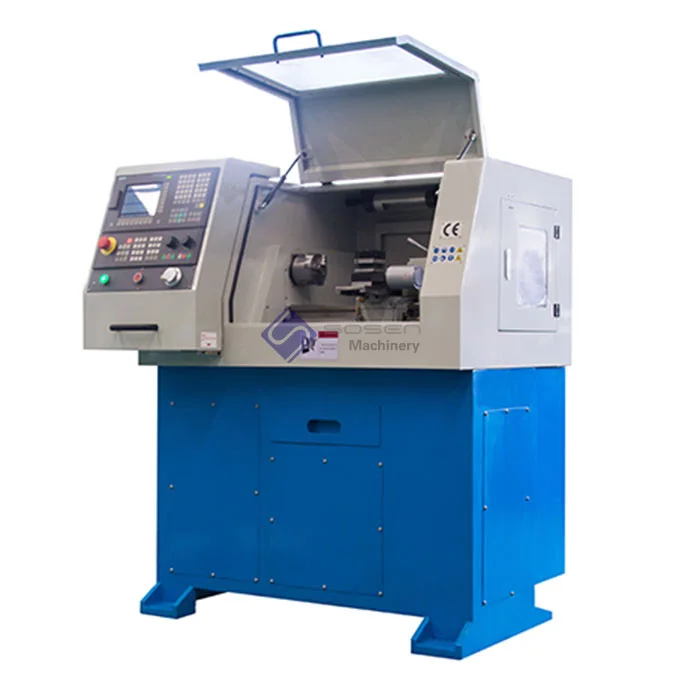

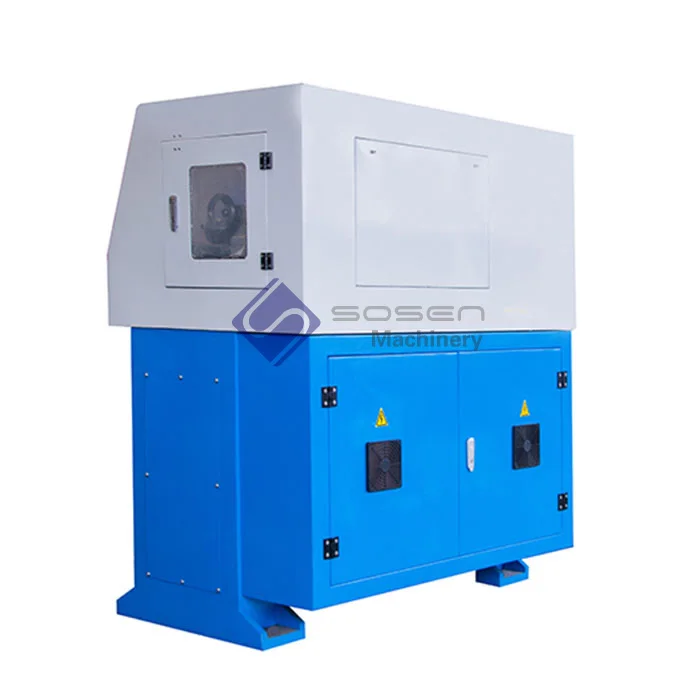

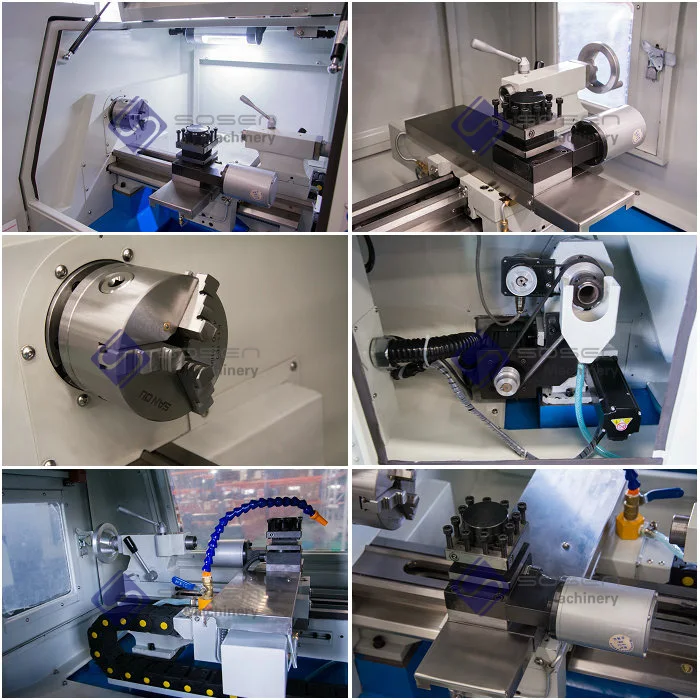

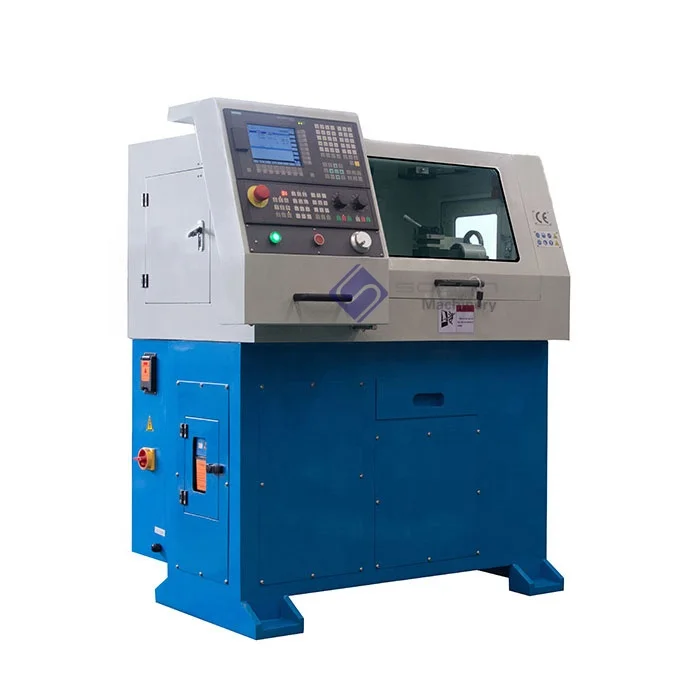

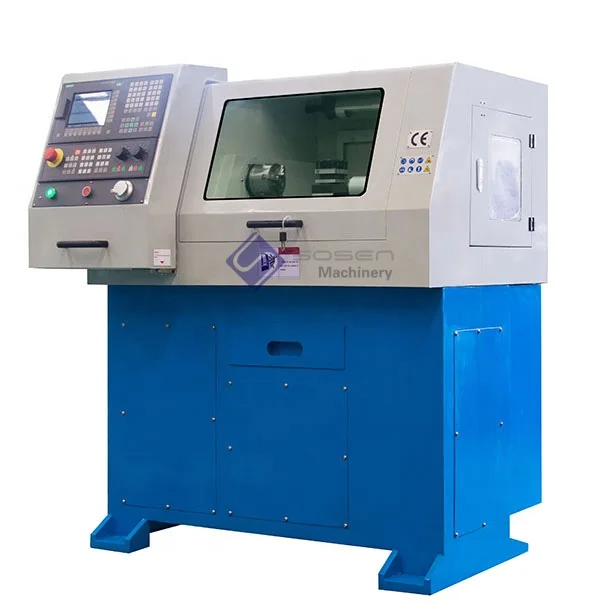

CNC210 Mini CNC lathe machine price


Feature:
1.The machine can process precisely internal or external diameter, face, taper and threading with hight efficiency.
2.DC brushless spindle motor.
3.Induction harden bed-way, bed saddle with plastic stickercan improve the accuracy and service life of the CNC210 Mini CNC lathe machine.
4.Macro arithmetic operations can be performed, the processing of complex parts, fully functional, economical and practical, with a textbook for teaching.
Specifications:
| CNC210 Mini CNC lathe machine | UNIT | CNC210 |
| Max.swiming over bed | mm | Φ210mm |
| Max.swiming over carriage | mm | Φ100mm |
| Max.length of work pieces | mm | 250mm |
| Spindle bore | mm | Φ26mm |
| Spindle taper | mt | MT4 |
| X travel | mm | 90mm |
| Z travel | mm | 300mm |
| X moving speed | mm/min | 2000mm/min |
| Z moving speed | mm/min | 2000mm/min |
| Spindle motor power | kw | 1.1KW |
| X motor power | nm | 2NM |
| Z motor power | nm | 2NM |
| Mini setting unit | mm | 0.001mm |
| Tailstock diameter | mm | 22mm |
| Tailstock travel | mm | 50mm |
| Taper of tailstock | mt | MT2 |
| overall size | mm | 1185*930*1440 |
| net weight | kg | 300kg |
Standard Accessories:
LED lamp, Manual lubrication system, Cooling system, Row tool carrier
Optional accessories:
FANUC / Siemens / MACH 3 ...other kinds of CNC controller



Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.
Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.
Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
