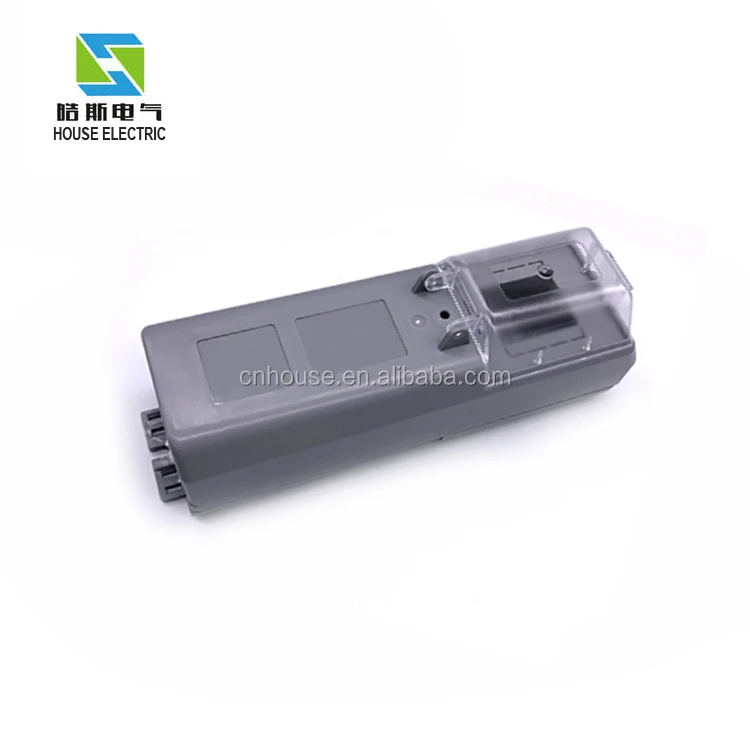

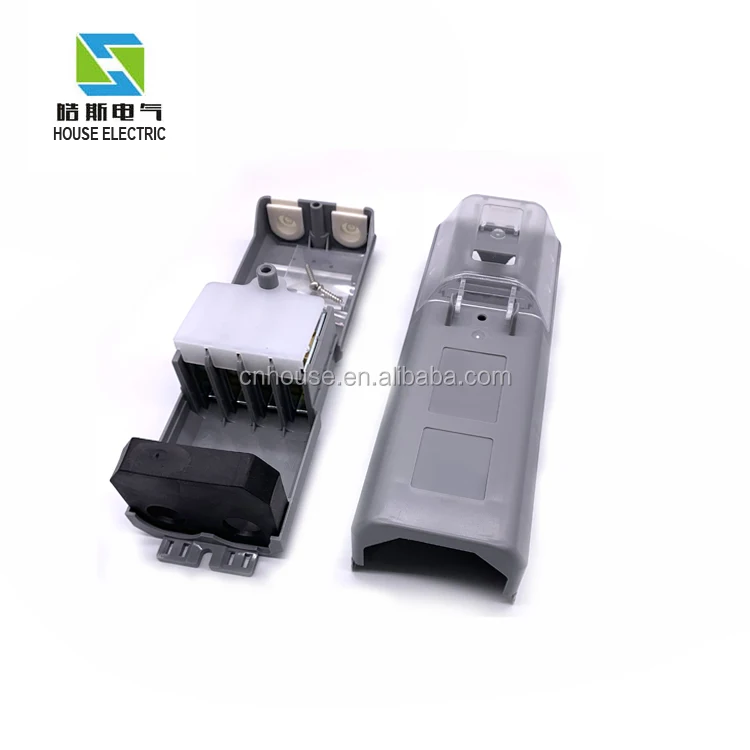

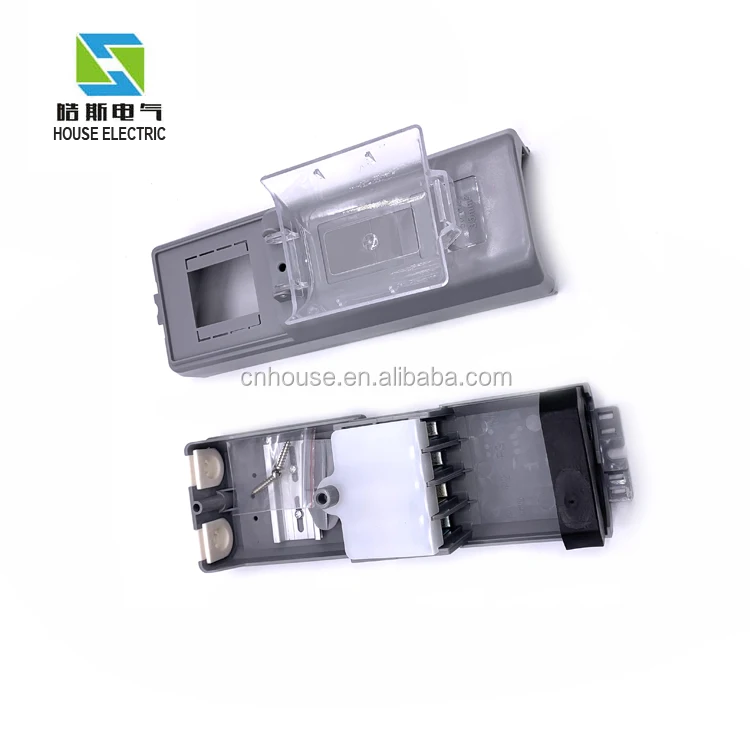

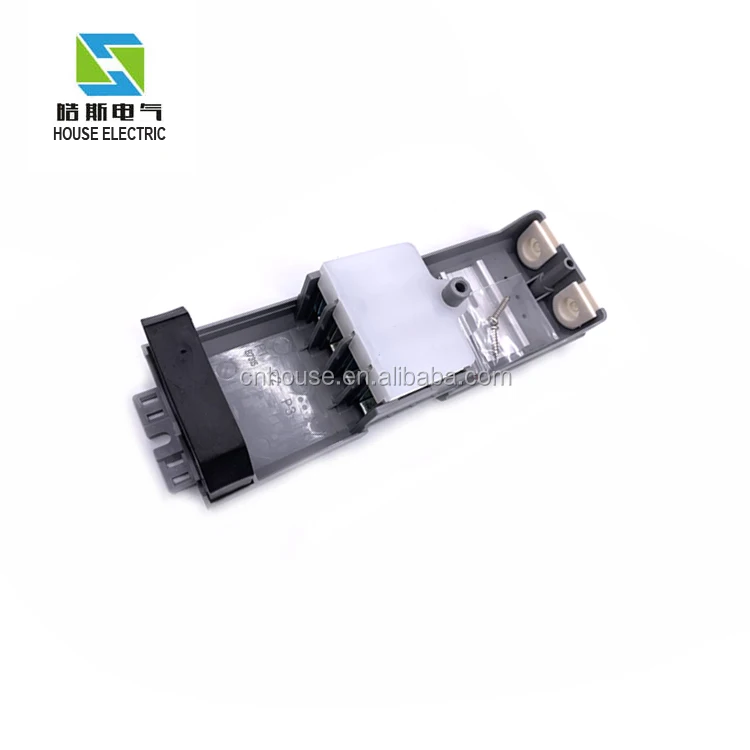

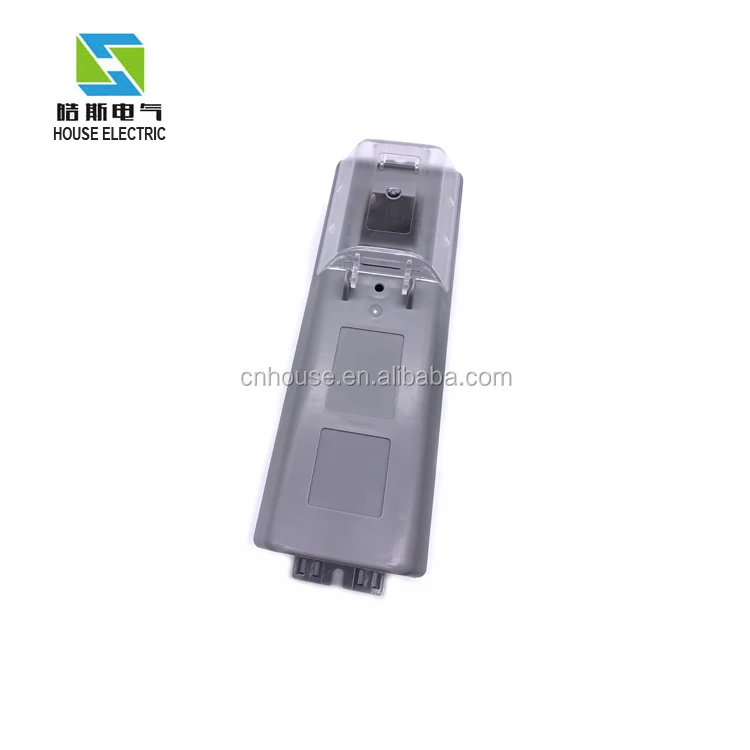

Street lighting fuse box with 290mm length HEKM2035

Product Overview

Description

 Street lighting fuse box with 290mm length HEKM2035

Application:
Our connection fuse box is intended to be installed in lighting ccolumns at the connection between looped-through feeder cables and the luminaire components protected by fuses.Special equipment as MCBs,timers,residual current devices or the like can be intergrated on DIN rails.

Specification:

1. For application inside of Lighting columns:Pole diameter: ≥ 110 mm,Door size: ≥ 90 x 300 mm mm

2. 4 sliding terminals for 2 cables 4 - 50 mm2 or 3 cables 4 - 35 mm2

3. Optional Fuses D II (E27) up to 25 A

4. Optional for standard installation devices on DIN-rail attachable up to 3 TE width (3 x 18mm),max.height of devices 75 mm.



Parameter:

Fuse sockets	Cross section(mm2)		Ordering description
	for 1 and 2 cables	for 3 cables
1 x D II(E27)	4 x 4 - 50	4 x 4 - 35	EKM - 2035 - 1D2
2 x D II(E27)	4 x 4 - 50	4 x 4 - 35	EKM - 2035 - 2D2
none*	4 x 4 - 50	4 x 4 - 35	EKM - 2035 - 0D0
none,DIN-rail**	4 x 4 - 50	4 x 4 - 35	EKM - 2035 - 0D0-1R



Shipping and delivery time:

DHL/UPS/TNT/FEDEX	5-7 working days
EMS	10-15 working days
Trade Terms	FOB|EXW|CIF|CFR
Sample availability	YES, 7 days
Delivery time	According to quantity

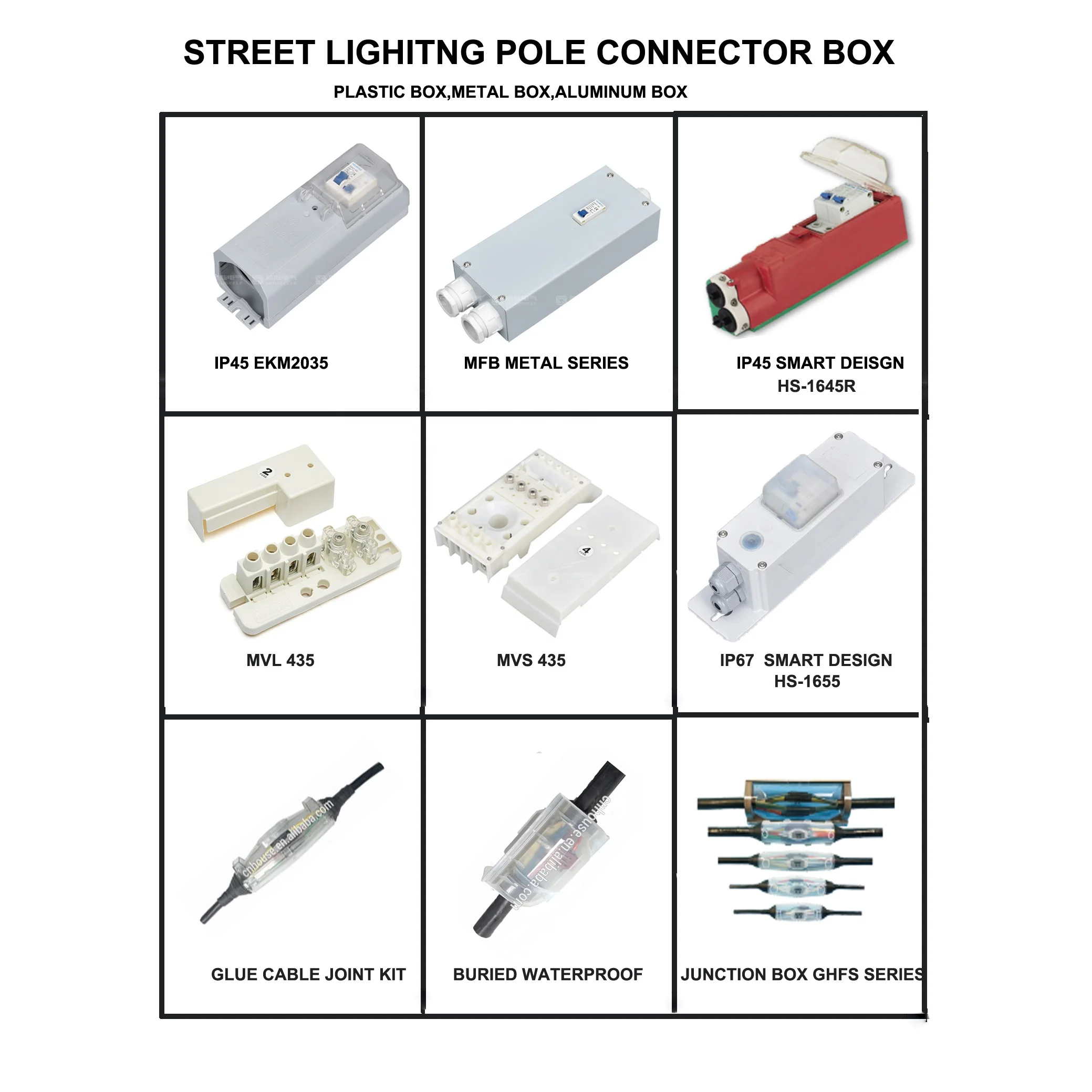

We also have other model fuse box:
