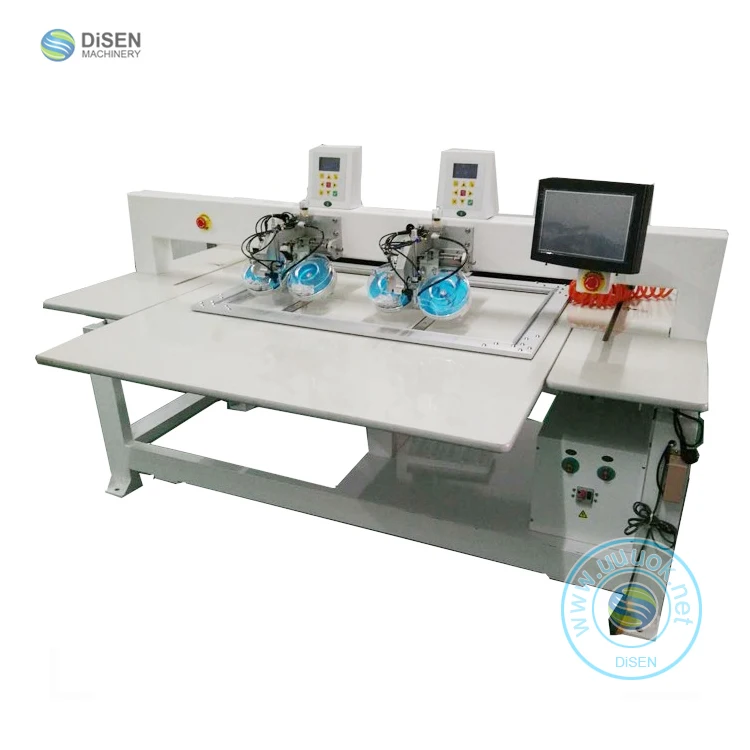

2 head automatic ultrasonic rhinestone hotfix machine

High productive efficiency auto two head two color double discs rhinestone hotfix machine:
Function Description:
1. The device can be instantly fixed to the material (velvet, denim, knitted fabric, Pu leather, leather and other synthetic leather) by ultrasonic
2 The device is mainly used in footwear hot drilling, underwear, children's clothing, T-shirts, embroidery patterns, leather, handbags, hair accessories, hats and other jewelry,hotfix machine,ultrasonic hotfix machine.
3. The equipment processing efficiency is very high, can be completed 200-300 tablets / minute
Product parameters:
Output power: 220V (50 / 60Hz)
Hot drilling area; 45X45CM
Pressure: 1.2-2.0MPa
Output wattage: 800W
Frequency: 28KHz
Weight: 380kg
Size: 3300mm * 1300mm * 1320mm

Application&Highlights:

• Automatic ultrasonic rhinestone machine


• Fully computerized with pantograph for fabrics, able to fix plastic frames for garment


• Tubular frames for ready-garments, T-shirts etc. (Factory Option)


• Cap frames for ready-made caps (Factory Option)


• Much higher speed (around 200-300pcs per minute according to different thickness and materials)


• Touch screen control panel with simple operation and easy parameter setting.


• Applying the sequins data for the designing from standard punching systems for embroidery machines.


• Color numbers with a choice of 2 color/sizes of rhinestones. hotfix machine,ultrasonic hotfix machine.


• New technology requires much less compressure air

Technical Parameters:

Available rhinestone sizes: Rhinestones, Octagon Rhine studs with adhesive, size 2mm,8mm

(SS06-SS40), round shape is best.

Our service:

• We provide one year warranty for whole machine except the easy-damaged parts;and our engineers are experienced in overseas service.


• 24 hours technical support by email / whatsapp / wechat / IMO / Facebook and so on;


• Use friendly multi-languaged software,users' manual and detailed videos can be provided

Package and Delivery:

• Plywood case


• Shipment: Delivery within 7 days upon receipt of your deposit.

Ultrasonic drilling machine ultrasonic bead machine ultrasonic point drilling machine
Ultrasonic hot drilling machine
principle:
Ultrasonic hot drilling, Dingzhu, point drill, is the use of ultrasonic high-frequency sound generator to produce 20KHZ (or 15KHZ) high-pressure, high-frequency signal, through the transducer system, the signal is converted to high-frequency mechanical vibration, (Bead), the temperature of the interface to the interface is increased by the friction between the drilling surface and the inner molecular member, and the diamond (bead) interface is rapidly melted when the temperature reaches the melting point of the diamond (beads) itself, High productive efficiency auto two head two color double discs rhinestone hotfix machine,And then filled in the gap between the interface, when the vibration stops, diamonds (beads) at the same time under certain pressure cooling stereotypes, to achieve a perfect welding.
Traditional leather hot drilling is the use of heating plate heating method to make diamonds and glue melting to achieve the purpose, but this method is easy to make leather deformation, yellow, loss of gloss, diamonds easy to fall off the use of ultrasonic hot drilling machine these problems can be solved.
