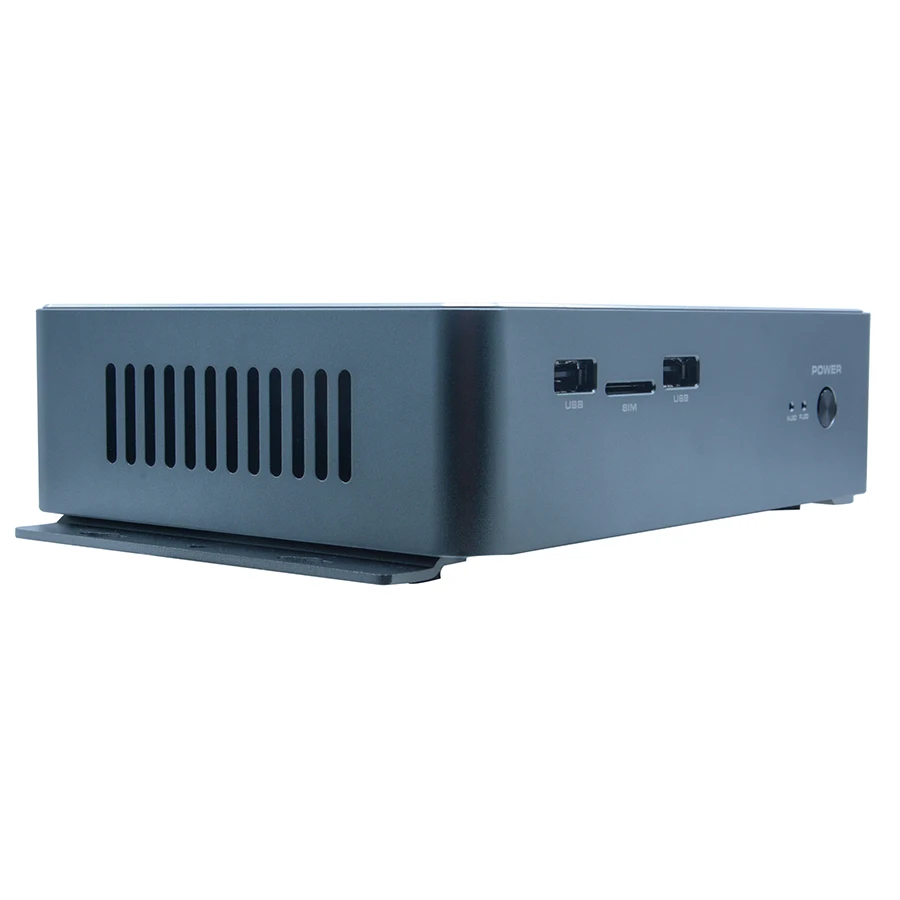

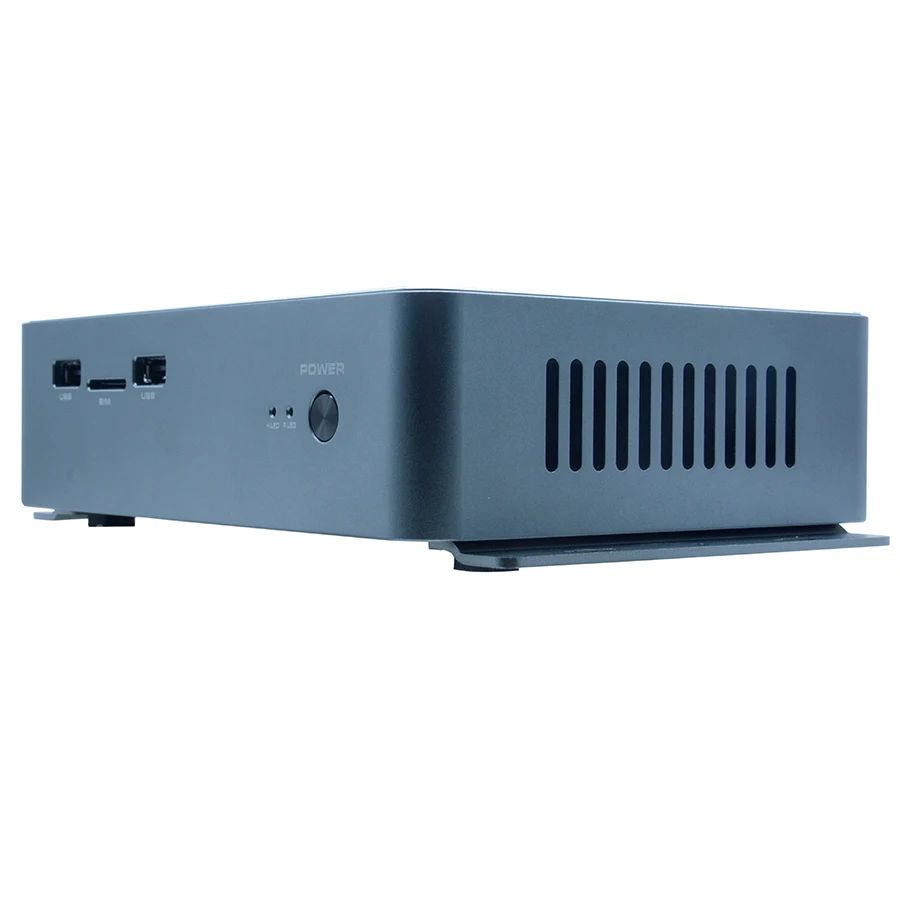

N1619Z Celeron J1900 Fanless Nano Industrial Mini PC with RS232
- Category: >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (62040533357):
Product Overview
Description
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2015 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprise With Professional and Experienced R&D Team
N1619Z Celeron J1900 Fanless Nano Industrial Mini PC with RS232
Features
Fanless cooling structure
Full aluminum alloy, compact structure, flexible installation
1xVGA, 1xHDMI, support synchronous/asynchronous display
Integrated Intel® J1900/2.0GHz dual core processor, TDP=10W
2* RJ45 Gigabit LAN port, support Wake On LAN
Rich IO: 2*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA, 1*Audio, 2*LAN, 2*RS232, 1*Audio, 1*SIM, 1*DC_In Jack.
Specification
Parameter | N1619Z | |
Case
| Color | Iron Gray |
Dimension | 165mm*128mm*45.5mm(L*W*H) | |
Structure | Full aluminum fanless cooling structure | |
Processor | CPU | Integrated Intel®J1900/2.0GHz quad core processor, TDP=10W |
Graphics | HD Graphics | Integrated Intel®HD Graphics |
Memory | RAM | 1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
Storage | SATA | 1* 2.5” HDD expansion |
SSD | 1* MSATA slot, support SSD expansion | |

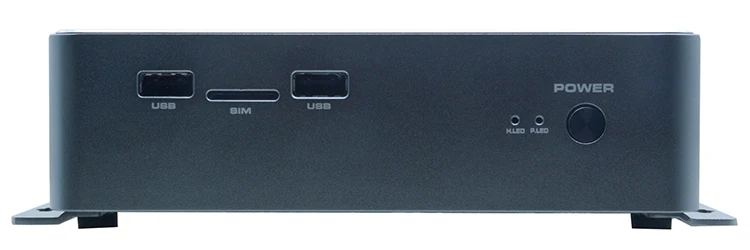

Front I/O | USB | 2* USB2.0 port |
Power Switch | 1* power switch | |
LED | 1* HDD LED, 1* Power LED | |
SIM | 1* SIM card slot | |

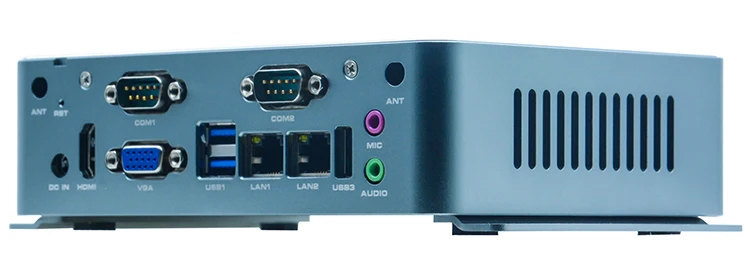

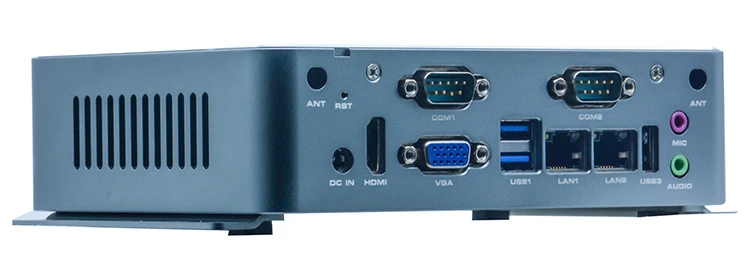

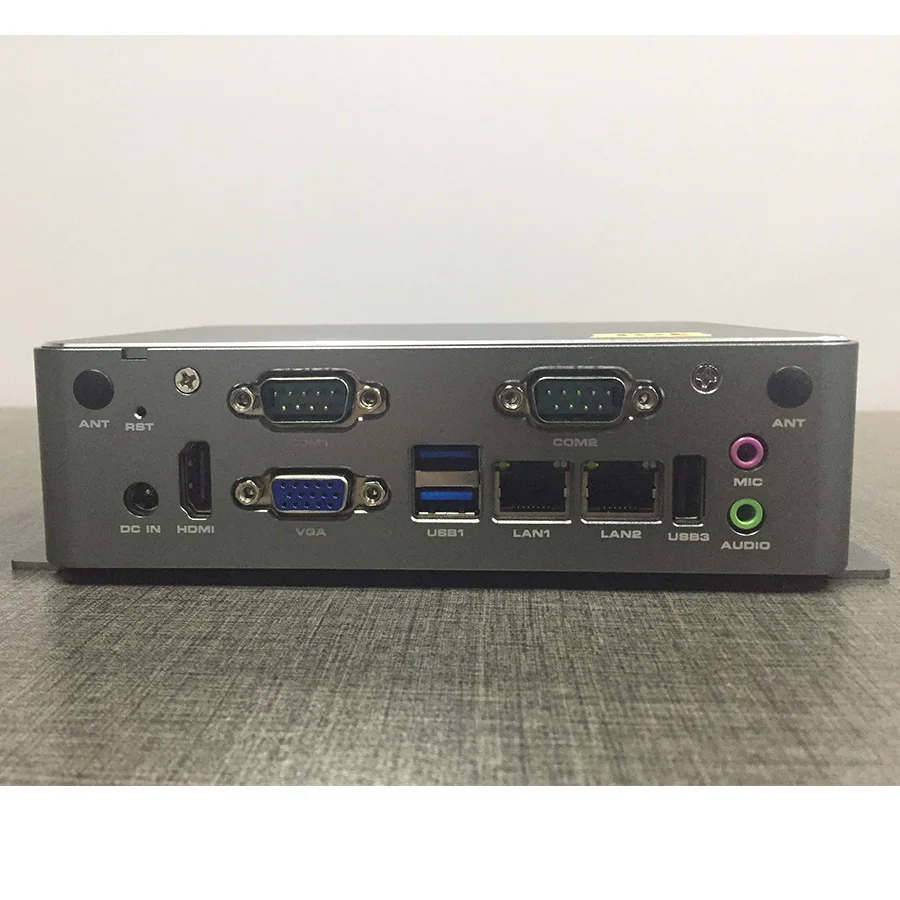

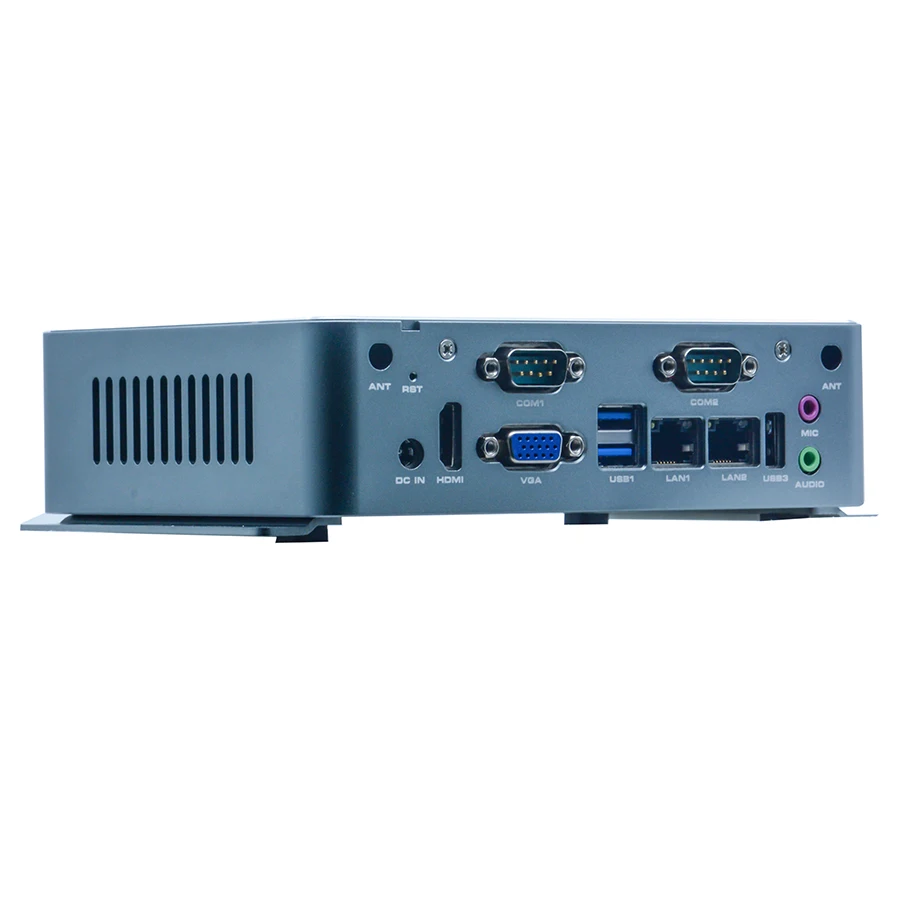

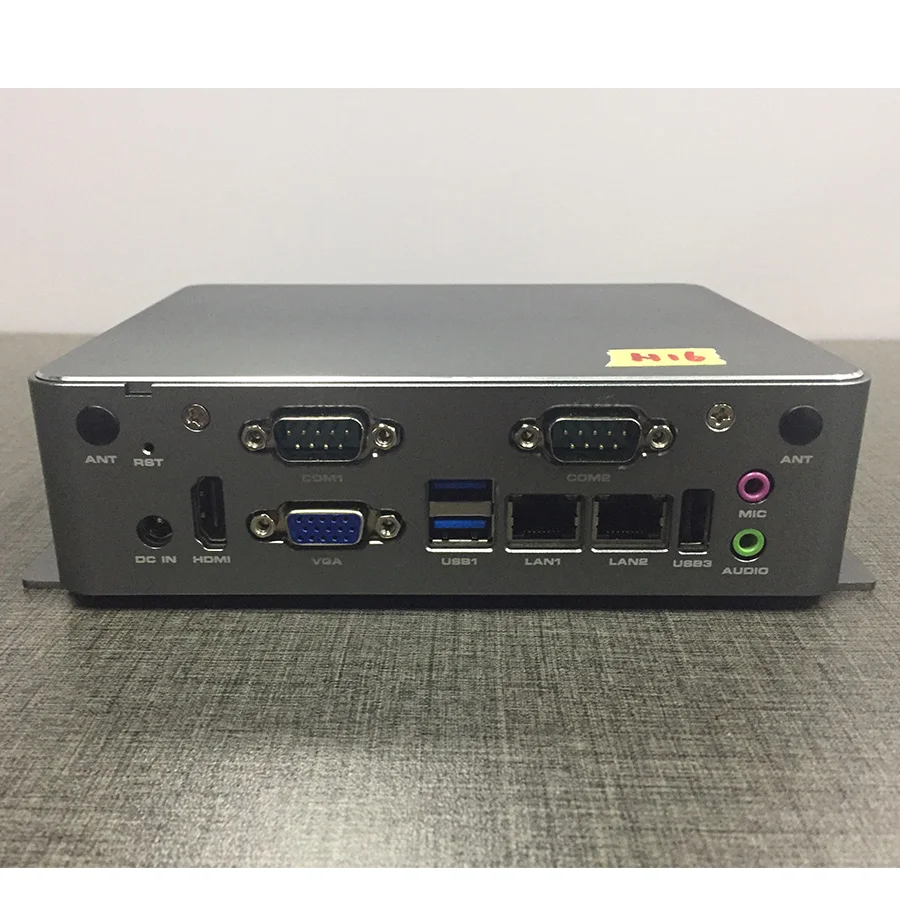

Rear I/O | LAN | 2* RJ45 Gigabit LAN port, support Wake On LAN, PXE |
Display Port | 1* VGA,1* HDMI | |
COM Port | 2* DB9 RS232 COM port | |
USB | 1*USB 2.0 port, 2*USB3.0 port | |
Power | 1* 12V DC_In Jack | |
Reret | 1* Reset switch | |
Antenna | 2* WIFI/3G SMA antenna(optional) | |
Audio | 1* Line-out,1* MIC | |
OS |
| Support Windows 7, Windows 8, Windows 10, Linux OS |
Adaptor | Input | AC 110V~ 220V |
Output | DC 12V/5A | |
Type | External power adaptor | |
Reliability | Installation | Desktop or wall amount |
Working Temp. | -10℃~60℃ | |
Storage Temp. | -20℃~70℃ | |
Relative Humidity | 5%-95% relative humidity, non-condensing | |
Vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
No. | Model | Processor | Motherboard | Memory | HDD | LAN | USB | WIFI | OS |
1 | N1631Z | J3160/1.6G | EPIC-N16_J122E | / | / | 2*8111H | 5 | / | |
2 | N1619Z | J1900/2.0G | EPIC-N19_J122E | / | / | 2*8111H | 5 | N/A | / |
Company Informaiton
YANYUGONGKONG, MEMBER OF INTEL INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.
Our products include: mini-itx motherboard, nano-itx motherboard, all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC, All-in-one PC, Embedded PC, Vehicle computers, Cloud Terminal, Networking Security, OPS Mini PC Computer, OEM / ODM available.
Our Services
1. As a professional manufacturer / OEM Factory and supplier of mini pc / motherboard / firewall appliance over 11 years.
2. Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
3.Our products are 100% original and have strict QC inspection before shipment.
4.Professional and efficient sales team to serve for you diligently.
5.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 3years maintenance warranty for our products.
FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.
5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work keep working 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to keep working 24*7 hours.
8. Are you a factory or trading company?
A: YANYUGONGKONG
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS server, etc.
Computer, OEM / ODM available.
9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
