Smart Wasp Pneumatic Type Fully Auto pallet wrapping machine with Film Cutting and Clamping device
- Category: Wrapping Machines >>>
- Supplier: Suzhou Jiajun Packing Machinery Co. Ltd.
Share on (62040576574):
Product Overview
Description
Model | Smart Wasp X200 | Spare Parts | Brand | |
Maximum wrapping speed | 30-40 loads/hour (1x1.2x1.8 m 2 layer NOT include loading and Unload time) | Inverter | X-LINE | |
Max Load Weight | 2000KG | Position sensor | SICK(Germany) | |
Maximum Wrapping Height | 2350mm/2800mm optional | PLC | SIEMENS | |
Turntable speed | 3-12 RPM/mins | Travel Switch | OMRON(Japan) | |
Turntable Size | 1800mm(1650mm/2000mm/optional) | Motor | GPG Taiwan | |
Machine Power | 1.5KW | Relay | OMRON(Japan) | |
Film Cut and Clamp | Automatic (Heat type) | Touch screen | SIEMENS Touch screen | |
Switch | Schneider | |||
Standard Film Width | 500mm | Photoelectric sensor | Autonics | |
Constant Film Delivery Force | Standard | Terminal block | Weidmuller(Germany) | |
Standard Pre-Stretch | 250% | 24V power supply | OMRON | |
Film Capacity | 250mm Diameter | |||
Up&down Drive system | 1.5 ~5.5 m/mins | |||
Fix Film on Pallet | Auto | OPTIONAL FUNCTION | ||
Roping system | Have | Ramp | Optional | |
Muti-layer function | Have | weighing scale | Optional | |
Machine Size | 2.8*1.65*2.74m | Top pressure function | Optional | |
Machine weight | 750KG | |||
Voltage | 110-240V/50/60 HZ 1/3P | Certificate | CE | |

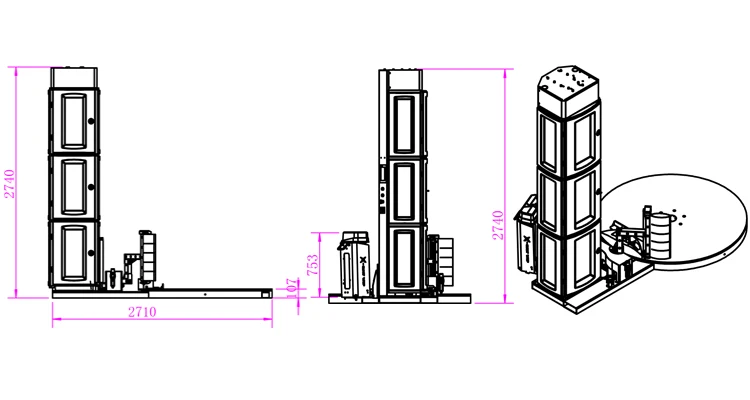

ENGINEER DRAWING
Detailed Images
1.Saving Film Consumption
High pre-stretch Rate
Maximum up to 380% pre-stretch rate
Maximize the value of each meter of stretch film Standard constant releasing film Fixed-point wrapping and quantitative use film

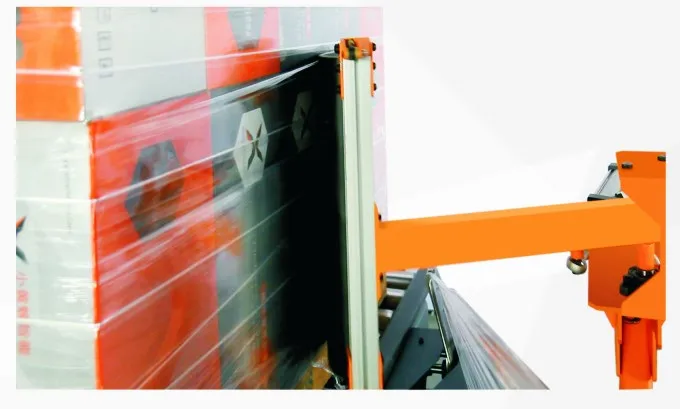

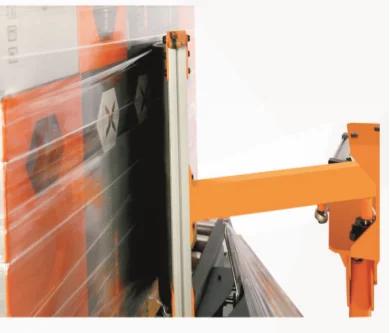

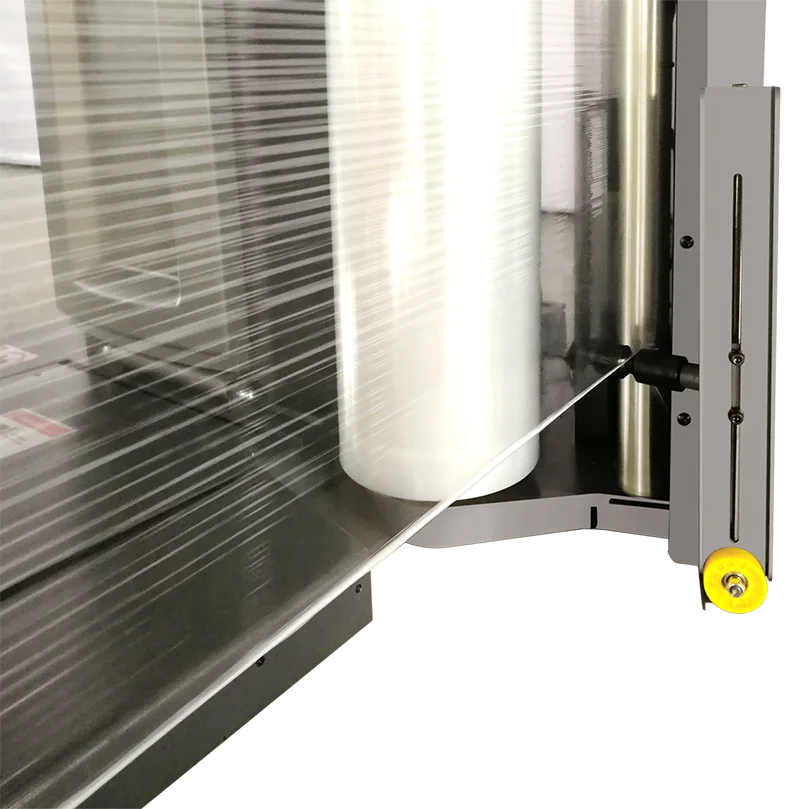

2.Pallet Grip system
* Pallet grip system: film bottom narrowed to become film rope, film rope grip to pallet & products during wrapping.
1.During transport, no need worry the products fall down when the pallets get violent vibration
2.If the forklift damage the film on the bottom of pallet, the film do not breach.
3.Pallet bottom grip and whole journey grip can be instead of the horizontal strapping machine
1.During transport, no need worry the products fall down when the pallets get violent vibration
2.If the forklift damage the film on the bottom of pallet, the film do not breach.
3.Pallet bottom grip and whole journey grip can be instead of the horizontal strapping machine

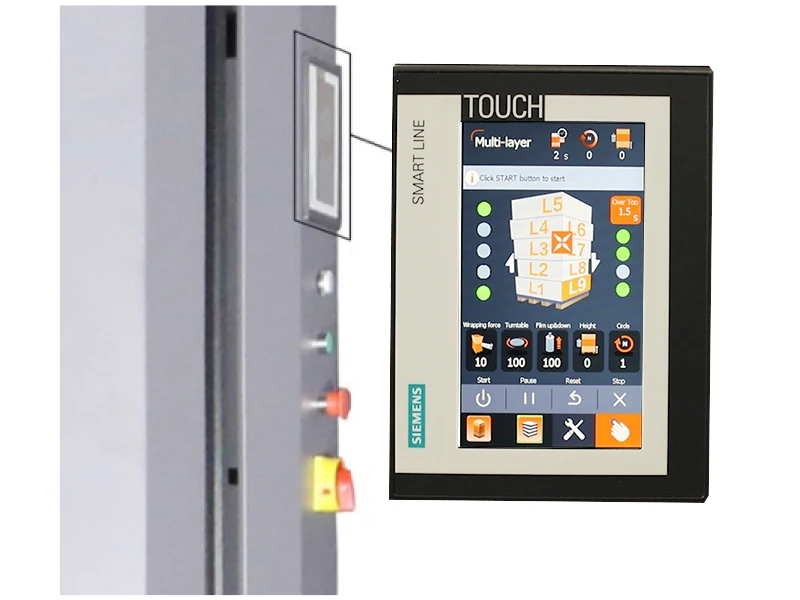

3.SIEMENS Touch Operating System
Intuitive
Easy to understand
Require little language and skills

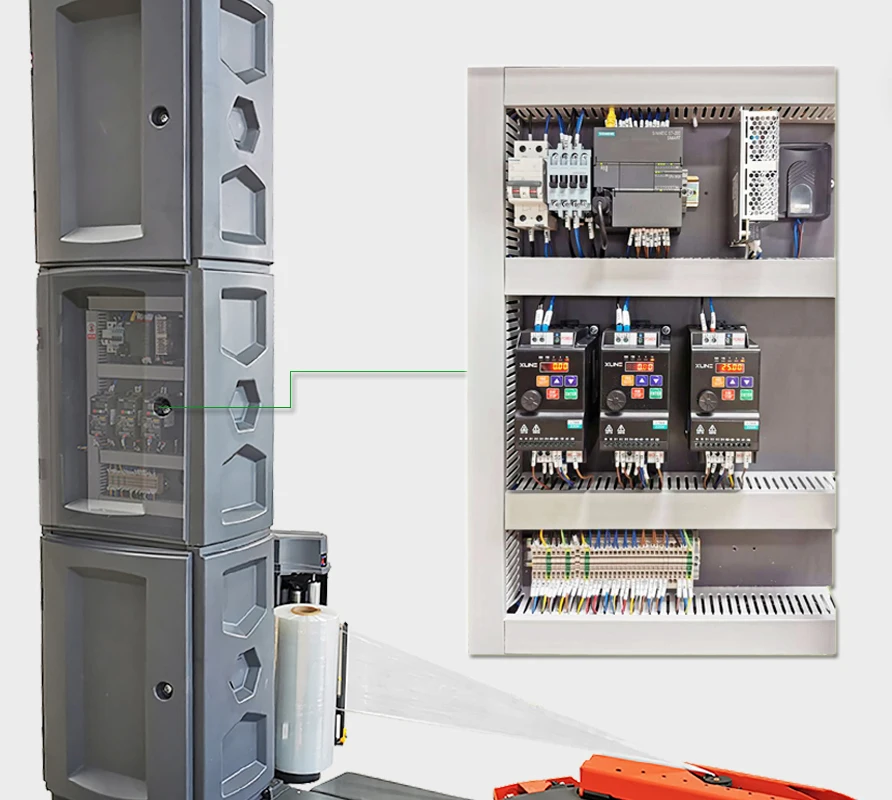

4. Better Spare Parts
Easy to understand
Require little language and skills
4. Better Spare Parts
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inverter
OMRON 24DC supply
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inverter
OMRON 24DC supply

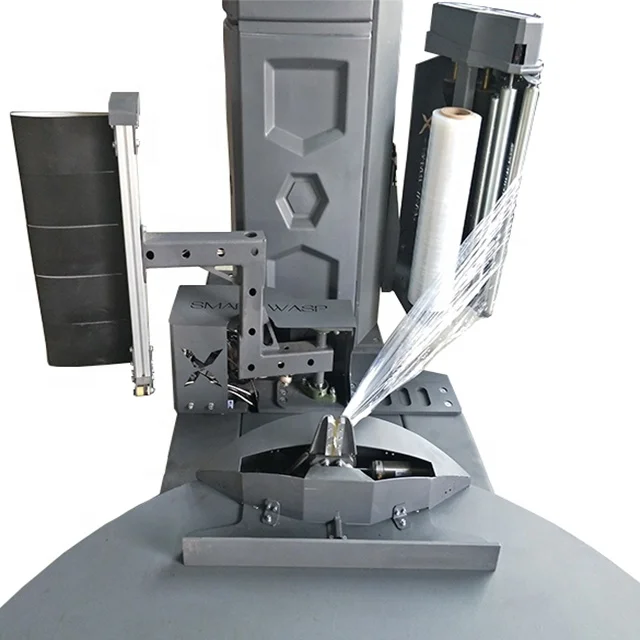

5. Automatic Film cutting & clamping &
Sweeping the Tail of Film
The clip will clamp the film and the brush will sweep the tail of the film in pallet, which greatly improves the work efficency.
6. Advanced Safety Technology
1. Safety device under film carriage to protect the foot or head of the operator
2.Transparent board makes it easy to find problem without opening door.
3.Up and down belt deviation and damaged alarm system. Alarming in time to avoid carriage dropping down.

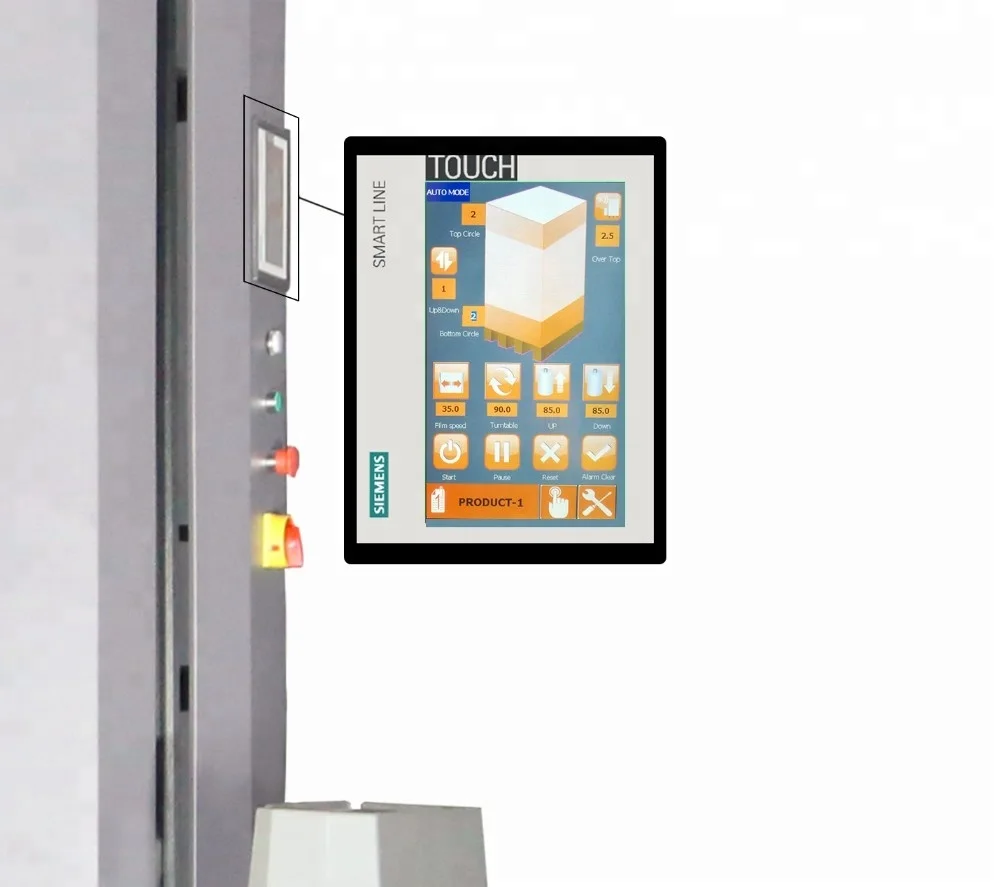

7.Intelligent operation Guiding system
1. X200 with LED indicator on machine
3.Up and down belt deviation and damaged alarm system. Alarming in time to avoid carriage dropping down.
7.Intelligent operation Guiding system
1. X200 with LED indicator on machineReady for work--Blue color
During working--Green color
Alarm--Red color
2.Touch screen guide the user how to operate machine. If alarm appears, touch screen will show you how to solve problem .
2.Touch screen guide the user how to operate machine. If alarm appears, touch screen will show you how to solve problem .

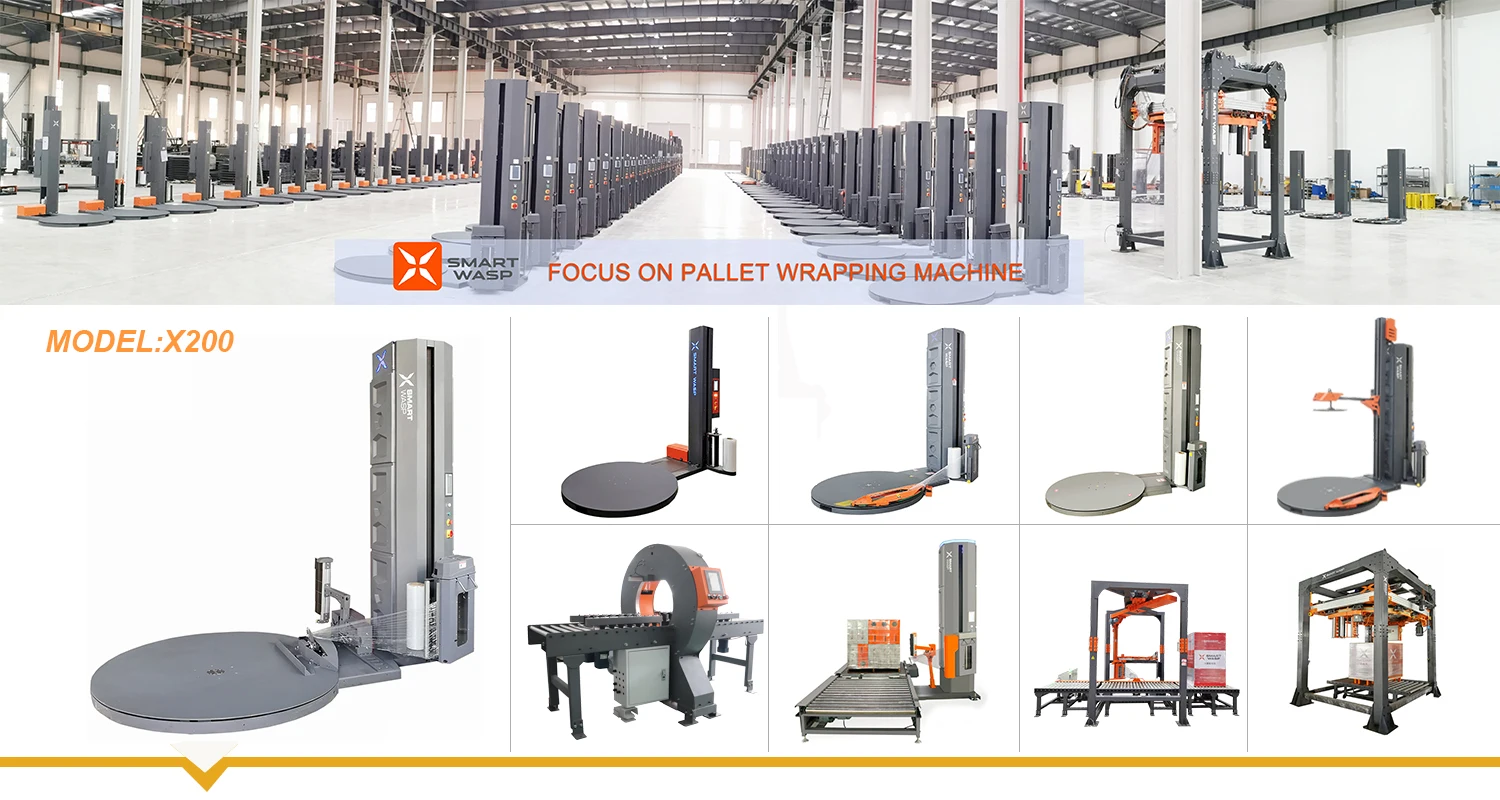

CUSTOMER CASES
SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution
SMART WASP have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine
WE PACK MACHINE MORE SAFETY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Shipping Type | 1set machine/crate (size/weight) | 2sets machines /crate (size/weight) | Mix packing (just for FLC shipping type) |
LCL Shipping | 2.98x1.95x0.87m 850KG | 2.98x2.05x1.05m 1600KG | Turntable /crate Carriage/crate Tower/crate |
Quantity crates in 20 FT | 4sets | 8sets | 12sets |
Quantity crates in 40 HQ | 8sets | 16sets | 24sets |
Exhibition
WELCOME TO VISIT US
SMARTWASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO..Over 10 countries And attend China Professional Exhibition Every Year
2021 SMARTWASP EXHIBITION LIST
The 27th China International Exhibition on Packaging Machinery & Materials ProPak China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China
The 17th China (Qingdao) International Packaging Industry Exhibition CIPI
Time： 2021/7/18-22
Address：Qingdao red island international convention and exhibition center
The 22nd Asia International Logistics Technology and Transportation Systems Exhibition CeMAT
Time：2021/10/26-29
Address：Shanghai New International Expo Center
Address：Shanghai New International Expo Center

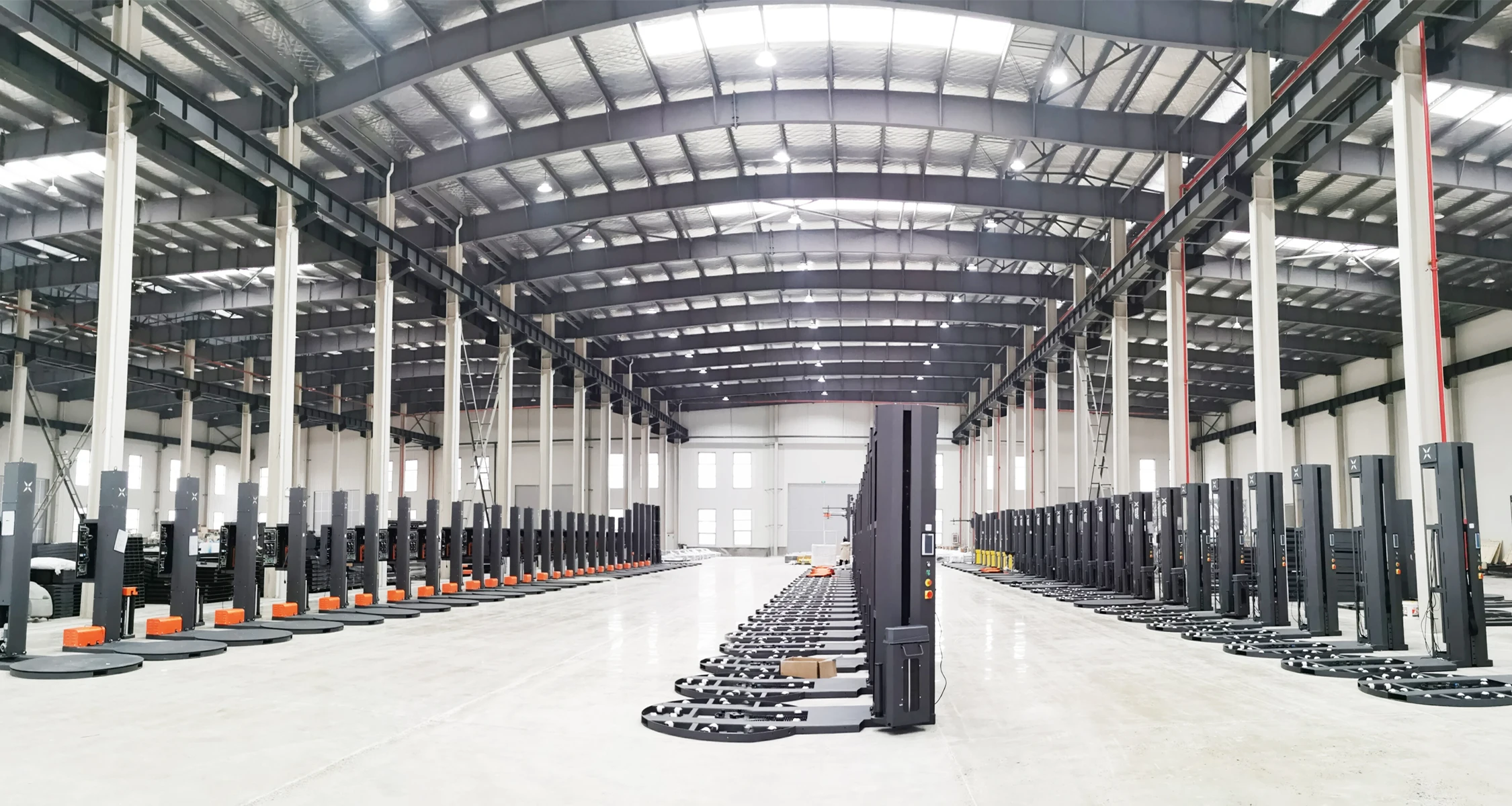

OUR TEAM
SMART WASP Team have 210 members. We have over 30 mechanical engineers and electric engineers. SMART WASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machines. We hope more and more partners join us .
