TB100 Digital Turbidity Meter Range 0 1100 NTU with Four Turbidity Units TB 100 Liquid Turbidimeter

Product Overview

Description

TB100 Digital Turbidity Meter Range 0-1100 NTU with Four Turbidity Units TB-100





TB100 Portable Turbidity Meter

High performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control and field use.

Applications:

• Drinking water and swimming pool
• Environmental monitoring

Features:

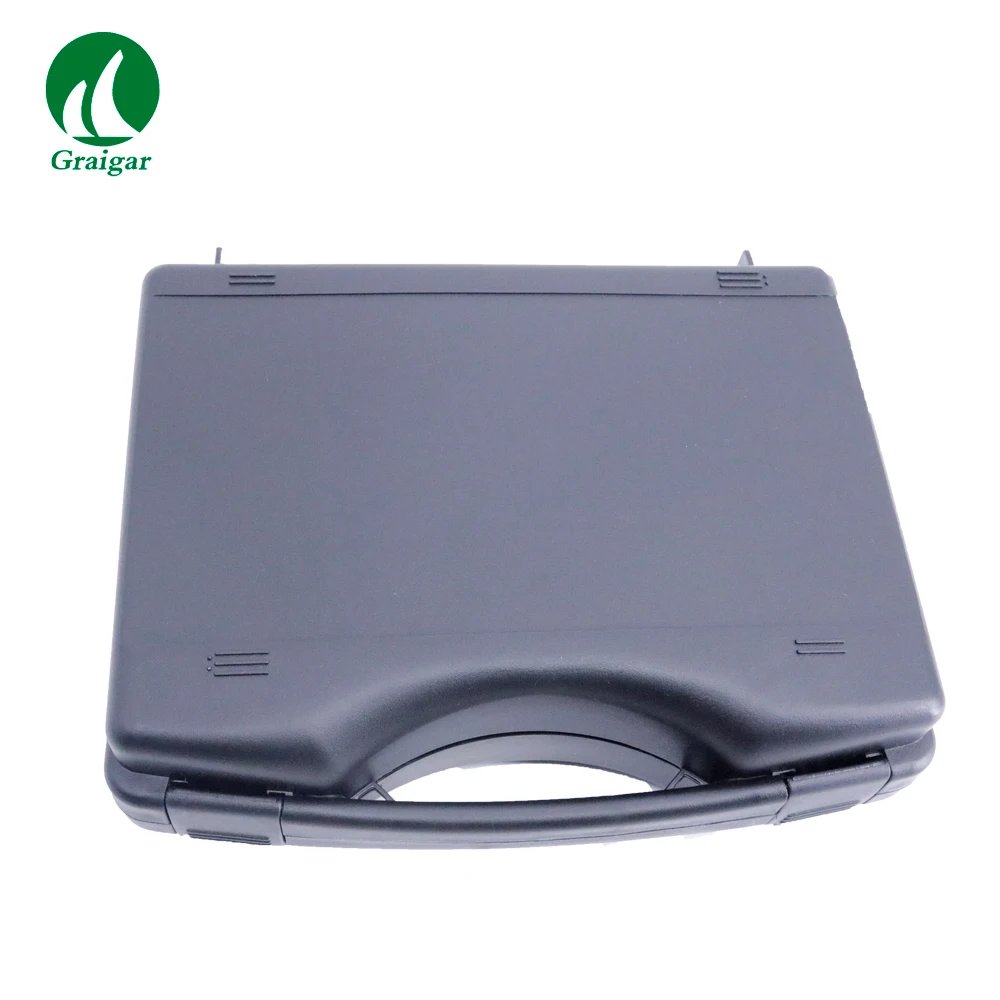

• Easy-to-use portable turbidimeter is equipped with a standard carrying case.

• 2 to 5 points calibration using the Formazin Standards.

• Selectable four turbidity units, including the NTU (Nephelometric Turbidity Unit), FNU
   (Formazine Turbidity Unit), EBC (European Brewery Convention) and ASBC (American
   Society of Brewing Chemists).

• Single measurement mode automatically recognizes the stable readings.

• Continuous measurement mode that can used for indexing and matching the sample vials.

• Auto-Power Off helps user effectively conserve battery life.

• System menu allows setting the 7 parameters, including the date and time, resolution, etc.

• Reset feature automatically resumes all parameters back to factory default options.

• Expanded memory stores and recalls up to 100 readings.

• Stored data can be transferred into computer by USB communication interface.

• Multi-mode power scheme (battery, power adapter, USB port) ensures that use the meter .



Specifications

Model		TB100
Measurement Method		ISO 7027 nephelometric method (90° scattered light)
Range		0~1100 NTU, 0~275 EBC, 0~9999 ASBC
Accuracy		±2% (0~500 NTU), ±3% (501~1100 NTU)
Resolution		0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU)
Calibration Points		2 to 5 points (0.02, 10, 200, 500, 1000 NTU)
Light Source		Infrared-emitting diode, 850nm wavelength
Detector		Silicon photodiode
Stray Light		< 0.02 NTU
Suitable Vials		Round cuvettes, 60×25mm
Power Off		Manual or Automatic (15 minutes after last key pressed)
Memory		Stores up to 100 data sets
Output		USB communication interface
Display		LCD
Power		1×9V/800mA battery
Dimensions		180(L)×85(W)×70(H)mm
Weight		300g

The bottle is empty,the package has no battery.
