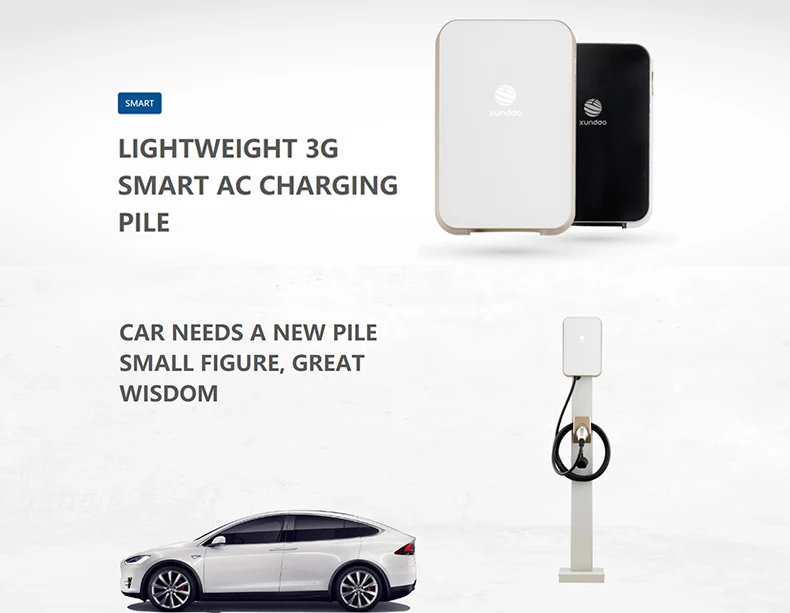

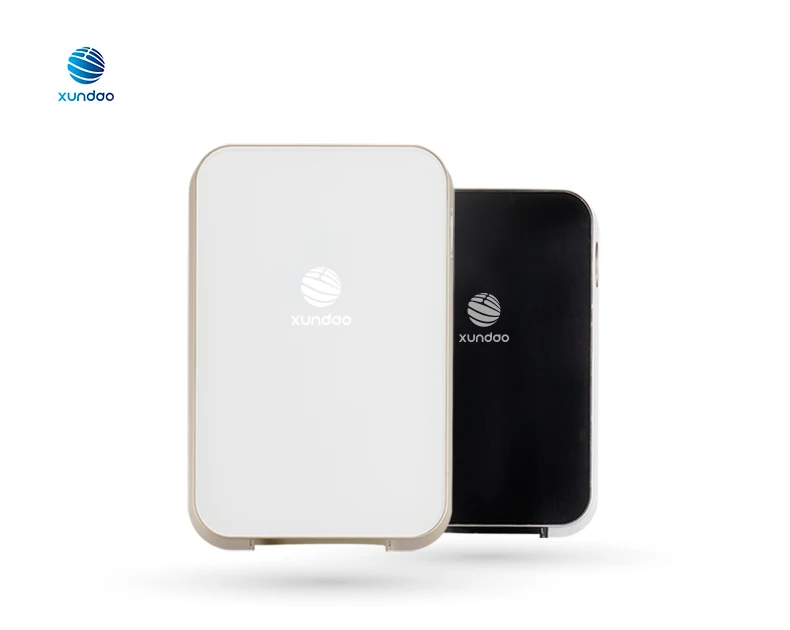

2018 hot selling 32a ev charger station with minimalism fashion look
Product Description
The basic parameters of ev charger station
Specifications
310mm*200mm*80mm
Working temperature
-20°C ~ +50°C
Relative humidity
5% ~ 95%
Protection grade
IP54
The electric part of ev charger station
Rated AC working voltage
220VAC
Rated AC working current
32A
Rated frequency
50Hz
Altitude
≤2000M
The function indication of ev charger station
Charging mode
Automatic, fixed time, fixed rate, fixed amount, appointed

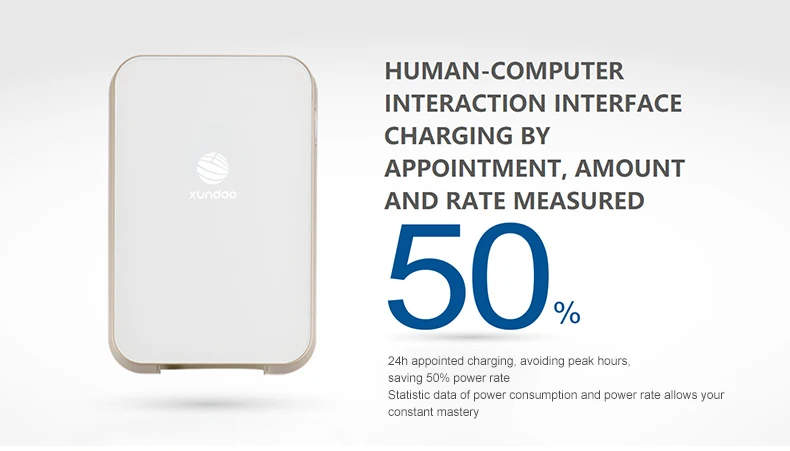

Human-computer interaction interface
Mobile APP
State display
Red, green and yellow LED indicators
User authentication
Mobile phone bluetooth + APP, remote control key
Charging mouth protection
Locking function
Charging control guide function
Compliant with national standard GB/T 18487-2015
Communication mode
Bluetooth 4.0BLE
Measurement method
Grade 2.0 gauge

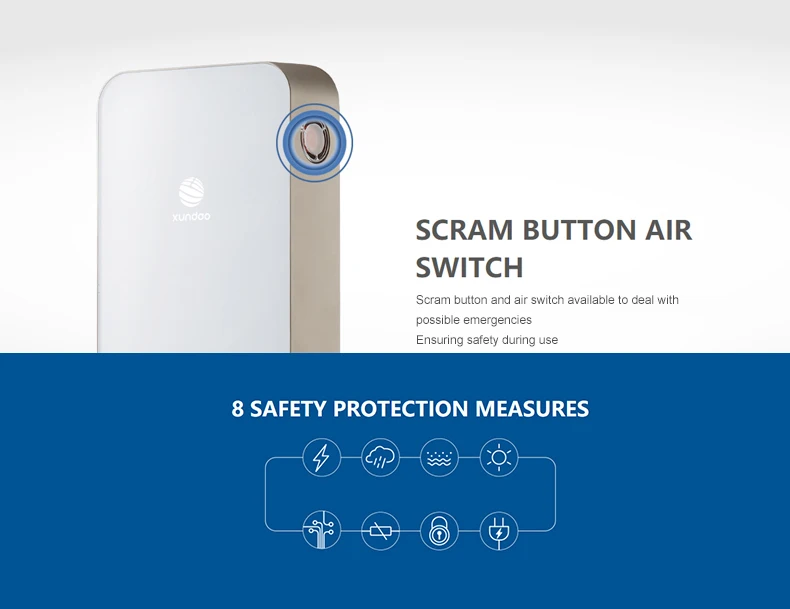

The protection function of ev charger station
Lightning protection
Grade 3 lightning arrester
Protection function
Overvoltage, under-voltage, short-circuit, overload and electric leakage protection
Rated operating current of residual current protection
≤30mA
Rated operating time of residual current protection
≤0.1S
Power line contact of linker
AC380V,63A
Control line contact of linker
DC30V,2A
Mechanical operation life of charging linker
≥10000
Mean time between failures
MTBF≥8760h

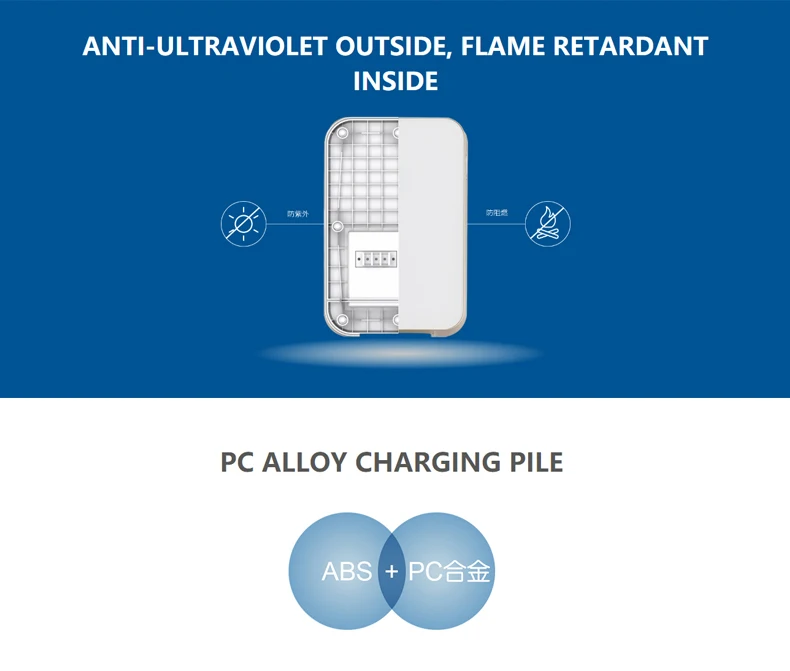

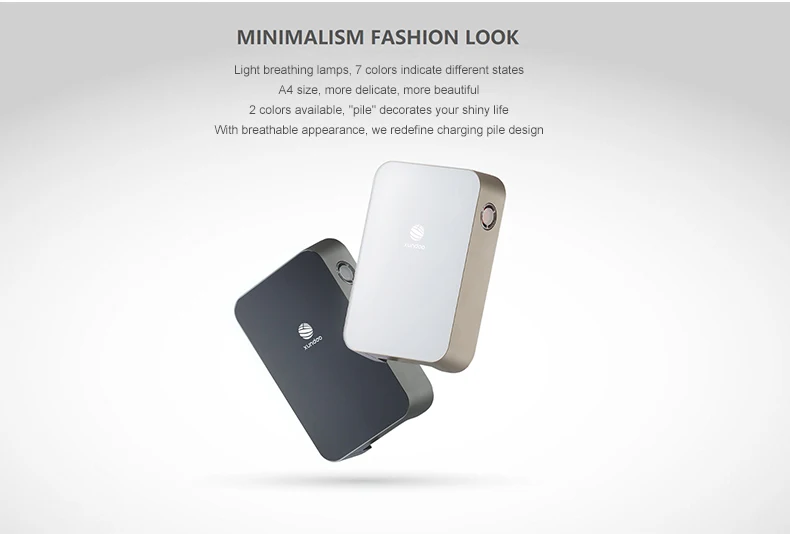

Product Advantages
Company Information

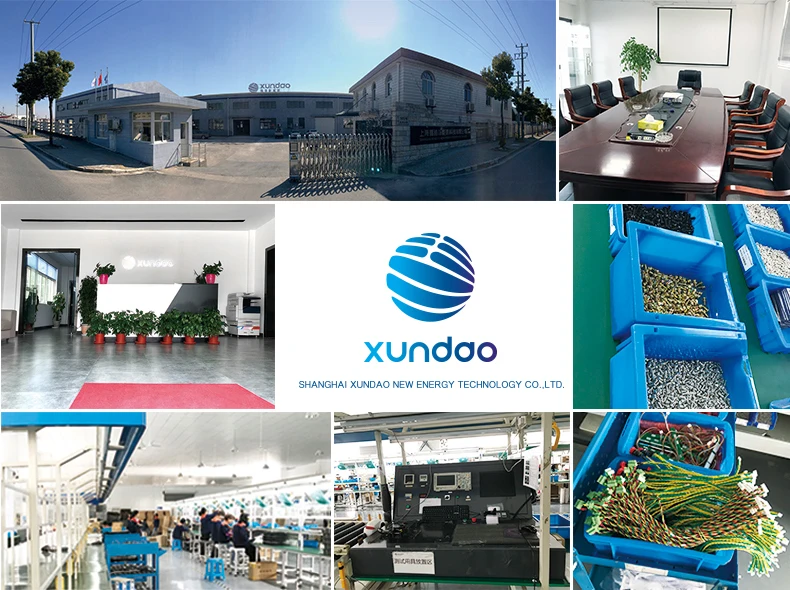

About Xundao
Established in 2011, Shanghai Xundao New Energy Technology Co., Ltd. is a high-tech enterprise identified by Shanghai Municipality. Integrating production, education, research and sales and based on the technology basis of the State Grid and Siemens as well as its own rich manufacture experience, the Company focuses on AC charging equipment, complies with the market trend and develops customer needs to provide customers with various kinds of high-tech charging pile products as well as one-stop service including consultation, on-site exploration, development of installation scheme, on-site construction, installation, debugging and maintenance. Till now from its establishment, Xundao has obtained nearly 30 national patents and its core technology and performance have already in the domestic leading position; more than 20,000 of its products have been delivered to operation service providers, automobile enterprise system, the State Grid, property developers, civil market, etc. Core strengths: a manufacturer dedicated to new energy automobile AC charging facilities, international R&D team, industry leading technology, major account resources, and professional installation.
Our Team
Our Certificates
FAQ
Q1: How about your delivery time? A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: What is your term of packing? A: For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q3: Can I have a sample for testing? A: Yes, we can offer free sample, but you should afford the shipping cost.
Q4: Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds.
Q5: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery,we will send photos and video to you
Q6: How can I get the after-service?
A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.
